Introduction to the Development and Characteristics of HBM Z6 Series Load Cells in Germany

　　German HBMZ6 seriesLoad CellIt is one of the earliest shear beam weighing sensors produced by HBM. Developed in 1972, it has been widely used in the global market due to its extremely accurate measurement results, high self-protection ability, and flexible application. Up to now, several million units have been sold. For decades, the Z6 series has also been continuously optimized to adapt to changes in scales and better meet customer usage needs.

Z6 is based on strain technology and comes in nine different versions, with rated ranges ranging from 5 kilograms to 1 ton, with precision options of D1, C3, C4, and C6. The commonly used versions include Z6FD1, Z6FC3, Z6FC4, Z6FC6, and so on. Z6 sensors with different accuracies have different ranges. In addition, the Z6 series weighing sensors have been optimized for parallel applications and can also provide explosion-proof versions that comply with IECEx ATEX standards.

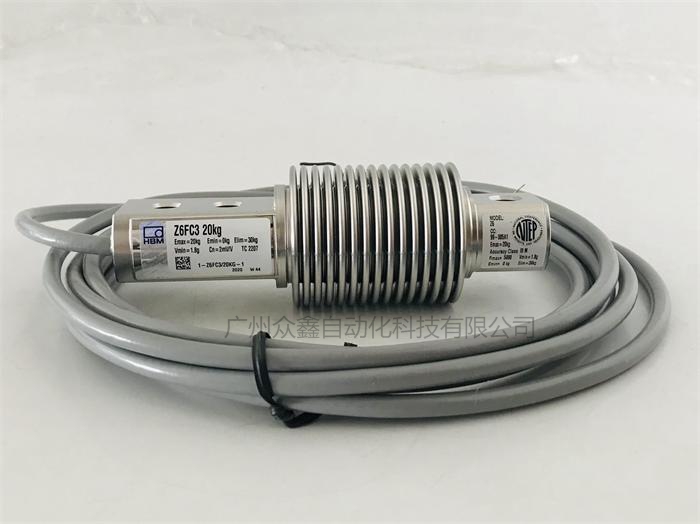

The protection level of the Z6 corrugated tube weighing sensor is up to IP68, and the metal corrugated tube protects the strain gauge inside the sensor to prevent moisture from entering, making it suitable for harsh industrial environments. The Z6 weighing sensor is usually used for platform scales or belt scales, and in combination with weighing modules, it can also be used for material tank weighing.
　

The following is a specific introduction to the characteristics and advantages of the Z6 weighing sensor:

1. Using certified, high-precision weighing technology

(1) OIML standard, with accuracy levels up to D1, C3, C4, C5, and C6

(2) 6-wire system, capable of resistance compensation

(3) Excellent eccentric load performance, low sensitivity error, and output resistance

2. Continuous and reliable weighing

(1) Electropolished stainless steel measuring body

(2) IP68 (100 hours, 1 m underwater)

(3) Metal corrugated pipe sealing

(4) EMC testing according to EN 45501:2015

(5) Sensors and mounting accessories are made of stainless steel

3. Extremely versatile and versatile

(1) Provide different rated ranges: 5 kg, 10 kg, 20 kg, 30 kg, 50 kg, 100 kg, 200 kg, 500 kg, and 1 ton

(2) Metrological certification: OIML, NTEP (USA), NMIA (Australia), Russia

(3) Provide explosion-proof versions (IECEx/ATEX, FM (USA), EAC)

(4) The cable length ranges from 3 to 20 meters

(5) 6-wire system, cable length can be cut according to needs.
