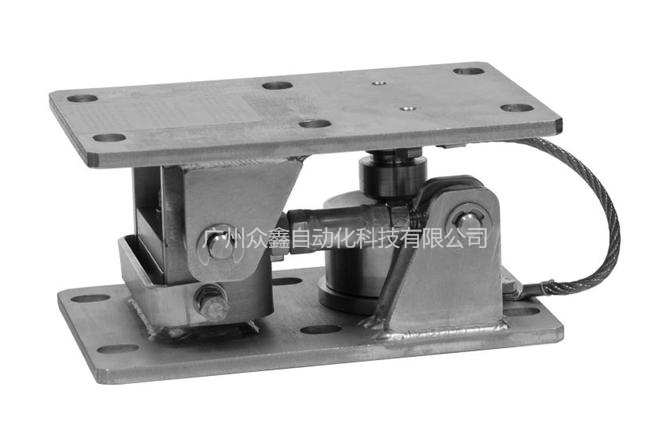

Germany HBM C2A_ Installation instructions for M1 weighing module

　　1、German HBMC2A_ When installing the M1 weighing module in a storage tank, container, or silo, ensure (for example) that there is no impact load on the module when lowering it to the support point. Even if the short-term load exceedsLoad CellThe limit value may also cause damage to the load cell.

2. For heavy containers or unfavorable assembly conditions, appropriate assembly aids (auxiliary brackets, lifting devices) need to be used.

3. The lower module board and upper module board should be firmly connected to the foundation or storage tank.

　　4、Weighing Module The assembly must ensure that it is not affected by lateral forces in its original state. If possible, the installed pendulum bearing must be completely vertically aligned. If the connection between the foundation and the tank is horizontal, and the installation holes on the basic structure are fully aligned with the container connection, then this is the case. The slot holes on the module board facilitate alignment.

5. To prevent welding current from damaging the electronic components of the sensor, an EEK4 grounding cable is provided for installation.

6. Especially in cases of uneven module load, static uncertainty may occur due to inaccurate height adjustment. This non-uniformity should be checked on a single load unit by applying excitation voltage and comparing output voltage. To avoid any overload, it is necessary to compensate for the main non-uniformity by inserting shims on the bearing with the lowest load.
