Introduction and technical parameters of the SPL small range single point weighing sensor from the German HBM brand

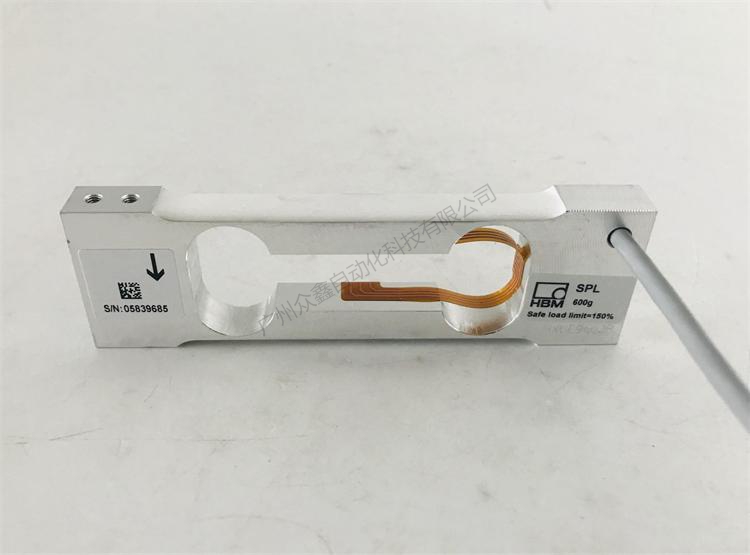

The SPL load cell isGerman HBMA sensor model of the brand, belonging toSingle point weighing sensorSmall in size, mainly with small measuring ranges, ranging from 200g to 3kg, suitable for smaller weighing applications such as platform scales, electronic scales, packaging scales, and other equipment.

The size of SPL is 110 * 33 * 10mm, with a cable length of 350mm. The cable is a shielded cable, and the range can be selected from 200g, 300g, 600g, 1kg, 1.5kg, and 3kg.
　

　　SPLLoad CellThe technical parameters are as follows:

Product model: SPL

Rated range: 200g, 300g, 600g, 1kg, 1.5kg, 3kg

The effect of temperature on zero point:& Plusmn; 0.03% of cn/10K

Sensitivity: 0.8-1.0mV/V

Linear error:& Plusmn; 0.0150% of Cn

Lag Error:& Plusmn; 0.0150% of Cn

Creep Recovery:& Plusmn; 0.020% of Cn

Maximum platform size: 200X200mm

Non central load error:& Plusmn; 0.0233% of Cn

Zero balance:& Plusmn; 0.05mV/V

Input resistance: 380& Plusmn; 38n

Output resistance: 380& Plusmn; 38n

Reference excitation voltage: 5V

Working voltage: 1 15V

Insulation resistance:> 2GQ

Rated external temperature: -10...+40 [+14...+104] ℃ [& deg; F]

Working temperature: -10+ 50 [+14...+122] ℃ [& deg; F]

Storage temperature: -25+ 70 [-13...+158] ℃ [& deg; F]

Safe load: 150% of Emax

Breaking load: 300% of Emax

Deformation under maximum load:< 0.5mm

Weight: 0.07kg

Material: Aluminum

Protection level: IP65

Strain gauge requirements: Modco/PEEK
