The HBB corrugated tube weighing sensor from the United States is designed specifically for multi-sensor applications

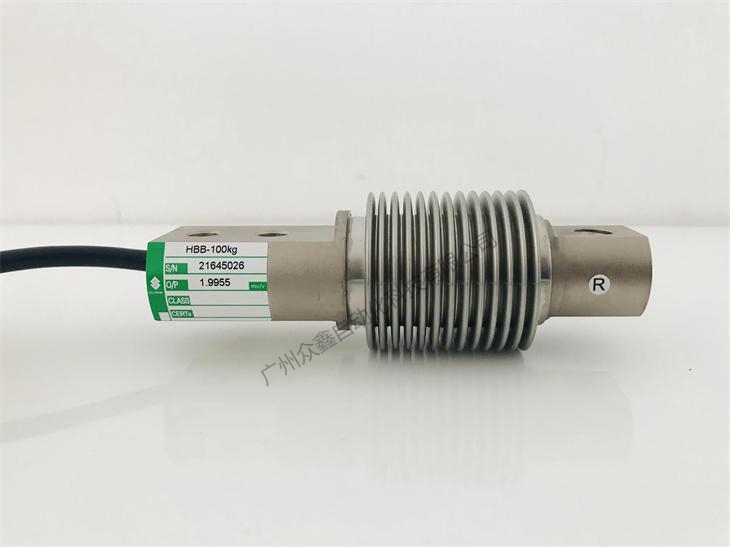

　　Celtron, USAThe brand's HBB model is a single ended curved beam weighing sensor/Bellows weighing sensorMade of alloy steel with high-end load tolerance, easy to install, with a range of 10kg to 250kg, suitable for platform scales (multipleLoad Cell）Equipment such as silo/hopper/tank weighing, packaging machinery, batching/filling, belt scale/conveyor belt scale, etc.
　

The HBB model is designed specifically for multi-sensor applications, such as thin platform scales or small tank scales when used with appropriate installation accessories. It is not sensitive to lateral loads and can be loaded in reverse.
　

In addition to the standard alloy steel structure, the HBB weighing sensor can also choose a stainless steel sealed type. The stainless steel version model is added with SS after the standard version model, such as HBB-20kgSS. The stainless steel version of the HBB weighing sensor has an accuracy level of C3, which has been approved by OIML C3. The stainless steel version also has a protection level of IP68, making it suitable for long-term use in corrosive environments or environments that require flushing.

　

All models of HBB and HBB SS weighing sensors from the United States are as follows:
　

HBB model (alloy steel material):
　

　　HBB-10kg

　　HBB-20kg

　　HBB-30kg

　　HBB-50kg

　　HBB-100kg

　　HBB-200kg

　　HBB-250kg
　

HBB SS model (stainless steel material):
　

　　HBB-10kgSS

　　HBB-20kgSS

　　HBB-30kgSS

　　HBB-50kgSS

　　HBB-100kgSS

　　HBB-200kgSS

　　HBB-250kgSS
