Comparison and Characteristics of Toledo SLB415 and SLB215 Load Cell Products

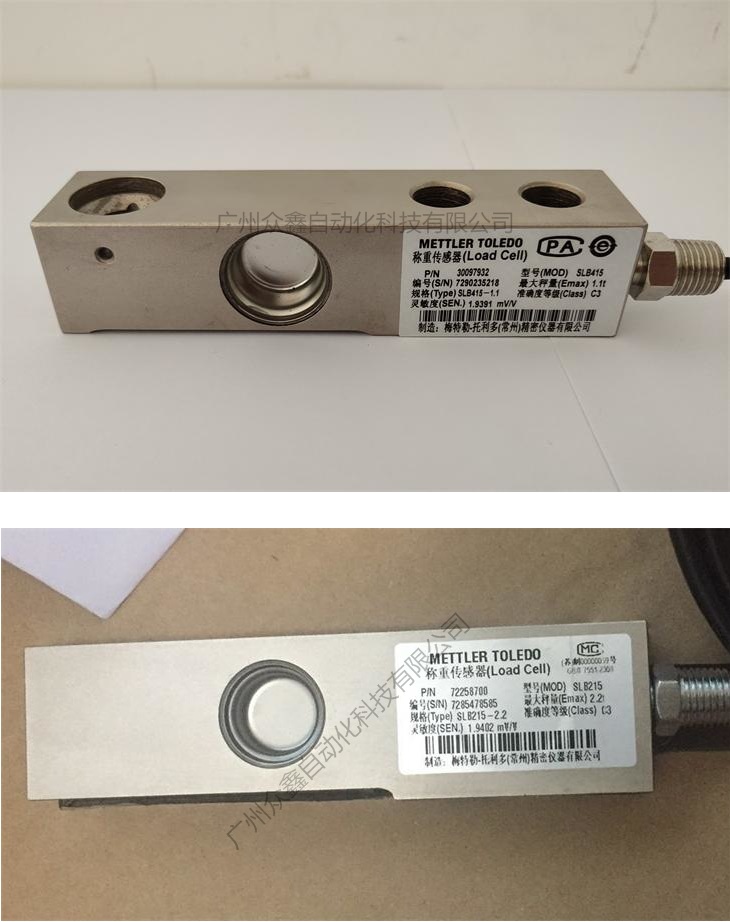

　　Mettler ToledoThe SLB415 and SLB215 models are oneCantilever beam type weighing sensor/Compact beam type weighing sensor, both made of alloy steel material, with approximate parameters and dimensions. The main difference between the two is the load-bearing hole structure, SLB415Load CellThe bearing hole of the SLB215 weighing sensor is a blind hole structure, while the bearing hole of the SLB215 weighing sensor is a threaded hole structure.

The following are the characteristics of SLB415 and SLB215 load cells:

1. Sensor specific alloy steel

Materials have excellent mechanical properties and superior hysteresis, creep, and impact resistance compared to traditional sensor elastomer materials.

2. Surface nickel plating, with a nickel layer thickness of 20-30& Mu; M

Effectively improving the product's service life in industrial environments.

3. Connecting piece fork mounting hole

Convenient for devices and sensors to move together, ensuring that the connectors and sensors do not fall off during movement, making it more convenient to use.

4. Limit structure

Sensors below 1 ton are equipped with limit protection. Reasonable use of limit protection can effectively prevent the impact of impact and improve the service life of products.

　　5、SLB215

Threaded hole connection, standard pitch, can be quickly and conveniently connected to equipment.

6. Laser welding sealing

(1) The diameter of water molecules is approximately 0.4nm

(2) The pore spacing of commonly used packaging materials, silicone rubber, is 10-50nm, allowing water molecules to easily penetrate

(3) The gap between metal atoms is less than 0.5 times the atomic diameter, which is less than 0.1nm, effectively preventing the passage of water molecules, with a protection level of IP68
　

7. Reliable connection between wire and elastomer

Providing reliable electromagnetic interference resistance, the system has passed the immunity test of 10v/m, and can be used with confidence in complex electromagnetic industrial environments.

8. Stainless steel cable joint

More sturdy, durable, and corrosion-resistant.

9. Cable connection parts, pre tinned

Convenient for on-site connection, reducing contact resistance, and improving connection reliability.

10. Sensitivity compensation, sensitivity/output impedance ratio matching

(1) Accurate and reliable net gravity machine testing to ensure consistent sensitivity

(2) The sensitivity is consistent with the output impedance ratio. In the multisensor application system, the performance is better matched, the angular difference is smaller, it is easier to adjust, and the customer on-site service installation time is improved

11. 1/4-18 NPT Male Thread

Facilitate on-site cable threading and protect the cables.
