Introduction to model, overall dimensions and functions of Mettler Toledo XK3141 IND331 weighing instrument

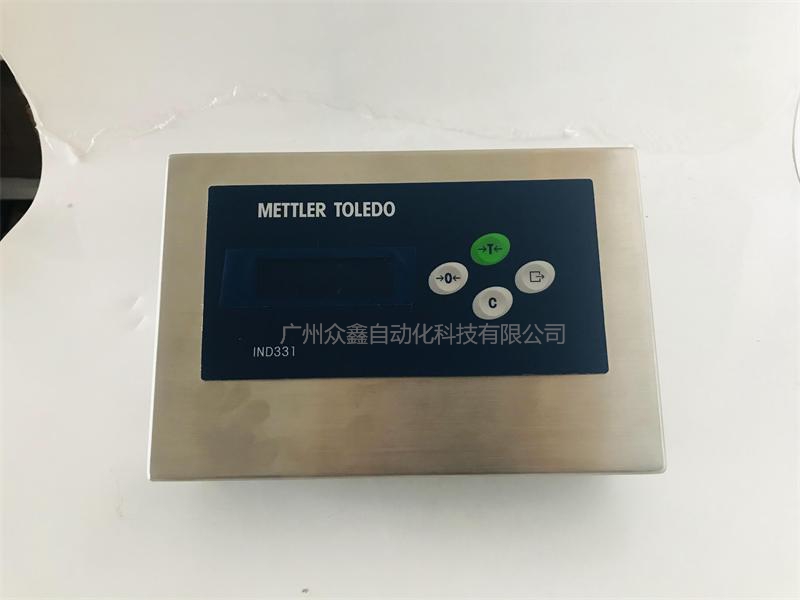

XK3141-6000 IND331 is a weighing instrument from Mettler Toledo, available in two types: 33P1 panel type and 33H1 dustproof type. There are numerous models to choose from to meet different usage needs in different situations. Today, we will mainly introduce the common parameters between different models.

1、 The models of the IND331 weighing instrument

(1) IND331 Panel mounted 33P1, AC power supply

(2) IND331 Panel mounted 33P1, 24V DC power supply

(3) IND331 dustproof 33H1, AC power supply

(4) IND331 dustproof 33H1, 24V DC power supply
　

2、 Materials and protection levels of different models of IND331 weighing instruments

(1) Panel type: stainless steel front panel, plastic shell, front panel and body can be installed in one piece or separately, with IP65 protection level

(2) Dust proof: all stainless steel shell, with operation panel, IP66 protection level

3、 Outline dimensions of IND331 weighing instrument

(1) Panel type: (front panel) 168 mm x 68 mm * 12 mm; (Rear housing) 156 mm x 68 mm x 111 mm

(2) Dust proof: 220 mm x 131 mm x 177 mm

4、 Performance of IND331 weighing instrument

(1) Scale platform: can be connected to 1 analog scale platform

(2) Sensor: Can connect 1-4 350 ohm sensors (sensitivity of 2mV/V or 3mV/V)

(3) Sensor excitation voltage: 5VDC

(4) Minimum sensitivity: 0.6& Mu; V/e (OIML)

(5) Keyboard: There are four buttons, namely C (clear tare), P (print), T (tare), and Z (reset)

5、 The main functions of the IND331 weighing instrument

(1) Zeroing: The instrument can be used directly for button resetting and automatic zero tracking, and can also be reset using the input port or PLC;

(2) Peeling: The button peeling and negative net weight correction can be directly carried out through the instrument, and the peeling can also be achieved through the input port or PLC, and the preset tare weight function can be achieved through PLC;

(3) Peeling: You can directly press the button to clear the tare through the instrument, or use the input port or PLC to clear the tare weight;

(4) Printing: Directly through the instrument, button printing and automatic printing can be carried out (when reaching the preset point), and printing can also be achieved using the input port or PLC;

(5) Pre set point function: can be used for fixed value control, such as dual speed filling of single materials, and other applications;

(6) Comparator function: can be used for sorting, weight detection, upper and lower limit alarms, and other applications;

(7) Flow function: use a comparator or PLC to monitor flow;

(8) SD memory: It can backup and restore setting and calibration parameters, and can also be used to upgrade software;

(9) Insite? Tool: Can I use the PC configuration tool Insite? Perform online/offline parameter settings and backups.

6、 Common models of IND331 weighing instruments

Due to the numerous models of IND331 weighing instruments, only some common models are listed here. If you want to learn more about the parameters represented by the models or want to choose a model, you can consult us through the contact information on the website. The common models and related parameters are as follows:

33P1-00000-000-000-000, basic panel type (PtPN-1000N), only RS232 interface

33P1-0000B-000-000, panel mounted built-in COM2 (RS232/485)/DIO interface (PtPN-1020N) switch relay, capable of controlling 4 valves

33P1-00000-D00-000, panel mounted built-in DeviceNet bus interface (PtPN-1400N)

33P1-00000-B00-000, panel mounted built-in AB RIO bus interface (PtPN-1600N) AB RIO communication board discontinued

33P1-00000-A00-000, panel mounted built-in 4-20mA analog output interface (PtPN-1800N)

33P1-00000-P00-000, panel mounted built-in Profibus DP bus interface (PtPN-1900N)

33P1-00000-K00-000, panel mounted built-in CC link communication interface

33P1-00000-T00-001, panel mounted built-in Profinet industrial Ethernet interface, 220V power supply

33P1-00000-T00-301, panel mounted built-in Profinet industrial Ethernet interface, 24V power supply

33P1-00000-E00-001 Panel mounted built-in Ethernet/IP industrial Ethernet interface, 220V power supply

33P1-00000-E00-301 Panel mounted built-in Ethernet/IP industrial Ethernet interface, 24V power supply

33P1-0000B-A00-000, panel mounted built-in relay output, COM2 serial port, 4-20MA analog output (up to 2 communication port boards can be installed)

33P1-0000B-t00-000, panel mounted built-in relay output, COM2 serial port, with Profinet output (up to 2 communication port boards can be installed)

33H1-00000-000-J00, dustproof basic type (PtHN-1000N)

33H1-0000B-000-J00, dustproof built-in COM2 (RS232/485)/DIO interface (PtHN-1020N)

33H1-00000-D00-J00, dustproof built-in DeviceNet bus interface (PtHN-1400N)

33H1-00000-B00-J00, dustproof built-in AB RIO bus interface (PtHN-1600N) AB RIO communication board discontinued

33H1-00000-A00-J00, dustproof built-in 4-20mA analog output interface (PtHN-1800N)

33H1-00000-P00-J00, dustproof built-in Profibus DP bus interface (PtHN-1900N)

33H1-00000-K00-J00, dustproof built-in CC link interface

33H1-00000-T00-J01, dustproof built-in Profinet industrial Ethernet interface, 220V power supply

33H1-00000-T00-301, dustproof built-in Profinet industrial Ethernet interface, 24V power supply

33H1-00000-E00-J01, dustproof built-in Ethernet/IP industrial Ethernet interface, 220V power supply

33H1-00000-E00-301, dustproof built-in Ethernet/IP industrial Ethernet interface, 24V power supply

33H1-0000B-A00-000, dustproof built-in relay output, COM2 serial port, 4-20MA analog output (up to 2 communication port boards can be installed)
