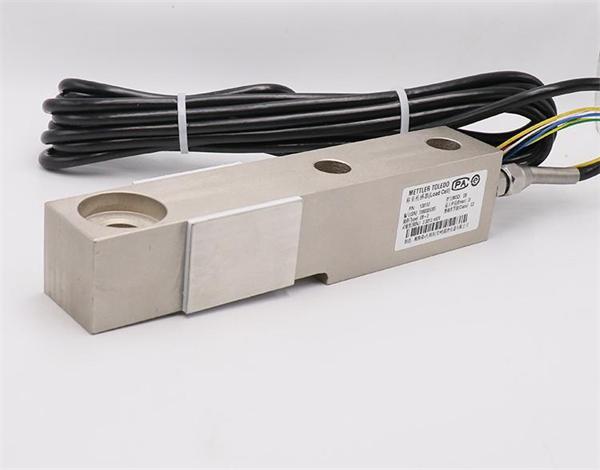

Parameter specifications of weighing sensors (in both Chinese and English)

CAP: 300kg (range)

S/N: X02274 (factory number)

Model: SB

Recommended Excitation: 10V AC/DC

Maximum Excitation: 15V AC/DC

Output at Rated Load: 2.9981 mV/V

Non Linearity:< 0.020% (non-linear)

Hysteresis:< 0.020% (lagging)

Creep (30 minutes): 0.029% (30 minute peristalsis)

Non Repeatability:< 0.01% (non repeatability)

Zero Retum (30 minutes): 0.030% (30 minute zero drift)

Temp. Effect/℃ on Span:< 0.0015% (effect of temperature change of 1 ℃ on range)

Temp. Effect/℃ on Zero:< 0.0026% (effect of temperature change of 1 ℃ on zero point)

Compensated Temp.Range: -10 to 40 ℃ (temperature compensation range)

Operating Temp.Range: -20 to 60 ℃ (operating temperature range)
Zero Balance:± 1% (zero balance)

Input Rest: 380± 5Ω (Input impedance)

Outputstant Resistance: 350± 3Ω (Output impedance)

Insulation Resistance (50VDC):> 5000MΩ (Insulation resistance)

Reflection at Rated Load: Nil
　　
Safe Overload: 150% (overload allowed)

Ultimate Overload: 300%
