SBT MK weighing module with optional range of 100kg to 2T from the US Zhongkessel brand

1、 Product Introduction of SBT MK Weighing Module from the US ZXSCELL Brand

Product brand:ZXSCELL in the United States ZXSCELL

Product series:SBT MK

Product Type:Weighing Module

Product Range: 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 1T, 1.5T, 2T

Product Introduction: The SBT MK weighing module is compatible with ZXSCELL's SLBH series cantilever load cell, with a rated range of 100kg to 2T. The self resetting sensor generates a restoring force during dynamic weighing, which automatically returns the weighing platform to a stable position, making weighing more accurate and reliable

Product features:

(1) Alloy steel material with nickel plating on the surface

(2) Using SLBH sensors

(3) Support bolts to prevent equipment from overturning

(4) Self reset function, anti lift device

(5) Suitable for electronic platform scales, mixing plants, and ingredient scales, etc

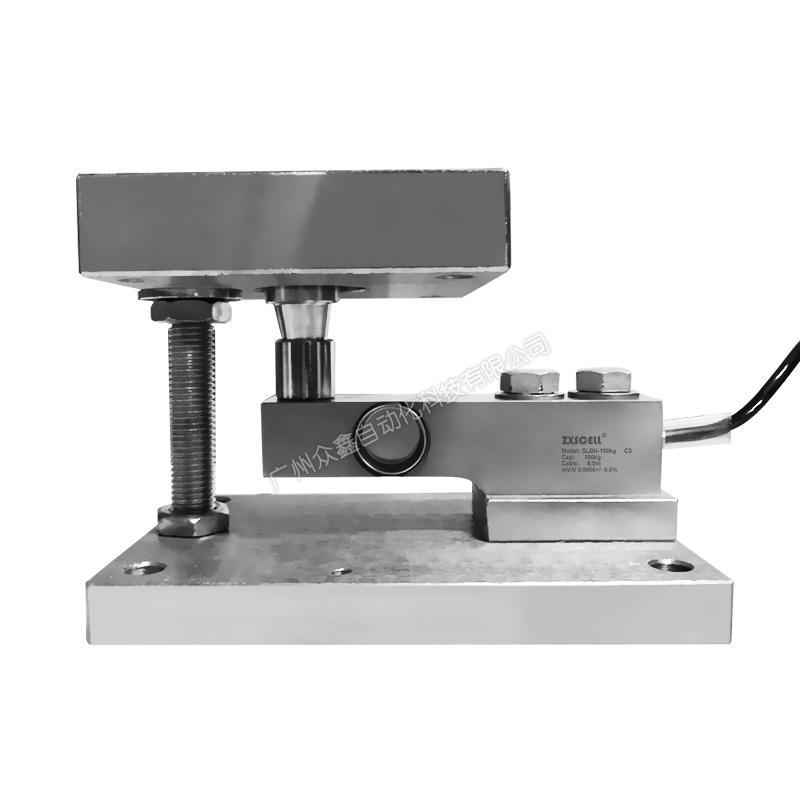

二、美国中克塞尔品牌 SBT MK称重模块图片

三、SBT MK称重模块产品型号

SBT MK 100kg

SBT MK 150kg

SBT MK 200kg

SBT MK 250kg

SBT MK 300kg

SBT MK 500kg

SBT MK 1t

SBT MK 1.5t

SBT MK 2t

四、称重模块现场安装注意事项

Before installation, please check the foundation condition. Each installation point plane is perpendicular to the stress surface, and the levelness of the same foundation surface should be controlled within 1mm/m. The foundation bearing capacity should be greater than the range of the sensor

1) Before installing the module, please adjust the sensor and upper board to a horizontal state;

2) After the module installation is completed, please adjust the limit properly;

3) The pendulum support is mainly used to prevent equipment from overturning and is not used for weighing and measuring. It has a certain gap with the bearing plate and the pendulum support nut is locked tightly;

4) Cable color code (conventional sensor wire code, mainly based on certificate of conformity wire code)

Note: During equipment debugging, if there is a large angle difference, poor instrument return to zero, or a small or no change in weight value after weight loading, please check if the module limit part is stuck or slightly affected by friction; Check the peripheral hardware connections of the device for external forces, such as the impact of dead connections in pipelines on weighing
