CB900F electronic weighing instrument Zhuhai Zhimei brand ingredient controller



1、 CB900F Electronic Weighing Instrument Product Introduction

Product brand: Zhuhai Zhimei CHIMEI

Product type: batching controller, electronic weighing instrument

Product Usage: Suitable for industrial applications with comprehensive functions such as packaging and ingredients

Product details:

(1) Dual display screen displays both gross and net weights simultaneously

(2) Automatic detection reset circuit

(3) Can control four different types of materials

(4) All preset ingredient quantities have power outage protection function

(5) All materials have their own rough measurement, fine measurement, and overshoot compensation

(6) Provide unloading control function

(7) Inspection beyond tolerance range

(8) Output ingredient information through RS232 output gate

(9) RS232 input can be used to preset ingredient quantity data and system function data

(10) Provide digital filtering for various environments

(11) Provide delayed start timer for special applications

(12) Delayed discharge timer controlled by software

(13) Selectable zero range

(14) Selectable tolerance range

(15) Optional tolerance check delay time

(16) Prohibiting the comparison of time can eliminate errors that occur during production start-up or coarse/fine metering conversion

(17) Option to measure the number of compensation times

(18) Full digital calibration and function setting

(19) Can independently perform zero and full scale calibration conversion rate up to 120 times/second

(20) Selectable BCD output rate

(21) Standard RS232 input/output port

2、 CB900F Electronic Weighing Instrument Product Parameters

3、 CB900F Electronic Weighing Instrument Product Dimensions

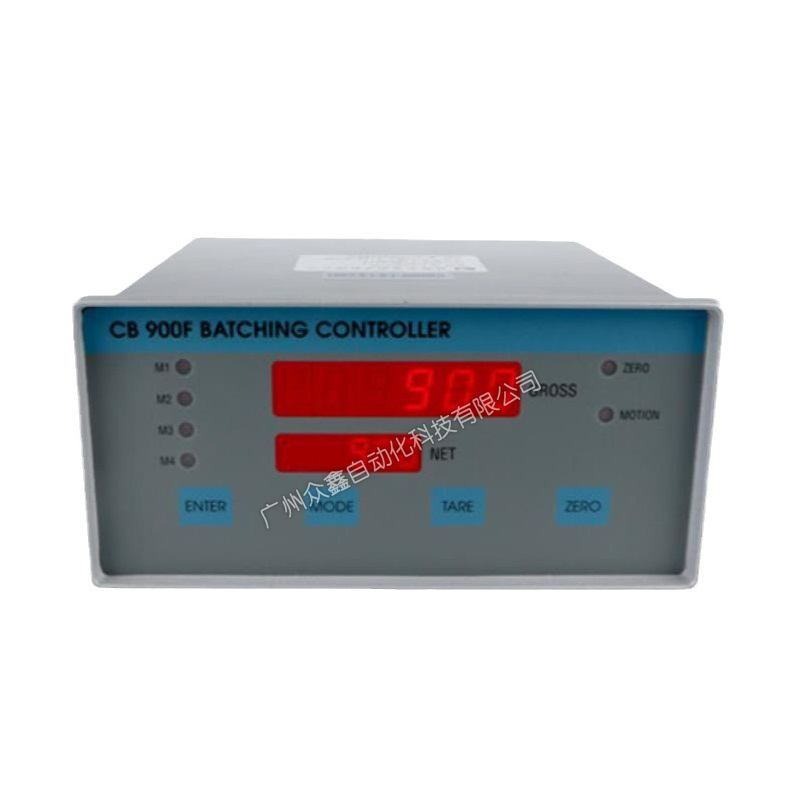

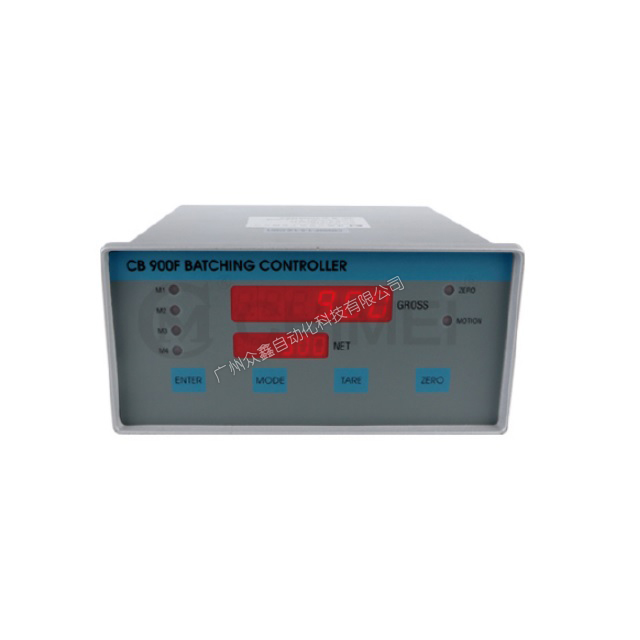

4、 CB900F Electronic Weighing Instrument Product Picture
