Zhimei CB920X weighing instrument

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
【Guangzhou Zhongxin Automation Technology Co., Ltd】Professional Supply Zhimei CB920XWeighing instrumentZhimei CB920X weighing instrument ensures fast delivery time, 100% original imported products, 10 years of industry experience, focusing on high-end high-quality sensor services, and providing complete automation solutions.Zhuhai Zhimei Weighing InstrumentIt is one of the key competitive products of the company, with Absolute advantage price, spot, original, authentic and reliable! Ensure satisfactory price and quality! We solemnly promise: "Within three months, if there are any quality issues, we will unconditionally return or exchange the goods, refund the full payment, and do not charge any fees. 1 year warranty, ready for repair!

　
Product Introduction:

The CB920X weighing and batching instrument uses the latest Delta Sigma chips from the 21st century to achieve high accuracy and fast conversion effects. Using RS485 standard interface for multi-point or long-distance communication, in addition to the original software functions of CB920, multiple new software functions are added, suitable for different ingredient or packaging systems.

Technical characteristics：

High speed analog-to-digital conversion up to 200 times per second
● Display accuracy up to 1/15000
Optional RS485 as standard serial output input port
Multi point communication can be achieved through RS485 device
The starting conditions for ingredients can be set through the menu
The automatic peeling conditions for ingredients can be set through the menu
Can be set to automatically reset to zero when powered on
The display and maintenance function of the net weight of ingredients can be set through the menu
The maximum range of overshoot can be set to ensure that the automatic compensation function does not cause errors due to mechanical failures
Slow control can set delay time
● Control the comparison frequency setting to ensure that automatic control does not cause incorrect control due to impact on the weighing body
● Can be set to start peeling delay time
● The number of peeling detection times can be set to avoid peeling errors caused by unstable weighing conditions
The prohibition comparison time for fast and slow speeds can be independently set
The temperature coefficient is less than (± 0.0008% of reading+0.3 digits)/℃
Equipped with dual digital filtering
When the dosage is lower than the tolerance, it can be used as an additive ingredient
Equipped with jog batching function, making batching faster and more accurate
● Use detachable sockets

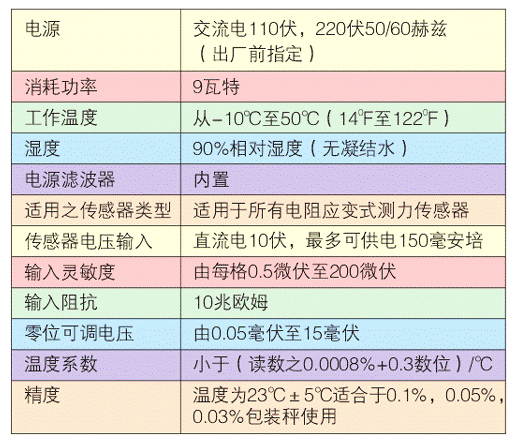

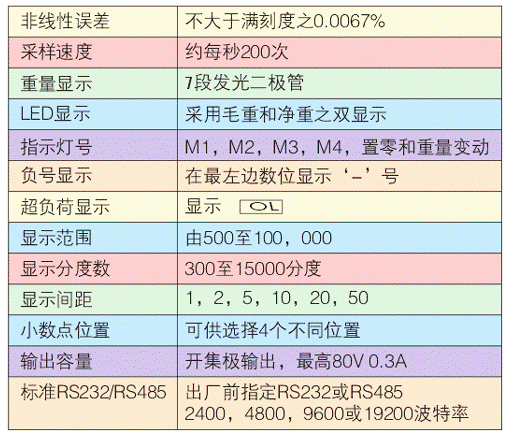

Technical parameters:

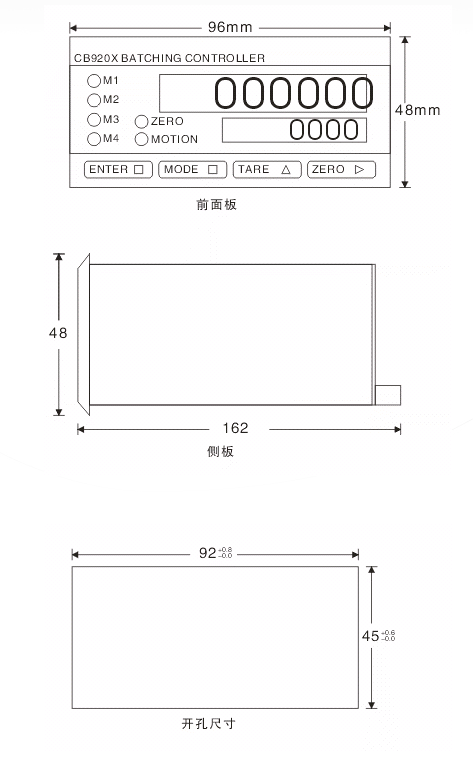

Dimensional drawing

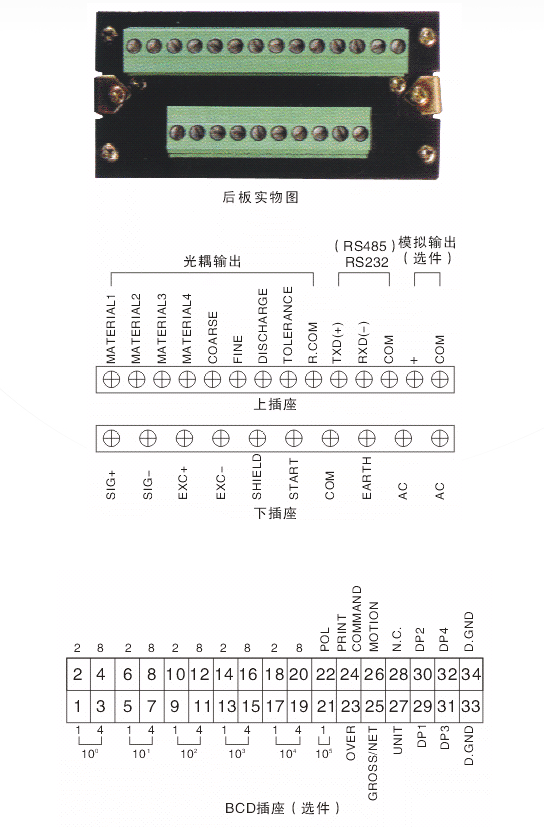

Wiring diagram



Extended Reading
Application and maintenance of weighing instruments
　
After the calibration of the weighing instrument, it can be put into use. During the application process, attention should be paid to the maintenance of the weighing instrument. The maintenance workload of weighing instruments is not significant, mainly by regularly checking the working condition of weighing instruments during inspections. The basic maintenance tasks include:.
1. Regularly inspect and clean to avoid impurities accumulating on tanks, sensors, and junction boxes that may affect measurement;
2. To ensure that the tested container integrated with the top plate is floating and free from other mechanical contact or jamming phenomena;
3. Attention should be paid to changes in the mechanical structure of the tank, including changes in pipelines and equipment. Any changes in the mechanical structure of the tank may affect the accuracy of weighing;
4. Regularly check the limit bolts or connecting rods to ensure sufficient clearance is maintained to avoid the limit bolts from touching the upper roof during normal production;
5. Check whether the sensors, connectors, and limit devices are excessively worn, and replace them if worn;
6. Check whether the junction box is sealed and whether various wires are securely connected;
7. Whether there is moisture or foreign objects inside or around the junction box, whether there are strong electromagnetic interference devices added near the junction box and sensors, and whether there are new objects that generate high temperatures added;
8. Check if the instrument cable is damaged and fixed on the scale body;
9. Check if the scale body moves freely;
During use, there may be issues with inaccurate measurements. It is necessary to first check if there are any foreign objects relying on the weighing container pipeline or the pipeline above it, and if the limit bolts are touching, before conducting other inspections.
On site, it is simple to determine whether the measurement is accurate. Sometimes, a person can be arranged to stand in the vicinity of several weighing sensors to see if the values displayed by the weighing controller are consistent and whether it is the person's weight. This method is simple and effective. If the data displayed on each sensor is inconsistent, it means there is an angle difference. It can be judged that the data measured by this weighing instrument when measuring a heavy object is inaccurate, and the height of each sensor needs to be adjusted to eliminate the difference. If there is no angular difference, but the displayed data is incorrect, the scale needs to be recalibrated. To judge whether the weighing body works normally, you can also push the weighed container or tank with your hand for a short time to see whether the displayed data changes and returns to the value before pushing. If the previous value cannot be restored, it indicates that there is a problem with the external mechanical connection of the weighing body, and there is external force supporting the tested container or tank body.
　

The above is the detailed information of the Zhimei CB920X weighing instrument. If you have any questions about the price, delivery time, model, or inventory of the Zhimei CB920X weighing instrument, please feel free to call18520271262Obtain the latest price details of the Zhimei CB920X weighing instrument.
