T800 Weighing Instrument Mettler Toledo XK3133 (T800) T800-5000-023

1、 T800 Weighing Instrument Product Introduction

Product brand:Mettler Toledo　METTLER TOLEDO

Product model: T800

Product Type: Weighing Instrument

Product Introduction: T800 is a high-performance, multifunctional industrial grade weighing instrument that is suitable for various industrial weighing scenarios. It is compatible with both analog and digital sensors and integrates multiple advantages such as precise measurement, data management, and intelligent operation. With stable performance and strong adaptability, it is an ideal supporting equipment for industrial weighing, material accounting, vehicle weighing, and other scenarios.

Product Features:

(1) Display: 5.7 "1/4VGA LCD display. Resolution: 320x240.

(2) Backlight lifespan: 20000 hours.

(3) Keyboard: 32 membrane keyboards that can input Chinese, letters, and numbers.

(4) Shell: T800 ordinary type, cast aluminum alloy; T800 dustproof type: stainless steel IP69K protection

(5) Sensor excitation voltage: 10VDC (analog sensor) 12VDC (digital sensor). Instrument load capacity: Up to 16 350 Ω analog sensors (two scales) or 10 PowerCell digital sensors (24 PowerCell sensors can be connected if an external power supply is used) can be connected.

(6) Zero input signal range: 0~10mV.

(7) SPAN input signal range: 3~30mV.

(8) Internal resolution: 2000000.

(9) Degree range: 1000 to 100000

(10) A/D conversion rate: 10-20 times/second.

(11) Working voltage: 87~264VAC, current: 0.3A

(12) The operating temperature is -10 ° C to 40 ° C, the relative humidity is 10% to 85%, and it does not condense.

(13) The storage temperature is -20 ° C to 60 ° C, the relative humidity is 10% to 85%, and it does not condense.

Main functions:

(1) A large screen high brightness dot matrix LCD display can display a large amount of information.

(2) Full Chinese display interface, online Chinese character input and printing.

(3) Simultaneously supporting analog sensors and digital sensors (requiring different interface boards).

(4) Can connect two weighing platforms simultaneously.

(5) Basic weighing function: reset, skin removal, skin removal, automatic zero tracking of gross and net weight status.

(6) Digital filtering: TraxDSP digital filtering technology.

(7) EWR patented technology: replace A/D board, no calibration required.

(8) Vehicle number/tare weight function: 1000 vehicle numbers with tare weight storage.

(9) User defined fields: Users can define project names, input Chinese characters, and perform sub item accumulation.

(10) Embedded network database. Weighing data can store up to 10000 sets of data, with power failure protection.

(11) Data browsing: The weighing data browsing function allows for the creation of additional measurement orders at any time.

(12) Data Summary: Print and summarize weighing data based on any time period, with the function of item accumulation.

(13) Time and date function: power failure protection.

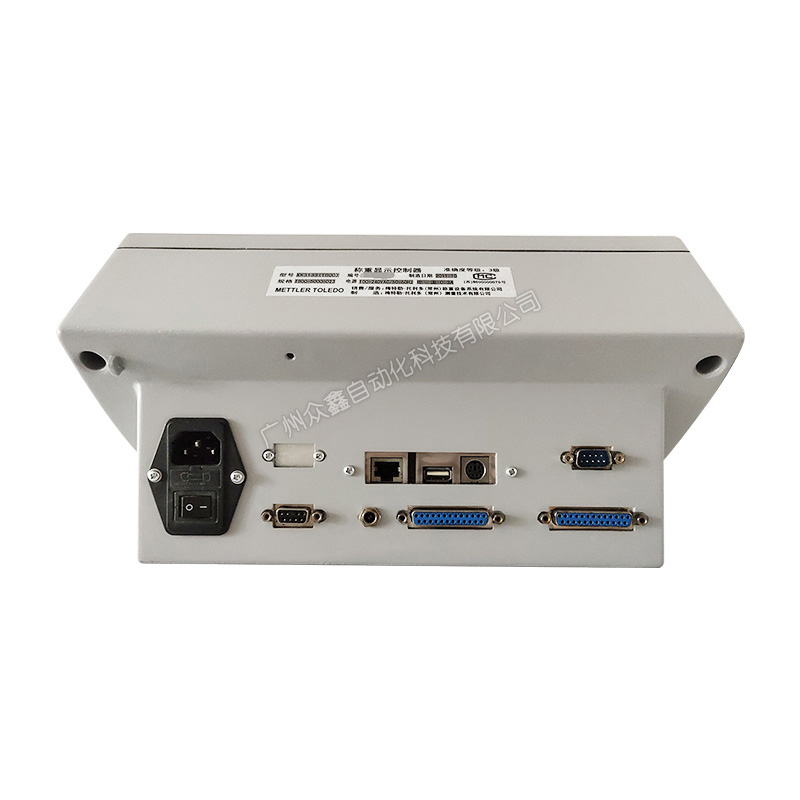

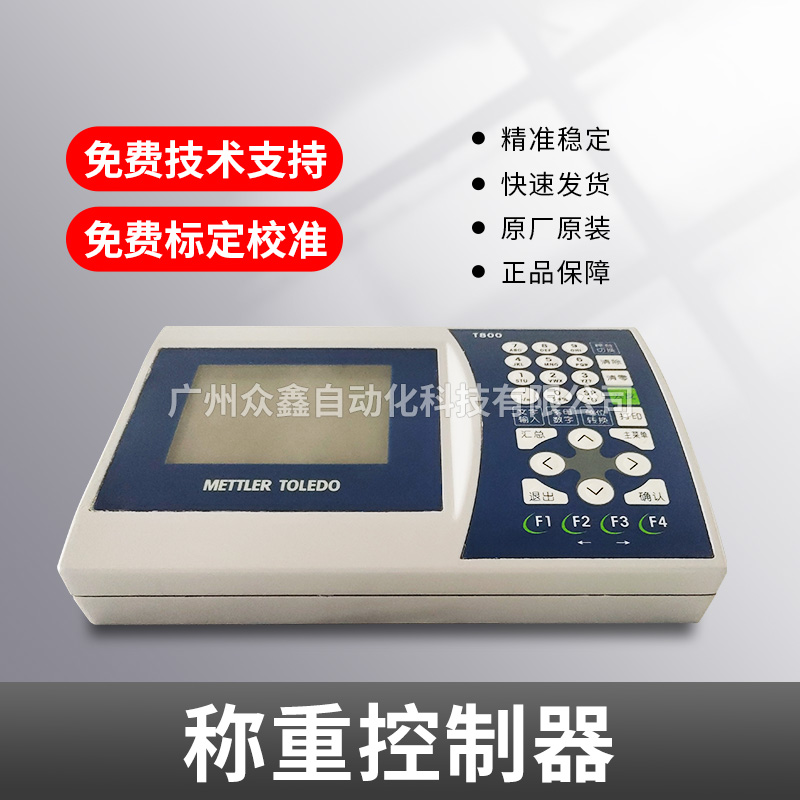

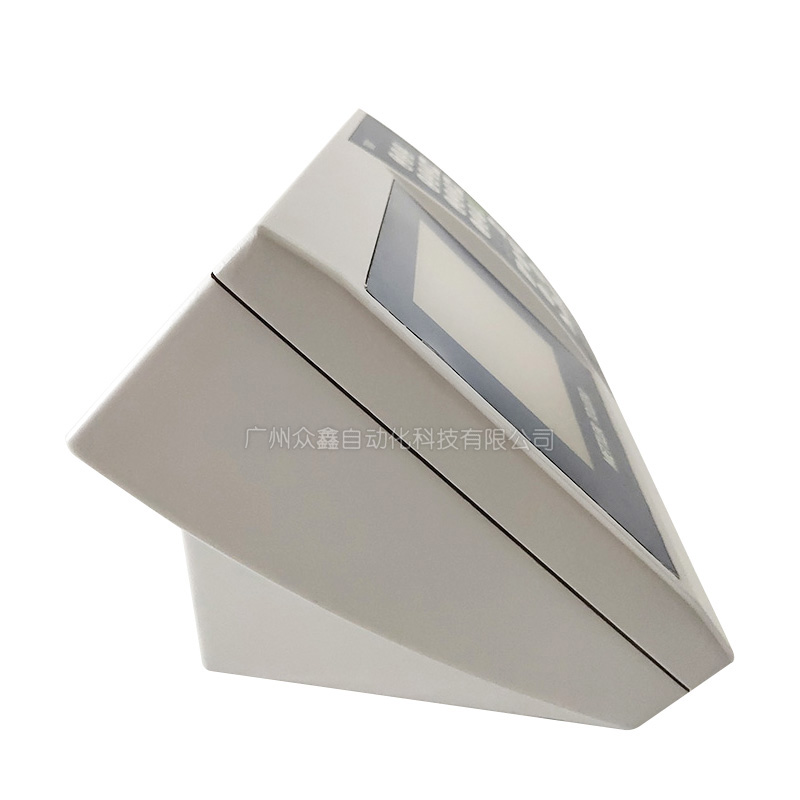

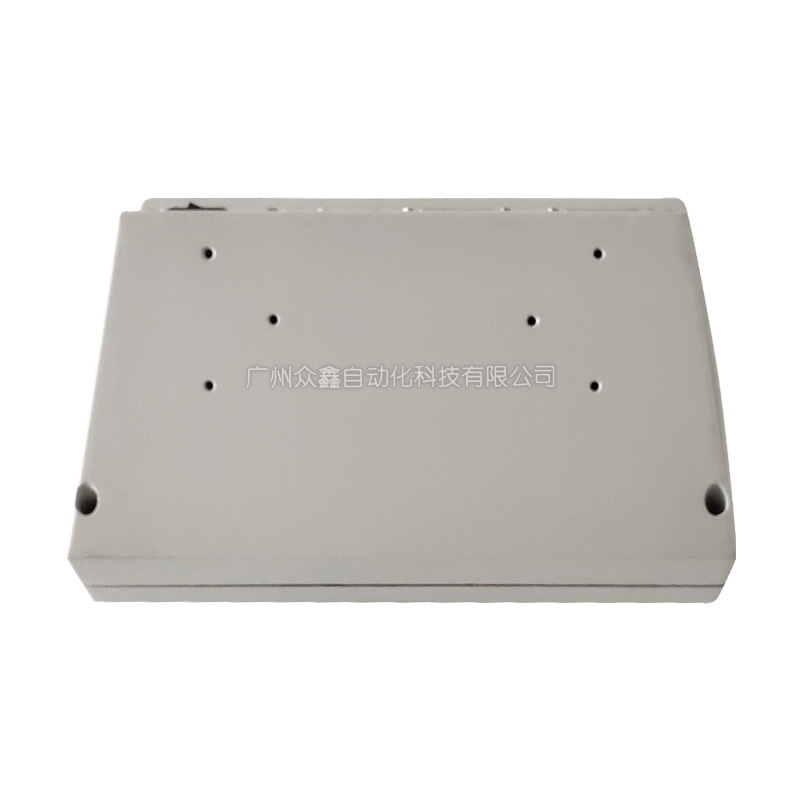

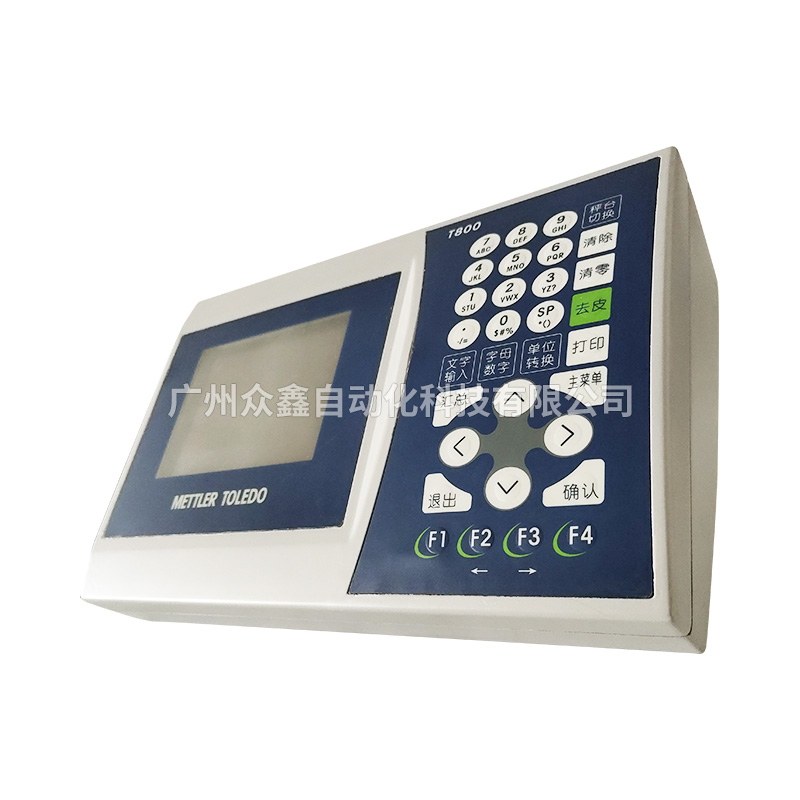

2、 T800 weighing instrument product picture
