IND256x weighing instrument Mettler Toledo explosion-proof weighing instrument intrinsic safety explosion-proof design

1、 Introduction to IND256x Weighing Instrument Products

Product brand:Mettler Toledo　METTLER TOLEDO

Product model: IND256x

Product Type: Weighing Instrument, Explosion proof Weighing Instrument

Product Introduction: The IND256x instrument is an explosion-proof weighing instrument that can be used in hazardous 1/21 zones of dangerous gases and dust. The product design fully meets the latest explosion-proof regulations and mainly adopts an intrinsic safety explosion-proof design. It provides various intrinsic safety communication interfaces to form a cost-effective weighing system, providing a safe, stable, and flexible weighing solution.

Product Features:

(1) Inherent safety protection design

(2) Configurable built-in power supply (AC220V or DC24V)

(3) Explosion proof wireless communication, powered by explosion-proof batteries

(4) Chinese and English graphical display interface

(5) Data can be saved and uploaded

Customer value:

(1) Compliant with explosion-proof regulations

(2) Reduce installation space and simplify configuration

(3) Overcoming wiring difficulties and adapting to mobile weighing

(4) Convenient for daily operation and calibration

(5) Make production data traceable

Product Application:

(1) Tank weighing and PLC communication

The IND256x explosion-proof weighing instrument can monitor the weight of the material tank, transmit weight information in real time through intrinsic safety analog 4-20mA, and send it to the PLC/DCS in the safety zone through the safety barrier.

(2) Data collection in mobile weighing

The IND256x explosion-proof weighing instrument can store 60000 weighing data and send them wirelessly to computers in safe areas.

(3) Label printing

The IND256x explosion-proof weighing instrument can customize label printing templates. After each weighing is completed, the instrument sends data to the printer to print customized labels.

(4) Remote display

When performing weighing operations with the IND256x explosion-proof weighing instrument, a second IND256x instrument can be connected to display the current weight from a distance.

2、 Advantages of IND256x weighing instrument products

1. Completely reliable security protection, excellent intrinsic safety protection technology

With reliable intrinsic safety explosion-proof technology, the IND256x explosion-proof weighing instrument can withstand the hazardous 1/21 zone of hazardous gases or dust in harsh environments. The product design fully meets the latest explosion-proof regulations.

(1) Zero risk product lifecycle management to eliminate safety hazards

(2) Both hazardous gas and dust environments are certified to meet the safety requirements of different industries

(3) IP66 rated all stainless steel casing, washable with water for easy cleaning and corrosion prevention

2. Easy installation, convenient operation, integrated design, and friendly human-computer interaction

Most intrinsically safe weighing instruments require an external explosion-proof power supply for power supply. The IND256x explosion-proof weighing instrument has a built-in power supply and communication interface design, which facilitates on-site installation and system integration, while making daily operation and calibration quick.

Integrated design:

(1) Built in power supply design saves space for on-site installation

(2) Can be powered by AC 220V or DC 24V to meet different site conditions

(3) Built in intrinsic safety communication interface for easy connection

Friendly human-machine interface:

(1) Support displaying menus in both Chinese and English

(2) Wear resistant film keyboard, good tactile keys

(3) Navigation buttons and 5 custom buttons make operation simple

3. Get rid of the wiring constraints in explosion-proof environments and collect wireless data

The IND256x explosion-proof weighing instrument can be equipped with a Wi Fi communication module for data collection, making production management traceable. Meanwhile, wireless communication can overcome the limitations of wiring in explosion-proof environments and reduce the cost of on-site modifications.

(1) Modular optional accessories, can be used in danger zone 1/21

(2) The setting method is consistent with the standard wireless usage

(3) Cost of long-distance wiring for provincial governor

(4) More suitable for data collection in mobile weighing

4. Flexible functionality, high cost-effectiveness, suitable for different application solutions

The IND256x explosion-proof weighing instrument can not only be used for simple weighing, but also provide various solutions according to different application scenarios, such as weight inspection, label printing, data tracing, etc.

Weight check:

(1) Clearly indicate overload or underload status through graphical status symbols

(2) 25 preset target values, easy to edit and configure

Printing:

(1) Support custom printing templates, which can be pre edited and saved in the instrument panel

(2) The relevant information of weighing can be configured and printed

Data traceability:

(1) Can save 60000 weighing transaction records

(2) 3 custom ID fields that can be used as auxiliary information (such as employee number, material number, batch number) for printing or outputting

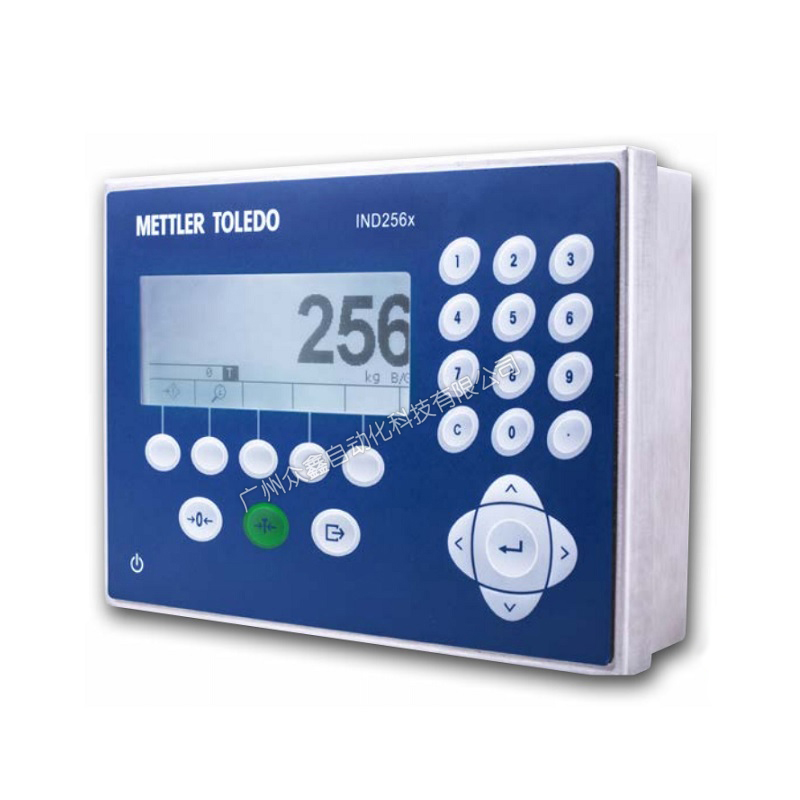

3、 Product image of IND256x weighing instrument

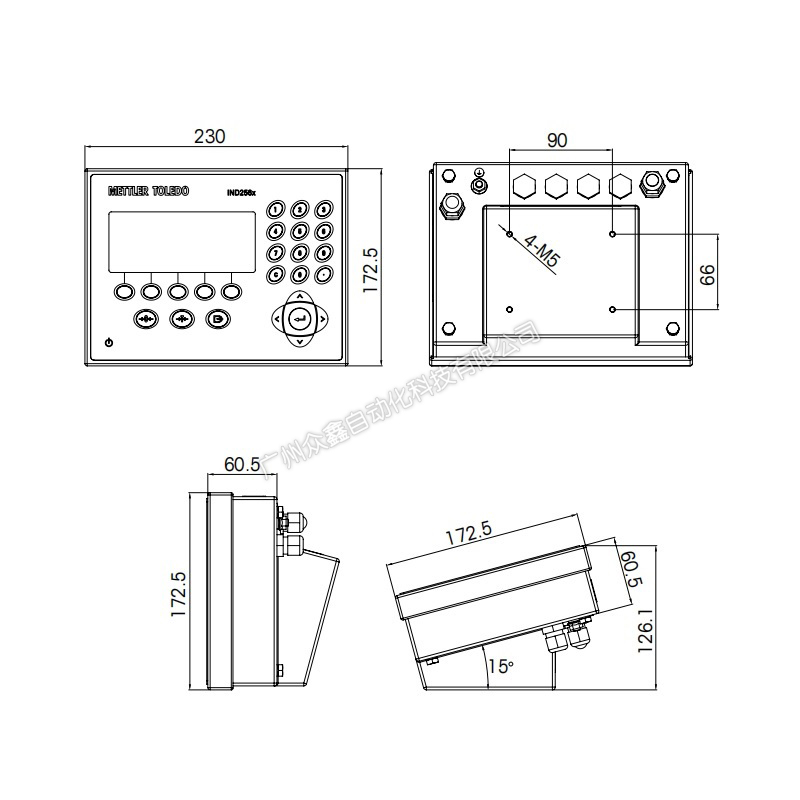

4、 IND256x Weighing Instrument Product Dimensions

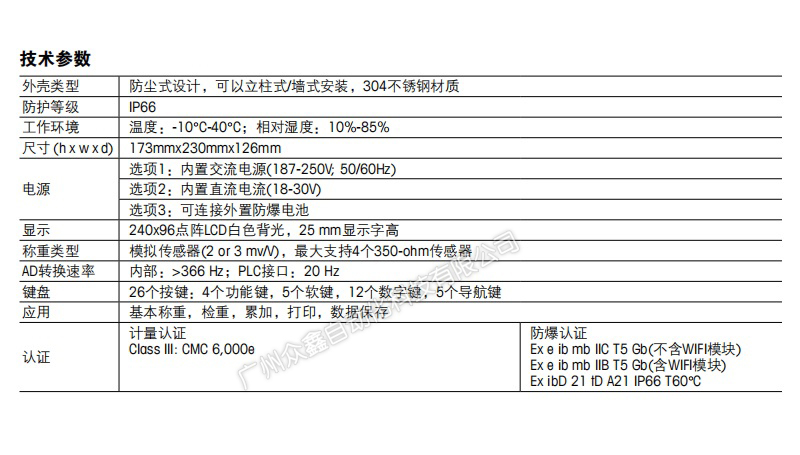

5、 Technical specifications of IND256x weighing instrument
