120-3T Load cell A product belonging to the Tedea brand in the United States, it is a columnar load cell with a stainless steel shell, protection level of IP68, and a range of 3T-50T. It is suitable for weighing truck weighbridges, silos and hoppers, train "track" scales, process weighing, etc
1、 Tedea 120-3T Load Cell Product Introduction, USA
Product Description:
The 120 model is a large capacity truck scale and silo load cell equipped with unique rocker arm mounting componentsThe 120 model is suitable for all heavy-duty weighing applications, providing users with high accuracy and low installation costs
The 120 model has a stainless steel casing to prevent corrosion The alloy steel compression components are nickel plated, and the rocker arm installation accessories are galvanized alloy steelThe other two induction lines provide feedback on the voltage reaching the Load cell By inputting this voltage into an appropriate electronic device, it is possible to fully compensate for changes in lead resistance caused by temperature changes and/or cable extension
Product series:120
Product features:
-Capacity 3-50 tons
-Stainless steel casing
-Installing surge arresters
-Easy installation
-The total error is 0.02%
-6-wire induction circuit
-Output tolerance 0.1%
Product application:
-Truck weighbridge
-Silo and hopper weighing
-Train "track" scale
-Process weighing

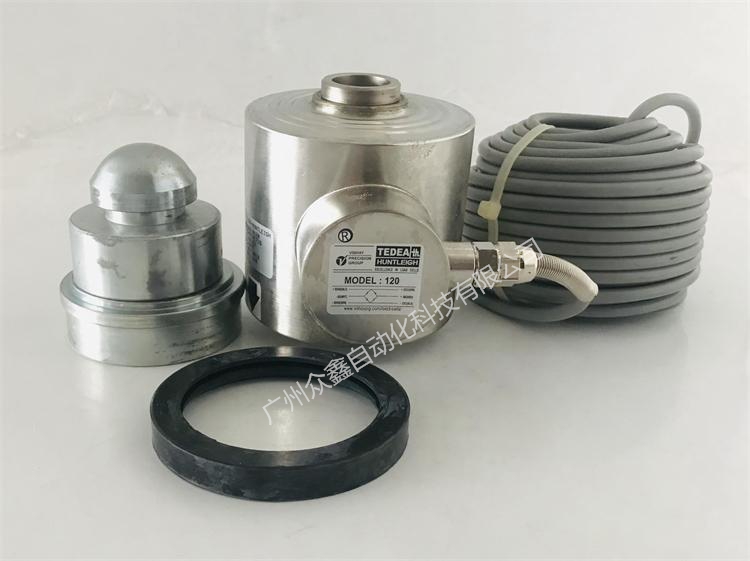

2、 Real shot of the 120-3T Load cell at Tedea in the United States
3、 Tedea 120-3T Load Cell related models in the United States
120-3T Load cell
120-5T Load cell
120-10T Load cell
120-20T Load cell
120-30T Load cell
120-50T Load cell
4、 Tedea 120-3T Load Cell Product Dimensions
5、 Technical parameters of Tedea 120-3T Load cell products in the United States
6、 US Tedea 120-3T Load Cell Safety Instructions
120 Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the 120-3T Load Cell is 3T. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
