1260-1000kg Load cell A product belonging to the Tedea brand in the United States, it is a single point load cell made of aluminum material with a protection level of IP66. The range can be selected from 50kg to 660kg, suitable for large platform scales, hanging scales, weight verification, etc
1、 Tedea 1260-1000kg Load Cell Product Introduction
Product Description:
The 1260 model is a high-performance, high-capacity single point load cell designed for direct installation on large platforms The sturdy structure provides high immunity to lateral forces, making it suitable for various weighing applications, including platform scales and inspection weighing
The special moisture-proof protective coating ensures long-term stability throughout the entire compensation temperature range For hazardous environments, this load cell has ATEX and FM certifications
The other two induction lines provide feedback on the voltage reaching the Load cell By inputting this voltage into an appropriate electronic device, it is possible to fully compensate for changes in lead resistance caused by temperature changes and/or cable extension
Product series:1260
Product features:
-Capacity 50-635KG
-Aluminum structure
-Single point 600 × 600 mm platform
-OIML R60 and NTEP approval
-IP66 protection level
-Can be used for metric and UNC threads
-Optional: ATEX, FM, and IECEx certifications available
Product application:
-Large platform scale
-Hanging scale
-Verify weight
2、 Real shot of 1260-1000kg Load cell from Tedea, USA
3、 Tedea 1260-1000kg Load Cell related models in the United States
1260-50kg Load cell
1260-75kg Load cell
1260-100kg Load cell
1260-150kg Load cell
1260-200kg Load cell
1260-250kg Load cell
1260-300kg Load cell
1260-500kg Load cell
1260-660kg Load cell

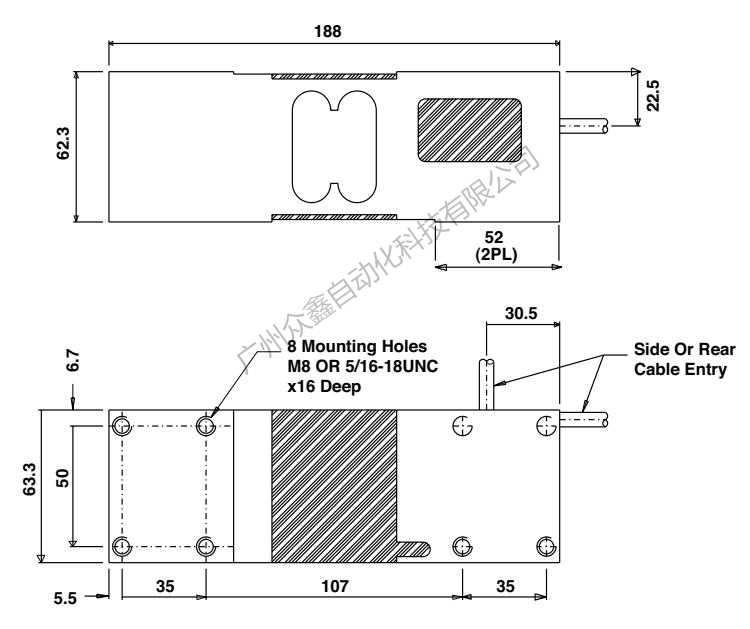

4、 Tedea 1260-1000kg Load Cell Product Dimensions
5、 Technical parameters of Tedea 1260-1000kg Load cell products in the United States
6、 US Tedea 1260-1000kg Load Cell Safety Instructions
The 1260 Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the 1260-1000kg Load Cell is 1000kg. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
