WDESK-G weighing display Italian LAUMAS weighing and batching

1、 Product Introduction

Product brand: LAUMAS, Italy

Product Series: WDESK-G

Product type: Weighing display

Product Description:

(1) ABS weight display.

(2) Backlit LCD graphic display screen, resolution: 240x64 pixels, visible area: 133x39mm: 133x39mm.

(3) 21 key keyboard.

(4) Real time clock/calendar with buffer battery.

(5) Multi language software (4 languages+1 custom language).

Input/Output and Communication:

(1) RS485/RS232 serial port, used for communication via ModBus RTU, ASCII Laumas, or continuous unidirectional transmission protocol.

(2) 5 relay outputs controlled by set values or protocols (4 outputs if there are analog outputs).

(3) Three optically isolated PNP digital input terminals: read the status through a serial communication protocol (if there is an analog output, it is two input terminals).

(4) 1 dedicated input terminal for weighing sensor.

(5) 16 bit opto isolated analog output for current or voltage (optional).

(6) WiFi module (optional).

Main functions:

(1) Connect to

-Connect PLC through analog output (as required);

-Connect PC/PLC via RS485/RS232 (up to 99 instruments can be connected with line repeater, and up to 32 instruments can be connected without line repeater);

-Remote display and printer via RS485/RS232;

-Up to 8 weighing sensors can be connected in parallel through the junction box.

-The IoT gateway can be connected to the cloud through RS485.

(2) TCP/IP WEB APP: an integrated software that combines WiFi modules and Ethernet TCP/IP options for remote monitoring, management, and control of instruments.

(3) Customizable production batch names.

(4) Digital filters can reduce the impact of weight oscillations.

(5) Theoretical calibration (via keyboard) and actual calibration (with sample weights, can linearize weights up to 8 points).

(6) Tare zero setting.

(7) Automatically zero when turned on.

(9) Gross weight zero tracking.

(10) Semi automatic tare removal (net/gross weight) and preset tare weight.

(11) Semi automatic zeroing.

(12) Display the maximum weight value (peak value) achieved.

(13) Can directly connect RS485 and RS232 without the need for a converter.

(14) Print weight values with date and time through keyboard or external touchpoints.

(15) Labeling machine management (excluding 3/6/14 PRODUCS program).

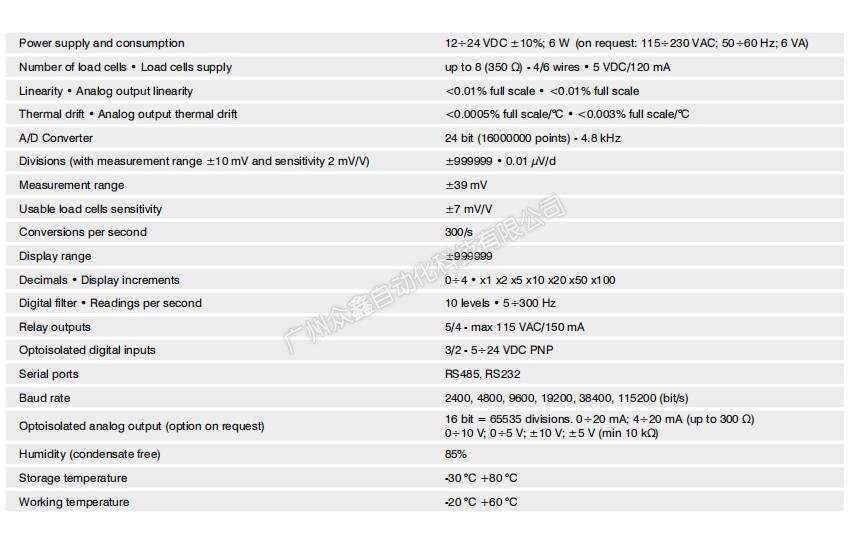

2、 Technical parameters

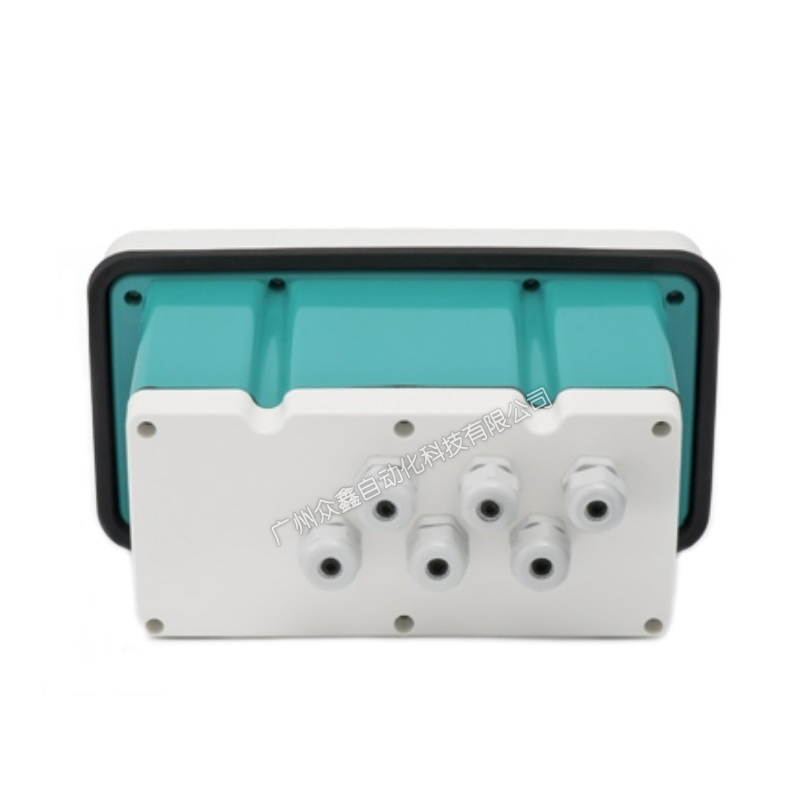

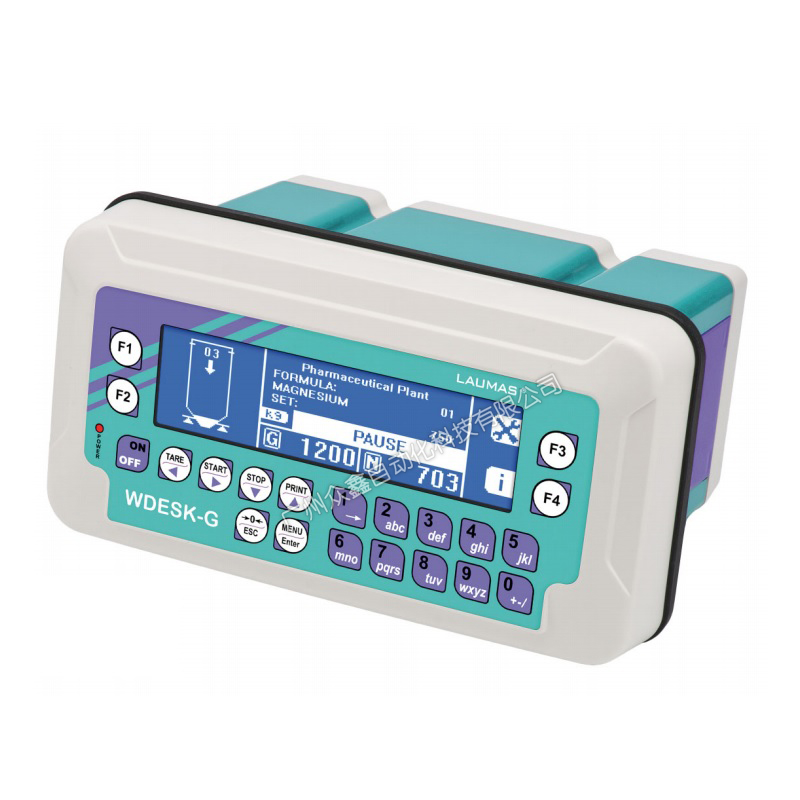

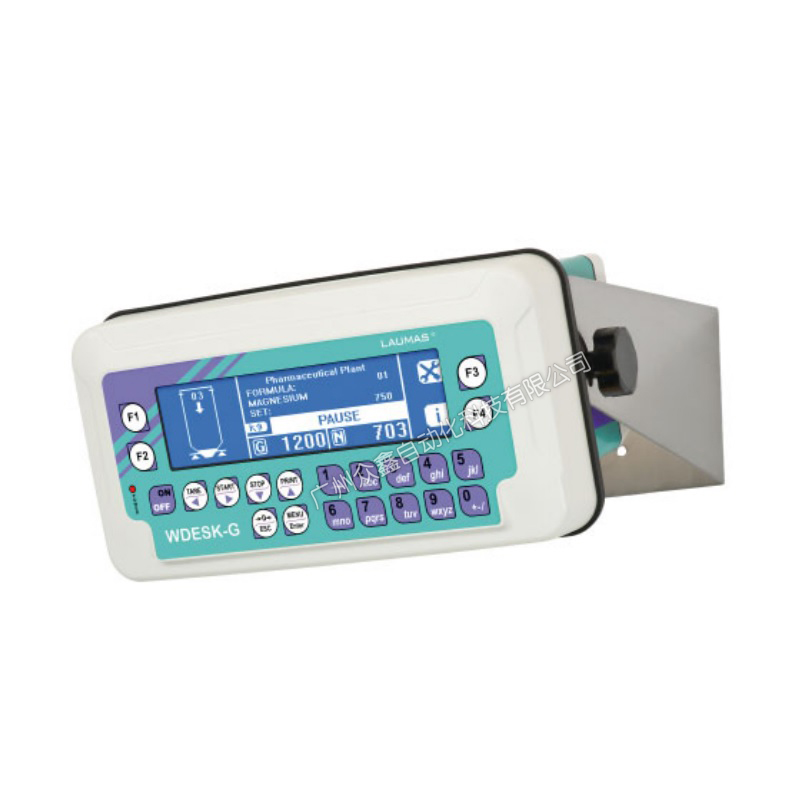

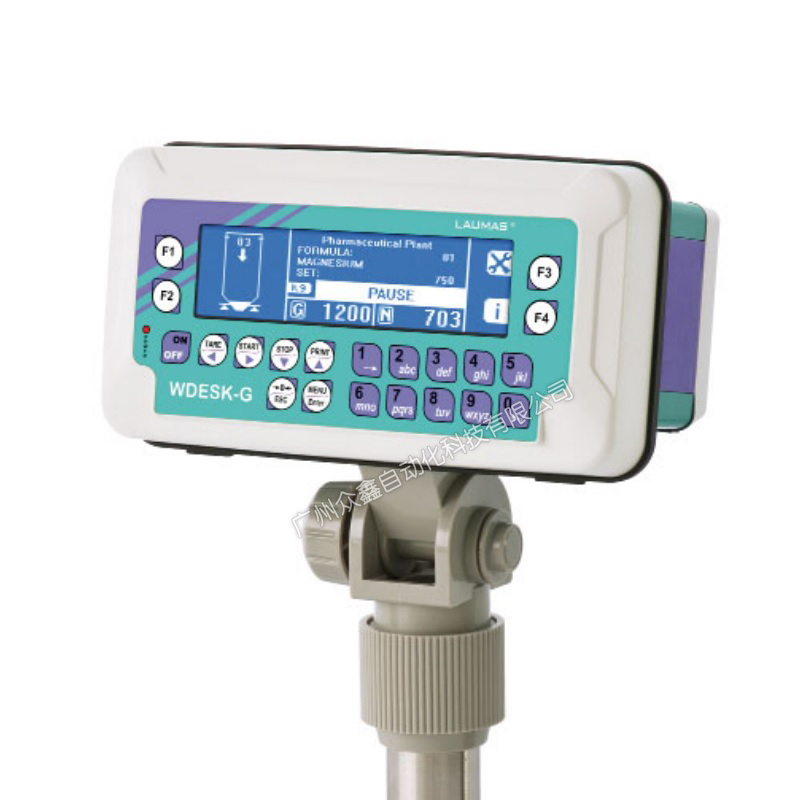

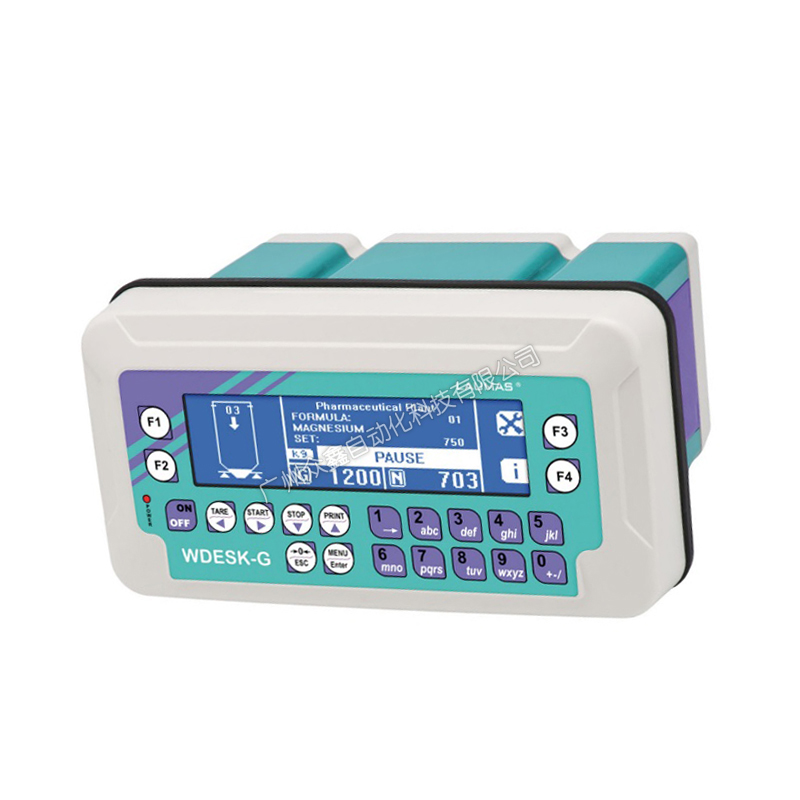

3、 Product images
