DZX7702X Guide rail transmission instrument - American Zhongkessel brand

. DZX7702X Guide Rail Transmission Instrument Product Introduction

Product brand: ZXSCELL, USA

Product series: DZX7702X

Product type: Guide rail Transcell instrument

Product features:

1. Suitable for all resistance strain bridge weighing sensors

2. Full panel digital calibration

3. Digital filtering function, tare processing function

4. Automatic zero tracking function, automatic reset function when powered on

5. RS232 communication interface supports online program upgrade

6. Bidirectional isolation serial function, with RS485 and RS232 for convenient communication with the upper computer

7. The weight display can be calibrated through the serial port (the serial port calibration switch is turned on)

8. 16 bit DA output function, 2 in 3 out switch input and output, supporting limit control output

9. Suitable for concrete mixing and asphalt mixture equipment, metallurgy and chemical industry, weight control of feed, etc

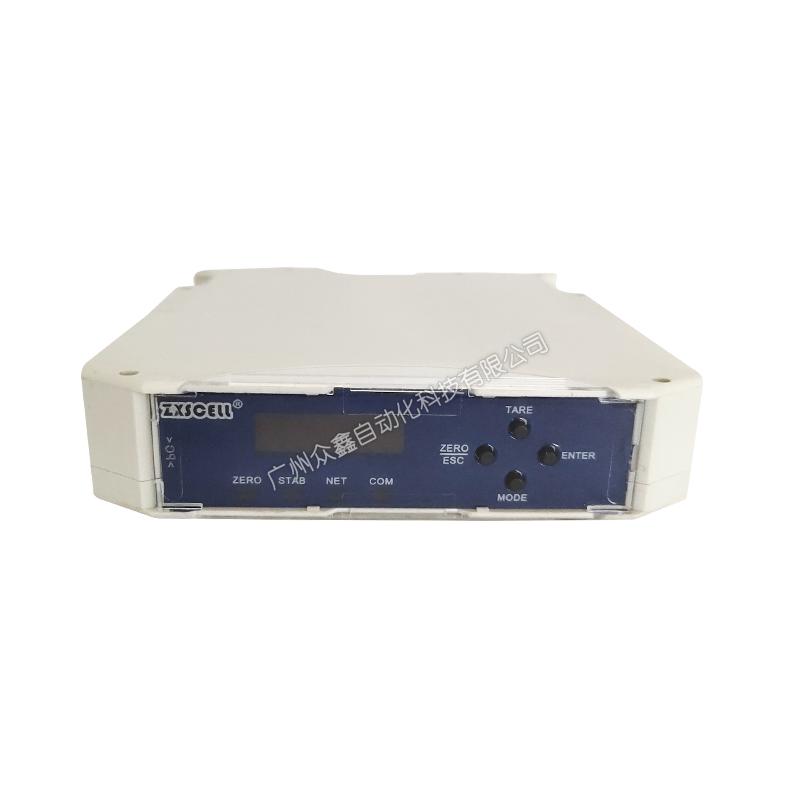

. Actual photo of DZX7702X guide rail Transcell instrument product

. Application of DZX7702X Guide Rail Transmission Instrument Function

1. RS-232 point-to-point serial communication

(1) Continuous output or command output format

(2) Provide fully compatible protocols for users to quickly upgrade

(3) Support remote zero and tare operations

(4) ESD anti-static interface protection

2. RS-485 multidrop serial communication

(1) Baud 2400~115200bps optional

(2) Communication response time less than 5ms

(3) As a slave station supporting data collection from the master station

(4) Support MODBUS RTU slave protocol

3. Analog output interface

(1) Supports multiple analog output formats, including 0-10V, 0-5V, 4-20mA, and 0-20mA.

(2) 16 bit analog output accuracy: 1/32767

(3) The weight can be output as an analog quantity without loading, and the analog quantity can be adjusted on the panel

4. Weighing and measuring

(1) Weight display accuracy: 1/100000.

(2) 16 bit DA output function, supporting limit control output.

(3) Digital filtering function, tare processing function.

(4) Automatic zero tracking function, automatic reset function when powered on.

(5) The weight display can be calibrated through the serial port.

. DZX7702X Guide Rail Transmission Instrument Product Parameters
