LCT6 weight transmitter - American ZXSCELL brand

. LCT6 Weight Transmitter Product Introduction

Product brand: ZXSCELL, USA

Product series: LCT6

Product type: Weight transmitter

Product features:

(1) The shell and cable joint are waterproof and have good sealing performance

(2) Multiple output methods available for selection

(3) Suitable for strain sensors such as weighing and force measurement

(4) Built in precision AD conversion circuit, high accuracy

(5) Built in digital filter, strong anti-interference

(6) Easy calibration and good long-term stability

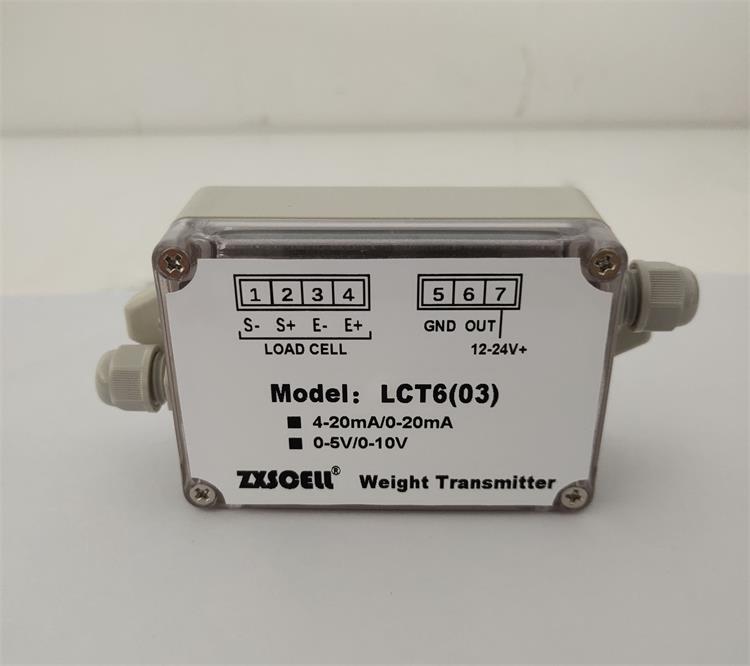

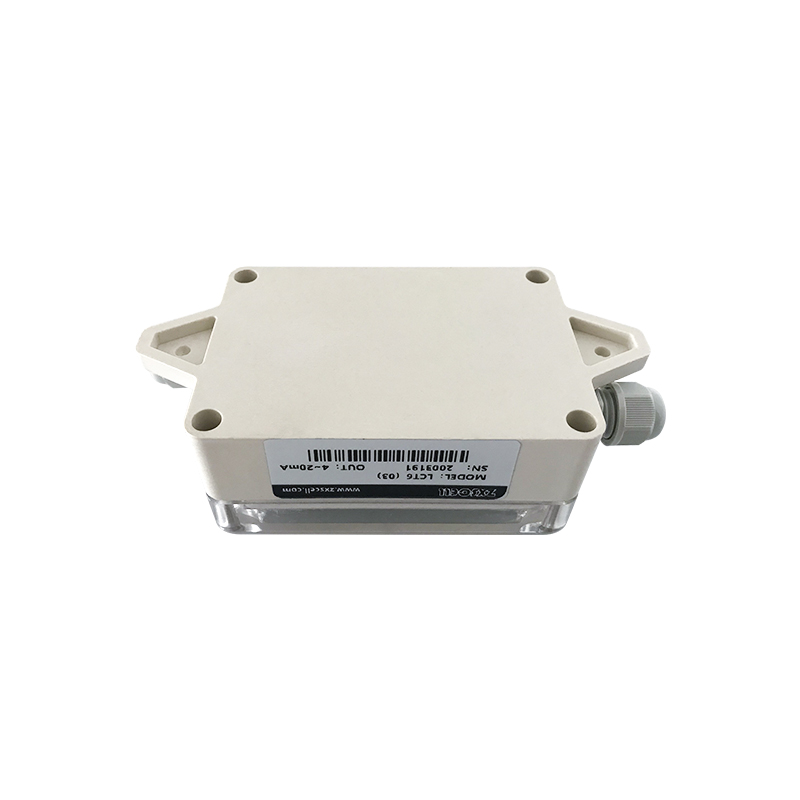

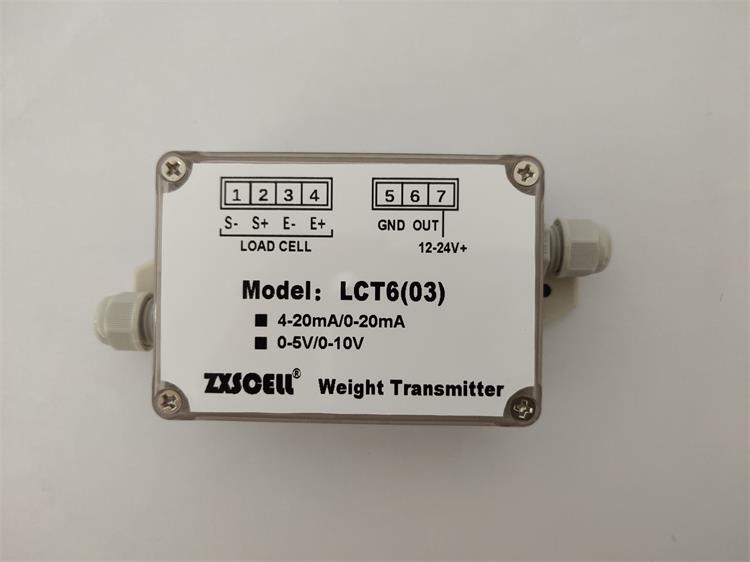

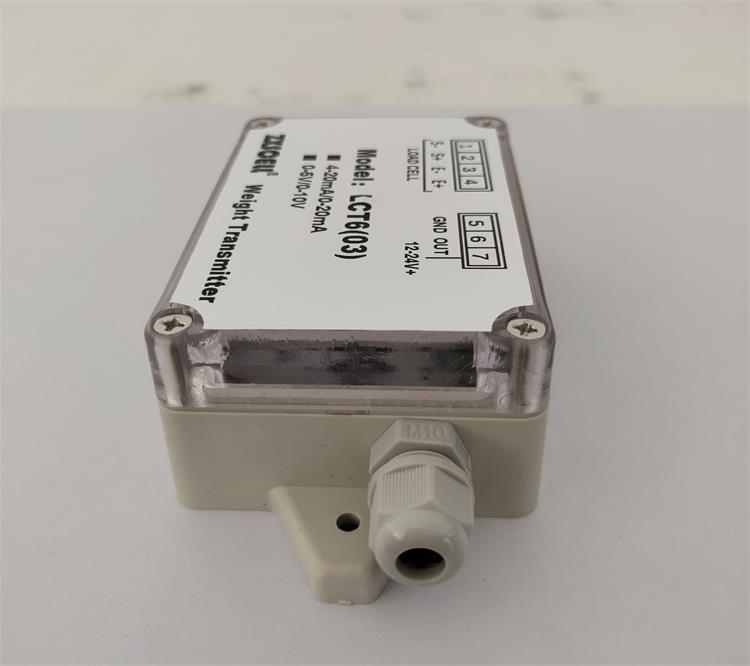

. Actual photo of LCT6 weight transmitter product

. Complete specifications of LCT6 weight transmitter

1. LCT6 (03)

Optional output: voltage 0-5V/0-10V; Current 4-20mA; Can simultaneously drive 1-2 350 Ω sensors

2. LCT6 (05)

Optional output: voltage 0-5V/0-10V; Current 4-20mA; Capable of driving four 350 Ω sensors simultaneously

3. LCT6 (04)

Optional output: voltage 0-5V/0-10V/± 5V/± 10V; Current 4-20mA/± 20mA; Capable of driving four 350 Ω sensors simultaneously, with a 6-position 0.36-inch 7-segment LED display screen

4. LCT6 (08)

Optional output: RS485 serial communication (supports MODBUS-RTU communication protocol)

. LCT6 weight transmitter product parameters

Working temperature: -10 ℃~+40 ℃

Storage temperature: -20 ℃~+80 ℃

Output range: 0-10VDC 0-5VDC 4-20mA

Load capacity: 1-4 sensors (350 Ω, 12-24V)

Adoption rate: 10-640 times/second

Output linearity: 0.02%

Output ripple: ≤ 15mVp - p

Note: LCT6 only supports one type of signal output and cannot support multiple types at the same time

Input voltage: 12-24V @ (4-20mA/0-5V); 15-24V @ (0-10V)

Output load: 4-20mA: ≥ 10K Ω; 0-5V/0-10V: ≤ (supply voltage -6) X 50 Ω

Whole machine temperature drift: ≤ 80 PPM/℃ (0-40 ℃); ≤ 100 PPM/℃ (-20~60 ℃)

Overall power consumption: ≤ 25mA (1 350 Ω sensor @ 24V)

Comprehensive accuracy: 0.2% (30 ℃ temperature difference)

Installation method: fixed installation of the shell
