CI-600A Weighing Instrument Korea Kaishi CI-600A Weighing Controller

1、 CI-600A Weighing Instrument Product Introduction

Product brand:Korean Kaishi　CAS

Product Series: CI-600A

Product Type: Weighing Instrument, Weighing Controller

Brand Agent: Guangzhou Zhongxin Automation Technology Co., Ltd

Product Introduction: The CI-600A series, with its high-speed and high-resolution A/D performance and user-friendly graphical interface, can achieve accurate and precise weighing while ensuring easy and convenient operation. In addition, with rich interfaces and functions, this series can be connected and used with various products such as platform scales, weighing scales, hopper scales, packaging scales, and inspection scales, and is suitable for harsh industrial environments.

Product Features:

(1) High speed analog-to-digital conversion rate of 200 times per second

(2) High resolution of 1/10000

(3) User friendly interface (using 4.3-inch full image TFT LCD)

(4) RFI and EMS shielding

(5) Supports up to 100 pieces of product information

(6) Support USB storage data backup

(7) Built in self diagnosis and automatic fault recovery function

(8) Weight backup (data saved during power outage)

(9) Support indicator management PC program

(10) Multiple communication specifications

Optional configuration:

(1) Analog output card (V-out (0-10V)/I-out (4-20mA))

（2）RS485/ RS422

(3) BCD output card

(4) Printer

(5) Auxiliary display screen

Product advantages:

(1) High speed/high resolution

With an A/D conversion rate of 200 times per second and a high resolution of 1/10000, fast control and precise measurement can be achieved.

（2）RFI & EMS shielding

By shielding electronic/radio noise, stable system operation can be ensured even in harsh industrial environments.

(3) Equipped with a display screen protective cover

Equipped with a display screen protective cover, it can effectively prevent foreign objects from entering and external impacts, protecting the display screen.

(4) Convenient feature settings

The indicator parameter setting information is displayed in Korean for easy function setting.

(5) Extended key configuration

The CI-600A series is equipped with 10 numeric keys and 9 function keys, of which 3 function keys can be customized and set according to user needs.

(6) User friendly interface

The CI-600A series adopts a 4.3-inch full image TFT LCD screen, which can display Korean prompt information, various function icons and setting values, making it easy to view various measurement information

(7) Supports USB storage devices

Standard USB port for backup of measurement data.

(8) Multiple communication methods

Comes standard with 2 RS232C ports, and can also use 3 communication cards simultaneously.

(9) Standardized communication card

The communication card adopts a standardized slot design, which is easy to replace and install.

(10) Using wiring terminals

By using wiring terminals, it is easy to connect with external devices.

(11) Usage environment

The CI-600A series can connect various equipment and measuring instruments such as platform scales, weight scales, tensile/compression testing machines, truck scales, packaging scales, hopper scales, filling machines, etc.

(12) Compatible with multiple printers

Can be linked with bill printers and label printers.

(13) Support PC programs

The set values of indicators can be managed through the CI-600A dedicated program, and the measurement data can be backed up through a PC.

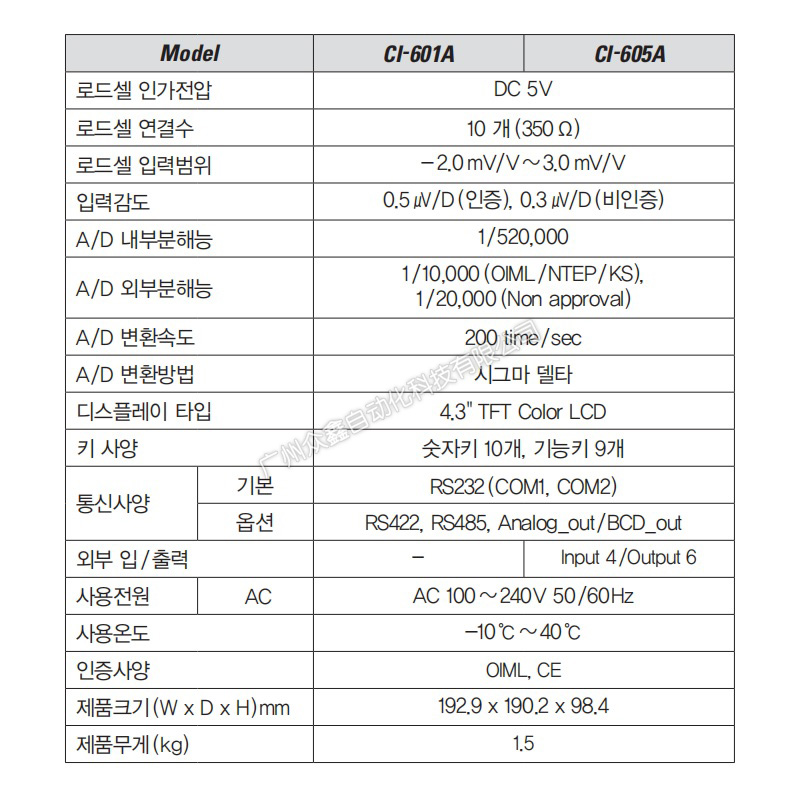

2、 Technical parameters of CI-600A weighing instrument

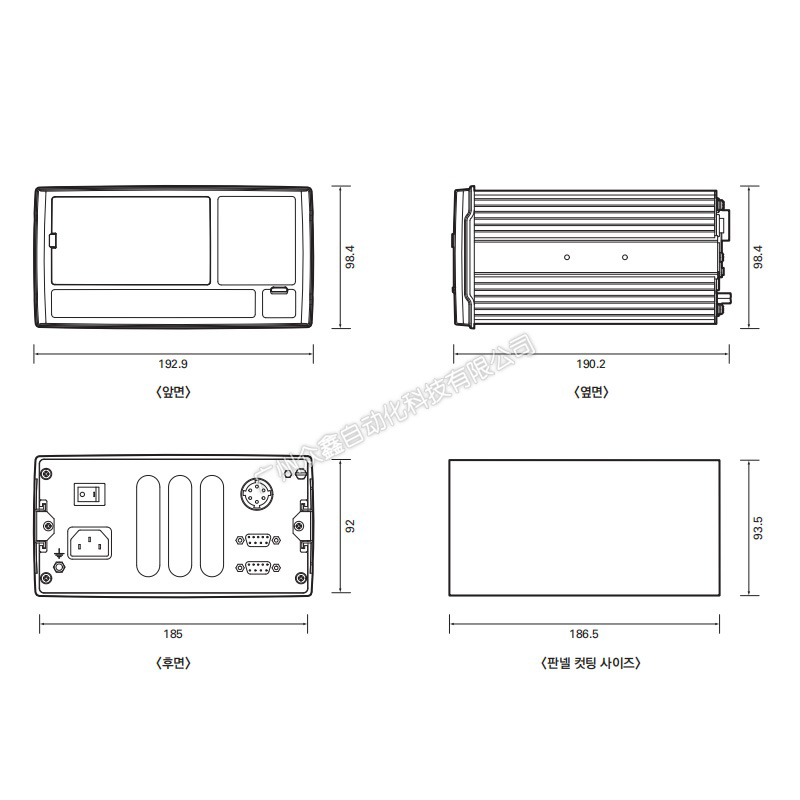

3、 CI-600A Weighing Instrument Product Dimensions

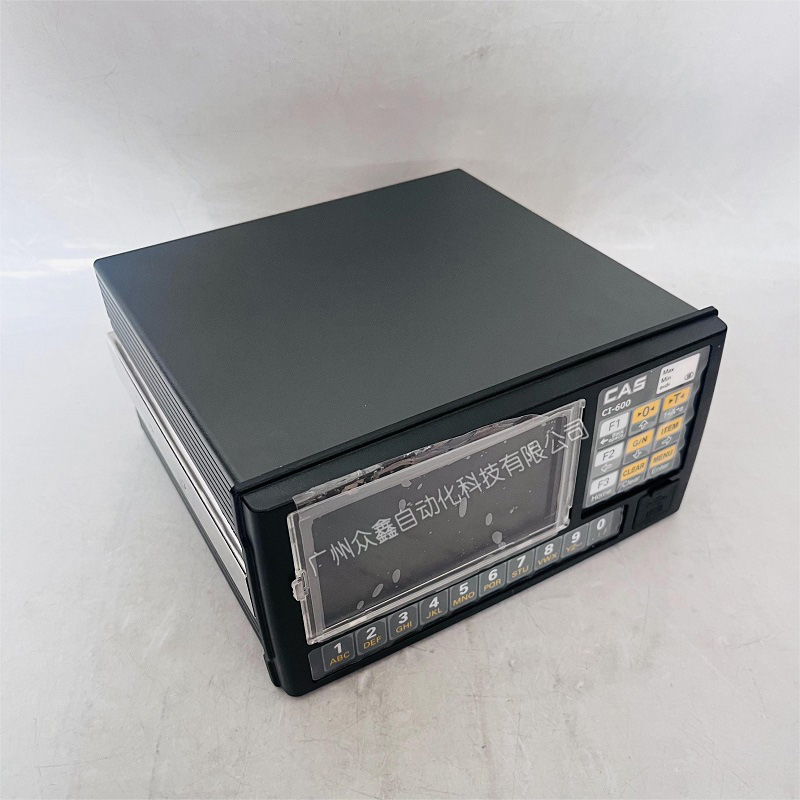

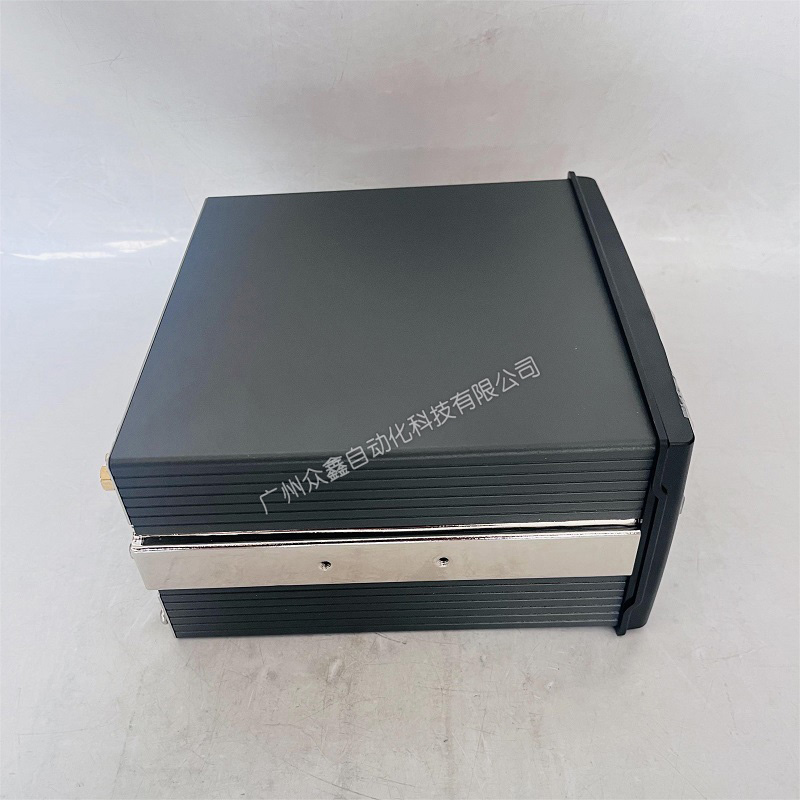

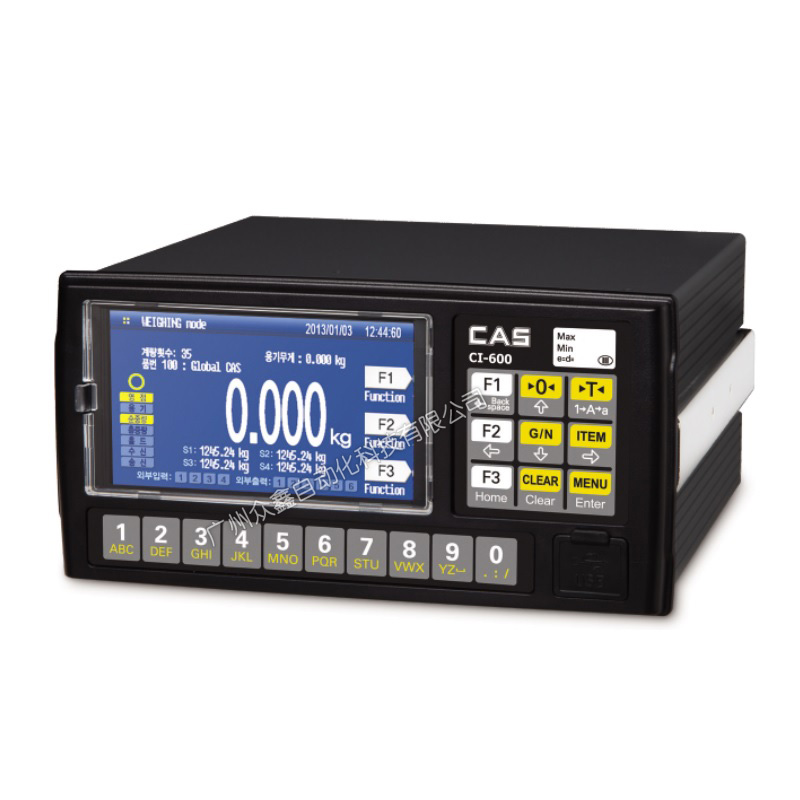

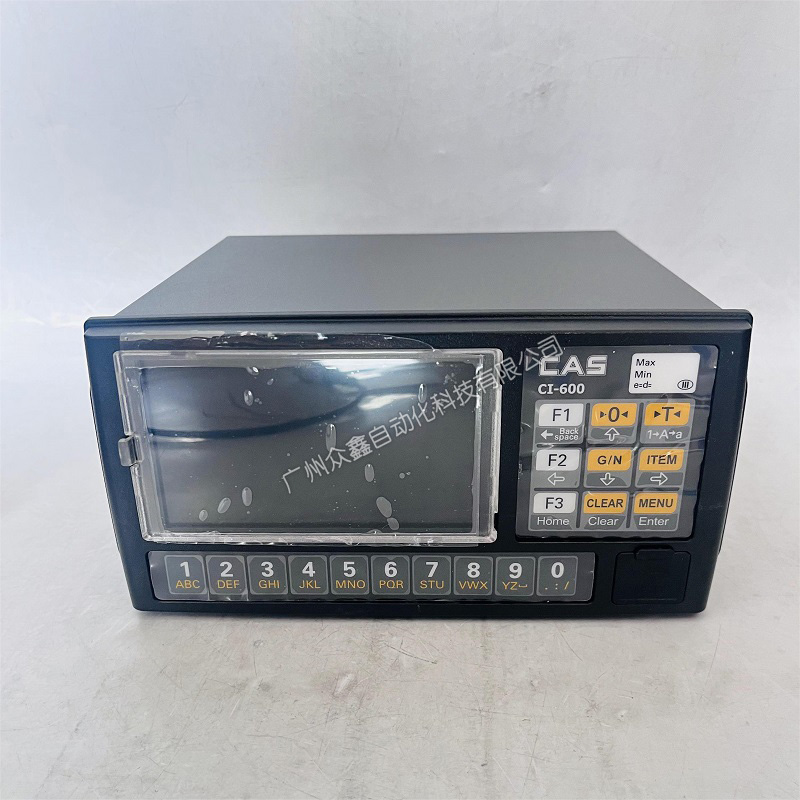

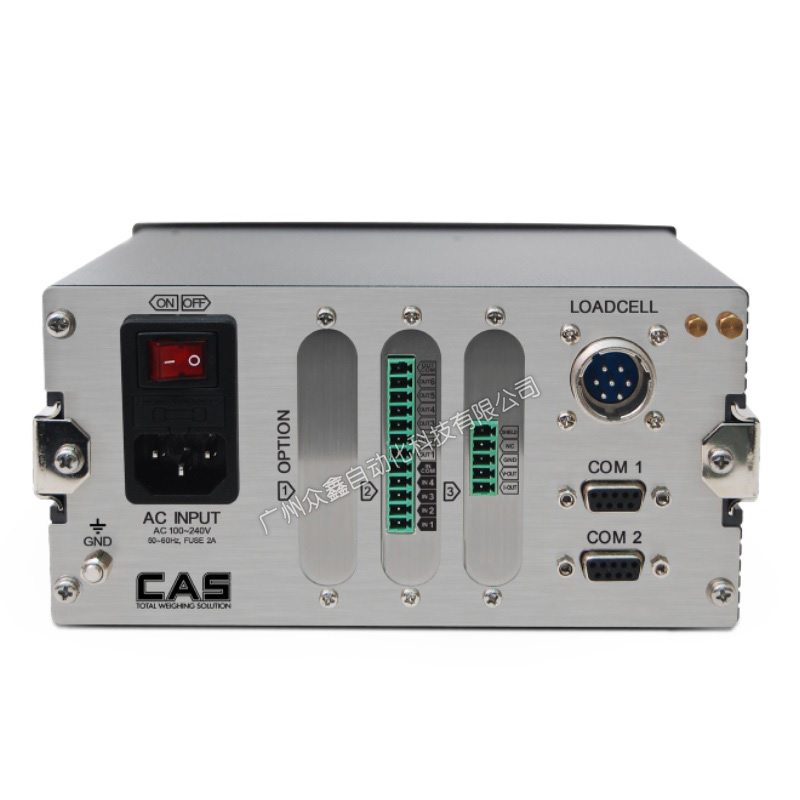

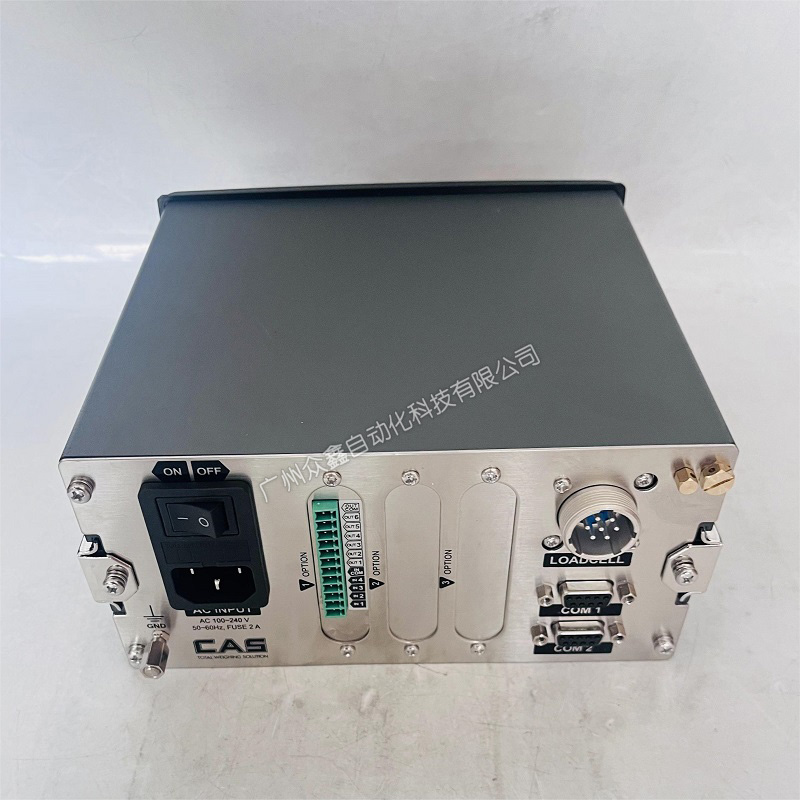

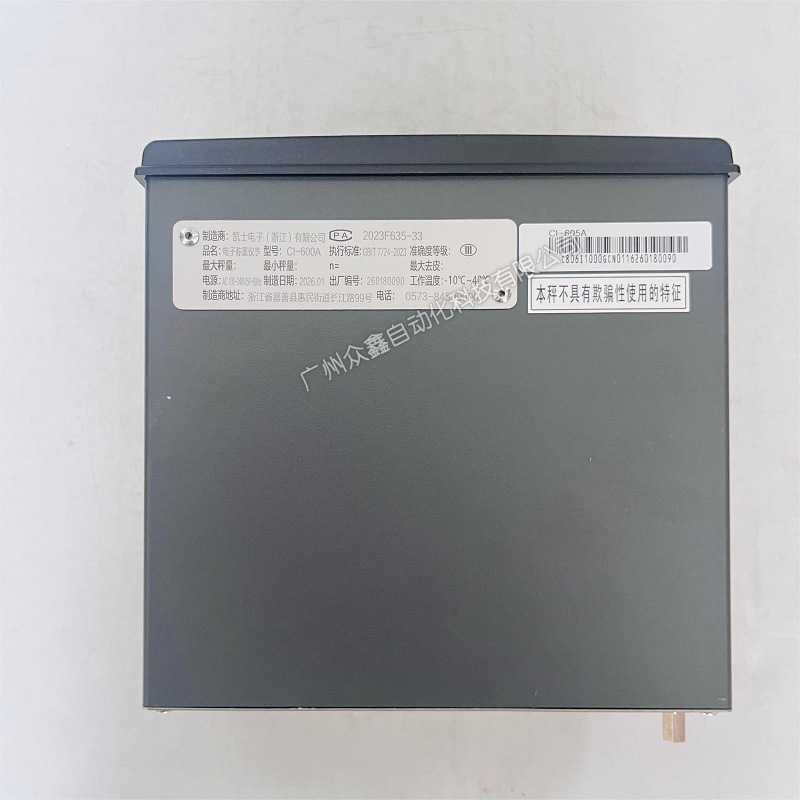

4、 Product image of CI-600A weighing instrument
