MP26 digital weighing transmitter from Intertek Germany (formerly known as Sartorius Germany)

1、 MP26 Digital Weighing Transmitter Product Introduction

Product brand:Germany IntertekMinebea intec (formerly Sartorius, Germany)

Product Series: MP26

Product type: Digital weighing transmitter

Product Introduction

(1) The MP26 series transmitter records weight values through strain gauges and further processes them using standard signals (4... 20 mA), making it a reliable and particularly simple method for process related applications. Parameter settings and operations can be done through the buttons on the front or with the help of the PC engineering tool MP 26/10 (optional).

(2) The measurement circuit and analog output are fully electrically isolated from the auxiliary power supply, and the device parameters can be directly set through the front button and optional PC tools. The operation is very simple, so this device is very suitable for all applications that require fast and easy acquisition of measurement values. The zero point setting function can easily adjust the zero point according to constantly changing working conditions. The integrated measurement circuit monitoring function combined with limit function and built-in relay can achieve direct process control.

(3) The transmitter is equipped with plug-in screw terminals. These terminals are easy to install and facilitate equipment replacement. Induction amplifiers can be wired using both 4-wire and true 6-wire technology, ensuring accuracy even at long distances.

Product Features:

(1) A simple weighing transmitter for connecting to a weighing display

(2) Digital signal processing, internal resolution of 20000 levels

(3) Analog output 0/4... 20 mA, 0/2... 10 V, fully electrically isolated

(4) Adjust/calibrate directly on the device without the need for weights

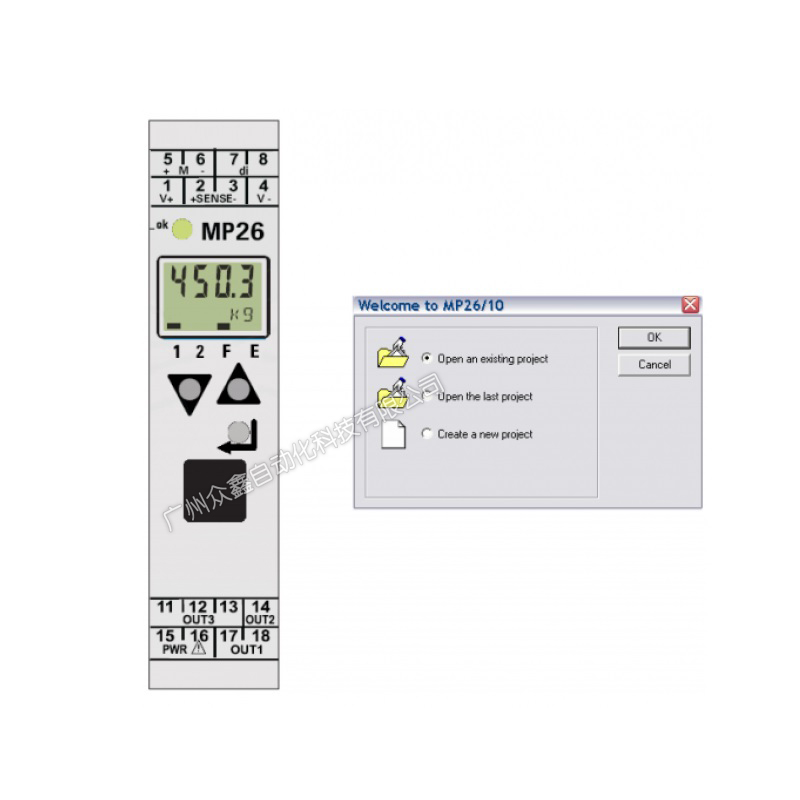

(5) It can also be configured through the PC engineering tool MP 26/10 (optional)

(6) Power supply voltage 230 V (24 V optional)

(7) Protection level IP20

(8) Top rail installation

2、 MP26 digital weighing transmitter product model

MP26/00 (Digital Process Transmitter 230V)

MP26/01 (digital process transmitter 24V)

MP26/10 (configuration software, including connecting cables)

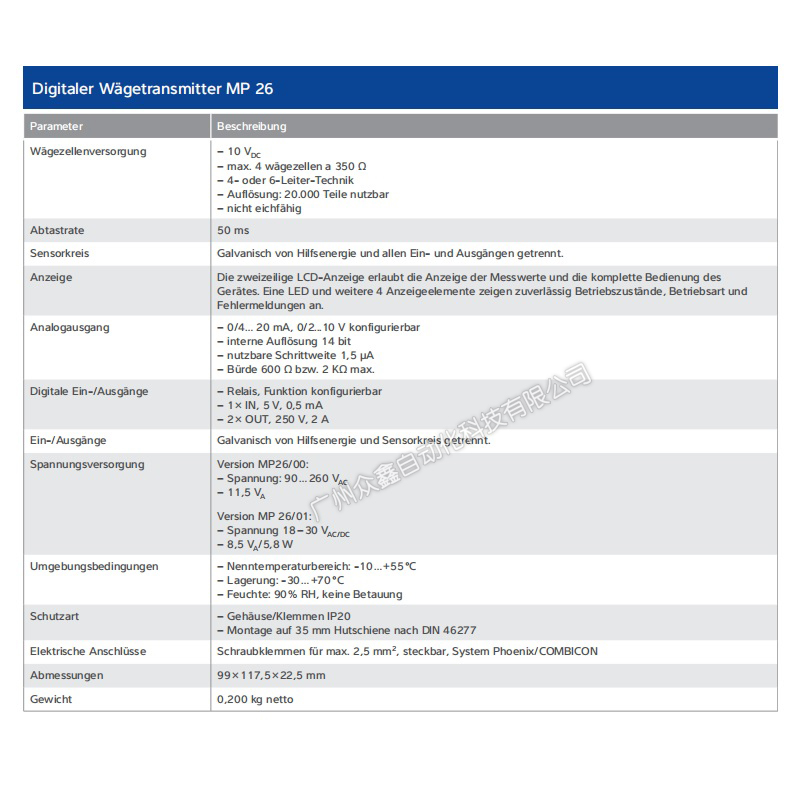

3、 MP26 digital weighing transmitter product parameters

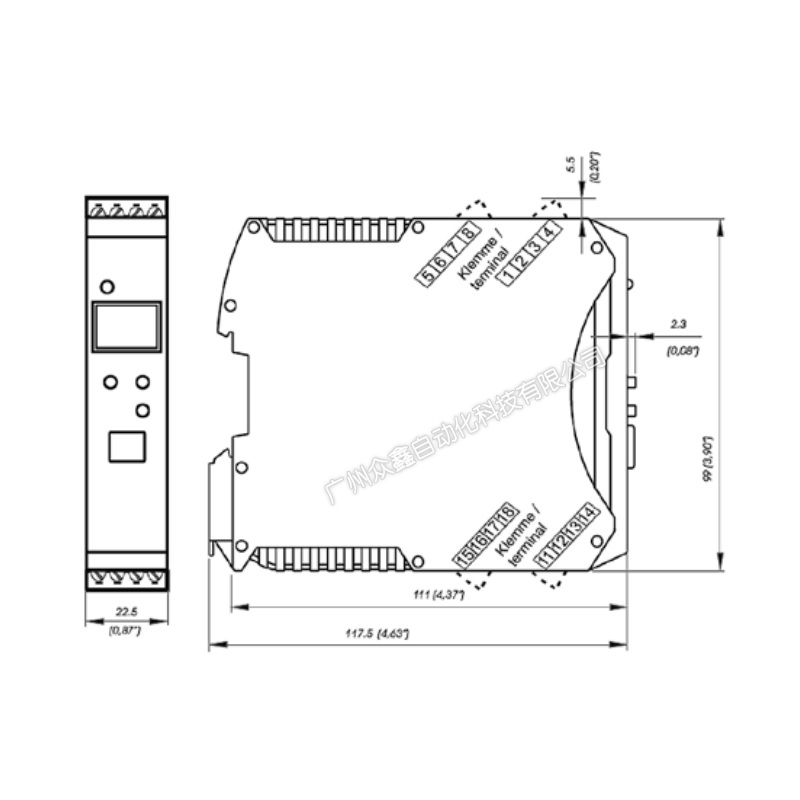

4、 MP26 digital weighing transmitter product size

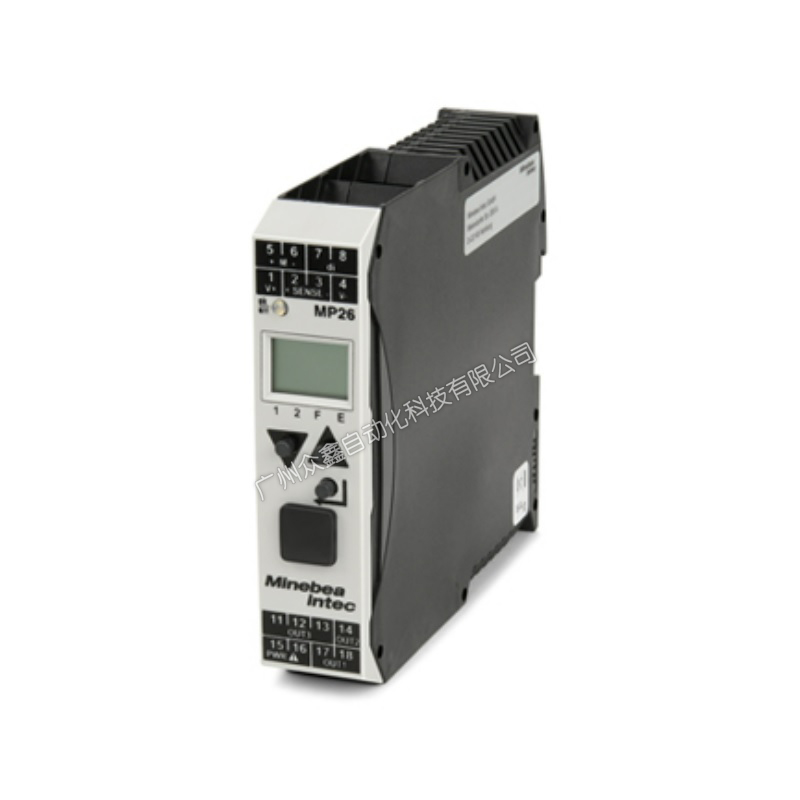

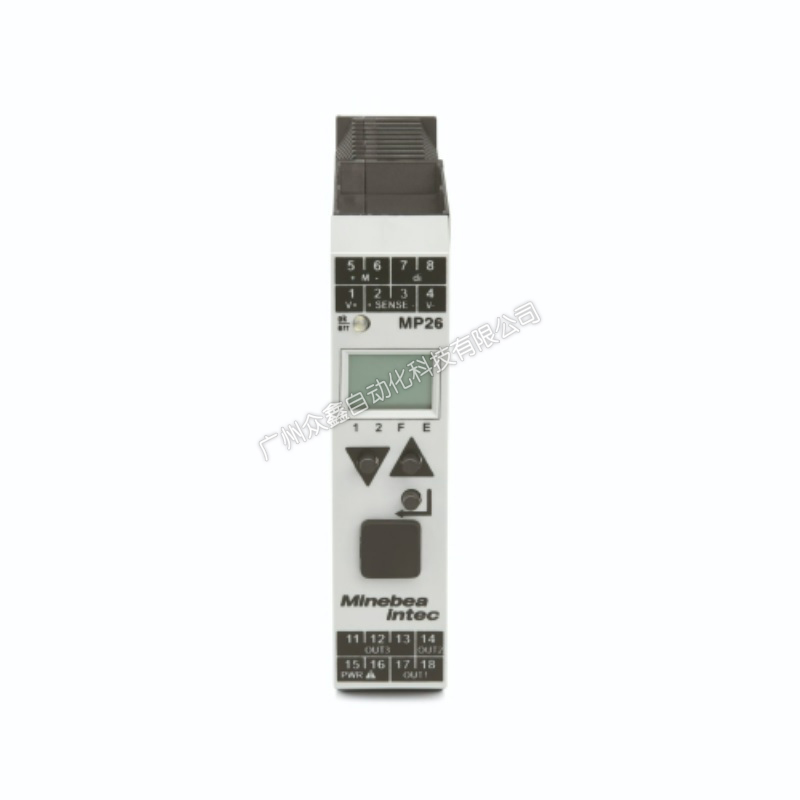

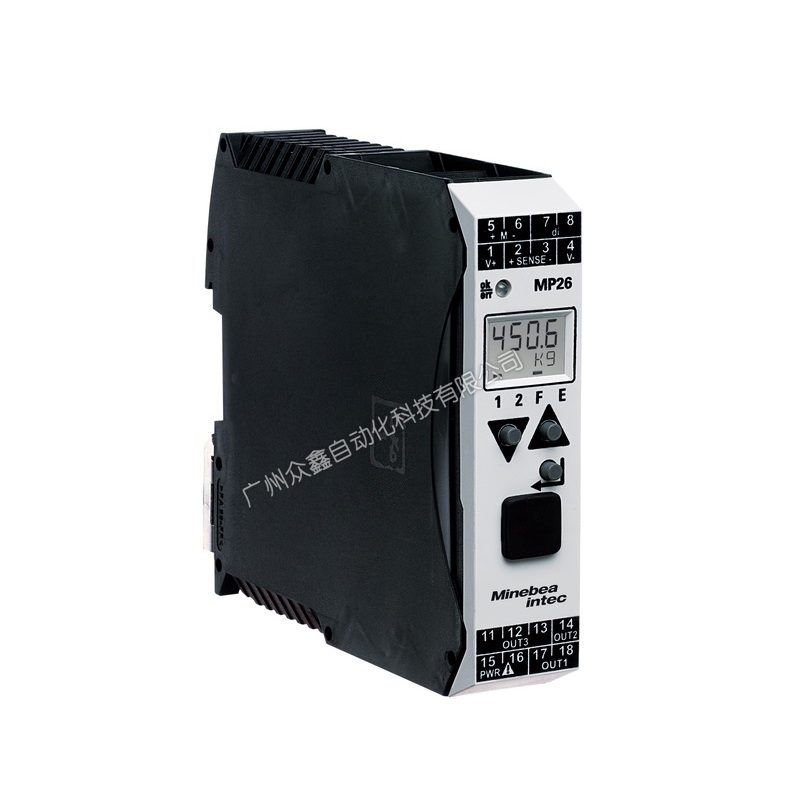

5、 Product picture of MP26 digital weighing transmitter
