PR5220 weight transmitter from Intertek Germany (formerly known as Sartorius Germany)

1、 Product Introduction of PR5220 Weighing Transmitter

Product brand:Germany IntertekMinebea intec (formerly Sartorius)

Product series: PR5220

Product type: Weighing transmitter

Product Introduction

(1) The PR5220 series weighing transmitter is designed to save installation space in control cabinets. The compact casing can be directly installed on DIN top cap rails and connected in series. Plug in COMBICOM screw terminals are used for easy and time-saving installation and replacement of equipment.

(2) The PR5220 weighing transmitter comes standard with three digital inputs and outputs. They can be assigned application specific limits, limit functions, and related values to prevent overfilling and underfilling. Customized interfaces ensure optimal integration with leading control systems.

（3）EasyFill ® It is an application suitable for single component filling of liquids, powders, and particles, and can be configured with user-defined target values, tolerances, and overshoot. Integrated digital input/output can be used to directly control the process. The numerous options/interfaces integrated into your production network ensure effective and easy control of simple ingredient processes.

(4) There are flexible solutions for IP address allocation: it can be manually entered by the operator, automatically set by the PR 5220 weight transmitter, or obtained from the DHCP server. If the IP address is not known during automatic assignment, the randomly attached Intico browser can search for the correct transmitter in the network.

(5) The integrated "intelligent calibration" function can calibrate the material tank scale efficiently through a PC within one minute, without the need for weights.

Product advantages:

(1) Reliable processing of the weight values of silos and hopper scales through analog and digital weighing sensors, with a resolution of up to 120000 steps.

(2) No need for weights, the scale can be easily and efficiently calibrated within one minute.

(3) The function of remote configuration and remote service through integrated website.

(4) EasyFill function, used for single component metering of liquids, powders, and particles, with configurable target values, tolerances, and overflow values.

(5) Multiple data interfaces facilitate integration into process control systems and can be directly connected to remote displays.

(6) DIN top rail installation in the switchgear saves space and costs.

(7) PC based 'intelligent calibration' ensures no weight deviation. Effectively reduce installation time.

(8) The remote service function avoids production crashes.

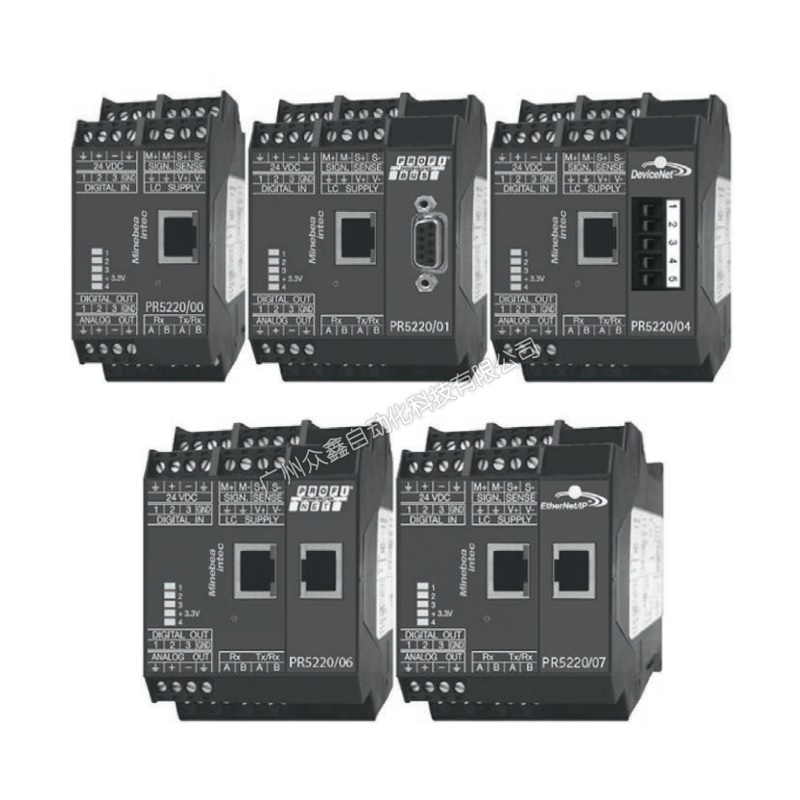

2、 PR5220 Weighing Transmitter Product Model

PR5220/00 (weight transmitter, 24 VDC)

PR5220/01 (Weight transmitter with Profibus DP, 24VDC)

PR5220/04 (Weight transmitter with DeviceNet, 24VDC)

PR5220/06 (Weight transmitter with Profinet, 24VDC)

PR5220/07 (Weight transmitter with Ethernet/IP, 24VDC)

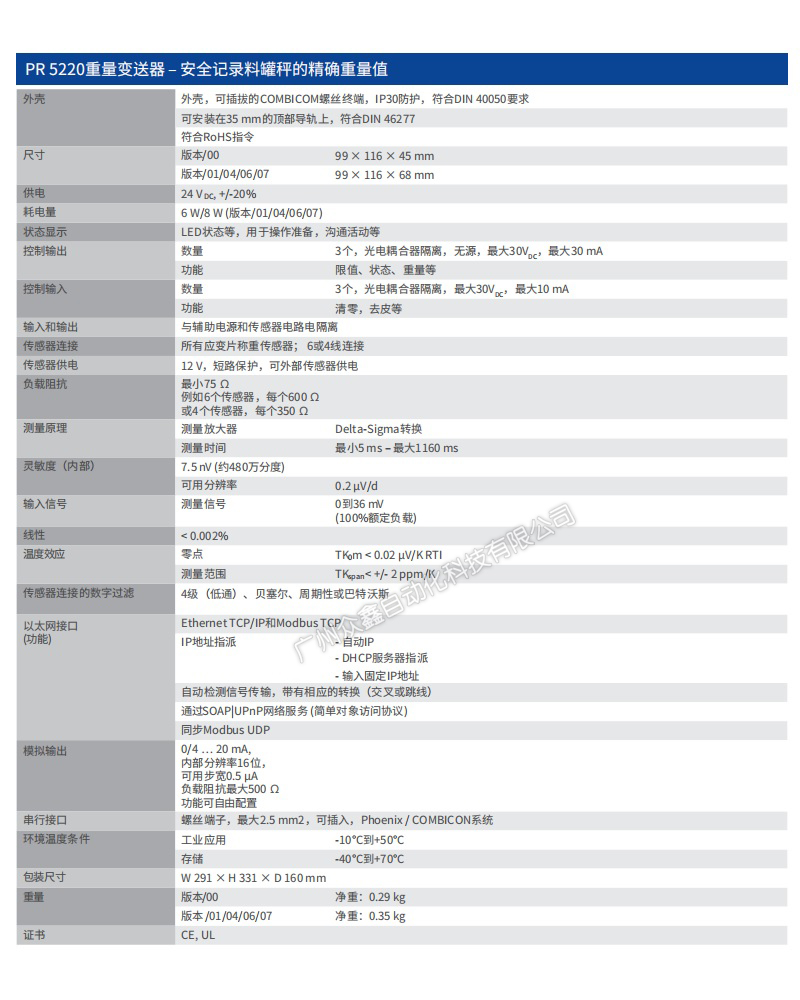

3、 Product parameters of PR5220 weighing transmitter

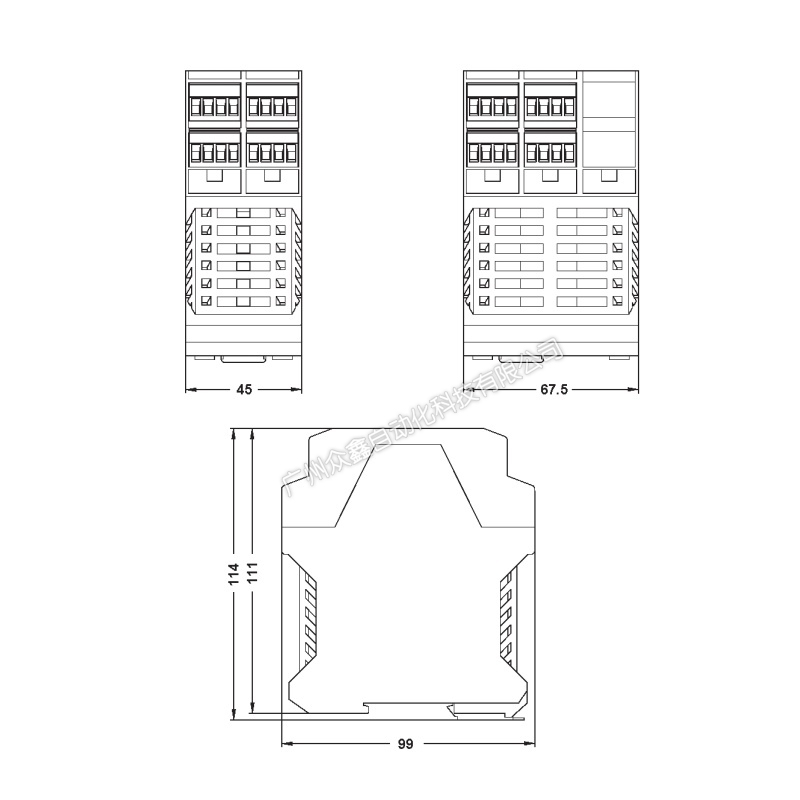

4、 Product dimensions of PR5220 weighing transmitter

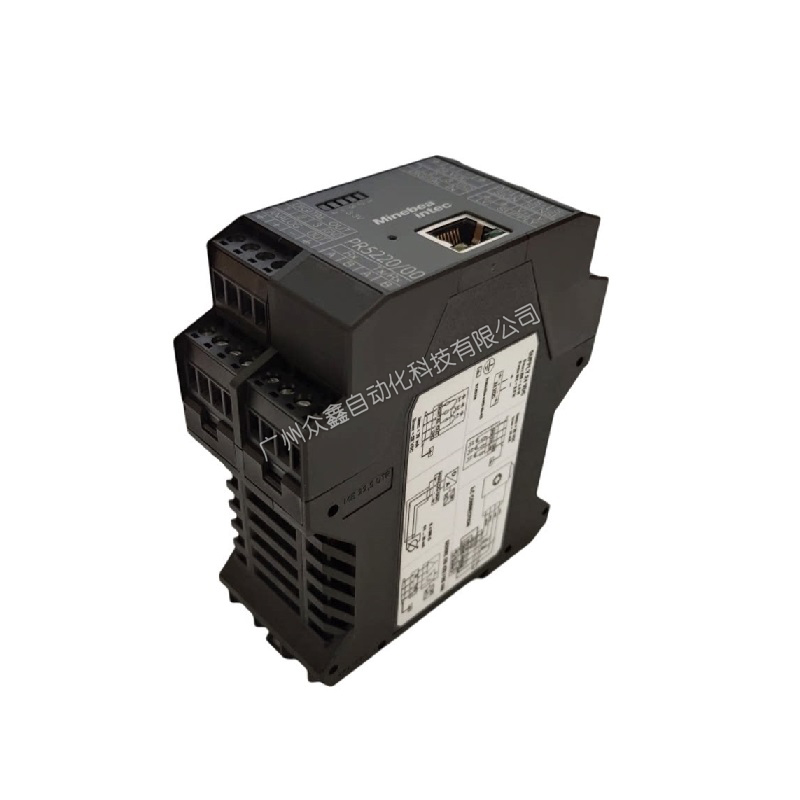

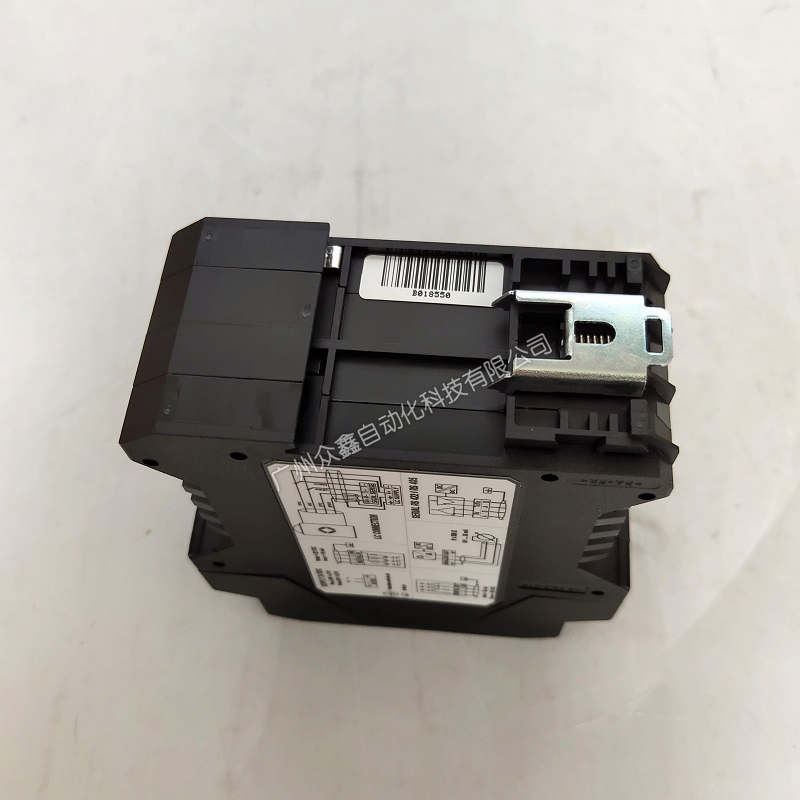

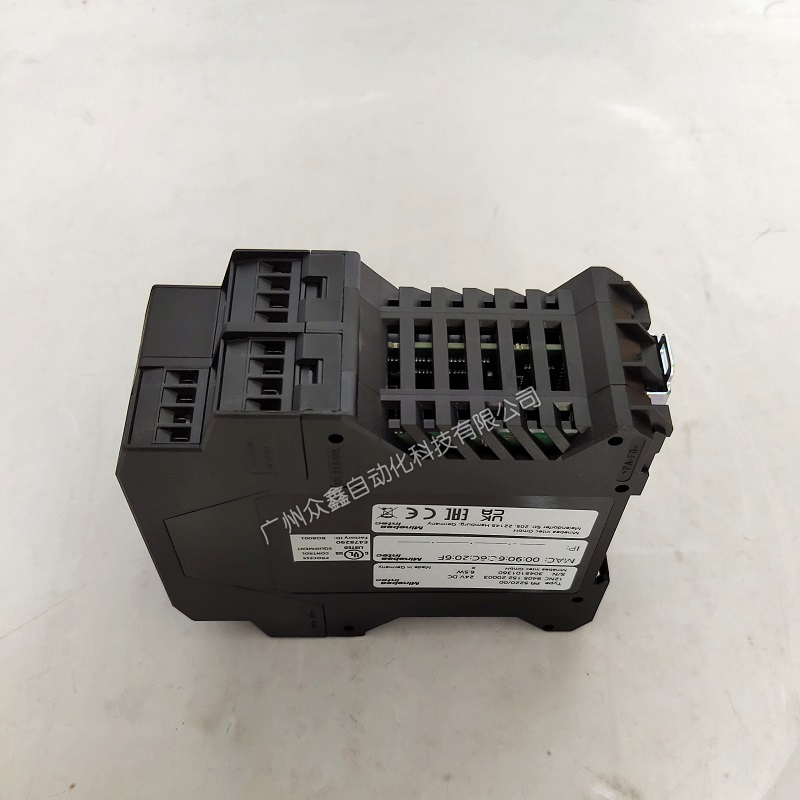

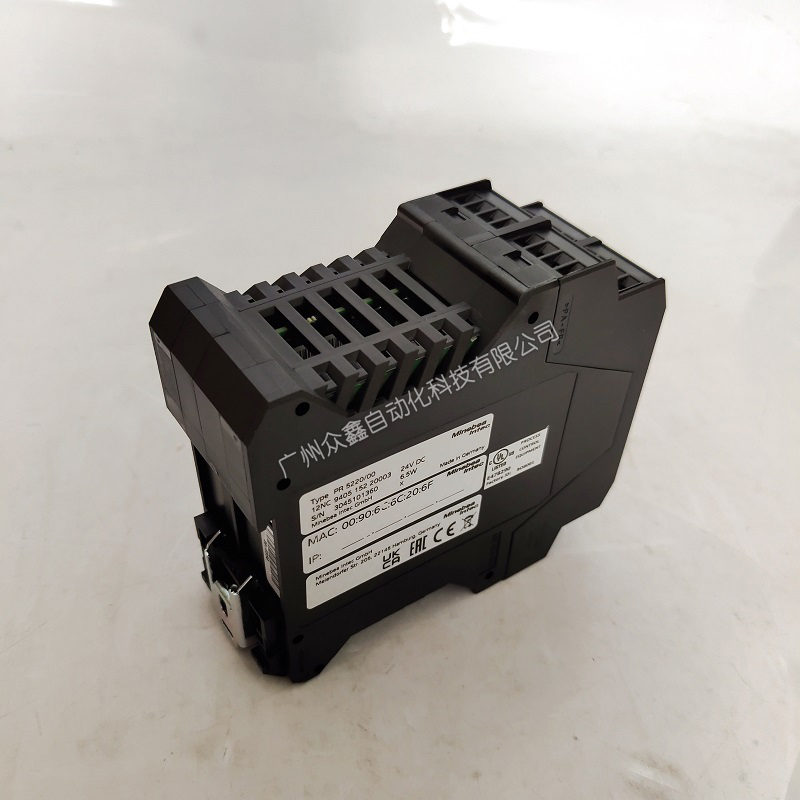

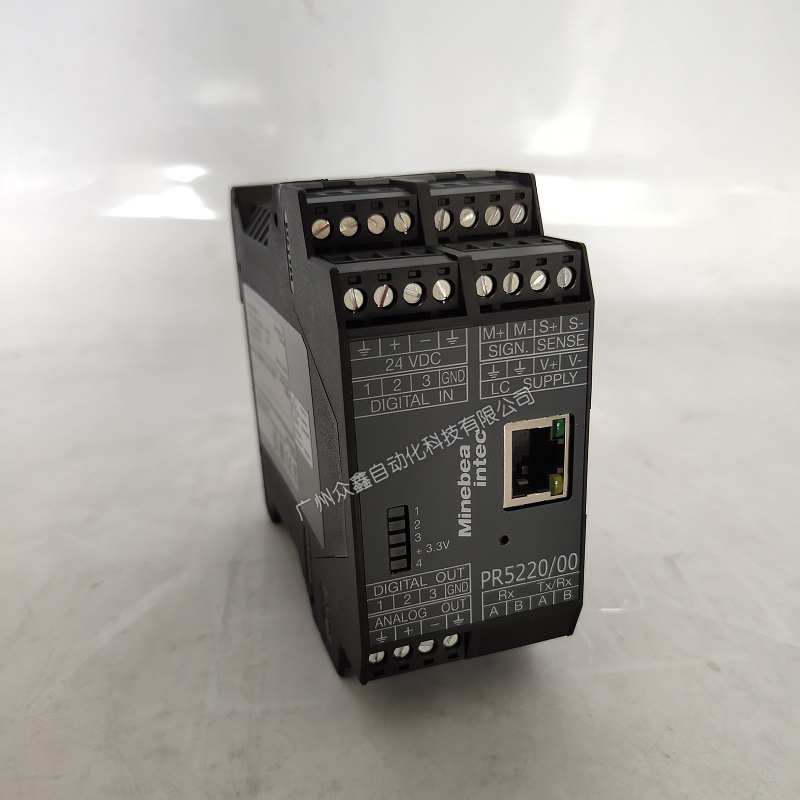

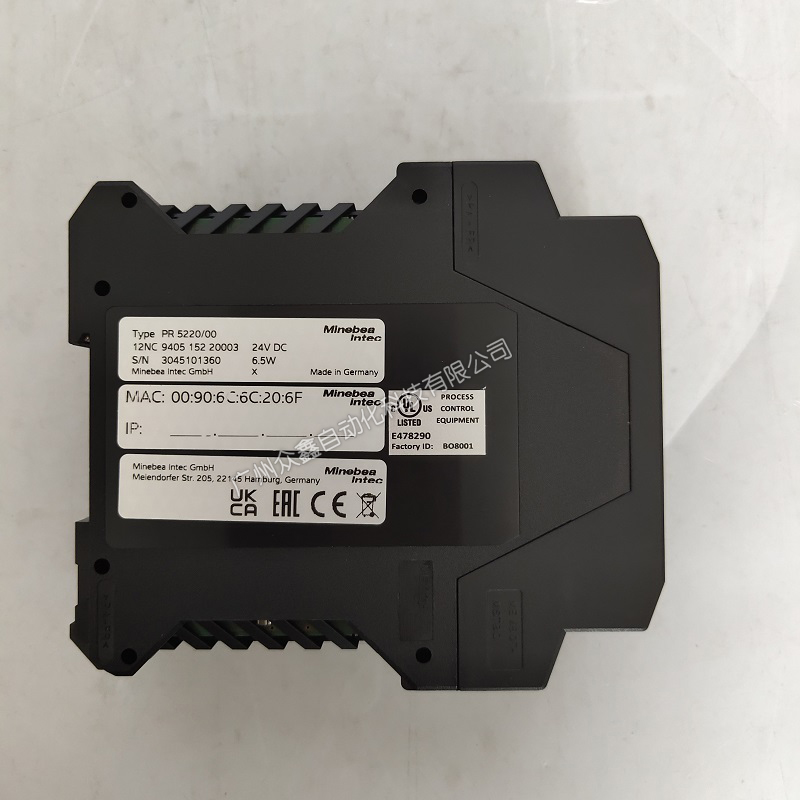

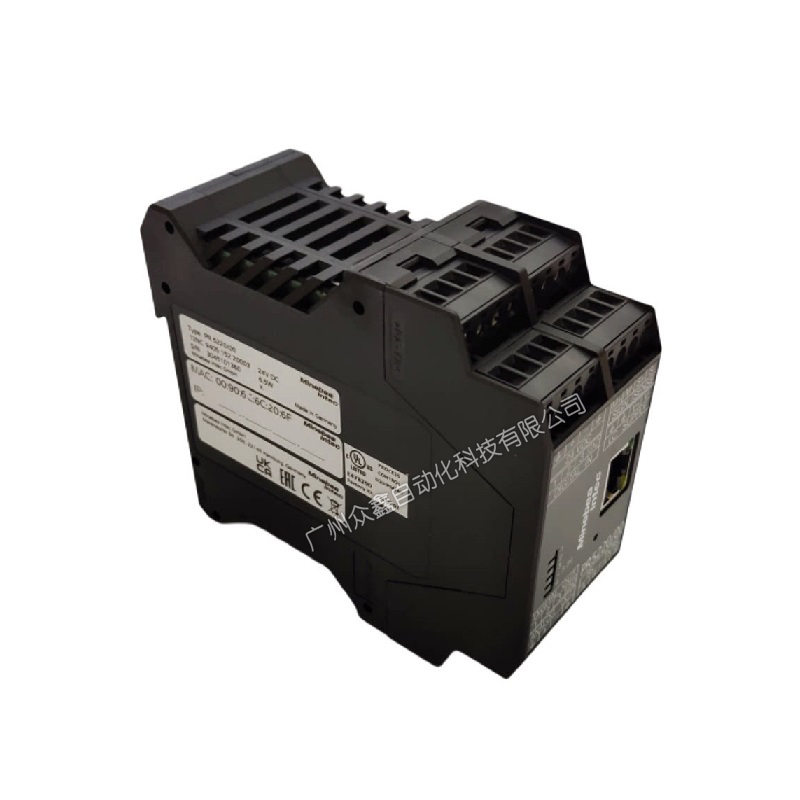

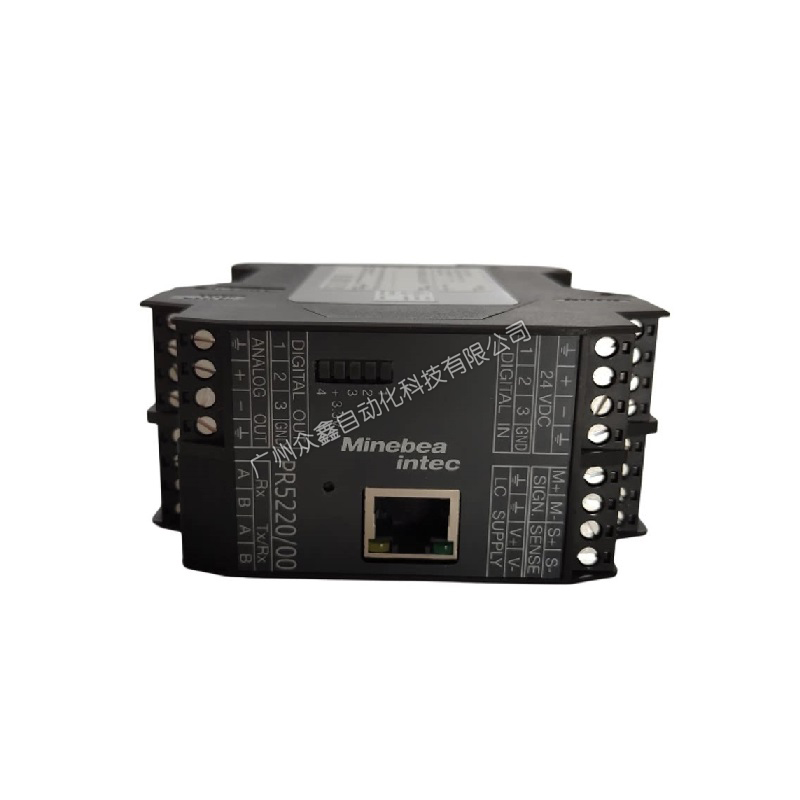

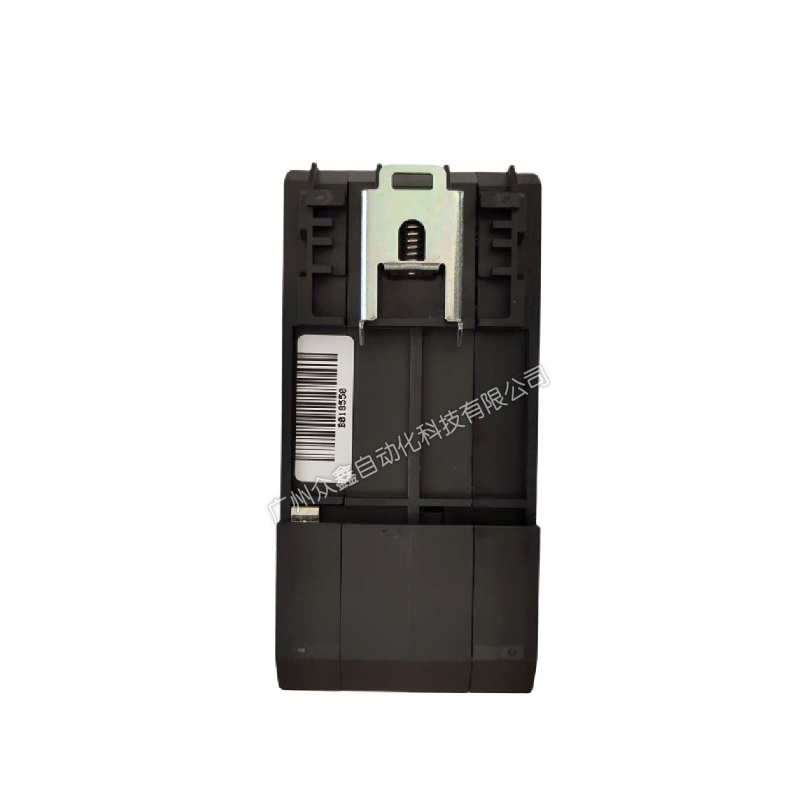

5、 PR5220 Weighing Transmitter Product Actual Photo
