PR5211 weight transmitter from Germany's Intertek (formerly known as Germany's Sartorius)

1、 PR5211 Weight Transmitter Product Introduction

Product brand:Germany IntertekMinebea intec (formerly Sartorius, Germany)

Product series: PR5211 (delisted, discontinued, replaced with PR5220)

Product type: Weight transmitter

Product Introduction

(1) The PR 5211 series transmitter provides a reliable and simple option for recording the weight of weighing sensors. Thanks to various optional interfaces such as Profibus DP, it is easy to integrate directly into higher-level systems such as PLCs. The integrated USB interface supports quick and easy configuration on a PC using engineering tools.

(2) The PR 5211 series transmitter has been discontinued and delisted, and can be replaced by the PR 5220 series.

(3) The PR 5220 series weighing transmitter is designed to save installation space in control cabinets. The compact casing can be directly installed on DIN top cap rails and connected in series. Plug in COMBICOM screw terminals are used for easy and time-saving installation and replacement of equipment.

(4) The PR 5220 weighing transmitter comes standard with three digital inputs and outputs. They can be assigned application specific limits, limit functions, and related values to prevent overfilling and underfilling. Customized interfaces ensure optimal integration with leading control systems.

2、 PR5211 series weight transmitter model

PR5211/00（Profibus DP, analogue output, 3 digital inputs/outputs, serial interface RS232）

PR5211/10（Analogue output, 3 digital inputs/outputs, serial interface RS232）

PR5211/11（Profibus DP, 3 digital inputs/outputs,serial interface RS232）

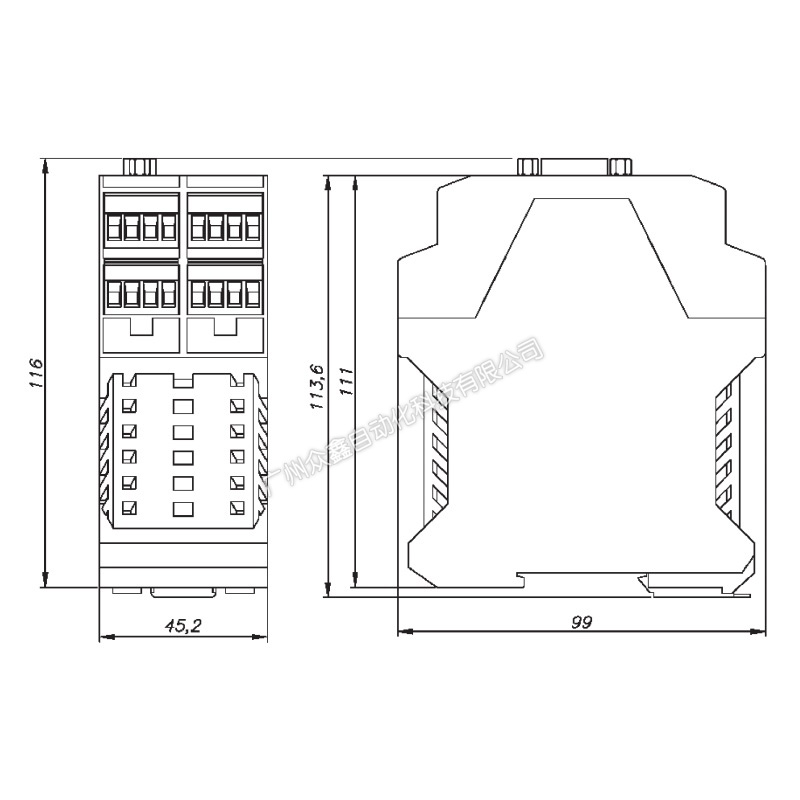

3、 Product dimensions of PR5211 weight transmitter

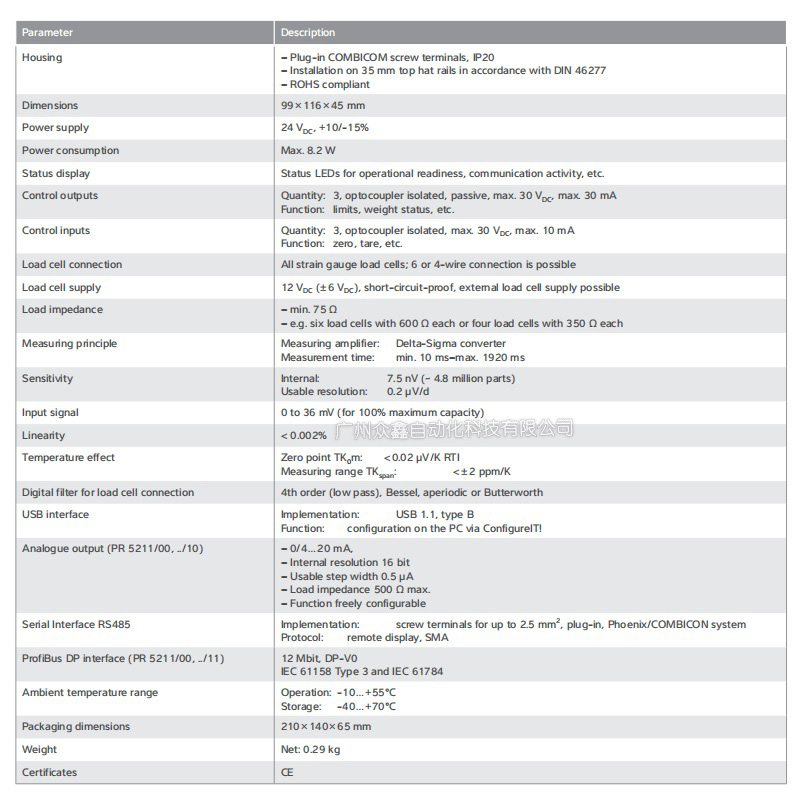

4、 Technical parameters of PR5211 weight transmitter

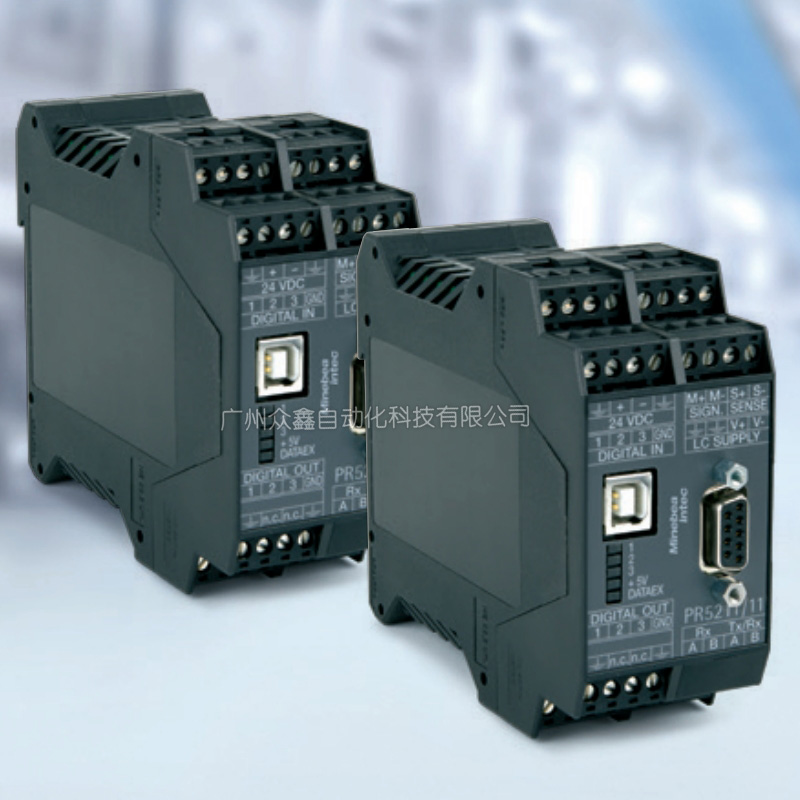

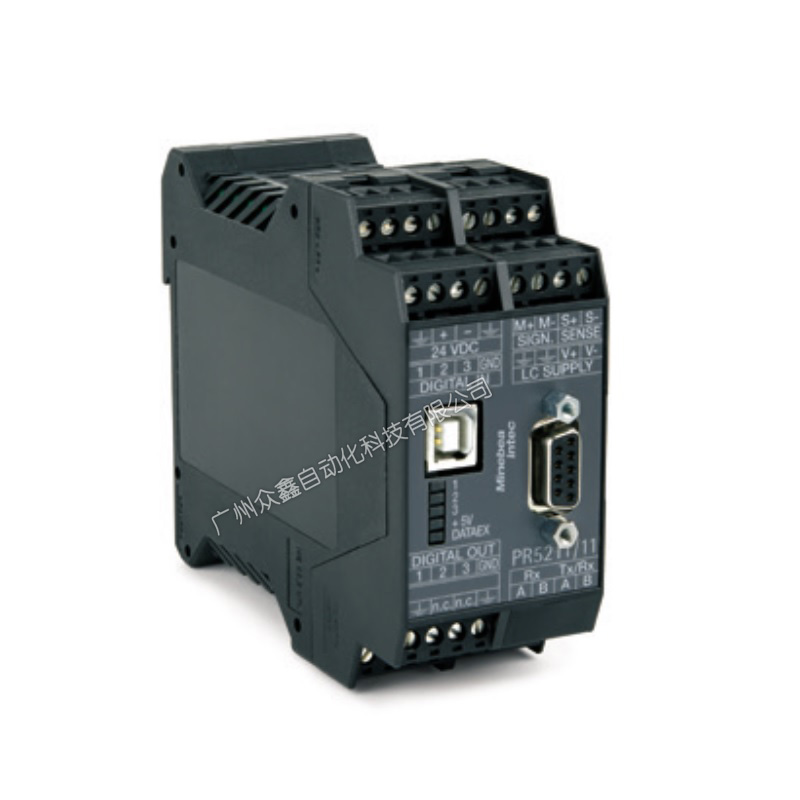

5、 Product picture of PR5211 weight transmitter
