PR5410 Weighing Display X3 Process Processor Germany Intertek (formerly Germany Sartorius)

1、 PR5410 Weighing Display Product Introduction

Product brand:Germany IntertekMinebea intec (formerly Sartorius)

Product series: PR5410, X3

Product type: weighing display, process processor

Product Introduction

(1) The verifiable weighing display X3 can quickly and reliably display weight values. Through the integrated EasyFill application, the filling of liquids, powders, or granules can be controlled.

(2) The weighing display X3 comes standard with three freely configurable digital input and output terminals. These can be used in conjunction with limit functions and related values for specific applications to avoid excessive or insufficient filling. The weighing display also comes with optional slots for interfaces and input/output cards. Various interfaces can be integrated with existing networks. The serial interface RS 232 can be directly connected to a printer or an additional remote display screen for recording and printing weight values. It can be directly connected to a printer or an additional remote display for recording and printing weight values.

(3) This device is equipped with an aluminum casing and the front panel meets the IP 65 standard. Suitable for installation inside control cabinets. The keypad, monitor, or display panel, together with the front panel, form a unit. When installing, it is necessary to first dig a rectangular hole. The cable connector is located on the back panel of the outer cover. A 6-pin plug-in junction box that can be used to connect weighing sensors. The built-in signal interface is equipped with a 9-contact D-Sub internal hole connector. Network connection can be achieved through the built-in RJ-45 LAN jack. Three optocoupler input terminals and three optocoupler output terminals can be connected using plug-in terminals.

Product advantages:

(1) Reliable and fast processing of weight values, with increments up to 120000. The efficient weighing display is equipped with a large reflective display screen, which is clear and easy to read even under direct sunlight.

(2) Intelligent calibration "allows for PC based calibration without the need for any weights. This can effectively minimize installation time.

(3) EasyFill for single component ingredients of liquids, powders, and granules? It can reduce the programming time of PLC, thereby achieving fast and flexible process changes.

(4) Global remote services can avoid production downtime.

(5) High precision, reliability, and speed in weight value processing

(6) Reliable display of weight value

(7) Conveniently and efficiently calibrate scales within one minute

(8) Utilizing remote service capabilities for global remote services

(9) The ingredient function EasyFill can shorten programming time

Product Features:

(1) The weighing accuracy of electronic products is 10000 e (Level III)

(2) High speed conversion, response time of 10 milliseconds

(3) The weighing indicator is equipped with a reflective 6-digit 7-segment display status

(4) The front panel is equipped with 6 function keys

(5) The front panel meets the IP65 standard, and the rear panel meets the IP 30 standard

(6) Built in 10/100 Mbps LAN adapter

(7) Built in RS-232 interface; Can be used to connect printers or remote indicators

(8) Scalable performance or installation of plug-in circuit board (2 slots)

(9) Galvanized protection interface (in addition to RS-232, there are also analog inputs and BCD outputs)

(10) The power supply has a wide range of applications, 100-240 VAC, with Class I protection (protective grounding)

(11) PR 5410/01 model can use 24 VDC DC power supply

(12) The weighing sensor, input/output terminals, and LAN adapter can be plugged in on the back panel (backboard) for plug-in connections

(13) Can be installed in the openings of panels or control cabinets

(14) Calibrate using the front button or PC tool (browser/VNC)

(15) Calibration method using weights: Input mV/V value, or directly use weighing sensor data ('intelligent calibration')

(16) Software configuration interface card, such as remote monitor or printer

(17) Can be used for simulation testing of weighing electronic products

2、 PR5410 Weighing Display Product Model

PR5410/00（110–230 V）

PR5410/01（24 VDC）

PR5410/03（24 VDC，ATEX Zone 2/22）

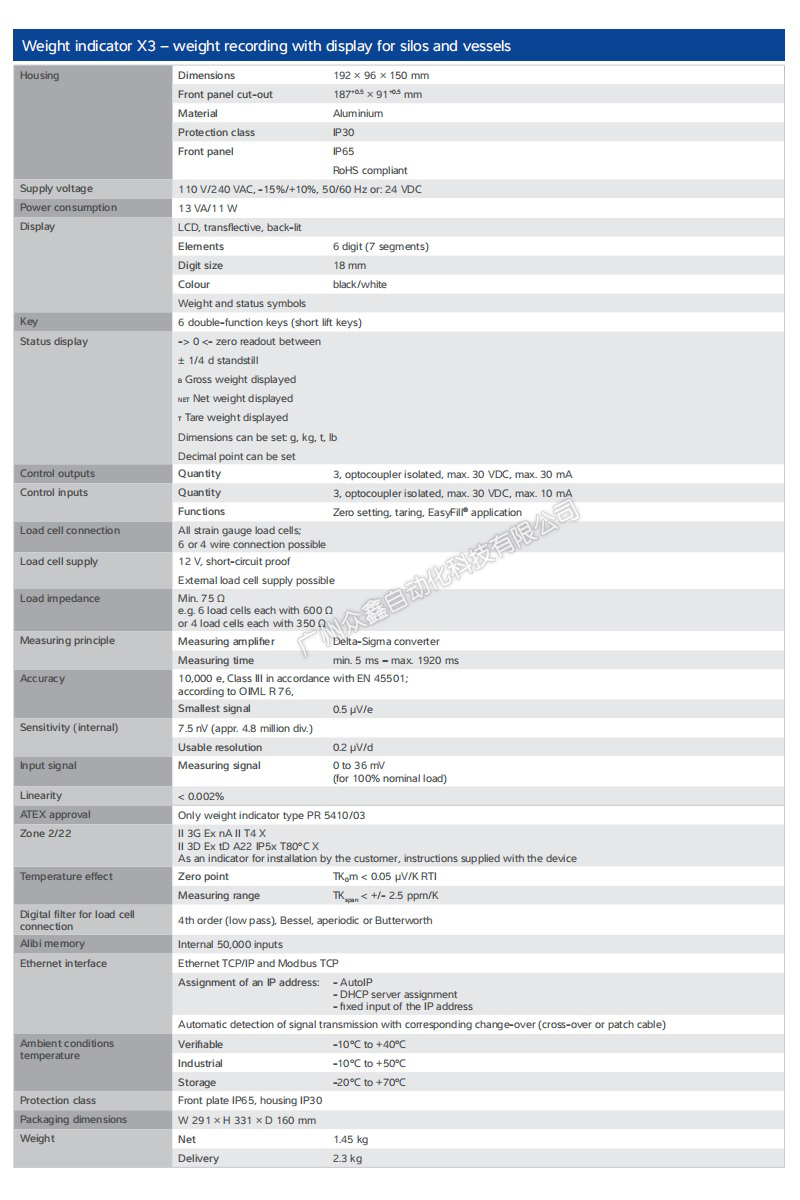

2、 PR5410 Weighing Display Product Parameters

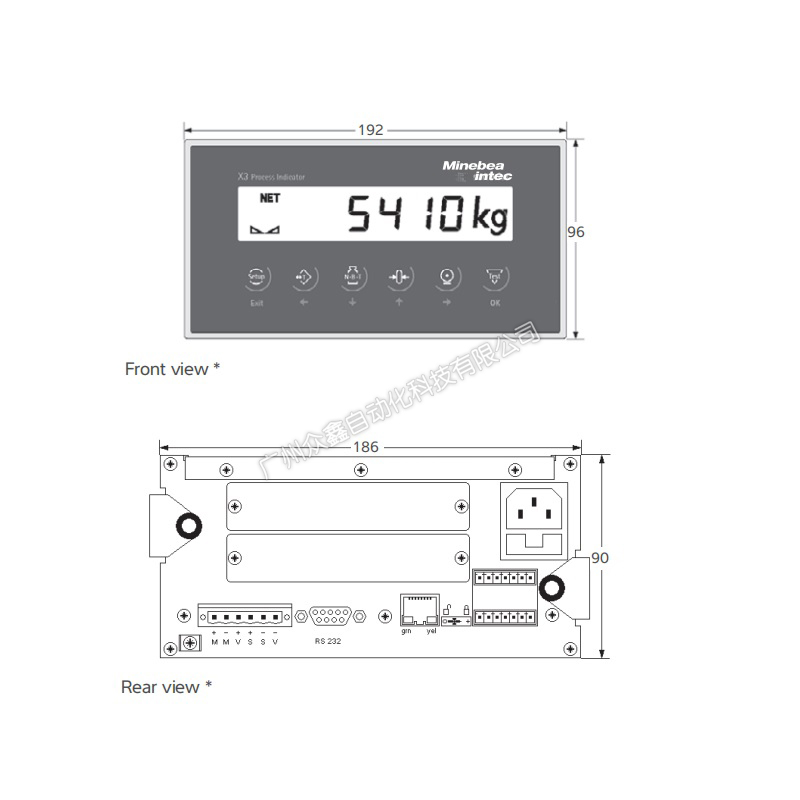

3、 PR5410 Weighing Display Product Dimensions

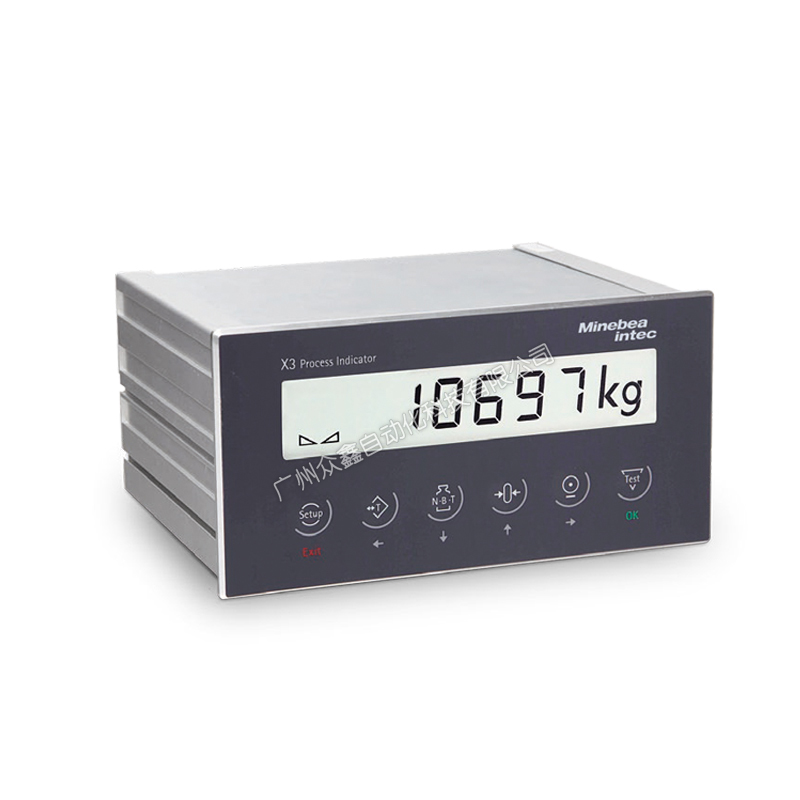

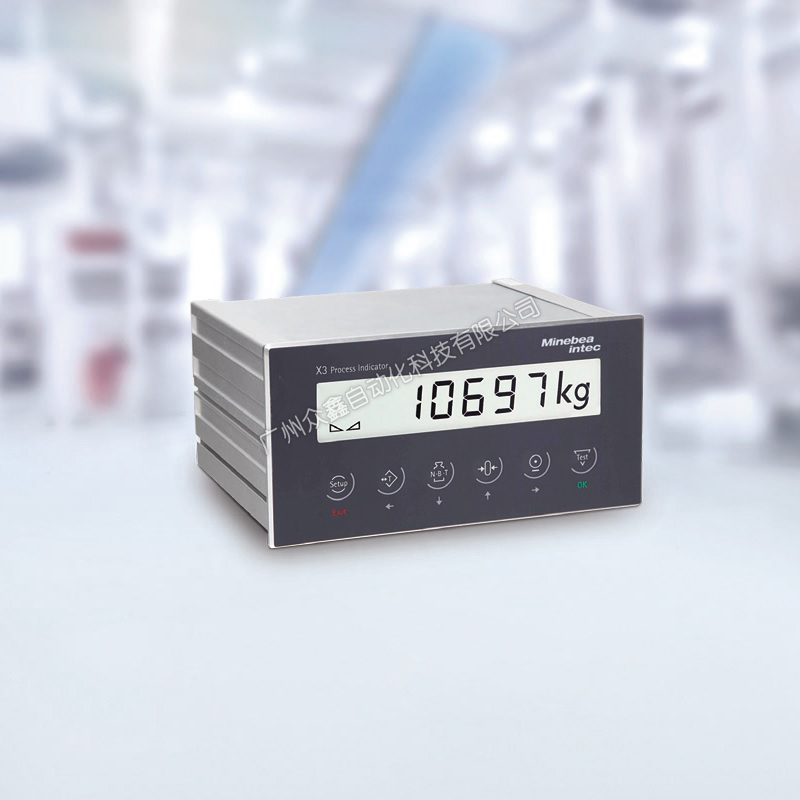

4、 Product image of PR5410 weighing display
