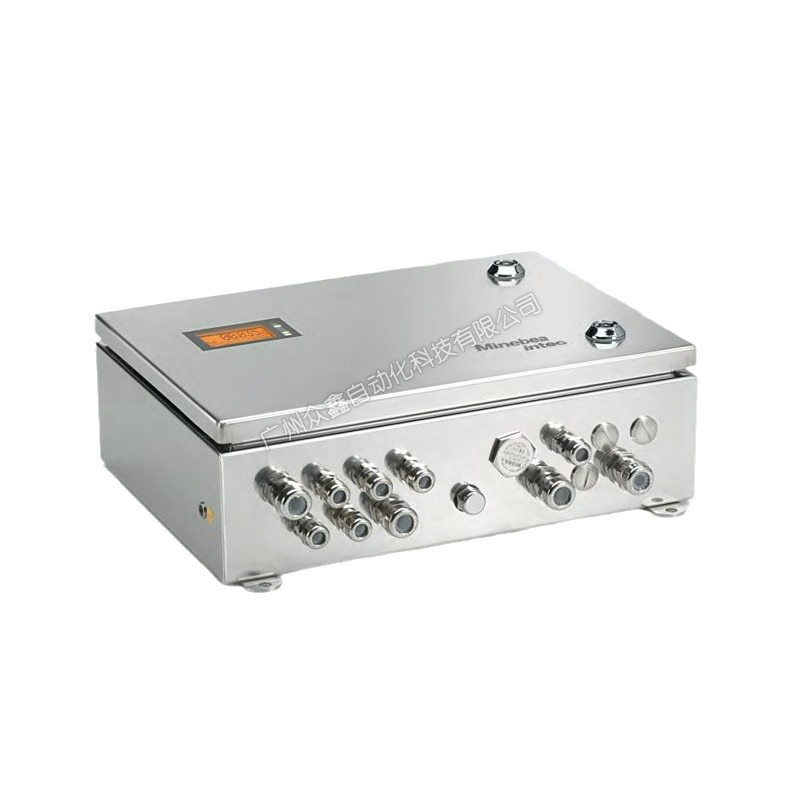

PR5230 weighing transmitter from Germany's Intertek (formerly known as Germany's Sartorius)

1、 Product Introduction of PR5230 Weighing Transmitter

Product brand:Germany IntertekMinebea intec (formerly Sartorius, Germany)

Product series: PR5230

Product type: Weighing transmitter

Product Introduction

(1) The Yintaike weight transmitter PR5230 can reliably and accurately process analog and digital weighing sensor signals on the material tank scale. Its casing ensures direct and safe installation in any environmental condition.

(2) The weight transmitter PR 5230 comes standard with three freely configurable digital inputs and outputs, which can be used for specific application limiting functions to avoid excessive or insufficient filling of related weight values. The weight transmitter can effortlessly connect to an external WLAN adapter and can be used in conjunction with all functions within its range. In explosion-proof zone 1/21, it is optional to connect intrinsically safe weighing sensors without the need for additional power limiting safety barriers. The printer can be directly connected to the transmitter for recording and printing weighing data or defining configuration parameters.

(3) Including EasyFill application

EasyFi is a basic software application for single component filling of liquids, powders, and particles. Users can set target values, tolerances, and overshoot values. The integrated digital input/output can directly control the process. Numerous options/interfaces are integrated into your production network to ensure effective and simple control of the simple filling process.

(4) Assign by IP address

Flexible solution for IP address assignment: It can be manually set by the operator, automatically defined by the weight transmitter PR5230, or automatically assigned from the network server (DHCP). If the IP address of the automatic dispatch is unknown, the monitor browser in Yintaike products can ensure that you can search for the correct transmitter on the network.

Product advantages:

(1) Reliable and fast processing of weight values, up to 120000 increments. The integrated display window ensures intuitive status monitoring.

(2) Is EasyFiLL standard? Software can reduce programming time for single component filling of liquids, powders, and particles, ensuring fast and flexible process changes.

(3) Intelligent calibration ensures that PC based calibration has no weight deviation. Effectively reduce installation time to a minimum.

(4) The remote service function avoids production downtime.

Product Features:

(1) High precision, reliable, and fast processing of weight values

(2) Convenient and effective calibration within one minute

(3) Global remote services with remote service capabilities

(4) Integrated status monitoring display

(5) Is the ingredient function EasyFiLL? Can reduce processing time

(6) Connect via Ethernet/IP and configure computer settings (via VNC or browser configuration); OPC server; PLC connection adopts Modbus TCP protocol)

(7) Protection level IP 66, stainless steel, polished

(8) Display weight and status information

(9) Through 10.000e W and M licenses, 4,8Mio. Count internal solution

(10) Calibration does not require weights (intelligent calibration)

(11) Tabs: Serial Interface RS485/422, RS232 Analog Output 0/4.20mA, Fieldbus DP, Interbus-S, DeviceNet Protocol, CC Connection, Profinet Communication System, and Ethernet/IP

(12) The weighing sensor wiring board can connect up to 4 weighing sensors

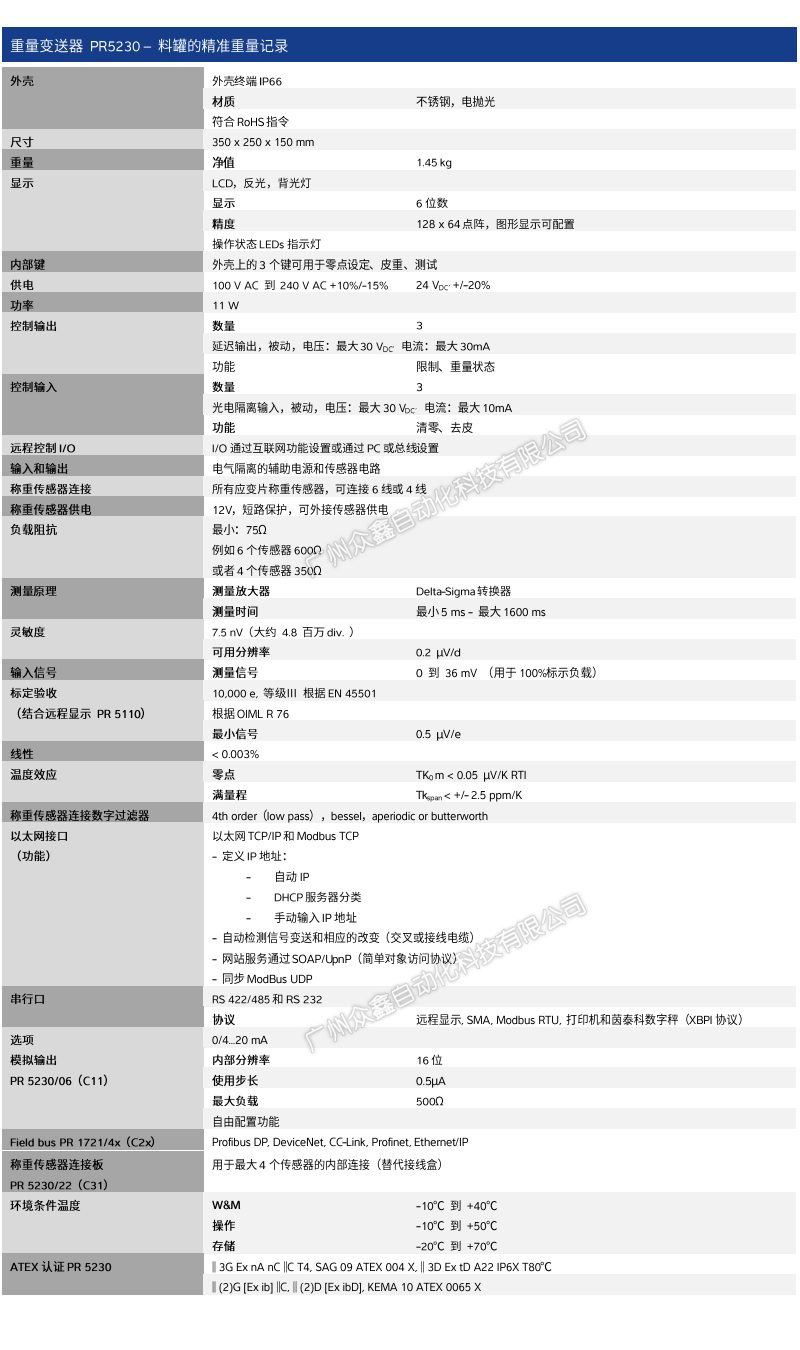

2、 Product parameters of PR5230 weighing transmitter

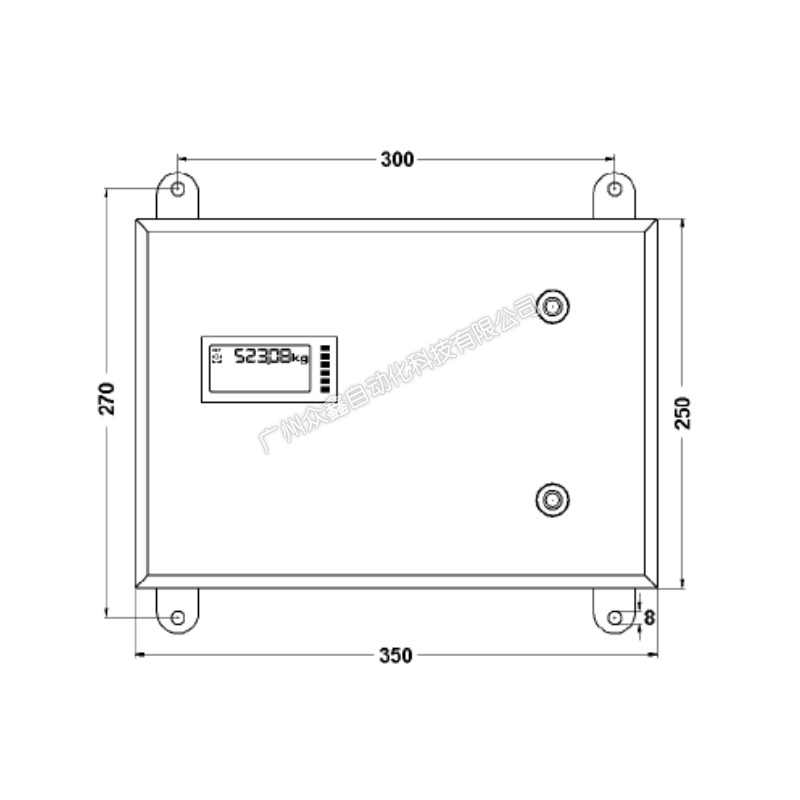

3、 Product size of PR5230 weighing transmitter

4、 Product picture of PR5230 weighing transmitter
