AJB-015 intrinsically safe junction box, American Transcell explosion-proof junction box

1、 AJB-015 junction box product introduction

Product brand:American Transcell

Product Series: AJB

Product type: Intrinsic safety junction box

Product Introduction

(1) Due to the fact that the rated output and output impedance parameters of sensors cannot be completely consistent in manufacturing, if a scale consists of multiple sensors, when the load is located at different positions on the scale, it may cause inconsistent readings on the weighing instrument. We refer to this inconsistency as angle difference. For this purpose, a dedicated junction box has been developed, which first connects the output signal of the sensor to the junction box and then sends it to the instrument. Adjust the angle difference by adjusting the corresponding potentiometer in the junction box.

(2) The AJB-015 junction box is suitable for using no more than 4 sensor scales. The working environment temperature is -10 to+40 ℃, and the relative humidity is less than 95% (without condensation).

(3) The AJB-015 junction box adopts a stainless steel shell and a dedicated sealed joint, which is waterproof and dustproof. Protection level: IP65. Explosion proof label: Ex ia Ⅱ C T6 Ga.

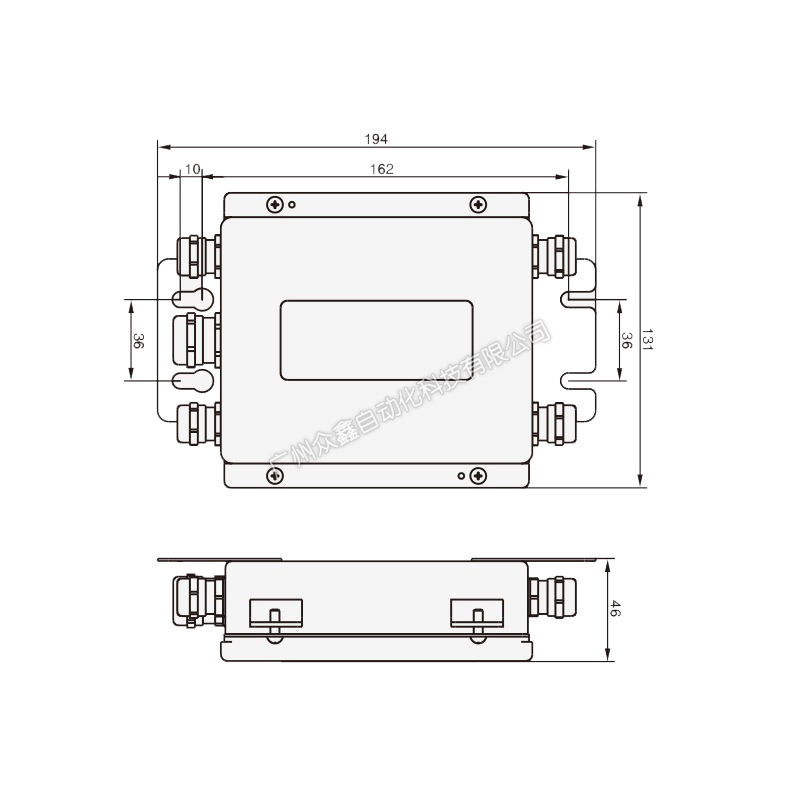

2、 AJB-015 junction box product size

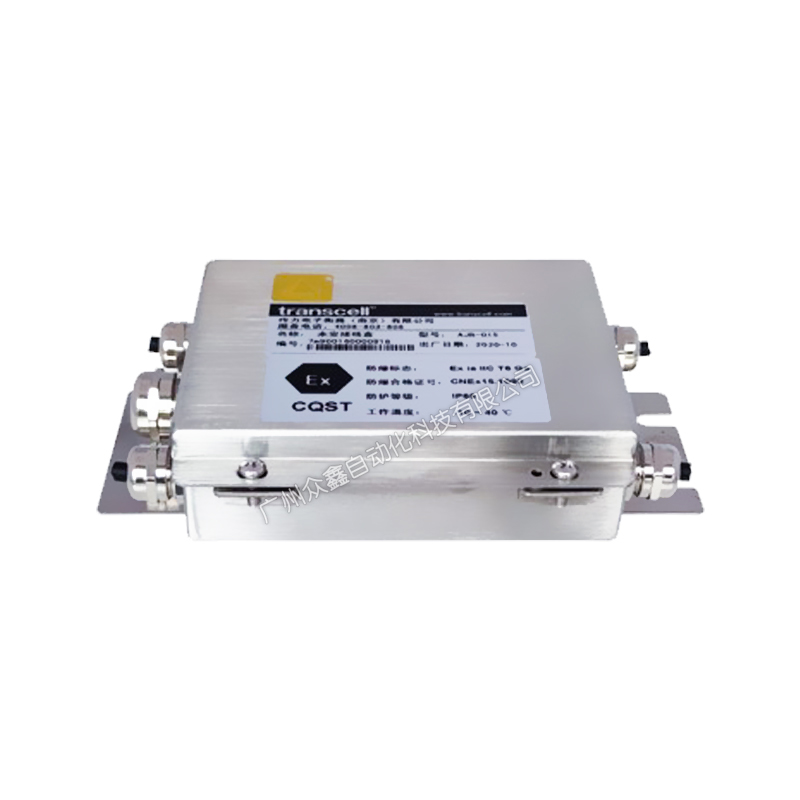

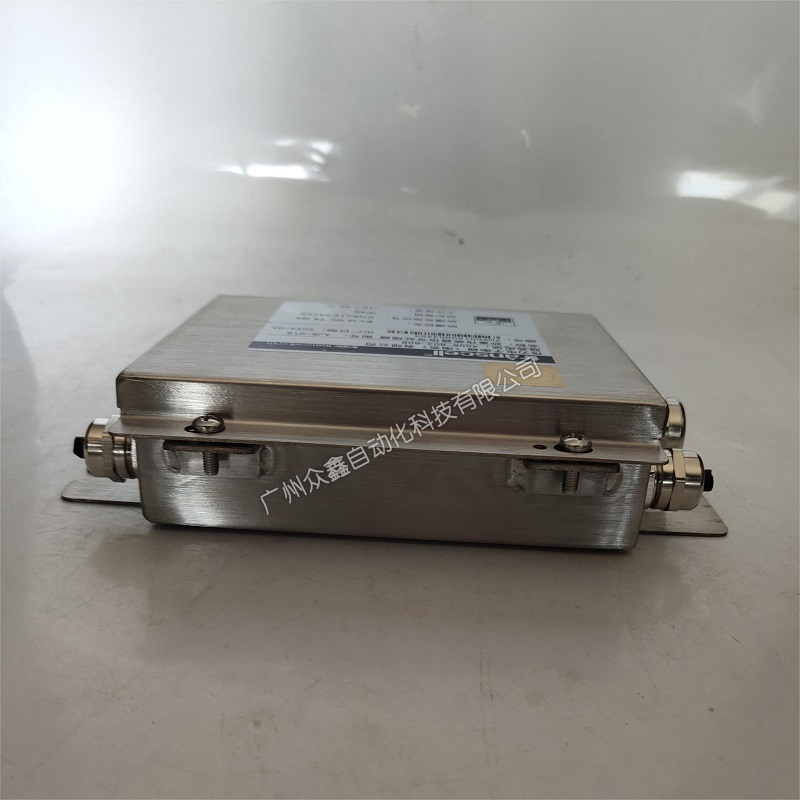

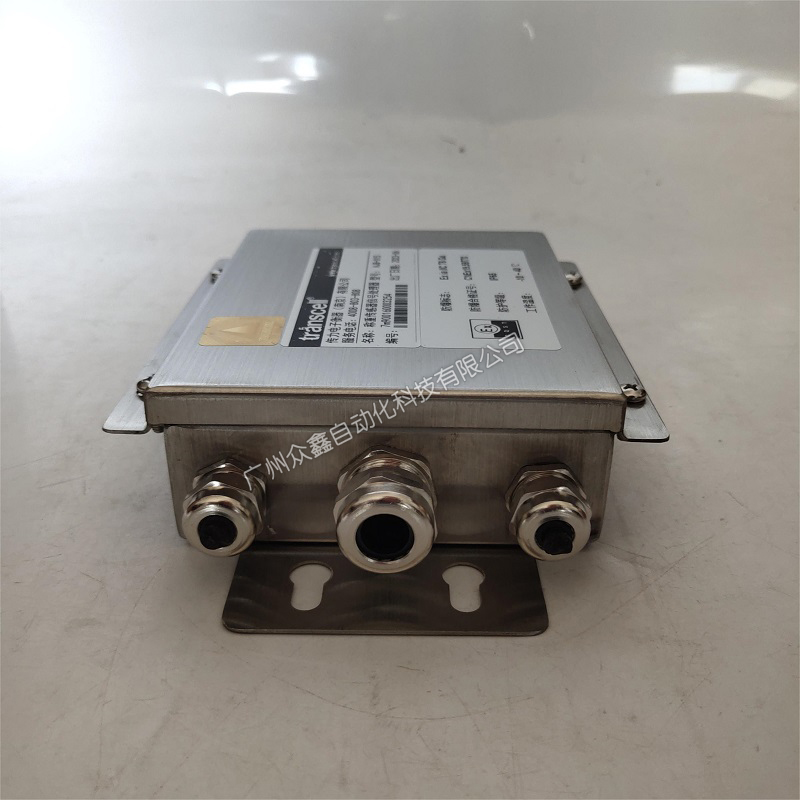

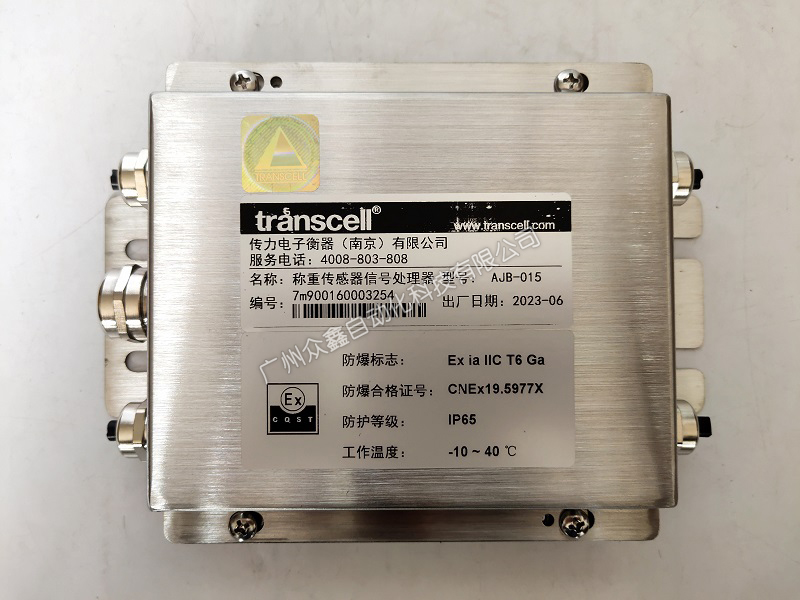

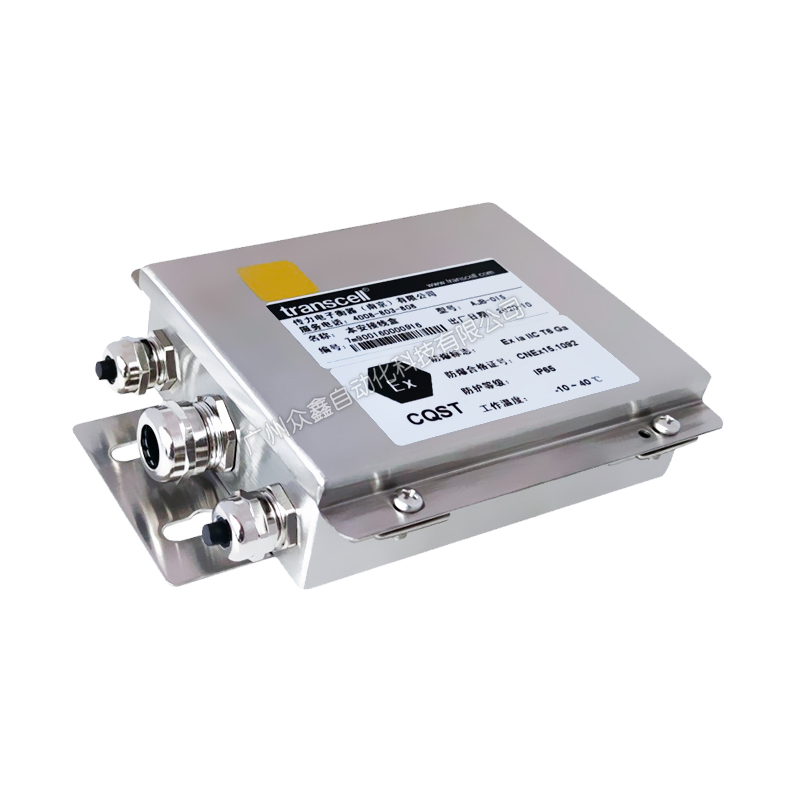

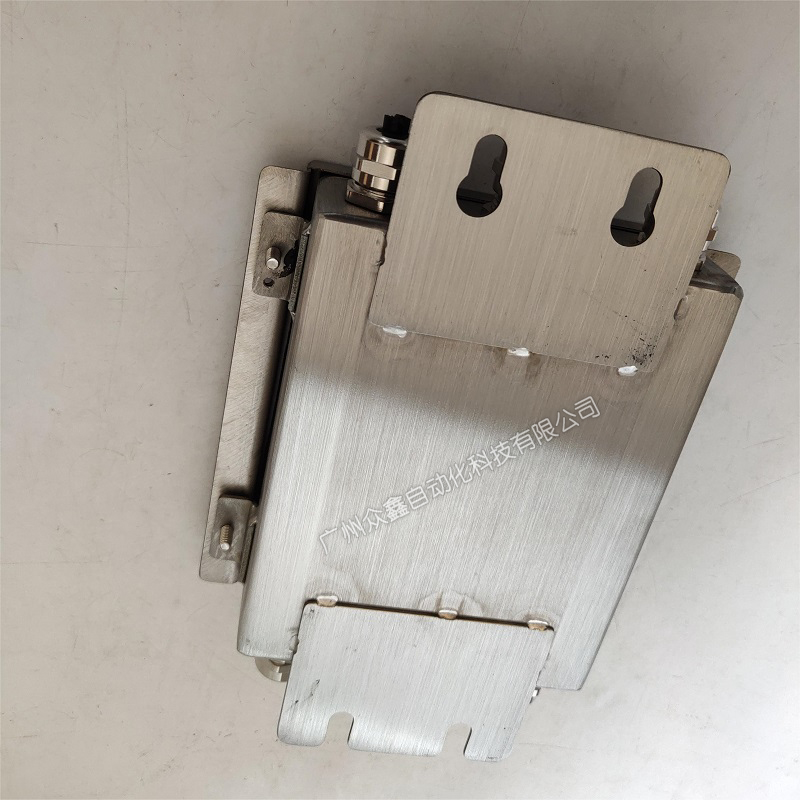

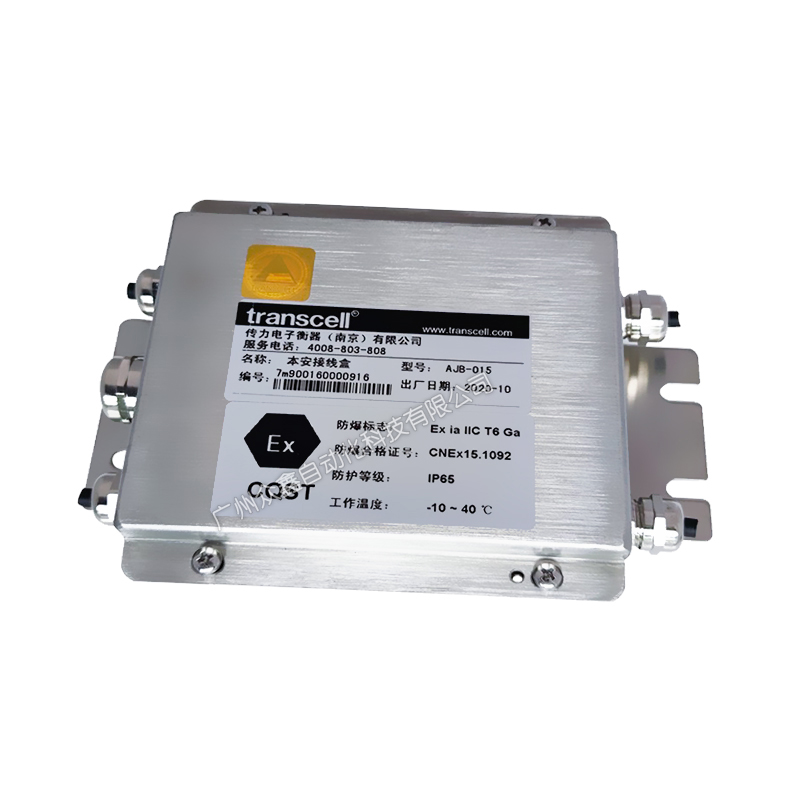

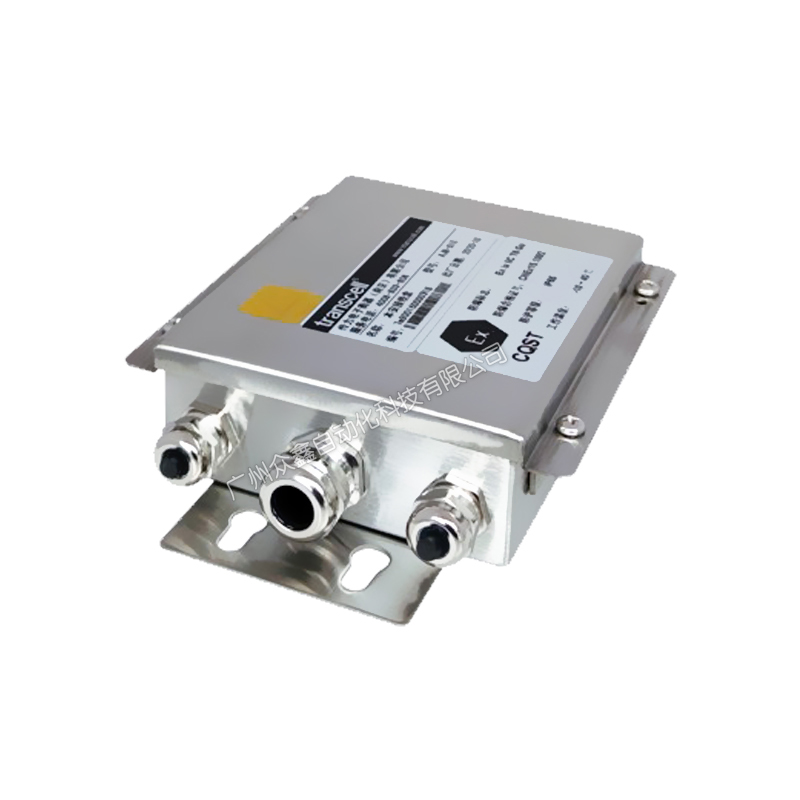

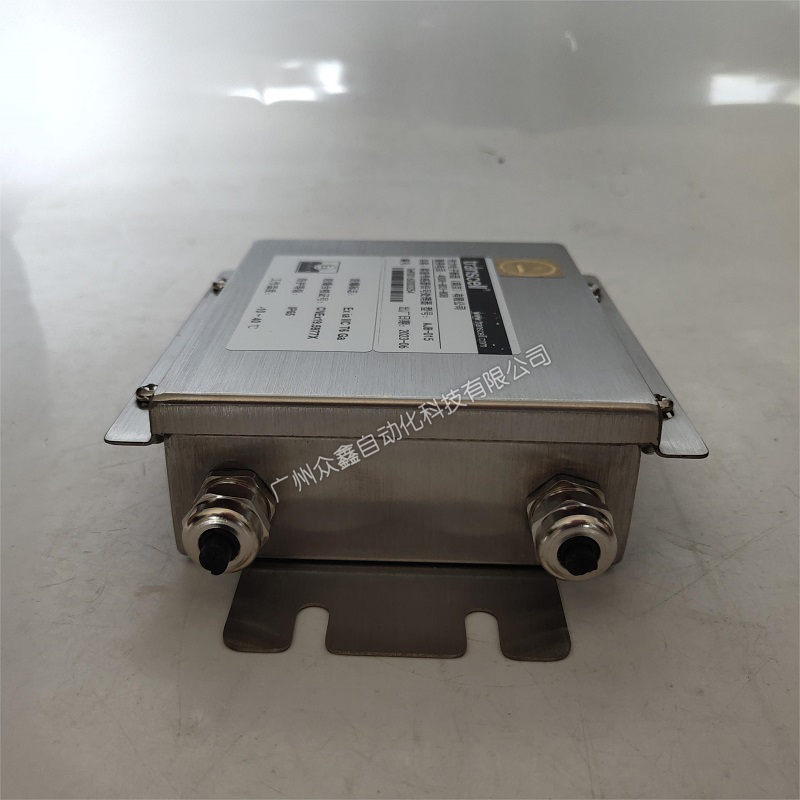

3、 AJB-015 junction box product picture
