IND780 78J3000AA000J01 Weighing Instrument Dustproof Mettler Toledo

1、 IND780 78J3000AA000J01 Weighing Instrument Product Introduction

Product brand:Mettler Toledo　METTLER TOLEDO

Product Type: Weighing Instrument

Product Series: XK3140-6000IND780

Product model: 78J3000AA000J01

Model meaning: Powercell MTX digital scale interface board, dual serial ports, 220V AC, Chinese style plug (78J3000AA000C00)

Installation method: dustproof type

Product Introduction: The IND780 is a highly flexible weighing indicator and controller designed to support advanced weighing applications as a standalone or integrated solution. Configure up to four concurrent scales and one approved total scale, and then view one or all scales simultaneously on the display screen to maximize process visibility and control various possible applications.

Product advantages:

1. Multi channel application, higher cost-effectiveness

ND780 can display weight values from four weighing modules simultaneously, and can also accumulate and display the weight of different weighing modules as needed. The IND780 can define different application modes for each weighing module, truly achieving "one machine for multiple uses". Through centralized control of symmetrical weight units, installation sites can be saved, maintenance and configuration difficulties can be reduced, and usage costs can be lowered.

2. An automated production network hub that connects everything

The IND780 can not only connect to existing PLC control networks, but also replace PLCs and integrate weighing and measurement, automatic control, data processing and exchange, thereby simplifying industrial control networks and reducing costs. The IND780 is equipped with an RJ45 standard Ethernet interface, which can be directly connected to the enterprise LAN, achieving seamless connection between industrial control network and management network. Users can monitor the operation status of instruments, adjust parameters, analyze weighing data, backup or restore instrument settings at any time through the network. Get rid of the cumbersome system structure and truly achieve a complete solution that integrates data collection and process control.

3. Ideal product for comprehensively improving production efficiency

The IND780 is equipped with a QVGA monochrome or color ultra large LCD display, which optimizes the display effect and can display a large amount of information at the same time. The multi CPU design of IND780 enables A/D conversion speed up to 366HZ, coupled with TraxDSP? Seismic technology and optional multi-stage filtering technology provide users with more accurate weighing results and faster response speed. SmartTrac? The graphical weighing process display technology helps users to more intuitively determine the position and error range of the target weight during manual or semi-automatic batching, improving work efficiency and accuracy.

Product Features:

(1) Can be used in general weighing situations and some hazardous situations

(2) Featuring panel and dust-proof (desktop/wall) structures

(3) Can connect 4 weighing platforms and a summing scale, which meets the requirements of metrological regulations

(4) Each instrument can be connected to 16 350 ohm sensors, and each weighing channel can be connected to 8 350 ohm sensors

(5) 320 x 240 dot matrix monochrome or TFT color LCD display, with a maximum word height of 34mm. It can also display weight values for multiple channels.

(6) Real time clock for battery backup

(7) Two standard serial interfaces (RS232 and RS232/422/485) can be used for data communication and print output

(8) 10/100M adaptive Ethernet port

(9) USB Host Device Controller

(10) Global Switching Power Supply Range of 100-240 VAC

(11) Supports the following interface boards:

① Analog sensor interface

② IDNet scale platform interface

③ POWERCELL ® interface

④ Serial port

⑤ Input/output interface

⑥ Allen Bradley ® RIO communication interface

⑦ PROFIBUS ®- DP communication interface

⑧ ControlNet ™ interface

⑨ EtherNet IP ® interface

(12) Basic weighing functions such as clearing, peeling, and printing

(13) Has the characteristics of multi range and multi division values

(14) Flow indication and control function

(15) Graphical weight inspection and sorting mode

(16) Fixed value control function

（17）SmartTrac ™ Graphic weight display

(18) Storage of tare weight table and target value table

(19) Unit conversion, including user-defined units

(20) Alibi memory, capable of storing up to 256000 weighing records

(21) Subtotals and totals function

(22) 10 user editable print output formats

（23）TraxDSP ™ Digital filtering technology

（24）TraxEMT ™ Intelligent maintenance and diagnostic technology

(25) Maximum 5-point linear calibration

（26）CalFREE ™ Weight free calibration technology

(27) Gradual substitution method calibration technology

2、 IND780 Weighing Instrument Product Model (Partial)

IND780 78J3000AA000J01

IND780 78J6000AA000J01

IND780 78R1000B0P01001

IND780 78R3100A0E00001

IND780 78R111100E00001

IND780 78R111100D00001

IND780 78R111100P00001

IND780 78R111100T00001

IND780 78R111000E00001

IND780 78R111000D00001

IND780 78R111000P00001

IND780 78R111000T00001

IND780 78R110000E00001

IND780 78R110000D00001

IND780 78R110000P00001

IND780 78R110000T00001

IND780 78R100000D00001

IND780 78R100000P00001

IND780 78R100000E00001

IND780 78R100000T00001

IND780 78R100000D01001

IND780 78R100000P01001

IND780 78R100000E01001

IND780 78R100000T01001

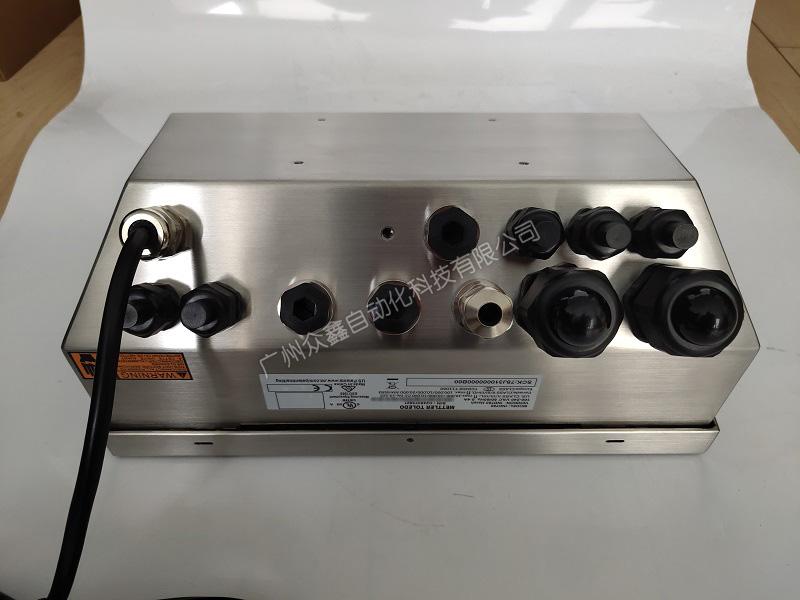

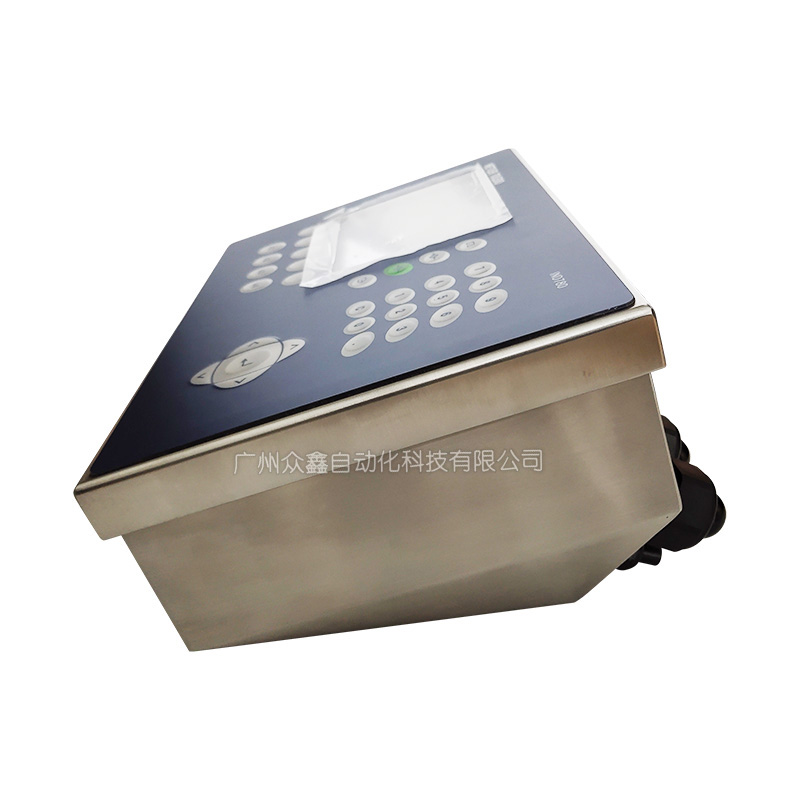

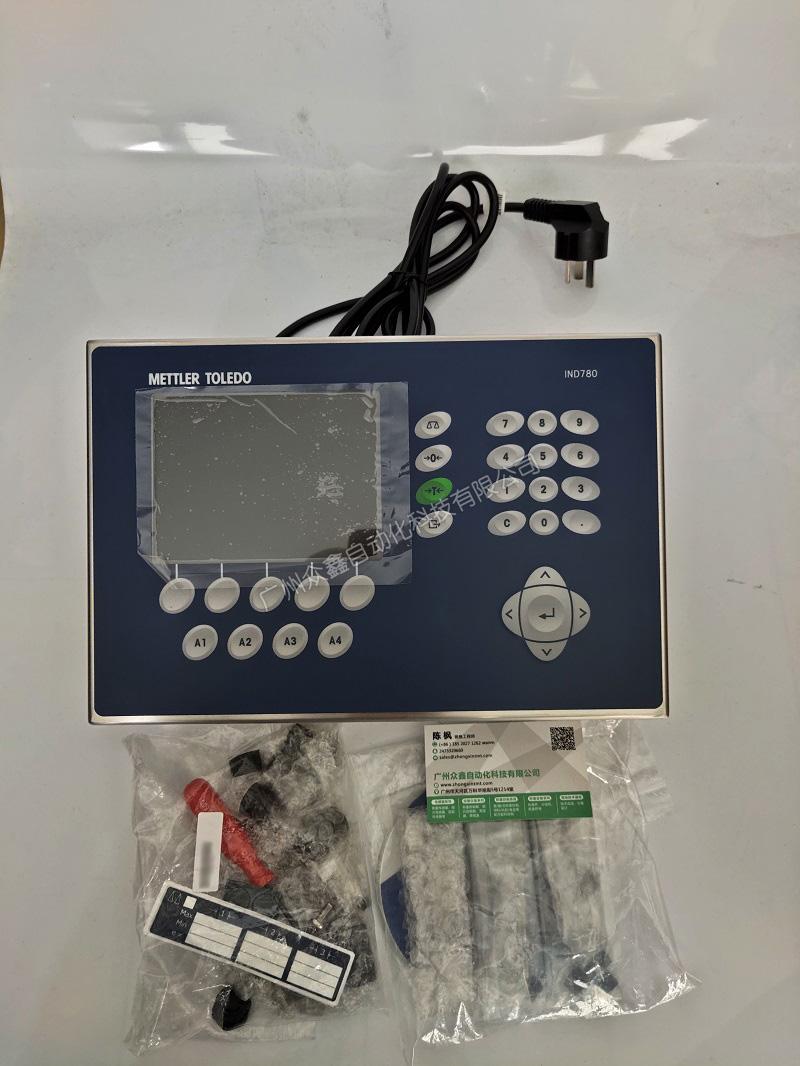

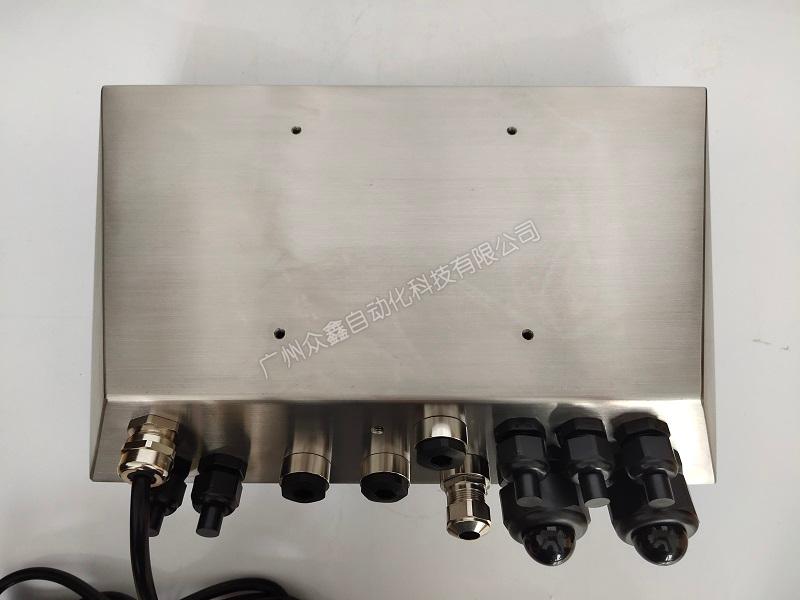

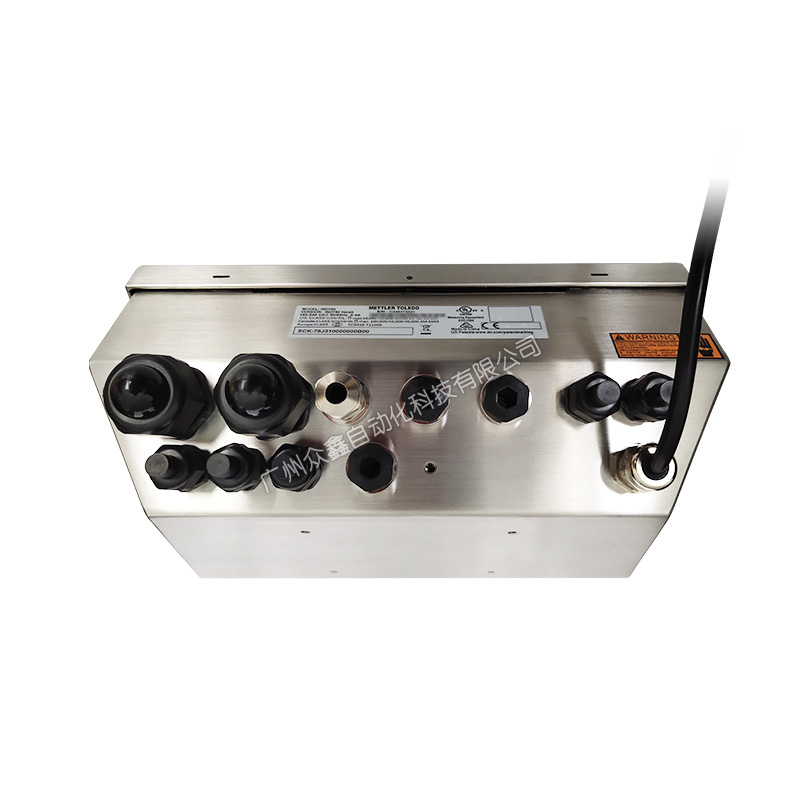

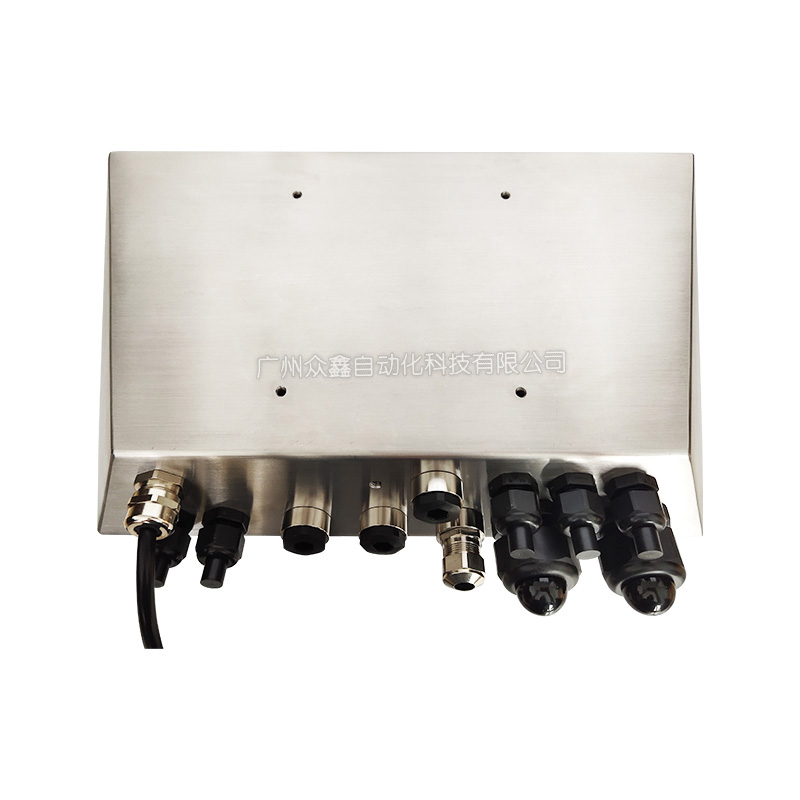

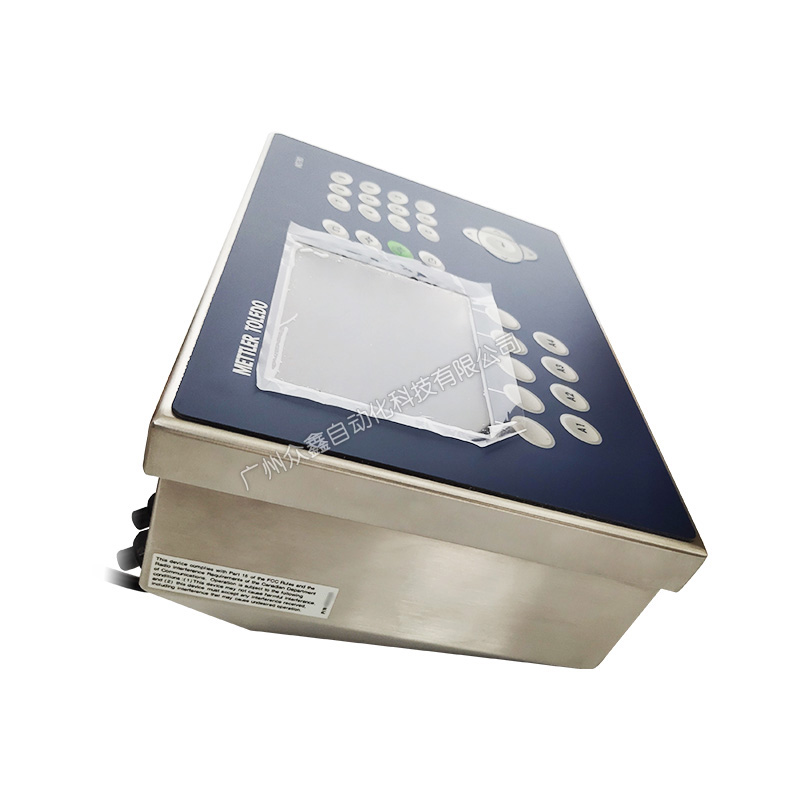

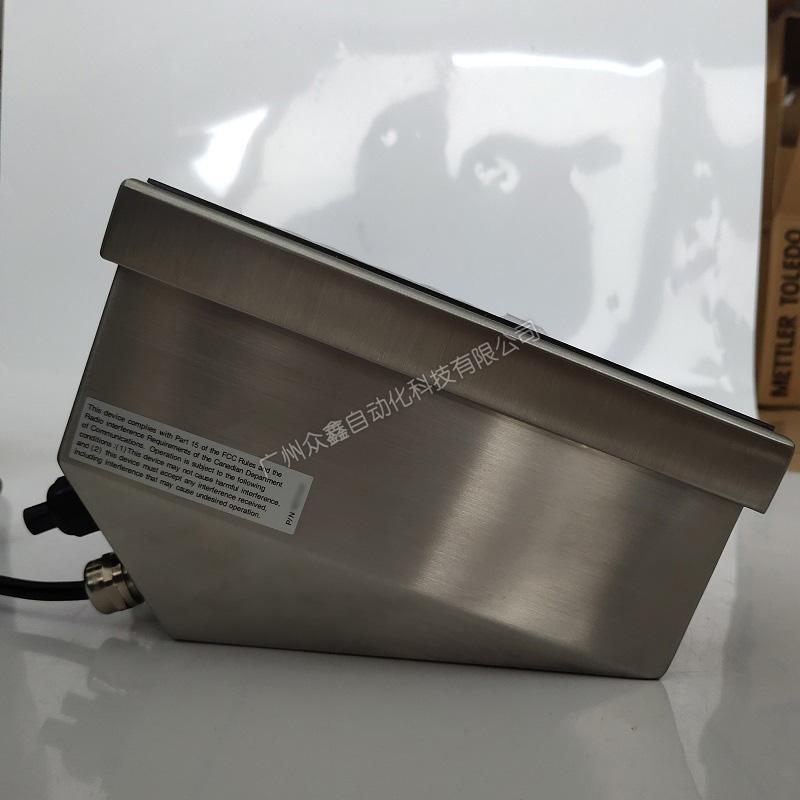

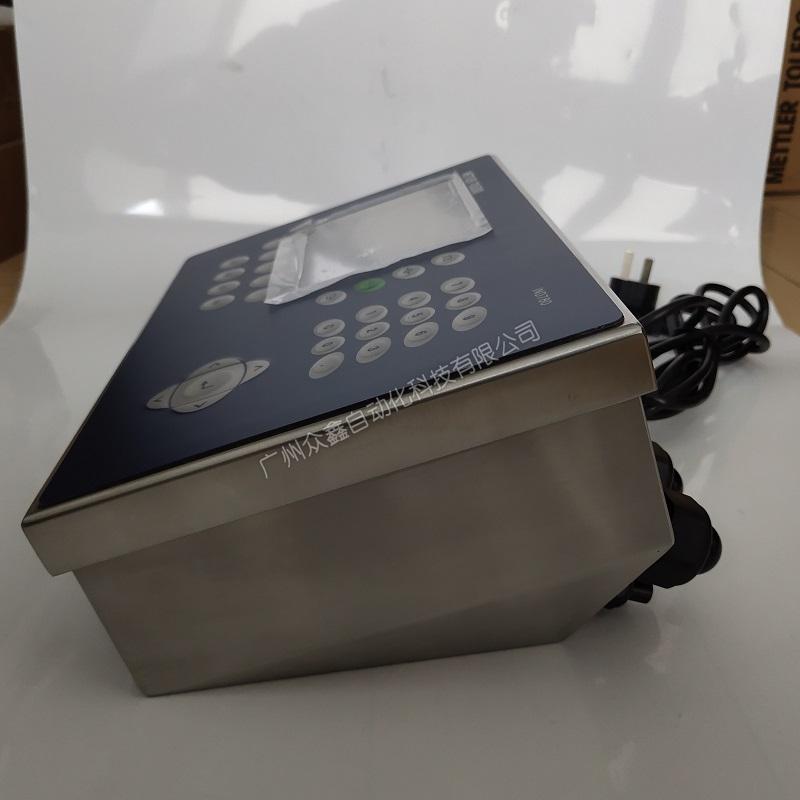

3、 Actual photo of IND780 weighing instrument product

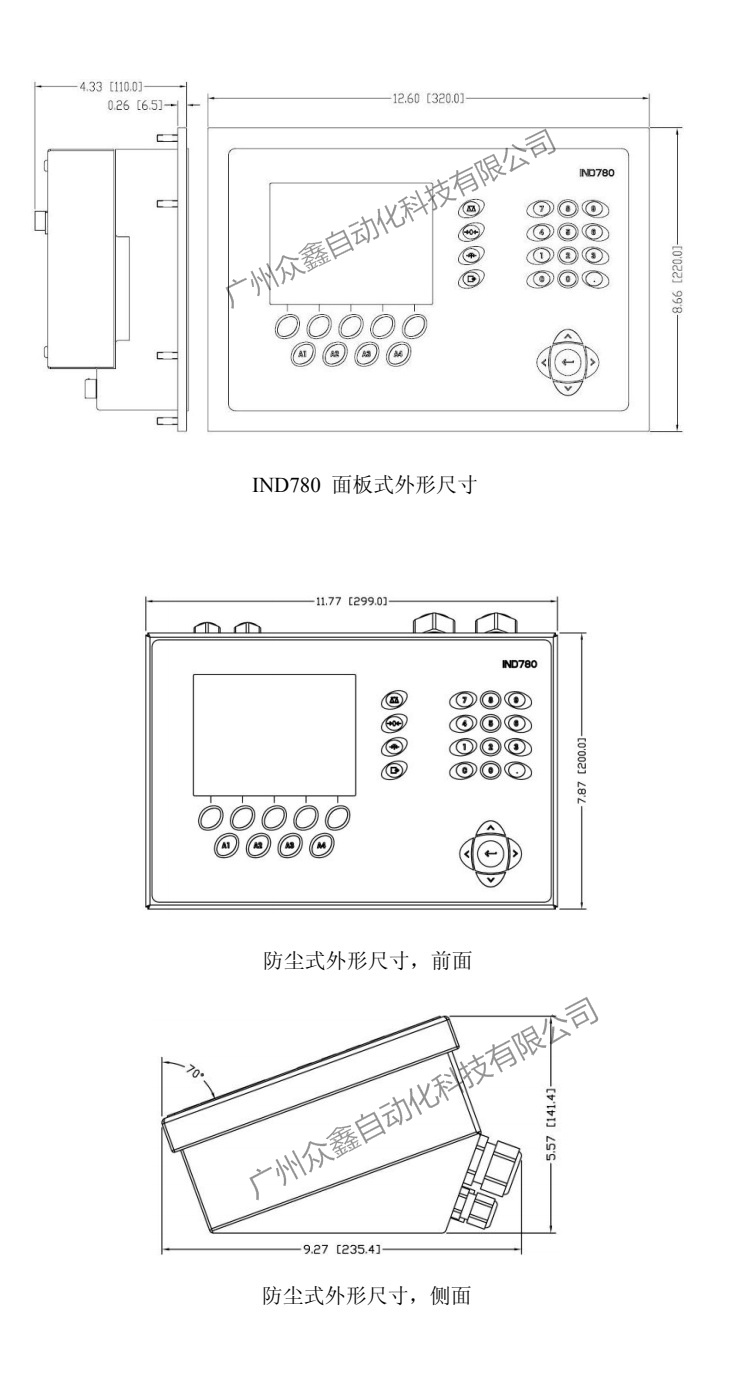

4、 IND780 Weighing Instrument Product Dimensions

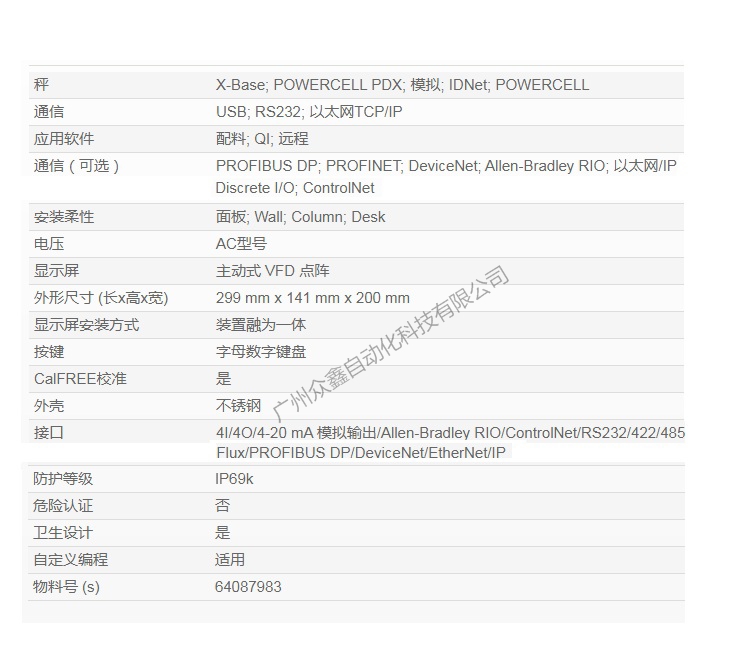

5、 Technical parameters of IND780 weighing instrument
