WTP22 force value display, Kessel RS485/RS232 bidirectional isolated serial port in the United States

1、 WTP22 Force Value Display Product Introduction

Product brand: ZXSCELL, Zhongkesel, USA

Product series: WTP22

Product type: Force value display

Product Features:

(1) Suitable for all resistance strain bridge weighing sensors

(2) Full panel digital calibration, simple process, convenient and intuitive

(3) Digital filtering function, automatic zero tracking function

(4) Automatic reset function when powered on

(5) Bidirectional isolation serial port function, with RS485 and RS232 for convenient communication with the upper computer

(6) The weight display can be calibrated through the serial port (with the serial calibration switch turned on)

(7) Multi mode optional interface functions: analog output, serial port (optional)

(8) AD is in bipolar mode and supports bidirectional force

(9) Suitable for concrete mixing and asphalt mixing equipment, metallurgy and chemical industry, weight control of feed, etc

2、 Application of WTP22 Force Value Display Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: selectable from 100 to 100000.

AD is a bipolar mode that supports bidirectional force and offers multiple data filtering options to meet the needs of different dynamic/static applications

Keyboard or remote reset, tare weight operation and calibration

Maintain peak and valley values

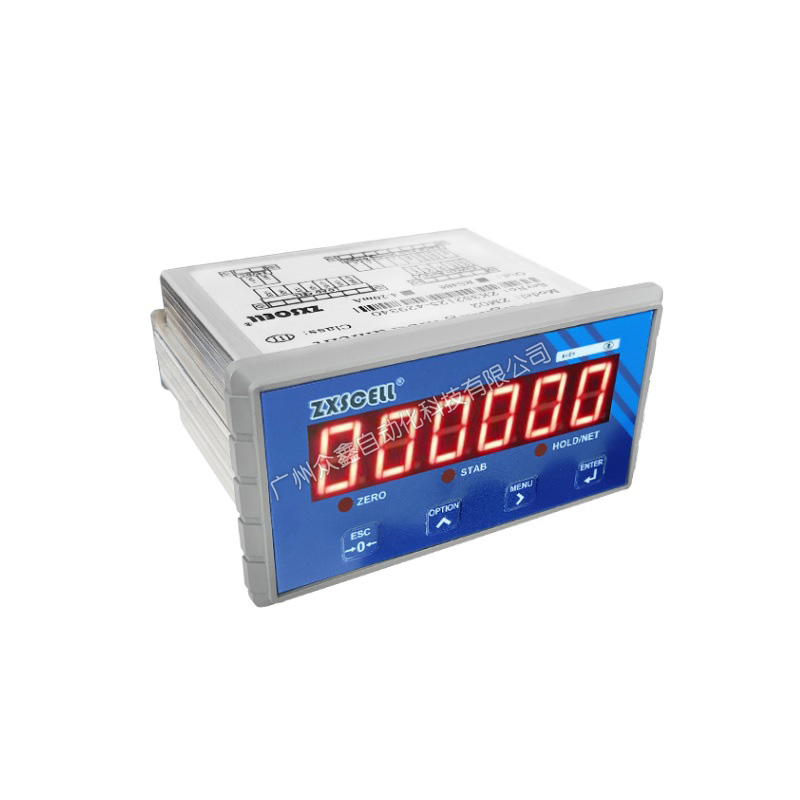

3、 Product image of WTP22 force value display

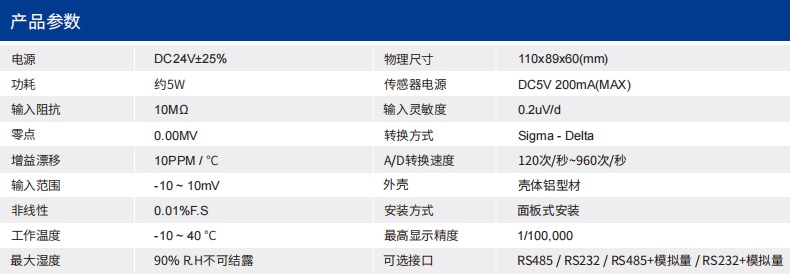

4、 Technical parameters of WTP22 force value display
