WTP23 Display Controller American Zhongkesel ZXSCELL High Speed Sampling Intelligent Instrument

1、 WTP23 Display Controller Product Introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WTP23

Product Type: Display Controller

Product Features:

(1) A high-speed sampling intelligent instrument developed for force measurement applications

(2) Small size, beautiful appearance, convenient and applicable

(3) TFT true color LCD screen with full Chinese display

(4) Suitable for all resistance strain bridge force sensors

(5) Full panel digital calibration, simple process, convenient and intuitive

(6) Digital filtering function; Automatic zero position tracking function

(7) Three transistor output control, allowing two signals to be connected

(8) Equipped with RS485/RS232 for convenient communication with the upper computer

(9) The instrument can be calibrated through the serial port; AD is in bipolar mode and supports bidirectional force

(10) Multi mode optional interface functions: analog output, serial port (optional accessories need to be declared when ordering the product)

2、 Application of WTP23 Display Controller Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog outputs, 0~10V, 0~5V, 0~± 5V, 0~± 10V, 4~20mA, customizable.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: selectable from 100 to 100000.

Multiple data filtering options are available to meet the needs of different dynamic/static applications.

Keyboard or remote reset, tare weight operation and calibration.

Maintain peak and valley values.

5. Weight preset point output application

The keyboard can set up to 4 preset point values, while some models only support 3 preset points, depending on the hardware selection

The preset point value is output through the built-in relay dry contact

The preset point status is manifested as the comparison result between the preset value and the absolute value of the displayed value (gross weight or net weight)

6. Upper and lower limit alarm output

The keyboard can set upper and lower limit alarm values

Alarm point outputs through built-in relay dry contacts

Supporting replenishment function in tank weighing

Some models only support 3 alarm points

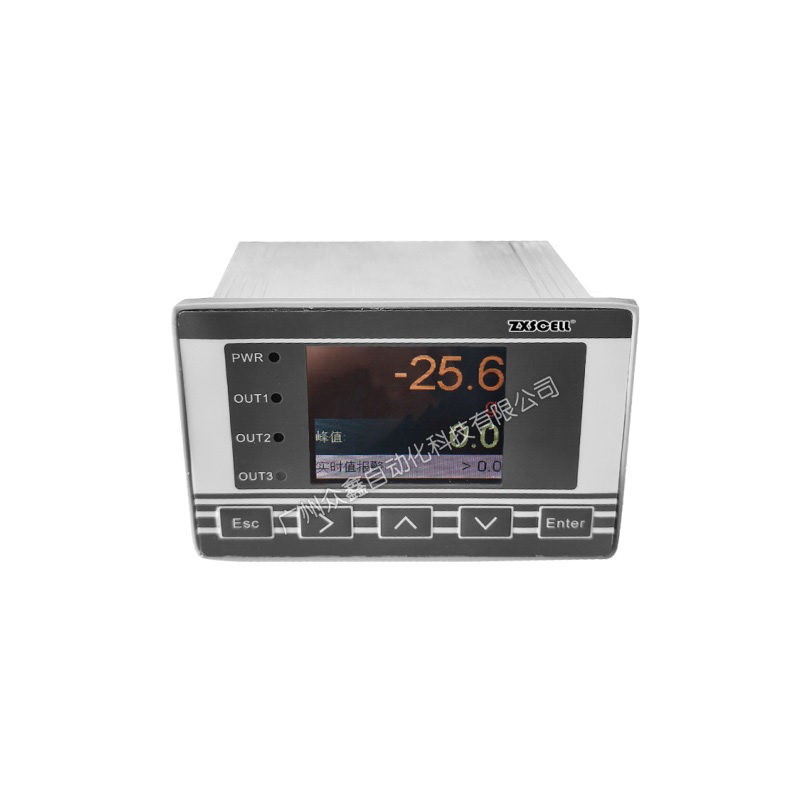

3、 WTP23 Display Controller Product Image

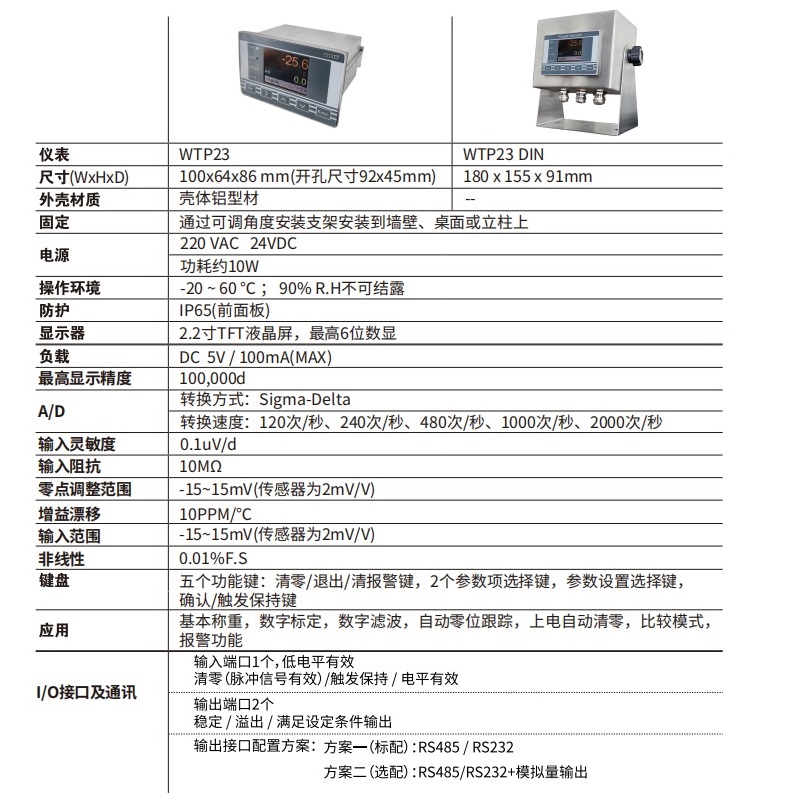

4、 Technical parameters of WTP23 display controller
