WTP21 weighing display controller with full panel digital calibration and digital filtering function in the United States

1、 WTP21 Weighing Display Controller Product Introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WTP21

Product type: Weighing display controller

Product Features:

(1) Suitable for all resistance strain bridge weighing sensors

(2) Full panel digital calibration, simple process, convenient and intuitive

(3) Digital filtering function, automatic zero tracking function

(4) Automatic reset function when powered on

(5) Bidirectional isolation serial port function, with RS485 and RS232 for convenient communication with the upper computer

(6) The weight display can be remotely calibrated (with the remote calibration switch turned on)

(7) Equipped with PROFINET fieldbus interface

(8) Supports Ethernet IP communication and can access Ethernet IP networks

(9) Suitable for concrete mixing and asphalt mixing equipment, metallurgy and chemical industry, weight control of feed, etc

2、 Application of WTP21 Weighing Display Controller Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 100~1000000 optional.

Multiple data filtering options are available to meet the needs of different dynamic/static applications

Keyboard or remote reset, tare weight operation and calibration

Maintain peak and valley values

5. 10/100M Industrial Ethernet Interface

Connect to the upper PC or PLC through a switch

RJ-45 standard interface, including network status indication

Communication speed 10/100M, unlimited data from the slave station

Simple and easy-to-use TCP/UDP protocols and controls

Support dynamic/static network systems

6. Upper and lower limit alarm output

The keyboard can set upper and lower limit alarm values

Alarm point outputs through built-in relay dry contacts

Supporting replenishment function in tank weighing

Some models only support 3 alarm points

7. Pre set point mode quantitative weighing application

The keyboard can set up to 4 preset point values, while some models only support 3 preset points, depending on the hardware selection

The preset point value is output through the built-in relay dry contact

The preset point status is manifested as the comparison result between the preset value and the absolute value of the displayed value (gross weight or net weight)

8. Multi material serial quantitative weighing and batching, and networking

Support fixed value feeding or fixed value discharging control

The keyboard can preset four target weight values

The relay automatically controls the corresponding valve

The input/output control interface function can be manually set

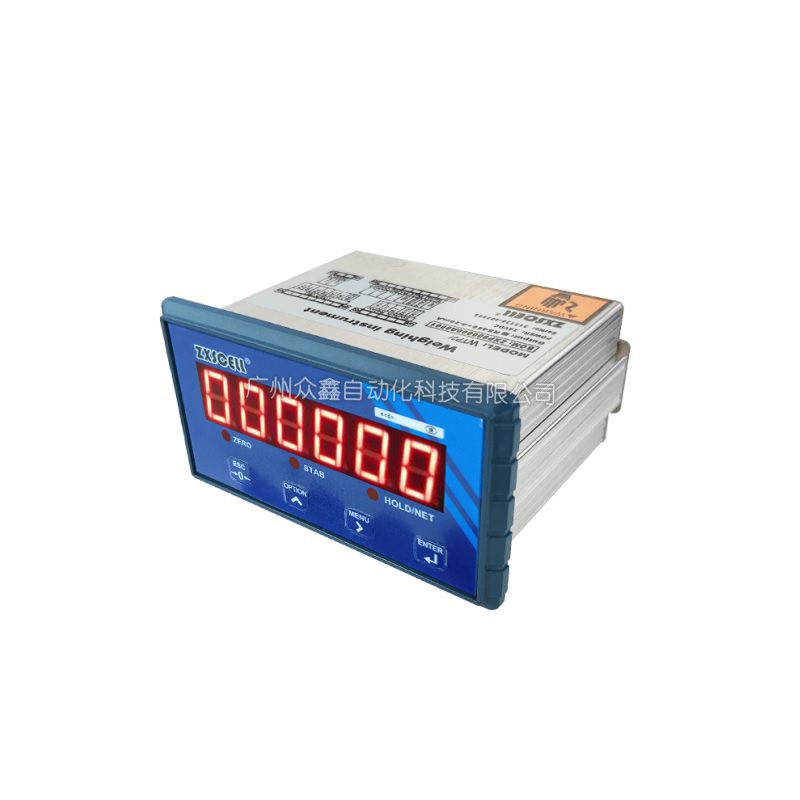

3、 Product picture of WTP21 weighing display controller

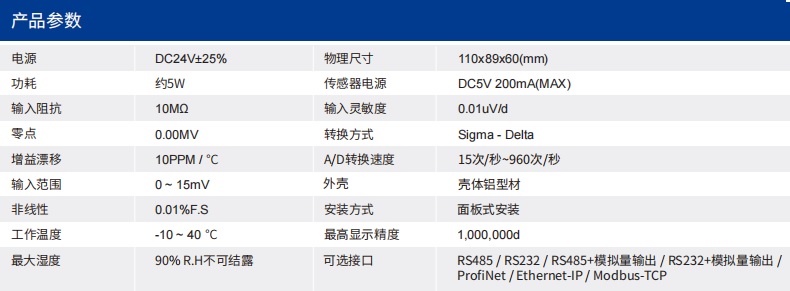

4、 Technical parameters of WTP21 weighing display controller
