WTD48 Weighing Display Control Transmission Module, Small and Compact Weighing Transmission Module Installed on the American Mid Axel Rail

1、 Product Introduction of WTD48 Weighing Display Control Transmission Module

Product brand:Axel in the United States　ZXSCELL

Product series: WTD48

Product type: Weighing display control transmission module

Product Features:

(1) Install a compact weighing and transmission module on the card rail, supporting operations such as scale calibration, zeroing, and peeling;

(2) Support preset point output control and delay hold function, facilitating system integration control for customers based on projects;

(3) OLEO display, Chinese operation interface, display can be encrypted and closed, suitable for all resistance strain type weighing sensors;

(4) Full panel digital calibration, simple process, convenient and intuitive;

(5) Digital filtering function, automatic zero tracking function, automatic zeroing function when powered on;

(6) Bidirectional isolation serial port function, with RS485, convenient for communication with the upper computer;

(7) The weighing display can be calibrated through the serial port (with the serial calibration switch turned on);

(8) Multi mode optional interface functions: PROFIBUS bus, analog output, network port, serial port;

(9) Suitable for use in material storage tanks and reaction vessels, as well as for controlling ingredient processes in industries such as concrete, asphalt, feed, metallurgy, and chemical engineering.

2、 Application of WTD48 Weighing Display Control Transmission Module Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 1/1000000.

Bluetooth communication, with rich interfaces and multiple combinations of interfaces.

No weight calibration, optional printing content.

Instrument I/O port testing and serial port testing functions.

The instrument can be connected to a mobile app to monitor status and configure parameters.

5. 10/100M Industrial Ethernet Interface

Connect to the upper PC or PLC through a switch

RJ-45 standard interface, including network status indication

Communication speed 10/100M, unlimited data from the slave station

Simple and easy-to-use TCP/UDP protocols and controls

Support dynamic/static network systems

6. Upper and lower limit alarm output

The keyboard can set upper and lower limit alarm values

Alarm point outputs through built-in relay dry contacts

Supporting replenishment function in tank weighing

Some models only support 3 alarm points

7. Pre set point mode quantitative weighing application

The keyboard can set up to 4 preset point values, while some models only support 3 preset points, depending on the hardware selection

The preset point value is output through the built-in relay dry contact

The preset point status is manifested as the comparison result between the preset value and the absolute value of the displayed value (gross weight or net weight)

8. Multi material serial quantitative weighing and batching, and networking

Support fixed value feeding or fixed value discharging control

The keyboard can preset four target weight values

The relay automatically controls the corresponding valve

Automatic correction of feeding accuracy

The input/output control interface function can be manually set

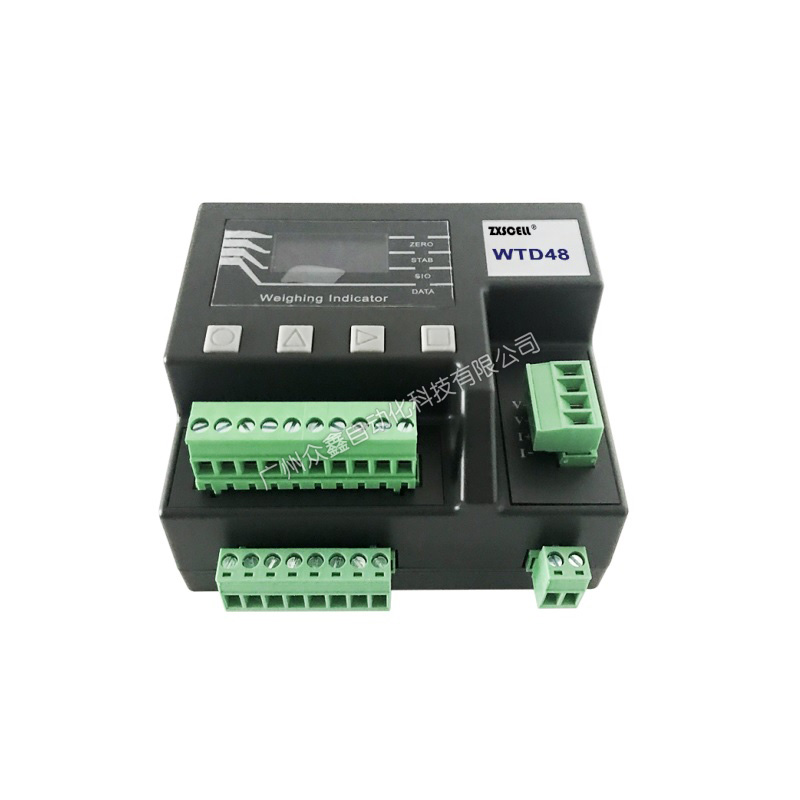

3、 Product picture of WTD48 weighing display control transmission module

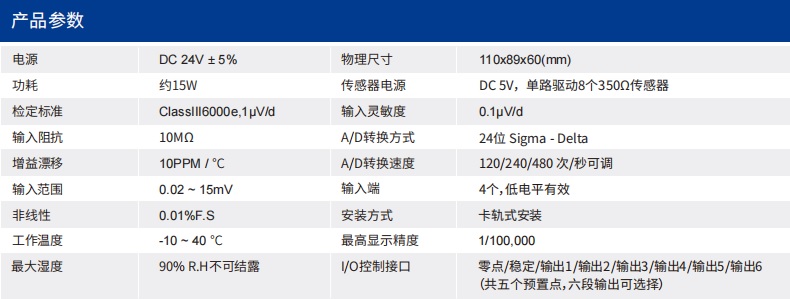

4、 Technical parameters of WTD48 weighing display control transmission module
