WTD14 Weighing Transmission Module, Mid American Kesselca Rail Type Four Channel Weighing Transmission Module

1、 WTD14 Weighing Transmission Module Product Introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WTD14

Product type: Card rail four channel weighing transmission module

Product Features:

(1) A card rail weighing transmission module developed to meet the demand for multi-channel weight transmission in industrial sites

(2) This module has a four channel weight transmission

(3) Compact size, stable performance, and simple operation

(4) All stainless steel material, stronger EMC protection performance, strong anti-interference ability

(5) More resistant to dust and corrosion

(6) 4-channel 6-wire sensor interface; 1 RS485 interface, 1 RS232 interface; 4-channel analog output

(7) 4-in-8-out transistor I/O; Single network port, supporting Modbus TCP protocol; Or bus type dual network port, supporting Ethernet/IP and Profinet protocols

(8) Zero point recovery function: supports returning to the zero point before power failure after re powering on; Supporting theoretical value calibration, the calibration process is stable within 3 seconds and can be automatically confirmed

(9) Widely applicable to weight transmission sites in different industries such as lithium batteries, rubber and plastic chemicals, and feed

2、 Application of WTD14 Weighing Transmission Module Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 1/1000000.

Bluetooth communication, with rich interfaces and multiple combinations of interfaces.

No weight calibration, optional printing content.

Instrument I/O port testing and serial port testing functions.

The instrument can be connected to a mobile app to monitor status and configure parameters.

5. 10/100M Industrial Ethernet Interface

Connect to the upper PC or PLC through a switch

RJ-45 standard interface, including network status indication

Communication speed 10/100M, unlimited data from the slave station

Simple and easy-to-use TCP/UDP protocols and controls

Support dynamic/static network systems

6. Upper and lower limit alarm output

The keyboard can set upper and lower limit alarm values

Alarm point outputs through built-in relay dry contacts

Supporting replenishment function in tank weighing

Some models only support 3 alarm points

7. Pre set point mode quantitative weighing application

The keyboard can set up to 4 preset point values, while some models only support 3 preset points, depending on the hardware selection

The preset point value is output through the built-in relay dry contact

The preset point status is manifested as the comparison result between the preset value and the absolute value of the displayed value (gross weight or net weight)

8. Multi material serial quantitative weighing and batching, and networking

Support fixed value feeding or fixed value discharging control

The keyboard can preset four target weight values

The relay automatically controls the corresponding valve

Automatic correction of feeding accuracy

The input/output control interface function can be manually set

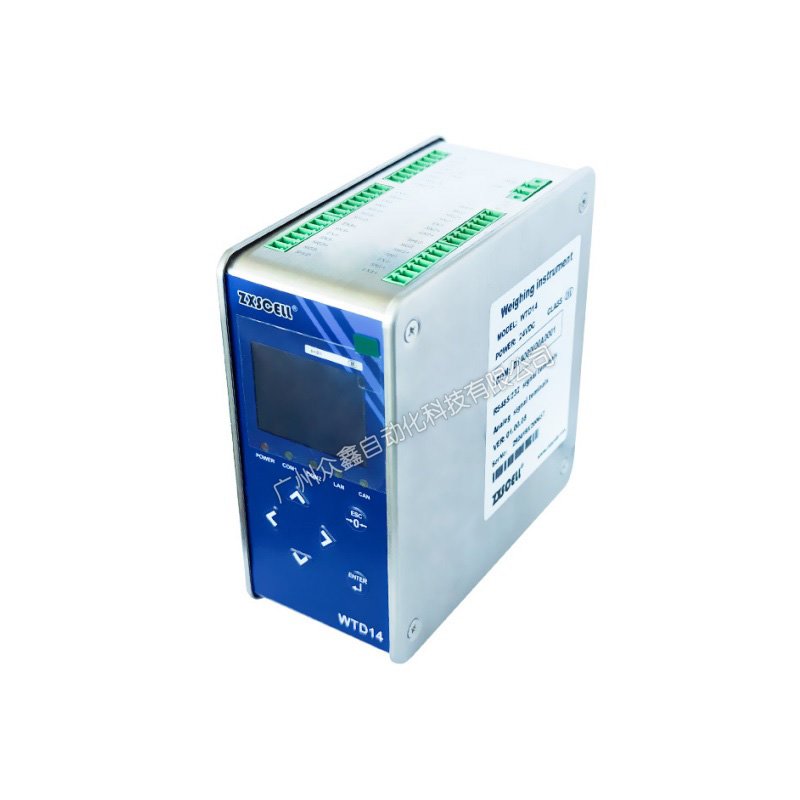

3、 Product picture of WTD14 weighing transmission module

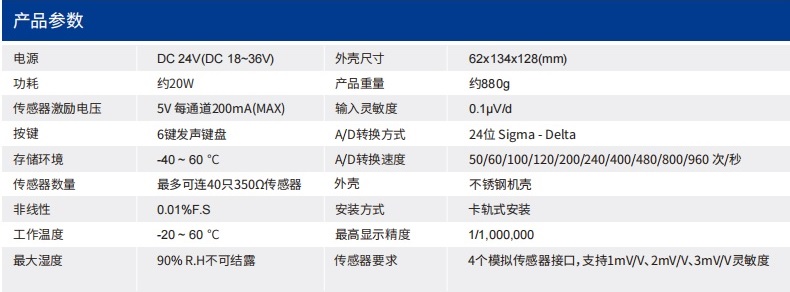

4、 Technical parameters of WTD14 weighing transmission module
