WTD21 transmitter American Zhongkesel ZXSCELL small volume guide rail installation

1、 WTD21 transmitter product introduction

Product brand:Axel in the United States　ZXSCELL

Product series: WTD21

Product type: Rail type transmitter

Product Features:

(1) Small size, rail type installation, beautiful appearance, convenient and applicable

(2) Suitable for all resistance strain bridge weighing sensors

(3) Full panel digital calibration, simple process, convenient and intuitive

(4) Digital filtering function

(5) Automatic zero tracking function, automatic reset function when powered on

(6) Multiple choice interface function: analog output, serial port

(7) Equipped with RS485 for convenient communication with the upper computer

(8) Weight display can be calibrated through serial port

(9) Suitable for concrete mixing and asphalt mixing equipment, metallurgy and chemical industry, weight control of feed, etc

2、 Application of WTD21 transmitter function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 1/100000

Digital filtering function

Automatic zero point tracking function

Automatic reset function when powered on

Weight display can be calibrated through serial port

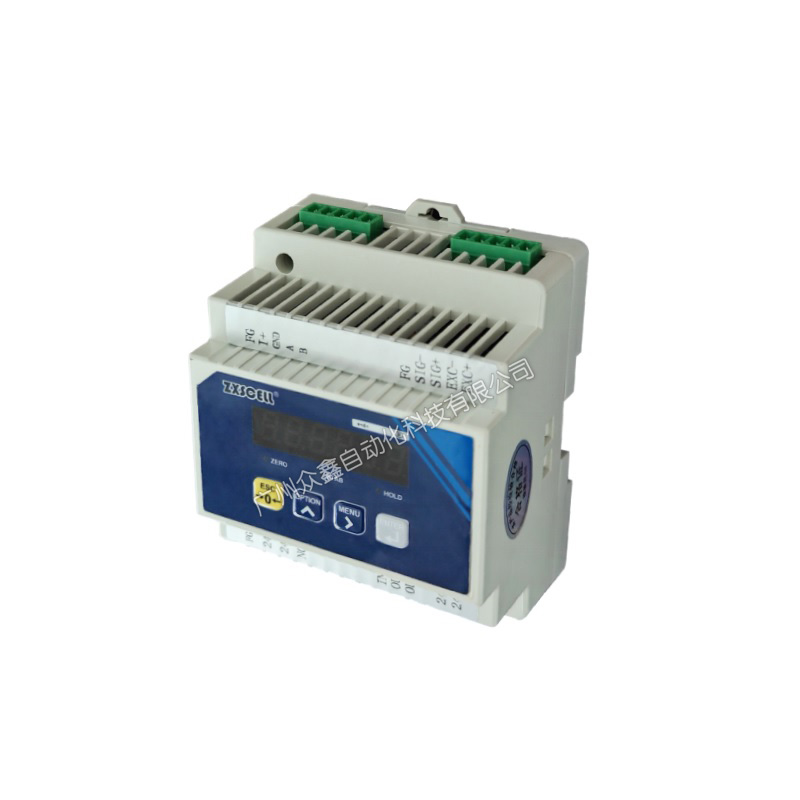

3、 Product picture of WTD21 transmitter

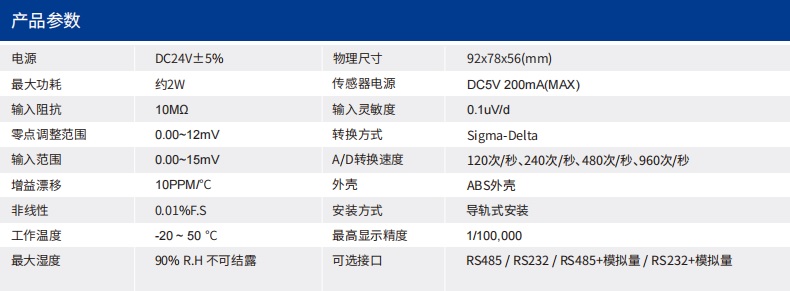

4、 Technical parameters of WTD21 transmitter
