WTD12 transmission instrument, American Zhongkesel ZXSCELL card rail installation, compact weighing transmission module

1、 Introduction to WTD12 Transmission Instrument Products

Product brand:Axel in the United States　ZXSCELL

Product series: WTD12

Product type: Rail type transmission instrument

Product Features:

(1) Install a compact weighing and transmission module on the card rail, supporting operations such as scale calibration, zeroing, and peeling;

(2) Support preset point output control and delay hold function, facilitating system integration control for customers based on projects;

(3) OLEO display, Chinese operation interface, display can be encrypted and closed, suitable for all resistance strain type weighing sensors;

(4) Full panel digital calibration, simple process, convenient and intuitive;

(5) Digital filtering function, automatic zero tracking function, automatic zeroing function when powered on;

(6) Bidirectional isolation serial port function, with RS485, convenient for communication with the upper computer;

(7) The weighing display can be calibrated through the serial port (with the serial calibration switch turned on);

(8) Multi mode optional interface functions: PROFIBUS bus, analog output, network port, serial port;

(9) Suitable for use in material storage tanks and reaction vessels, as well as for controlling ingredient processes in industries such as concrete, asphalt, feed, metallurgy, and chemical engineering.

2、 Application of WTD12 Transmission Instrument Function

1. RS-232 point-to-point serial communication

Continuous output or command output format

Provide fully compatible protocols for users to quickly upgrade

Support remote zeroing and tare weight operation

ESD anti-static interface protection

2. RS-485 multi-point serial communication

The baud rate can be selected between 2400 and 115200bps

Communication response time less than 5ms

As a slave station supporting data collection for the master station

Support MODBUS RTU slave protocol

3. Analog output interface

Supports multiple analog output formats, including 0~10V, 0~5V, 4~20mA, and 0~20mA.

16 bit analog output accuracy: 1/32767

Weight as analog output can be adjusted on the panel without the need for loading

4. Weighing and measuring

Weight display accuracy: 1/100000.

16 bit DA output function, supporting limit control output.

Digital filtering function, tare weight processing function.

Automatic zero tracking function, automatic zeroing function when powered on.

The weight display can be calibrated through the serial port.

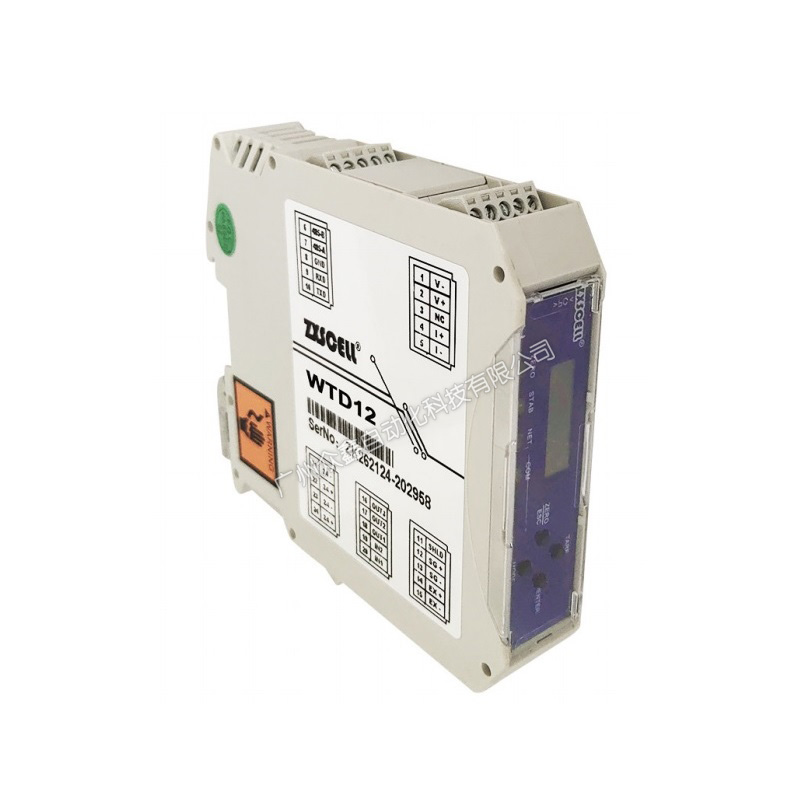

3、 WTD12 transmission instrument product picture

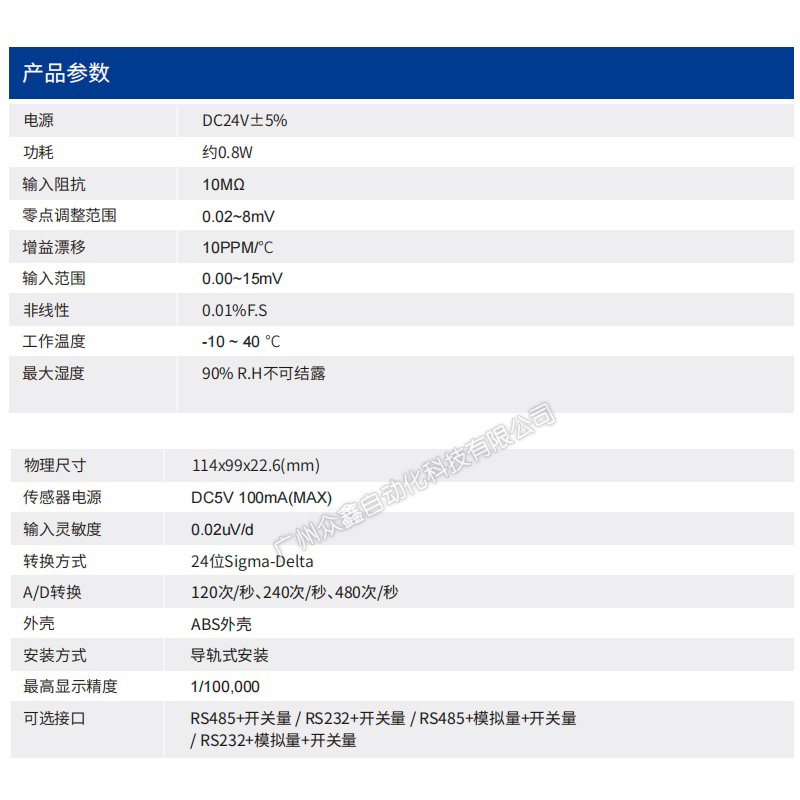

4、 Technical parameters of WTD12 transmission instrument
