Plastic medium barrel capping machine - fully automatic electric capping machine - Zhongheng Taike

Plastic drum capping machine

The upper and lower conveyor chain plates synchronously press the lid of the barrel, gradually pressing the lid at an inclined angle, and expelling excess air from the barrel to avoid air bulging inside the barrel. Automated production, without human operation, reduces labor costs and improves production efficiency.

Features: - Efficient, hygienic, and safe

1. Fully automatic, labor-saving;

2. Only electricity, no gas;

3. Variable frequency speed regulation, adjustable gland speed;

4. Equipped with pressure cap overload protection to avoid jamming the barrel;

5. The height of the capping screw can be manually adjusted, suitable for barrels with different heights

6. Easy to operate, one click open, and long-lasting.

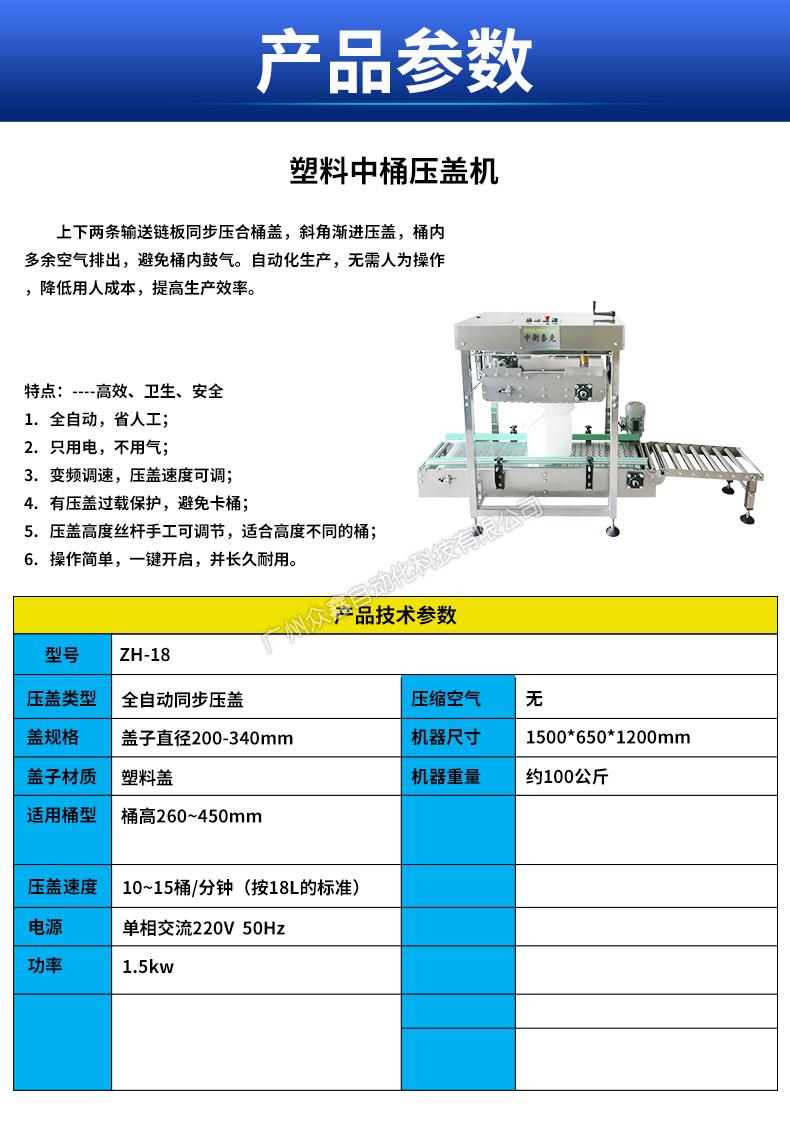

　　Product technical parameters

Model: ZH-18

Gland type: fully automatic synchronous gland

Cap specification: Cap diameter 200-340mm

Cover material: plastic cover

Applicable barrel type: barrel height 260-450mm

Capping speed: 10-15 barrels/minute (according to the standard of 18L)

Power supply: single-phase AC 220V 50Hz

Power: 1.5kw

Compressed air: None

Machine size: 1500 * 650 * 1200mm

Machine weight: approximately 100 kilograms
