Belt type weighing scale - Automatic removal and sorting device - Dynamic sorting scale - Zhongheng Taike

Belt type weighing scale; Sorting scale

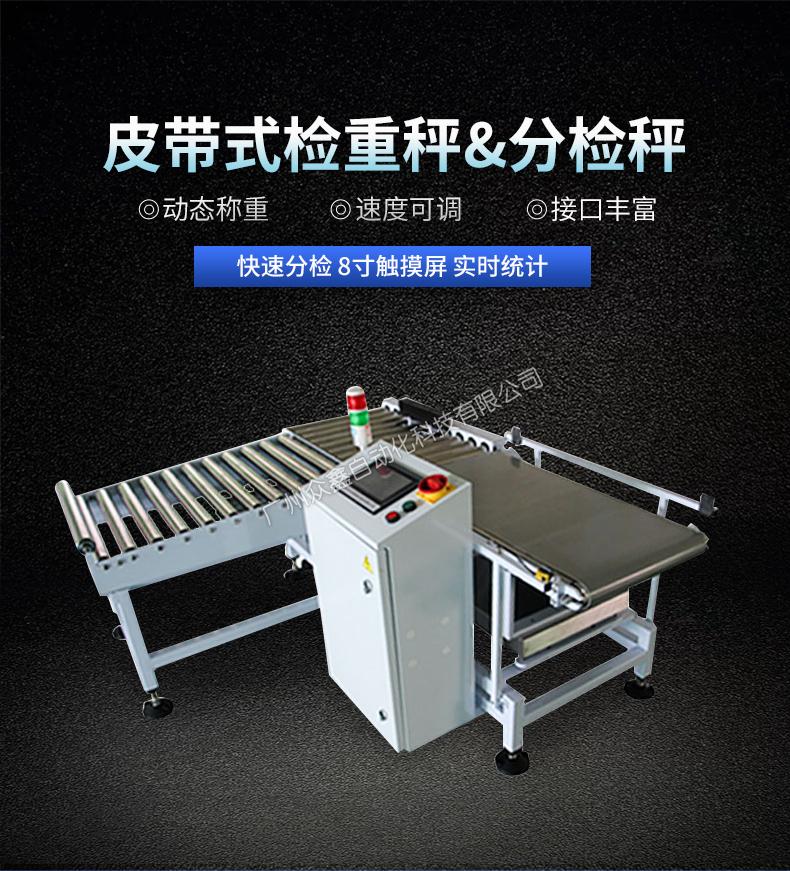

The ZH-30 series automatic full box weighing scale is designed for high-precision dynamic weighing, derived from advanced high-speed sampling technology and dynamic filtering models, and perfectly meets the customer's high-precision requirements for the product. The ZH-30 series automatic full box weighing scale can be easily integrated into existing production lines, weighing and measuring each product, eliminating non-conforming products, and ensuring 100% qualified product quality.

1Main technical parameters:

Weighing capacity: 1-30kg

Dynamic accuracy: ≥ 20g

Graduation value: 10g

Production capacity: 4. PCS/minute

Belt length: 600/800mm

Belt width: 400mm

Production line height: 600 ± 30mm

Air source pressure: 0.6~0.8MPa

Power supply: 220, 50Hz

Power: 1KW

Host size: 1800 * 600 * 1200mm

Overall weight: approximately 200kg

Rejection device: push rod

Protection level: IP54

IIStandard configuration:

1. Dynamic weighing sensor

2. 8-inch industrial touch screen

3. Real time statistical curves facilitate monitoring and analysis

4. Storage of multiple product formulas

5. Real time weighing data storage

6. Three weight classification signals

7. Automatic or manual zero setting

8. Variable frequency adjustable conveyor belt speed

9. Standard version protection level IP54

10. 220VAC power supply

11. Warning light

12. High quality carbon steel spray frame and electrical cabinet

IIIOption:

1. PC end statistical program

2. Printer

3. Ethernet interface

4. Pushrod type removal device

5. Baffle type removal device

6. Independent Eliminator

7. Organic glass windshield

8. Stainless steel rack and electrical cabinet

9. Inspection of box bottom sealing tape
