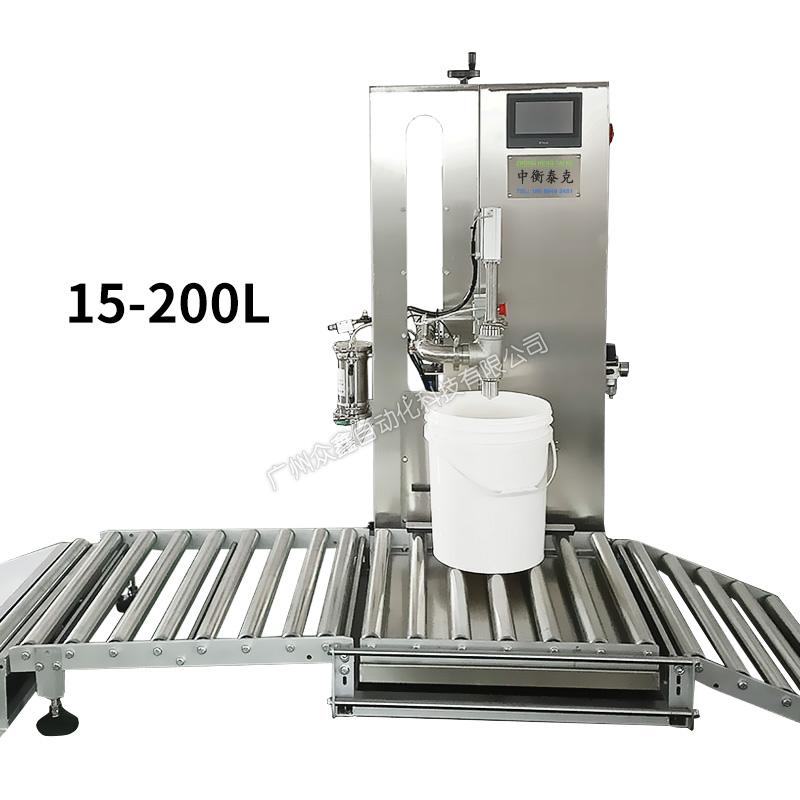

200L/15-200L liquid weighing and filling machine

The material is pumped to the inlet pipeline of the filling machine, and the flow rate of the pump is controlled by a frequency converter, which is fast first and then slow, using a weighing filling method. The main body of the machine is made of stainless steel, with a filling capacity of 200/15-200L. This type of machine can fill most of the high and low viscosity, non particle, non explosive liquids, and is widely used in lubricating oil, hydraulic oil, Cutting fluid, antifreeze, glass water, polyurethane, cosmetics and daily chemical industries.

Features: - Efficient, hygienic, and safe

1. Variable frequency speed regulation, two speed filling (first fast and then slow);

2. Fast filling speed, 1 large barrel/minute;

3. The weighing platform is low, with a height of about 240mm. The front and rear roller slides are flexibly connected and buckled, making it easy to get on and off the barrel;

4. After filling, there is no dripping from the filling nozzle;

5. The manual screw rod of the filling head can be lifted and lowered to meet the needs of barrels of different heights;

6. The weighing platform is equipped with a brake system to ensure that the bucket does not move during the filling process;

7. Touch screen operation, easy to understand, parameter settings;

8. Safety: The filling valve is not opened, and the pump does not deliver material to prevent pipe explosion; Do not fill when the filling nozzle collides with the barrel to prevent materials from spraying on the periphery of the barrel.

　　Product technical parameters

Model: ZH-200A

Filling method: pump feeding/variable frequency fast/slow/weighing filling

Filling position: below the barrel mouth, above the liquid level for filling

Pouring weight: 200L/15-200L

Applicable barrel type: barrel height 800-920mm/300-920mm, barrel diameter less than 600mm, barrel mouth greater than 60mm

Display graduation: 0.1kg

Injection accuracy: ± 0.2%

Filling speed: 1 barrel/minute (according to the standard of 200L)

Pump type: 3-phase 380V, power not exceeding 5.5KW industrial pump

Anti drip method: vacuum suction device with high anti drip level

Scale table size: 650 * 650mm roller

Perfusion nozzle diameter: outer diameter 45mm Perfusion nozzle

Feed pipe diameter: quick fitting leather pipe joint with an outer diameter of 50mm

Power supply: three-phase AC 380V 50Hz

Power: 5.5kw

Compressed air: 0.4-0.6MPa

Machine size: 2500 * 1100 * 1600mm

Machine weight: approximately 200 kilograms
