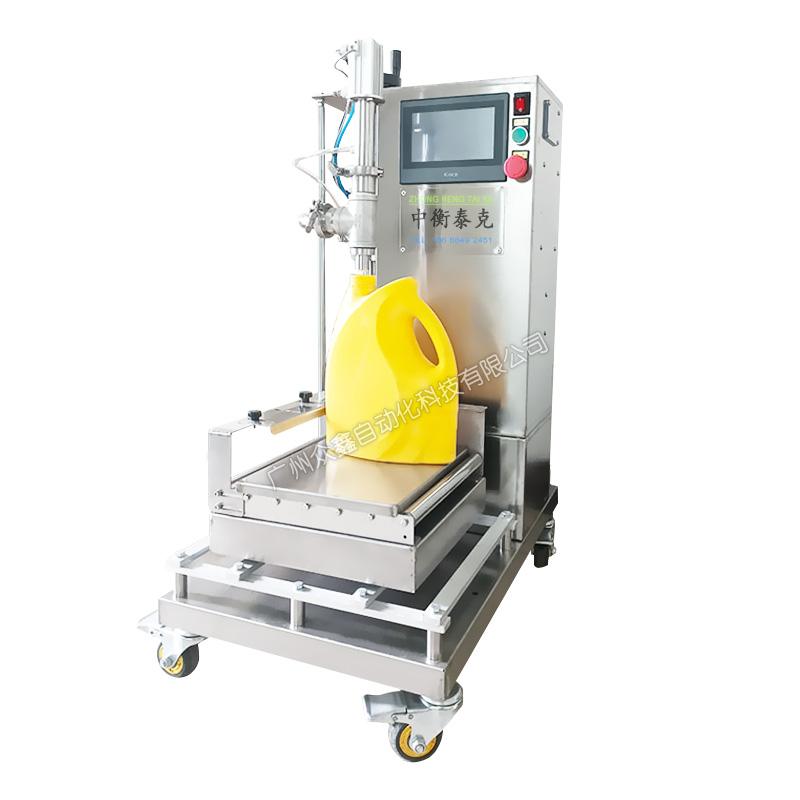

1-25L mobile liquid weighing and filling machine

The material is pumped to the inlet pipeline of the filling machine, and the flow rate of the pump is controlled by a frequency converter, which is fast first and then slow, using a weighing filling method. The main body of the machine is made of stainless steel, with a filling capacity of 1-25L. This type of machine can fill most of the high and low viscosity, non particle, non explosive liquids, and is widely used in lubricating oil, hydraulic oil, Cutting fluid, antifreeze, glass: glass water, polyurethane, cosmetics and other industries.

Features: - Efficient, hygienic, and safe

1. Variable frequency speed regulation, two speed filling (first fast and then slow);

2. Fast filling speed, 1-2 barrels per minute. (according to the standard of 18L);

3. The entire machine is equipped with free casters and can be moved;

4. After filling, there is no dripping from the filling nozzle;

5. The manual screw rod of the filling head can be lifted and lowered to meet the needs of barrels of different heights;

6. The weighing platform is equipped with a brake system to ensure that the bucket does not move during the filling process;

7. Touch screen operation, easy to understand, parameter settings;

8. Safety: The filling valve is not opened, and the pump does not deliver material to prevent pipe explosion;

9. Hygiene: The bottom of the weighing platform is hollowed out for convenience, hygiene, and cleanliness.

　　Product technical parameters

Model: ZH-25B

Filling method: pump feeding/variable frequency fast/slow/weighing filling

Filling position: Filling on the barrel mouth

Pouring weight: 1-25L

Applicable barrel type: barrel height 200-420mm, barrel diameter less than 300mm, barrel mouth greater than 60mm

Display graduation: 0.1kg

Injection accuracy: ± 0.2%

Filling speed: 1-2 barrels/minute (according to the standard of 18L)

Pump type: including silent diaphragm pump, capable of pumping low viscosity and medium viscosity liquids

Anti drip method: vacuum suction device with high anti drip level

Scale table size: 300 * 300mm: roller

Perfusion nozzle diameter: outer diameter 26mm Perfusion nozzle

Feed pipe diameter: 6 mm steel wire hose

Power supply: single-phase AC 220V: 50Hz

Power: lkw

Compressed air: 0.4-0.6MPa

Machine size: 500x800x1200mm

Machine weight: approximately 80 kilograms
