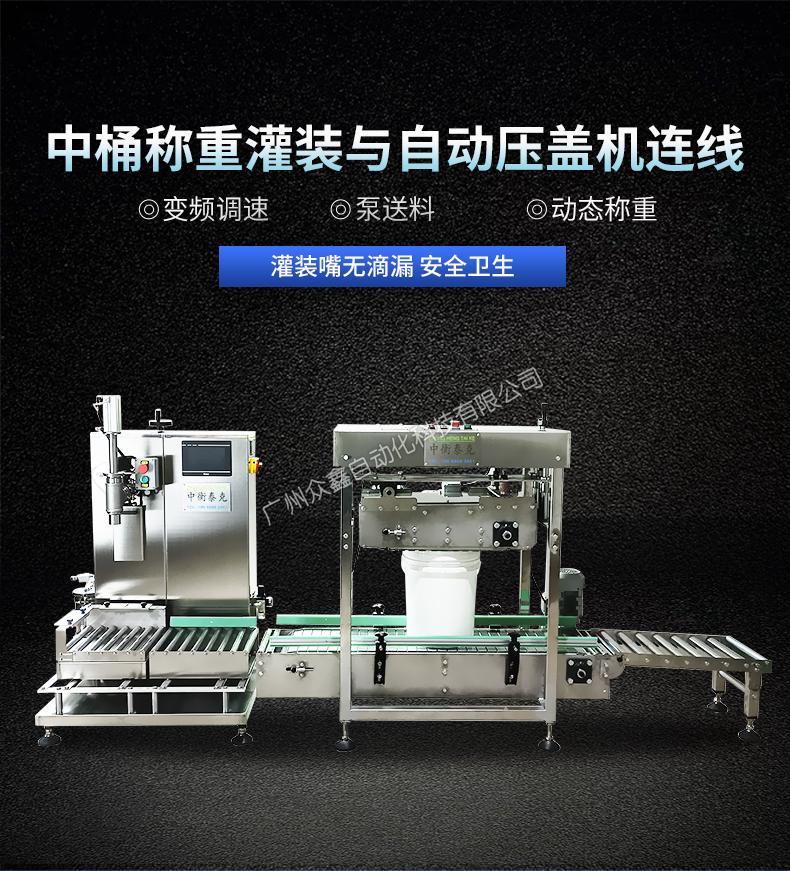

Automatic capping barrel liquid filling machine - Support non-standard customization - Zhongheng Taike

. 10-25L liquid weighing and filling machine

The material is pumped to the inlet pipeline of the filling machine, and the frequency converter controls the flow rate of the pump, which is fast first and then slow. The weighing type filling is used, and the filling is completed without any dripping at the filling nozzle. The main body of the machine is made of stainless steel material. The filling capacity is 10-25L. This model of machine can fill most high and low viscosity, particle free, and non explosive liquids, and is widely used in industries such as lubricating oil, hydraulic oil, antifreeze, glass water, polyurethane, cosmetics, and daily chemicals.

Features: - Efficient, hygienic, and safe

1. Variable frequency speed regulation, three speed fast filling (slow fast slow);

2. Fast filling speed, 2-5 barrels per minute. (according to the standard of 18L);

3. Roller weighing platform, equipped with a lid placing station, can automatically configure an automatic capping machine (18-25L open plastic bucket) online;

4. After filling, there is no dripping from the filling nozzle;

5. The manual screw rod of the filling head can be lifted and lowered to meet the needs of barrels of different heights;

6. Touch screen operation, easy to understand, parameter settings;

7. Safety: The filling valve is not opened, and the pump does not deliver material to prevent pipe explosion;

8. Hygiene: The bottom of the weighing platform is hollowed out for convenience, hygiene, and cleanliness.

　　Product technical parameters

Model: ZH-18A

Filling method: pump feeding/variable frequency three stage speed/weighing filling

Filling position: below the barrel mouth, above the liquid level for filling

Pouring weight: 10-25L

Applicable barrel type: barrel height 200-420mm, barrel diameter less than 300mm, barrel mouth greater than 60mm

Display graduation: 0.1kg

Injection accuracy: ± 0.2%

Filling speed: 2-5 barrels/minute (according to the standard of 18L)

Pump type: 3-phase 380V, power not greater than 2.2KW industrial pump (this quotation does not include pumps, frequency converter provides signal control for pump operation)

Anti drip method: vacuum suction device with high anti drip level

Scale table size: 300mm * 300mm roller

Perfusion nozzle diameter: Outer diameter 5mm Perfusion nozzle

Feed pipe diameter: quick fitting leather pipe joint with an outer diameter of 25mm

Power supply: three-phase AC 380V 50Hz

Power: 2.2kw

Compressed air: 0.4~0.6MPa

Machine size: 800x800x1200mm

Machine weight: approximately 100 kilograms

. Fully automatic plastic barrel capping machine

The upper and lower conveyor chain plates synchronously press the barrel lid, gradually pressing the lid at an inclined angle, and discharging excess air inside the barrel to avoid air bulging. Automated production eliminates the need for manual operation, reduces labor costs, and improves production efficiency.

Features: - Efficient, hygienic, and safe

1. Fully automatic, labor-saving;

2. Only electricity, no gas;

3. Variable frequency speed regulation, adjustable gland speed;

4. Equipped with pressure cap overload protection to avoid jamming the barrel;

5. The height of the capping screw can be manually adjusted, suitable for barrels with different heights

6. Easy to operate, one click open, and long-lasting.

　　Product technical parameters

Model: ZH-18

Gland type: fully automatic synchronous gland

Cover specification: Cover diameter 200-340mm

Cover material: plastic cover

Applicable barrel type: barrel height 260mm~450mm

Capping speed: 10-15 barrels/minute (according to the standard of 18L)

Power supply: single-phase AC 220V 50Hz

Power: 1.5kw

Compressed air: None

Machine size: 1500x650x1200mm

Machine weight: approximately 100 kilograms
