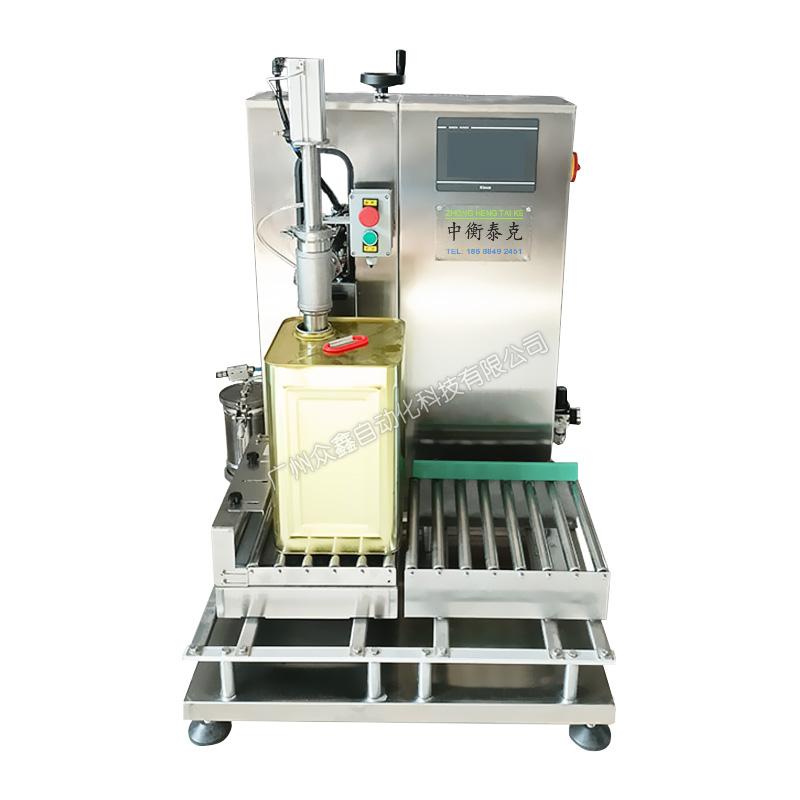

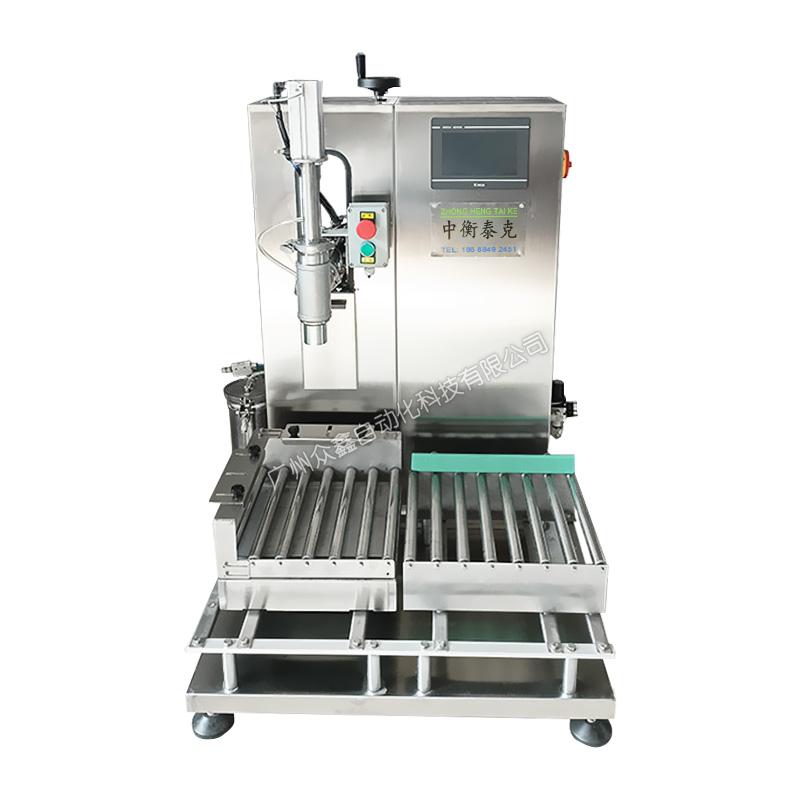

10-25L liquid weighing and filling machine

The material flows automatically to the inlet pipeline of the filling machine, and the filling flow rate is controlled by pneumatic dual valves. It is fast first and then slow, and is filled by weighing. After filling, the filling nozzle does not leak. The main body of the machine is made of stainless steel material. The filling capacity is 10-25L. This model can be filled with most high and low viscosity, particle free, non explosive liquids, and is widely used in industries such as lubricating oil, hydraulic oil, antifreeze, glass water, polyurethane, cosmetics and daily chemicals.

Features: - Efficient, hygienic, and safe

1. Dual valve control, two speed fast filling (first fast and then slow);

2. Fast filling speed, 2-5 barrels per minute. (according to the standard of 18L);

3. Roller weighing platform, equipped with a lid placing station, can automatically configure an automatic capping machine (18-25L open plastic bucket) online;

4. After filling, there is no dripping from the filling nozzle;

5. The manual screw rod of the filling head can be lifted and lowered to meet the needs of barrels of different heights;

6. Touch screen operation, easy to understand, parameter settings;

7. Safety: If the filling valve is not opened, the upstream automatically does not feed to prevent pipe explosion;

8. Hygiene: The bottom of the weighing platform is hollowed out for convenience, hygiene, and cleanliness.

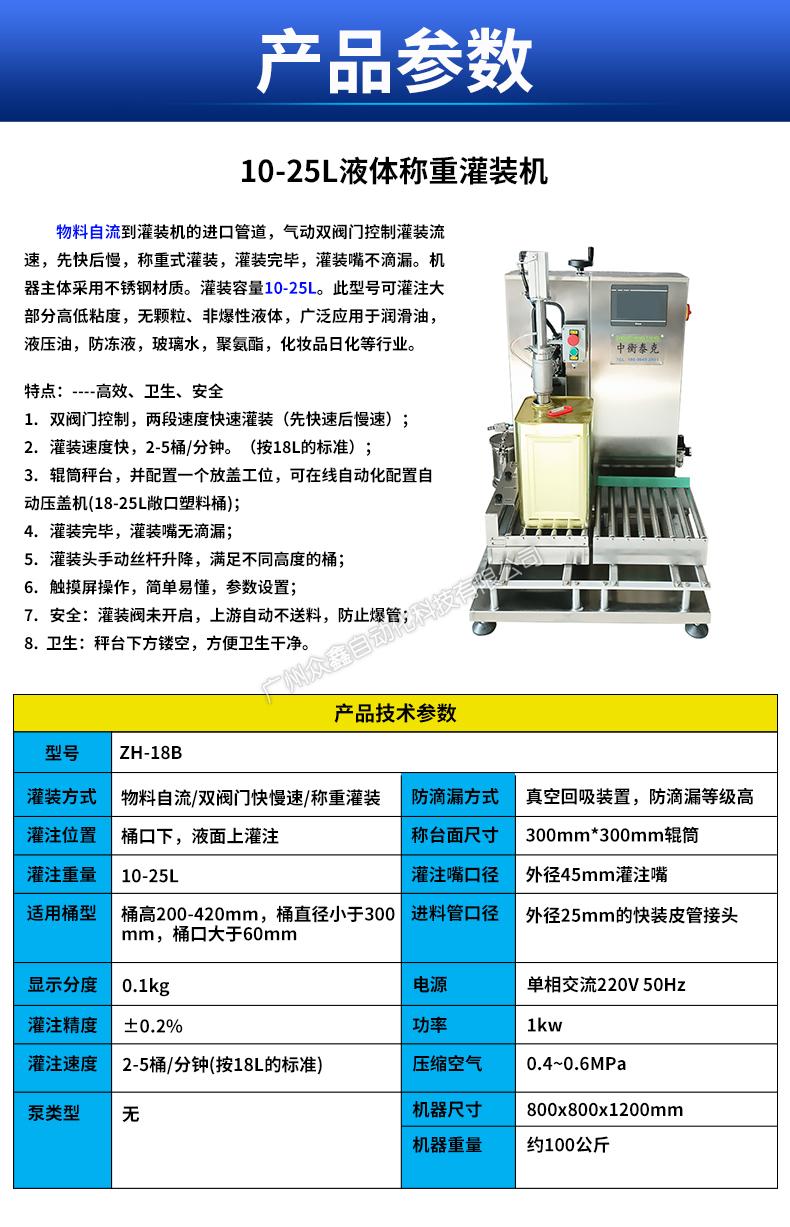

　　Product technical parameters

Model: ZH-18B

Filling method: material flow/dual valve fast/slow/weighing filling

Filling position: below the barrel mouth, above the liquid level for filling

Pouring weight: 10-25L

Applicable barrel type: barrel height 200-420mm, barrel diameter less than 300mm, barrel mouth greater than 60mm

Display graduation: 0.1kg

Injection accuracy: ± 0.2%

Filling speed: 2-5 barrels/minute (according to the standard of 18L)

Pump type: None

Anti drip method: vacuum suction device with high anti drip level

Scale table size: 300mm * 300mm roller

Perfusion nozzle diameter: outer diameter 45mm Perfusion nozzle

Feed pipe diameter: quick fitting leather pipe joint with an outer diameter of 25mm

Power supply: single-phase AC 220V 50Hz

Power: 1kw

Compressed air: 0.4~0.6MPa

Machine size: 800x800x1200mm

Machine weight: approximately 100 kilograms
