CR weighing sensor with optional range of 5kg to 5T from American Transforce brand

product details

1、 Introduction to CR Weighing Sensor Products of American Transpower Brand

Product type:American transmission weighing sensor，Column type weighing sensor

Product series: CR

Product features:

-High quality aluminum alloy material (≤ 500kg)

　　-　High quality alloy steel material (1t~5t)

　　-　Easy and fast installation

　　-　High precision

　　-　high stability

　　-　Suitable for material testing machines, etc

Optional range: 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 250kg, 500kg, 1T, 2T, 3T, 5T

Wiring method:

Red:+Motivation

Black: - Inspiration
Green:+signal

White: - Signal

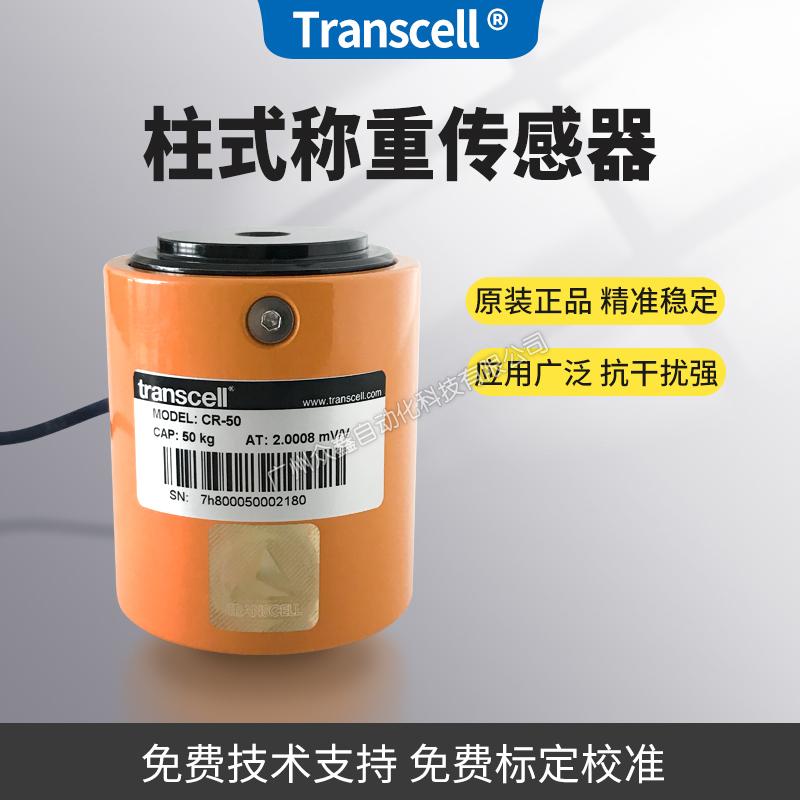

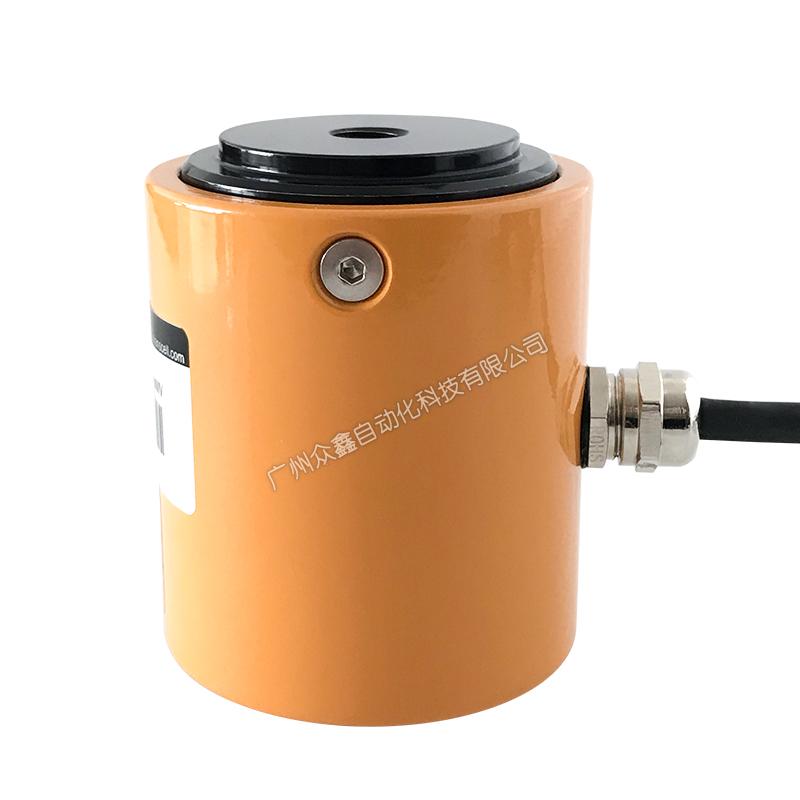

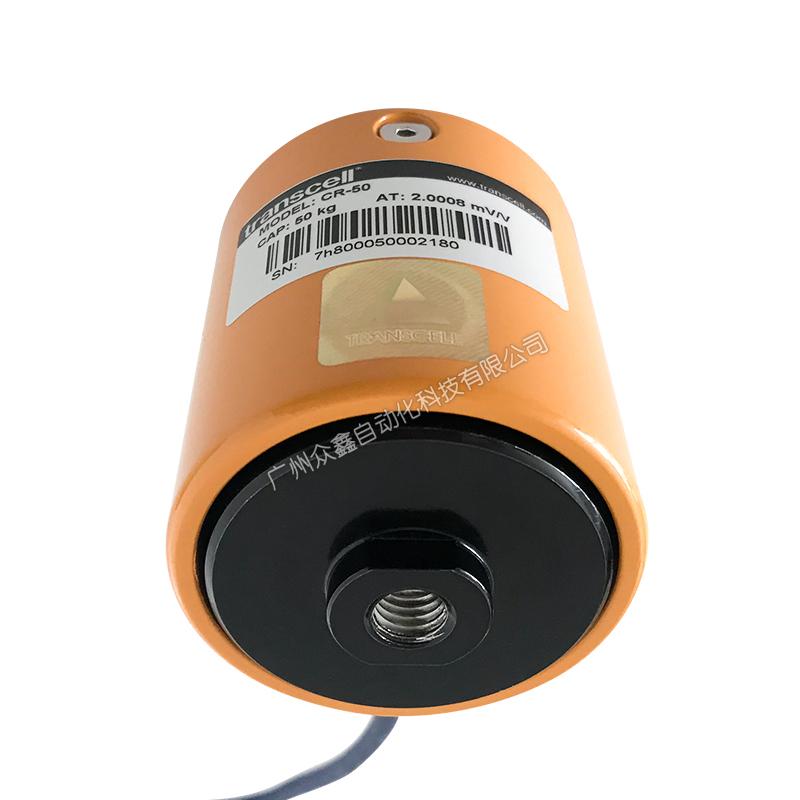

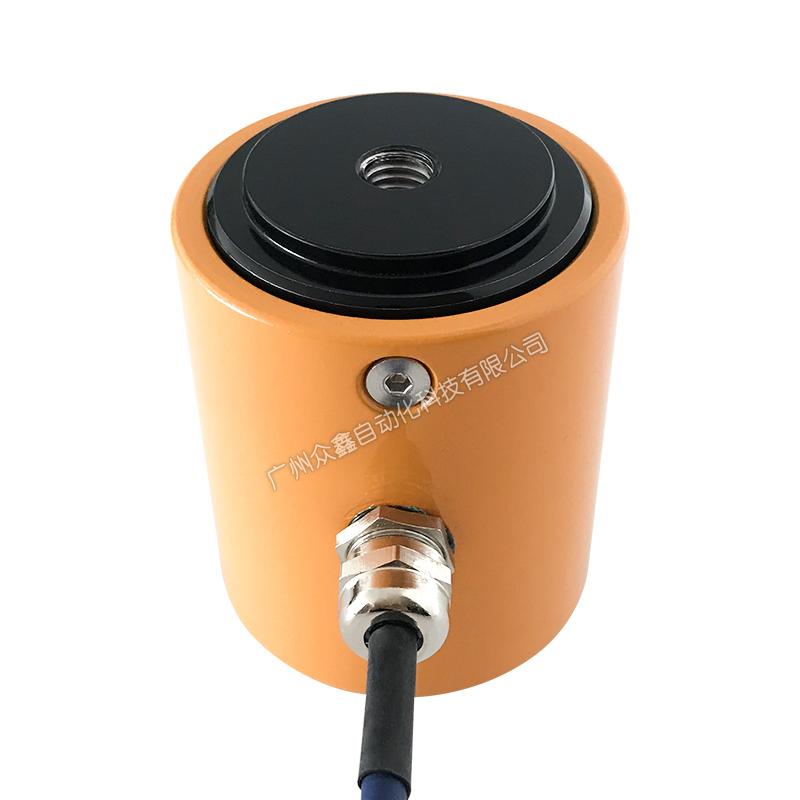

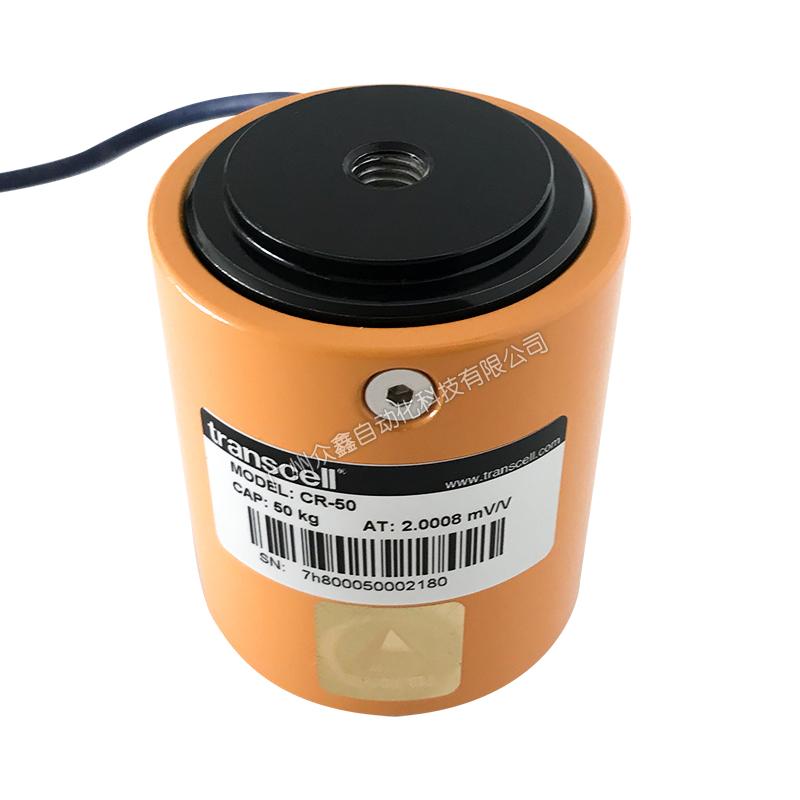

2、 Real photos of CR weighing sensors from the American Chuanli brand

3、 Related models of the American transmission CR weighing sensor

CR-5kg　Weighing sensor

CR-10kg weighing sensor

CR-20kg weighing sensor

CR-30kg weighing sensor

CR-50kg weighing sensor

CR-100KG weighing sensor

CR-200KG weighing sensor

CR-250KG weighing sensor

CR-500KG weighing sensor

CR-1T weighing sensor

CR-2T weighing sensor

CR-3T weighing sensor

CR-5T weighing sensor

4、 Product dimensions of the American transmission CR weighing sensor

5、 Technical parameters of the American transmission CR weighing sensor

Rated Output	Rated output	2.0mV/V　±2.5%
Zero Balance	Zero balance	±3%(<　100kg)　/　l%(200kg~5t) of rated output
Creep after 30 minutes	creep	±0.03% of rated output
Nonlinearity	Nonlinear	±0.03% of rated output
Hysteresis	lagging	±0.03% of rated output
Repeatability	Repeatability	±0.03% of rated output
Temp, effect on output	Sensitivity temperature drift	<0.002% of applied output/℃
Temp, effect on zero	Zero temperature drift	<0.002% of rated output/℃
Safe Temp. Range	Available temperature range	-10℃ to + 70℃
Temp. Compensated	Temperature compensation range	-10℃ to + 40℃
Safe Overload	Safe load	150%
Input Impedance	Input impedance	387 ohm ± 50 ohm
Output Impedance	Output impedance	350 ohm ± 5 ohm
Insulation Resistance	Insulation impedance	>5000 M ohm (50V DC)
Rated Excitation	Recommended excitation voltage	10V DC/AC
Maximum Excitation	Maximum excitation voltage	15V DC/AC
Cable Length	Wire length	2.75m
Cable Color Code	Wire color	Red( + E) Black(-E) Green( + S) White(-S)
