The FAV weighing sensor can be selected from the American Transforce brand with a range of 60kg to 500kg

product details

1、 Introduction to FAV Weighing Sensor Products of American Transpower Brands

Product type:American transmission weighing sensor，Single point weighing sensor

Product series: FAV, optional explosion-proof FAV (FB) series

Product features:

-High quality alloy steel material
-High precision
-High stability
-Easy and fast installation
-Suitable for belt scales, packaging scales, small hopper scales, platform scales, etc

Optional range: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg

Wiring method:

Red:+Motivation

Black: - Inspiration
Green:+signal

White: - Signal

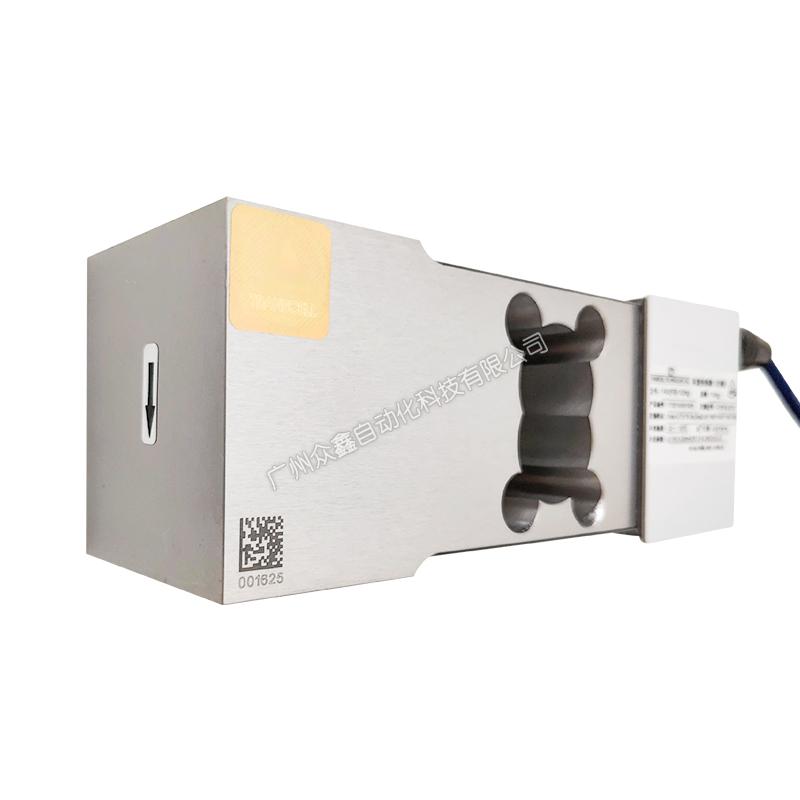

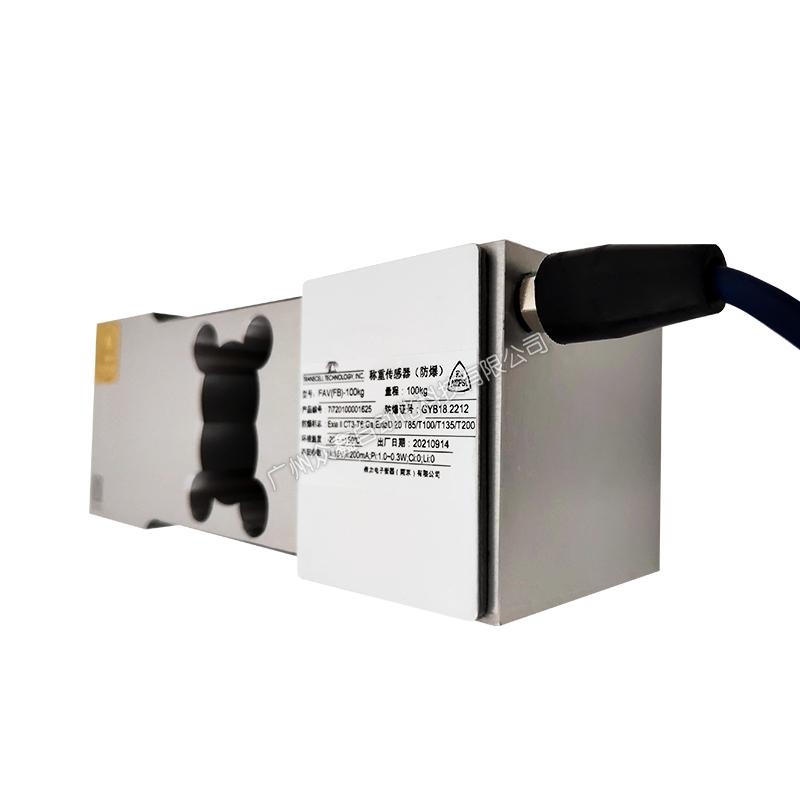

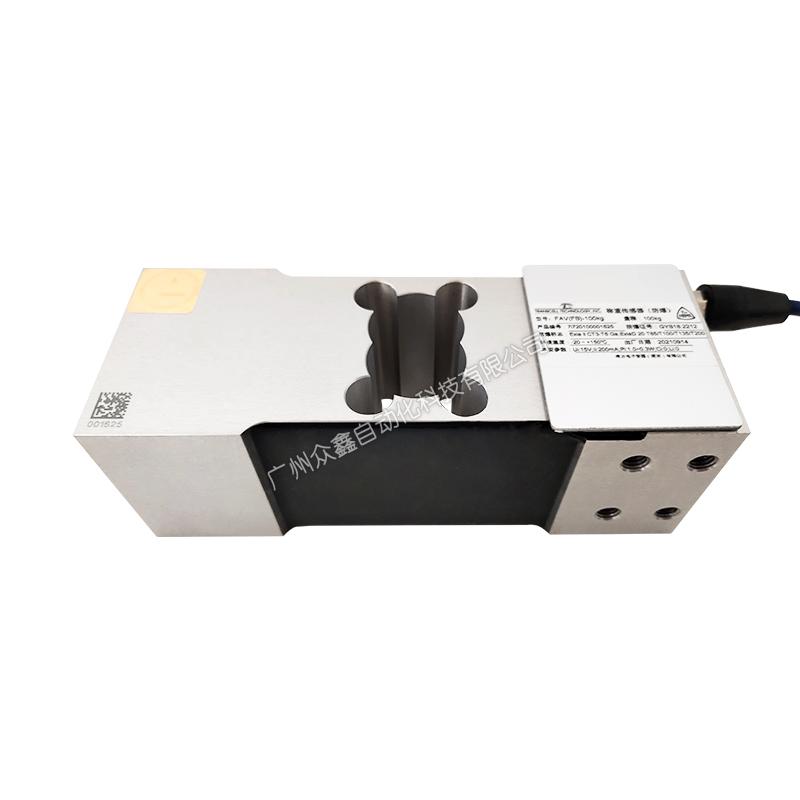

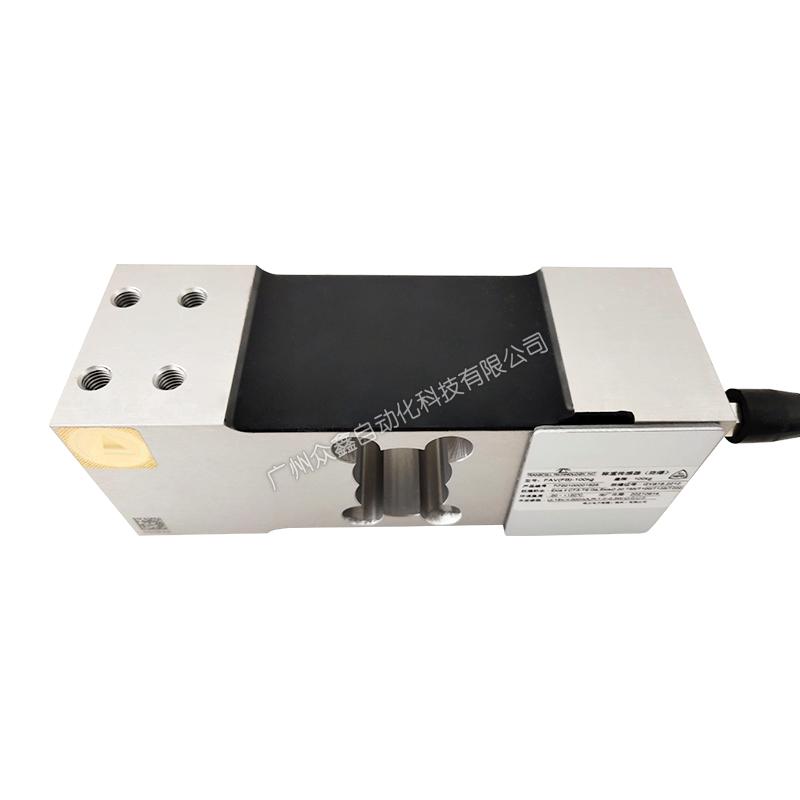

2、 Actual photo of the weighing sensor for the American transmission FAV(The picture shows the explosion-proof model)

3、 Related models of the American transmission FAV weighing sensor

FAV-60kg　Weighing sensor

FAV-100kg weighing sensor

FAV-150kg weighing sensor

FAV-200kg weighing sensor

FAV-250kg weighing sensor

FAV-300kg weighing sensor

FAV-500kg weighing sensor

4、 Product dimensions of the American transmission FAV weighing sensor

5、 Technical parameters of the American transmission FAV weighing sensor

Rated Output	Rated output	2.0mV/V　±10%
Zero Balance	Zero balance	±3%　of rated output
Creep after 30 minutes	creep	±0.03% of rated output
Nonlinearity	Nonlinear	±0.03% of rated output
Hysteresis	lagging	±0.03% of rated output
Repeatability	Repeatability	±0.03% of rated output
Temp, effect on output	Sensitivity temperature drift	<0.002% of applied output/℃
Temp, effect on zero	Zero temperature drift	<0.002% of rated output/℃
Safe Temp. Range	Available temperature range	-10℃ to + 70℃
Temp. Compensated	Temperature compensation range	-10℃ to + 40℃
Safe Overload	Safe load	150%
Input Impedance	Input impedance	410 ohm ± 20 ohm
Output Impedance	Output impedance	350 ohm ± 5 ohm
Insulation Resistance	Insulation impedance	>5000 M ohm (50V DC)
Rated Excitation	Recommended excitation voltage	10V DC/AC
Maximum Excitation	Maximum excitation voltage	15V DC/AC
Cable Length	Wire length	6m
Cable Color Code	Wire color	Red( + E) Black(-E) Green( + S) White(-S)
