1、 Introduction to FSSB Weighing Sensor Products from the United States
Product series: FSSB
Product features:
-High quality stainless steel material
-High precision
-High stability
-Easy and fast installation
-Suitable for packaging scales and ingredient systems, etc
-Optional C4 accuracy level
Optional range: 30kg, 50kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 350kg
Wiring method:
Red:+Motivation
Black: - Inspiration
Green:+signal
White: - Signal

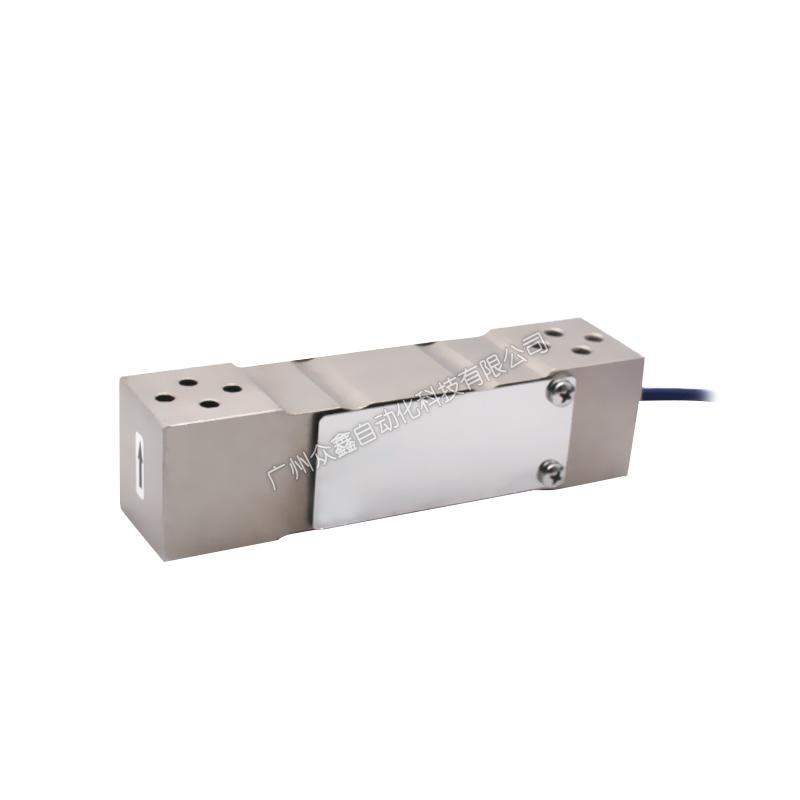

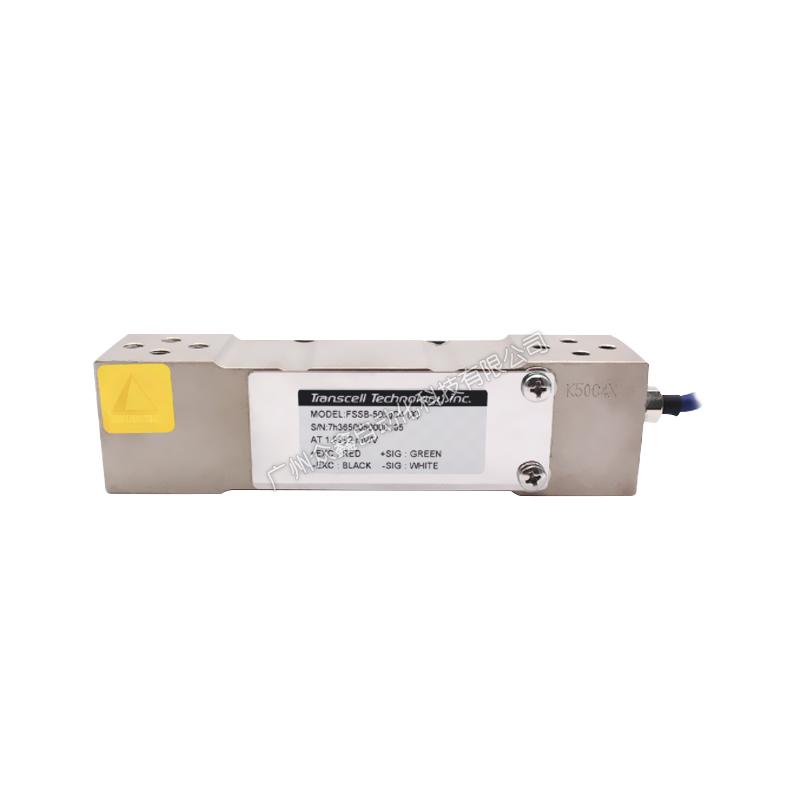

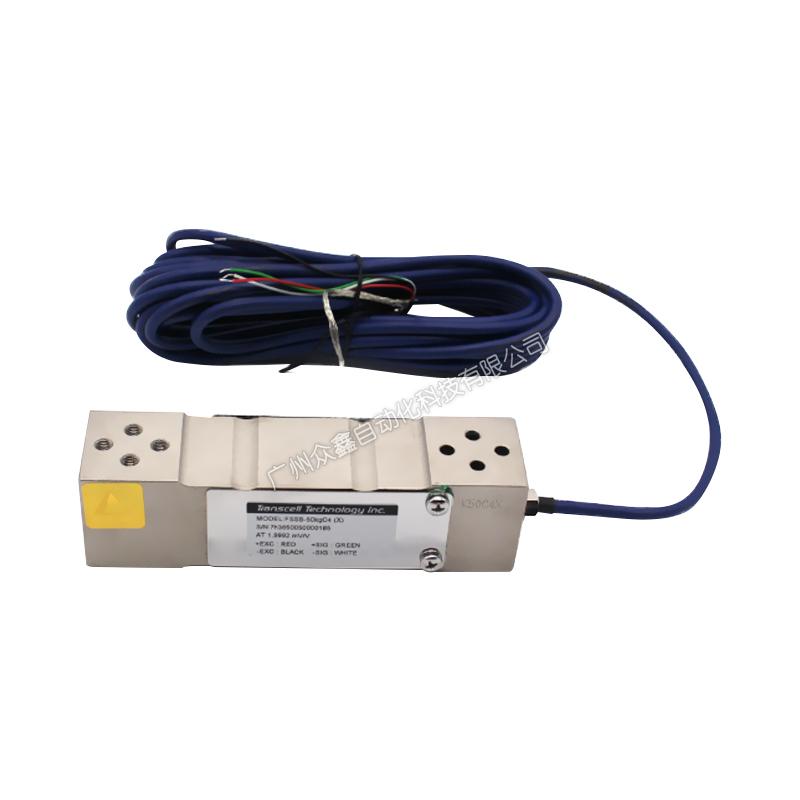

2、 Actual photo of the FSSB weighing sensor in the United States
3、 Related models of FSSB weighing sensors in the United States
FSSB-50kg Weighing sensor
FSSB-60kg Weighing sensor
FSSB-100kg Weighing sensor
FSSB-150kg Weighing sensor
FSSB-200kg Weighing sensor
FSSB-250kg Weighing sensor
FSSB-300kgWeighing sensor
FSSB-350kg Weighing sensor
4、 Dimensions of FSSB weighing sensor products from the United States
5、 Technical parameters of the American transmission FSSB weighing sensor
| Rated Output | Rated output | 2.0mV/N ±0.1% |
| Zero Balance | Zero balance | ±3% of rated output |
| Creep after 30 minutes | creep | ±0.03% of rated output |
| Nonlinearity | Nonlinear | ±0.03% of rated output |
| Hysteresis | lagging | ±0.03% of rated output |
| Repeatability | Repeatability | ±0.03% of rated output |
| Temp.effect on output | Sensitivity temperature drift | ≤0.002% of applied output/C |
| Temp.effect on zero | Zero temperature drift | ≤0.002% of rated output/°℃ |
| Safe Temp.Range | Available temperature range | -10°C to +70°℃ |
| Temp.Compensated | Temperature compensation range | -10°C to +40°C |
| Safe Overload | Safe load | 150% |
| Input Impedance | Input impedance | 387 ohm±20 ohm |
| Output Impedance | Output impedance | 350 ohm±5 ohm |
| Insulation Resistance | Insulation impedance | ≥5000 M ohm(50V DC) |
| Rated Excitation | Recommended excitation voltage | 10V DC/AC |
| Maximum Excitation | Maximum excitation voltage | 15V DC/AC |
| Cable Length | Wire length | 6m/10m |
| Cable Color Code | Wire color | Red(+E) Black(-E)Green(+S)White(-S) |
6、 Safety instructions for FSSB weighing sensors
1. The FSSB series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose.
2. To ensure safe operation, the load cell can only be used according to the instructions in the installation instructions. During use, it is also necessary to comply with the relevant legal and safety requirements of the application. This also applies to the use of attachments.
3. If the load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). For safe and trouble-free operation, the weighing sensor must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overload use.
