1、 Introduction to FSSV weighing sensor products from the American Transpower brand
Product series: FSSV
Product features:
-High quality alloy steel material
-High precision
-High stability
-Easy and fast installation
-Surface nickel plating anti-corrosion treatment
-High protection level
-Can be used in harsh industrial environments
Optional range: 150kg, 250kg, 500kg, 750kg, 1000kg
Wiring method:
Red:+Motivation
Black: - Inspiration
Green:+signal
White: - Signal

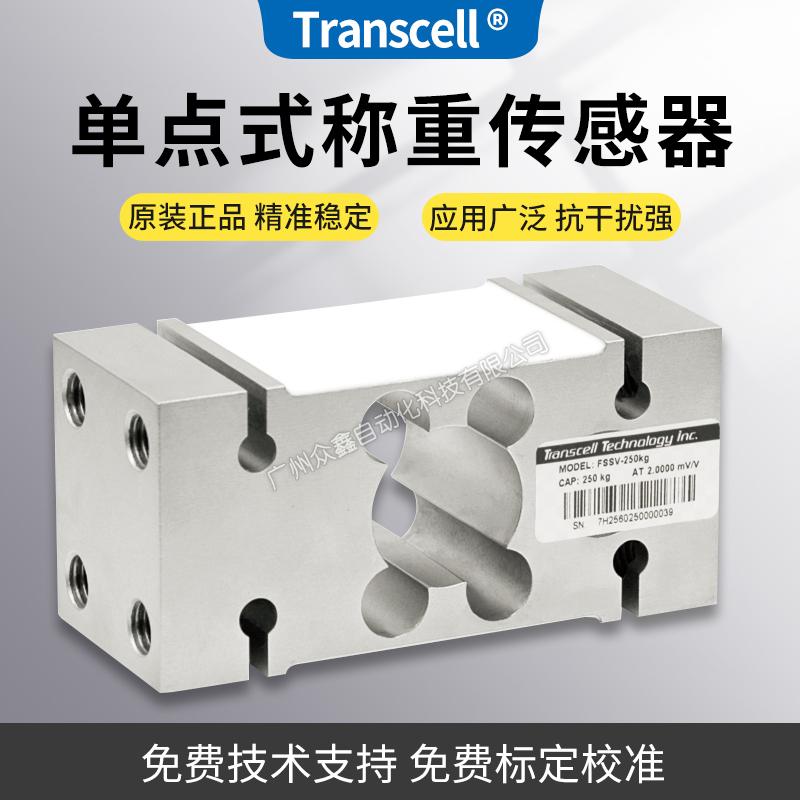

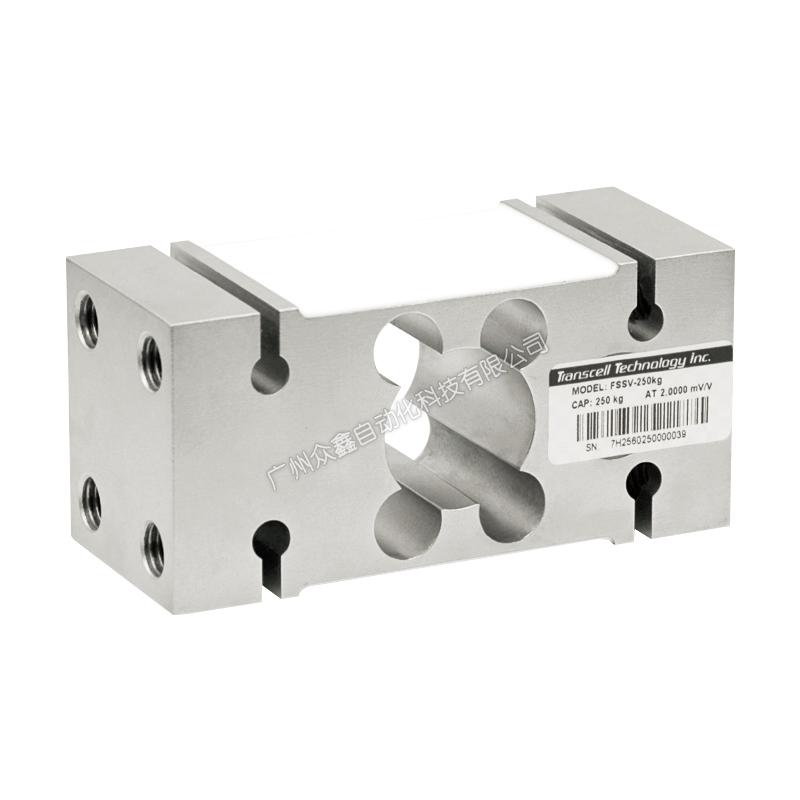

2、 Image of FSSV weighing sensor from American Transpower brand
3、 The relevant models of the American transmission FSSV weighing sensor
FSSV-250kg weighing sensor
FSSV-500kg weighing sensor
FSSV-750kg weighing sensor
FSSV-1000kg weighing sensor
4、 Dimensions of American Transforce FSSV weighing sensor products
5、 Technical parameters of the American transmission FSSV weighing sensor
| Rated Output | Rated output | 2.0mV/V ±10% |
| Zero Balance | Zero balance | ±1% of rated output |
| Creep after 30 minutes | creep | ±0.03% of rated output |
| Nonlinearity | Nonlinear | ±0.03% of rated output |
| Hysteresis | lagging | ±0.03% of rated output |
| Repeatability | Repeatability | ±0.03% of rated output |
| Temp, effect on output | Sensitivity temperature drift | <0.02% of applied output/℃ |
| Temp, effect on zero | Zero temperature drift | <0.02% of rated output/℃ |
| Safe Temp. Range | Available temperature range | -30℃ to + 70℃ |
| Temp. Compensated | Temperature compensation range | -10℃ to + 40℃ |
| Safe Overload | Safe load | 150% |
| Ultimate Overload | limit load | 200% |
| Input Impedance | Input impedance | 387 ohm ± 20 ohm |
| Output Impedance | Output impedance | 350 ohm ± 5 ohm |
| Insulation Resistance | Insulation impedance | >5000 M ohm (50V DC) |
| Rated Excitation | Recommended excitation voltage | 10V DC/AC |
| Maximum Excitation | Maximum excitation voltage | 15V DC/AC |
| Cable Length | Wire length | 2.5m |
| Cable Color Code | Wire color | Red( + E) Black(-E) Green( + S) White(-S) |
6、 Safety instructions for FSSV weighing sensors
1. The FSSV series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose.
2. To ensure safe operation, the load cell can only be used according to the instructions in the installation instructions. During use, it is also necessary to comply with the relevant legal and safety requirements of the application. This also applies to the use of attachments.
3. If the load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). For safe and trouble-free operation, the weighing sensor must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overload use.
