LPSLoad CellA product belonging to the Celtron brand in the United States, it is a lightweight single point weighing sensor made of anodized aluminum oxide with a protection level of IP66. It is suitable for packaging machines, dosage/filling, belt scales/conveyor scales, dynamic inspection scales, and retail scales/counting scales.
. Introduction to LPS weighing sensor products of the American Celtron brand
Product Description:
-LPS is designed for electronic scales and platform scales, where only one weighing sensor can be used and requires a low attitude. It is the lightest model in the Celtron single point load cell series. This design is most suitable for large-scale production operations.
-LPS is made of anodized aluminum oxide and fully encapsulated in IP66 grade, providing excellent moisture protection.
Product series: LPS
Product features:
-Capacity: 0.6 to 200 kg
-Small size, low-key
-Anodized alumina
-NTEP Level III 5000S certification, from 3 kg to 30 kg
-OIML C3 approved weight from 6 kg to 35 kg
-Platform size: 16 inches x 16 inches/40 centimeters x 40 centimeters
-Optional: FM approval available
-Applications: packaging machines, dosage/filling, belt scales/conveyor scales, dynamic inspection scales, retail scales/counting scales

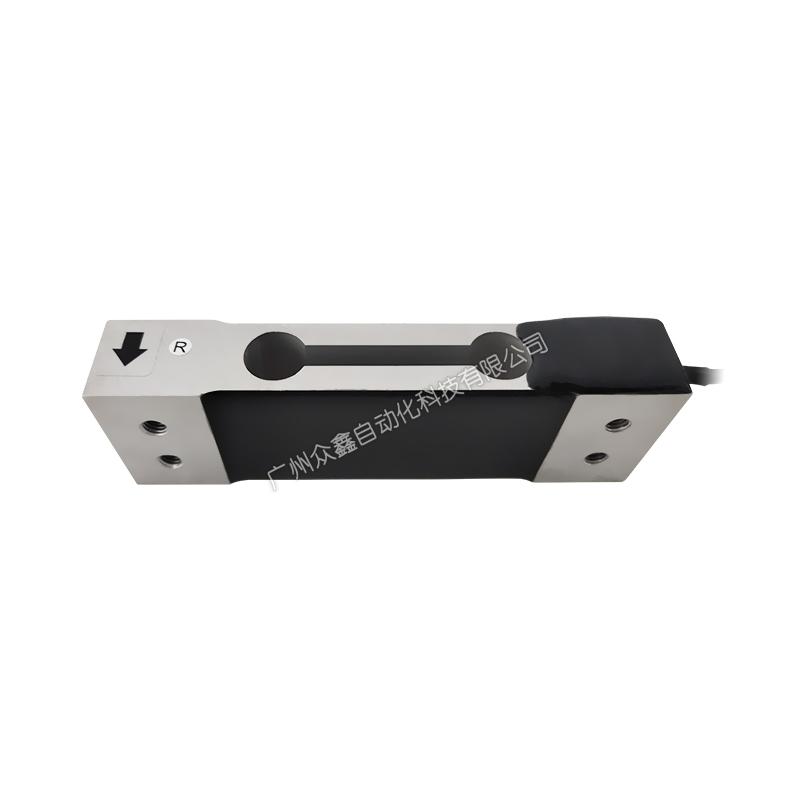

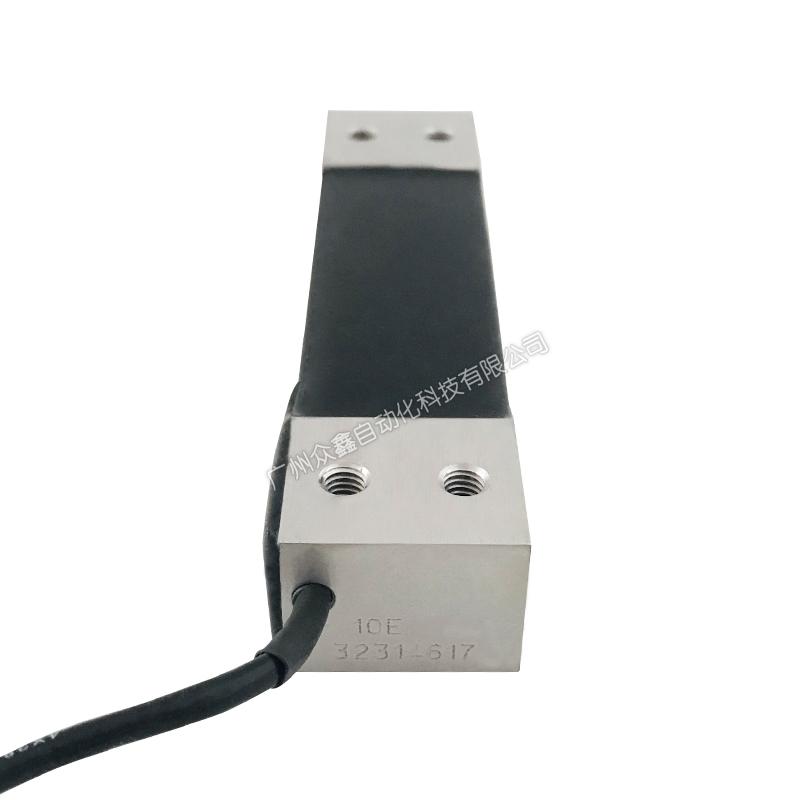

. Actual photo of the LPS weighing sensor from the United States
. American Celtron LPS weighing sensor related models
LPS-0.6kg load cell
LPS-1kg load cell
LPS-2kg load cell
LPS-3kg weighing sensor
LPS-6kg load cell
LPS-10kg load cell
LPS-15kg load cell
LPS-20kg load cell
LPS-30kg load cell
LPS-35kg load cell
LPS-60kg load cell
LPS-100kg weighing sensor
LPS-200kg load cell
. Dimensions of LPS weighing sensor products from the United States
. Technical parameters of the American Celtron LPS weighing sensor
. Safety instructions for LPS weighing sensors
1. The LPS series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose.
2. To ensure safe operation, the load cell can only be used according to the instructions in the installation instructions. During use, it is also necessary to comply with the relevant legal and safety requirements of the application. This also applies to the use of attachments.
3. If the load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). For safe and trouble-free operation, the weighing sensor must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overload use.
