615-150kg Load cell A product belonging to the Tedea brand in the United States, it is an S-type load cell made of nickel plated alloy steel, with a protection grade of IP66 and a range of 0.3kg-3kg. It is suitable for hopper (tank weighing), mixed balance, belt weighing, lever arm conversion, material testing machine, vibration filling equipment, force measuring machine, etc
1、 Tedea 615-150kg Load Cell Product Introduction, USA
Product Description:
The 615 and 616 models are tension compression load cells of the same size The moisture-proof coating and shielded cables enable these load cells to be used in harsh environments while maintaining their operational standards Additional sensing wires compensate for changes in lead resistance caused by temperature changes and/or cable extension
The 615 and 616 load cells are very suitable for lever conversion, suspension scales, force measurement, and other wide industrial applications
The 615 load cell is made of alloy steel with a riveted cover Another version (Type 616) is made of stainless steel and comes with a bonded cover for additional protection (excluding 50 kg)
Product series:615
Product Features
-Capacity 50-1000KG
-Nickel plated alloy steel (615) or stainless steel (616) structure
-Protection: Model 616-IP66; Model 615-IP67
-Used for stretching or compression
-6-wire (sensing) circuit
-Output standardization is ± 0.1%
application
-Hopper (can weighing)
-Mixed balance
-Belt weighing
-Lever arm conversion
-Material testing machine
-Vibration filling equipment
-Force measuring machine

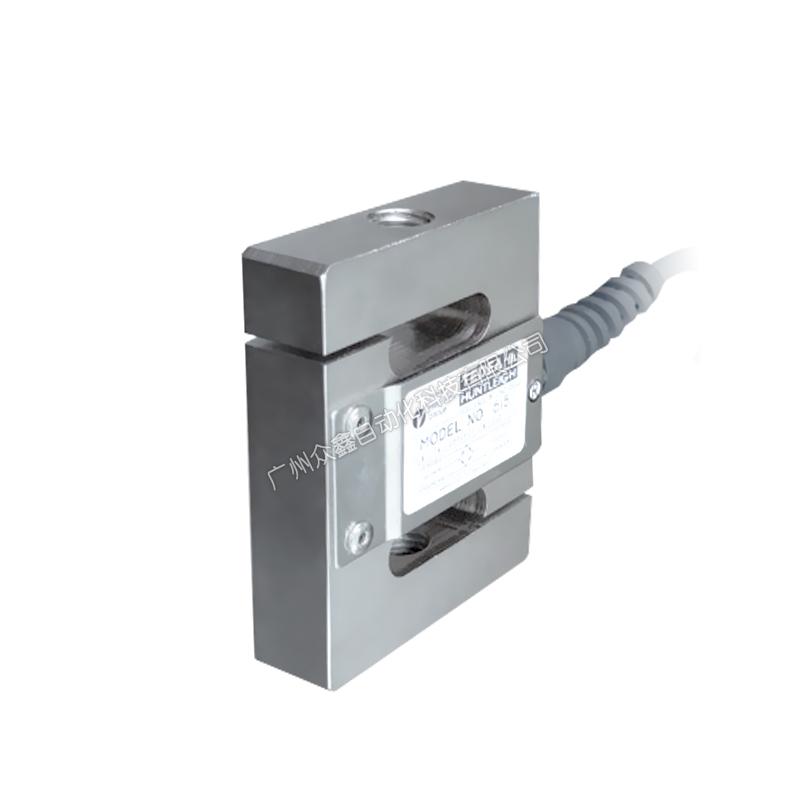

2、 Real shot of the 615-150kg Load cell from Tedea, USA
3、 American Tedea 615-150kg Load Cell related models
615-100kg Load cell
615-150kg Load cell
615-200kg Load cell
615-300kg Load cell
615-500kg Load cell
615-750kg Load cell
615-1000kg Load cell
4、 Tedea 615-150kg Load Cell Product Dimensions
5、 Technical parameters of American Tedea 615-150kg Load cell products
6、 Safety instructions for Tedea 615-150kg Load cell in the United States
The 615 Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the 615-150kg Load Cell is 150kg. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
