3510-300kg Load cell A product belonging to the Tedea brand in the United States, it is a cantilever load cell made of stainless steel with protection levels of IP68 and IP69K. It is suitable for pallet truck weighing, harsh environments, food industry weighing, storage tank and silo weighing, etc
1、 Tedea USA 3510-300kg Load Cell Product Introduction
Product Description:
The 3510 model provides the ultimate protection required for the weighing industry in today's harsh environments, and its economical low profile range is suitable for platform scale manufacturing The combination of low profile and fully welded sealing with high precision makes this Load cell very suitable for low profile platforms, pallet truck weighing machines, storage tanks, and silos The guide grooves in the upper and lower mounting surfaces allow manufacturers to easily locate load cells
The 3510 sealed moisture-proof structure combined with polyurethane double shielded cables can operate continuously in harsh environments while maintaining high operating specifications The other two induction lines provide feedback on the voltage reaching the Load cell By inputting this voltage into an appropriate electronic device, it is possible to fully compensate for changes in lead resistance caused by temperature changes and/or cable extension
Product series:3510
Product features:
-Capacity 300-5000KG, 1000-5000 pounds
-Stainless steel structure
-OIML R60 and NTEP approval
-Sealed to IP68 and IP69K
-Designed specifically for harsh environments
-Optional: ① EEx ia IIC T6 hazardous area approval; ② FM approval available; ③ 1100 Ω impedance available
Product application:
-Low altitude platform
-Weighing of pallet trucks
-Weighing of storage tanks and silos
-Harsh environment
-Weighing in the food industry

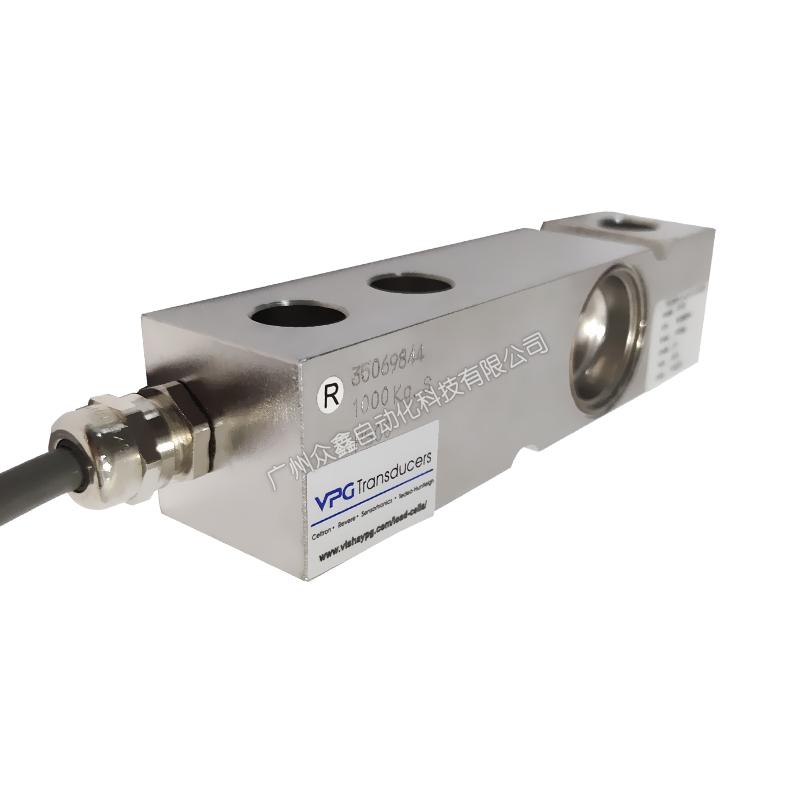

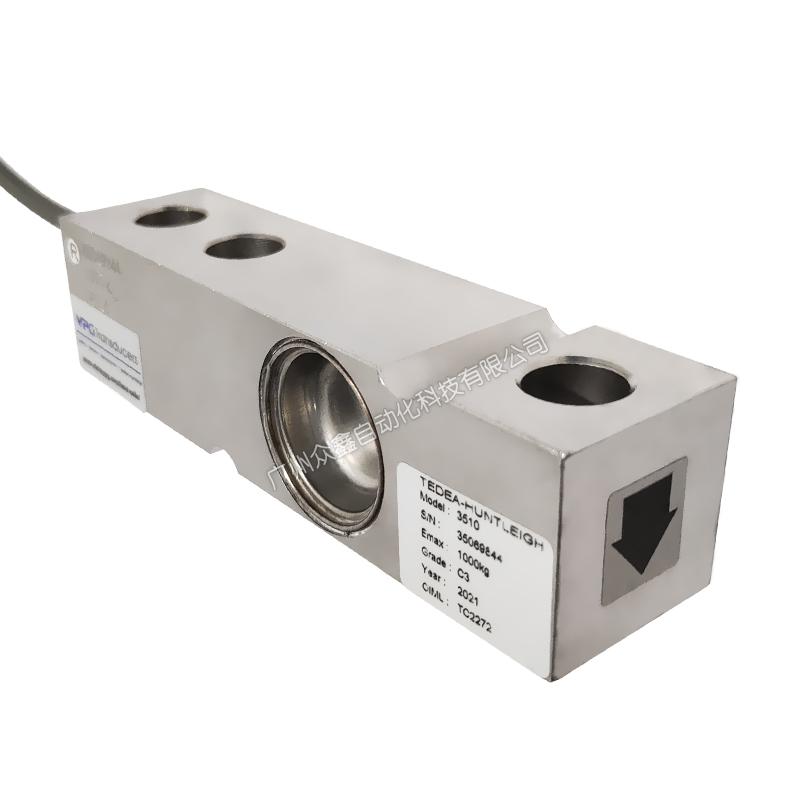

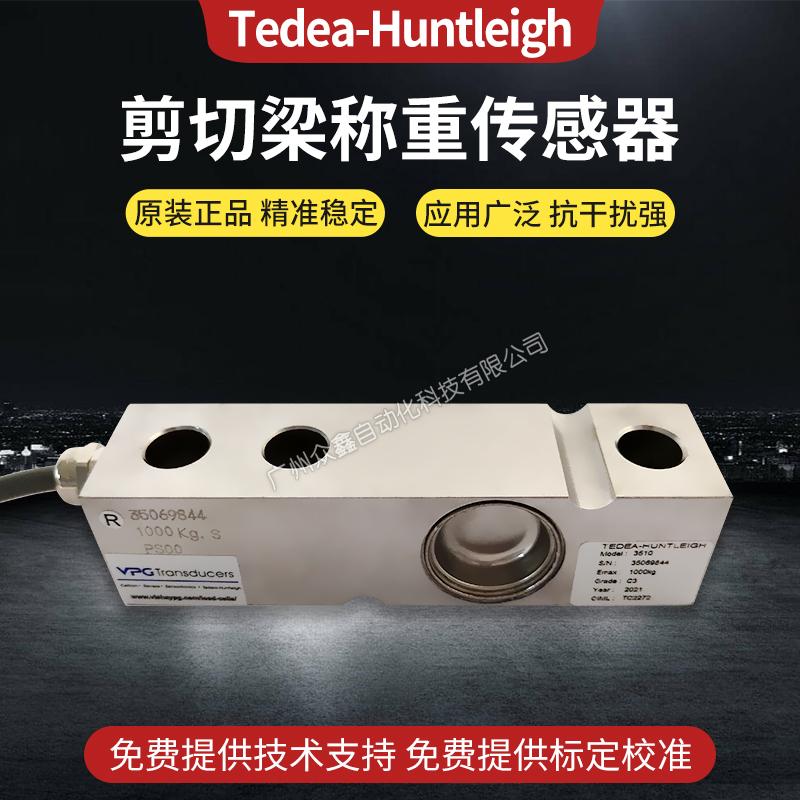

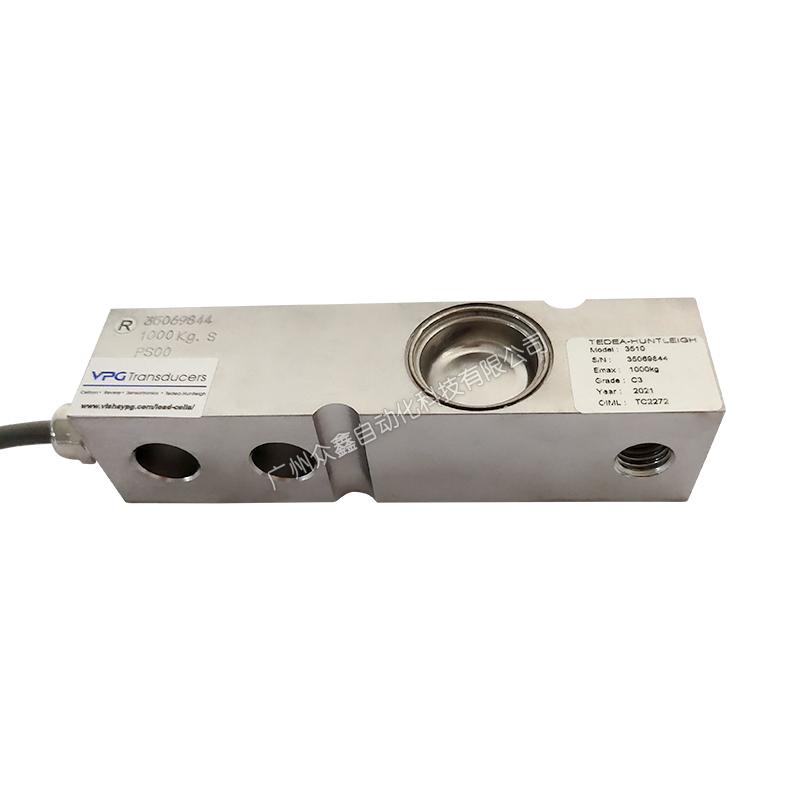

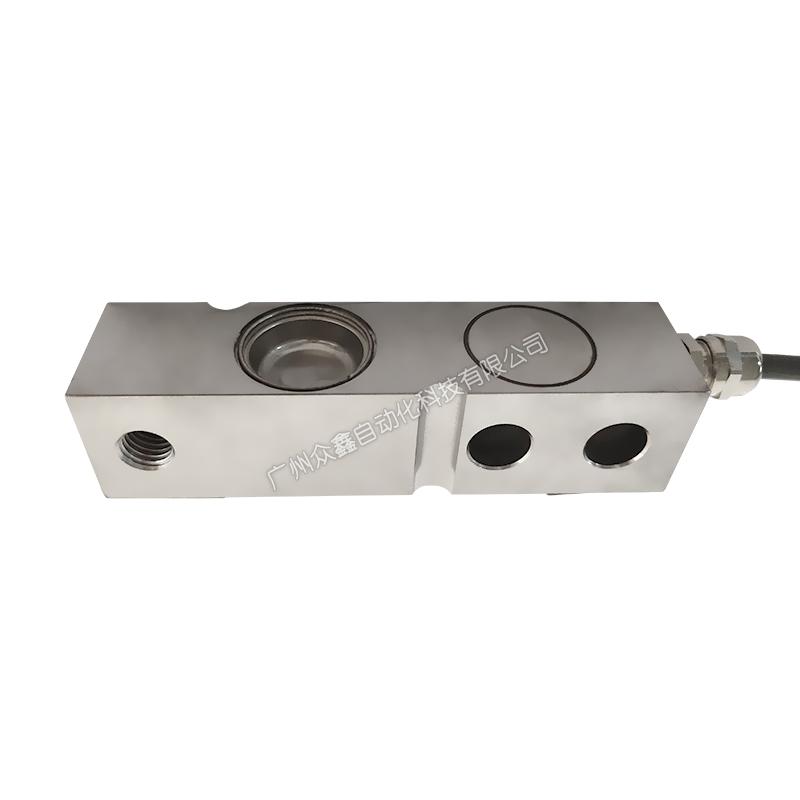

2、 Real shot of the US Tedea 3510-300kg Load cell
3、 American Tedea 3510-300kg Load Cell related models
3510-300kg Load cell
3510-500kg Load cell
3510-750kg Load cell
3510-1000kg Load cell
3510-1200kg Load cell
3510-2000kg Load cell
3510-3000kg Load cell
3510-5000kg Load cell
4、 Tedea USA 3510-300kg Load Cell Product Dimensions
5、 Technical parameters of American Tedea 3510-300kg Load cell products
6、 Safety instructions for American Tedea 3510-300kg Load cell
The 3510 Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the 3510-300kg Load Cell is 300kg. When using it, it is important to pay attention to the possibility of instantaneous overload, which may also cause damage to the sensor
