3410-10000LBS sensor, American Tedia 3410-10000LBS weighing sensor

Overview of TEDEA Tedea Load Cell 3410-10000LBS Sensors in Stock in the United States

Tedea Huntleigh 3410
Product brand: Tedea Load Cell, USA, Tedea Load cell
Product characteristics:Cantilevered Load Cell
Designed with stainless steel material
Protection level IP67
Has good waterproof and moisture-proof function
Optional features: EEx ia IIC T6
Hazardous area certification; FM certification optional
Range: 250KG, 500KG, 1000KG, 2000KG
3410 series is suitable for weighing low level platforms, pallet trucks, vehicles, and silos

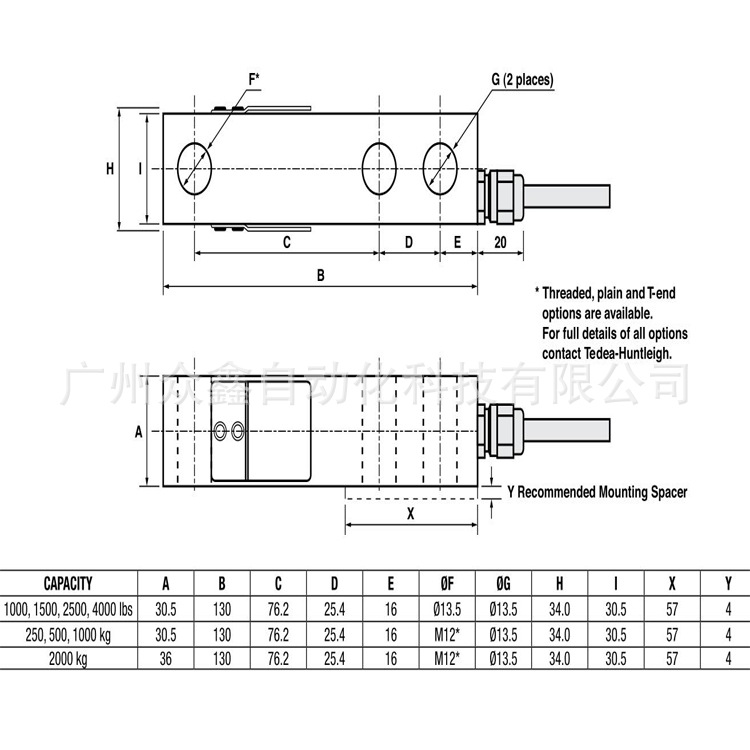

TEDEA Tedea Load Cell, USA3410-10000LBSSensor size

TEDEA Tedea Load Cell, USA3410-10000LBSsensorPrecautions for use:

The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians
Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes The opening of the shell cover must be carried out by professional engineers or technicians
The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly
The converter circuit board assembly contains sensitive components that may be damaged by static electricity Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary

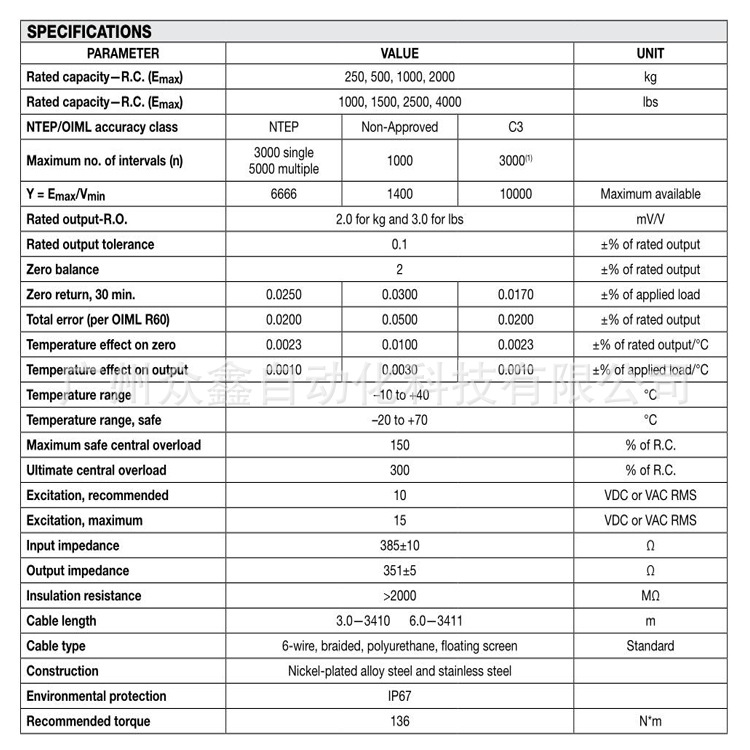

TEDEA Tedea Load Cell, USA3410-10000LBSSensor technical parameters

　




TEDEA Tedea Load Cell, USA3410-10000LBSsensorHot selling models

3410 series

3410-250KG, 3410-500KG, 3410-1000KG, 3410-2000KG
3410-1000lbs, 3410-1500lbs, 3410-2500lbs, 3410-4000lbs
3410-5000lbs, 3410-7500lbs, 3410-10000lbs

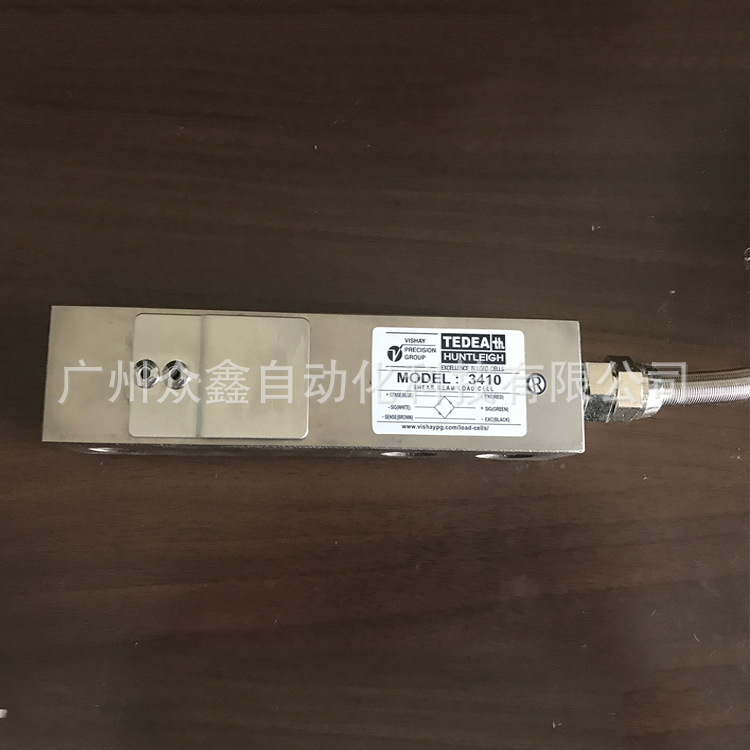

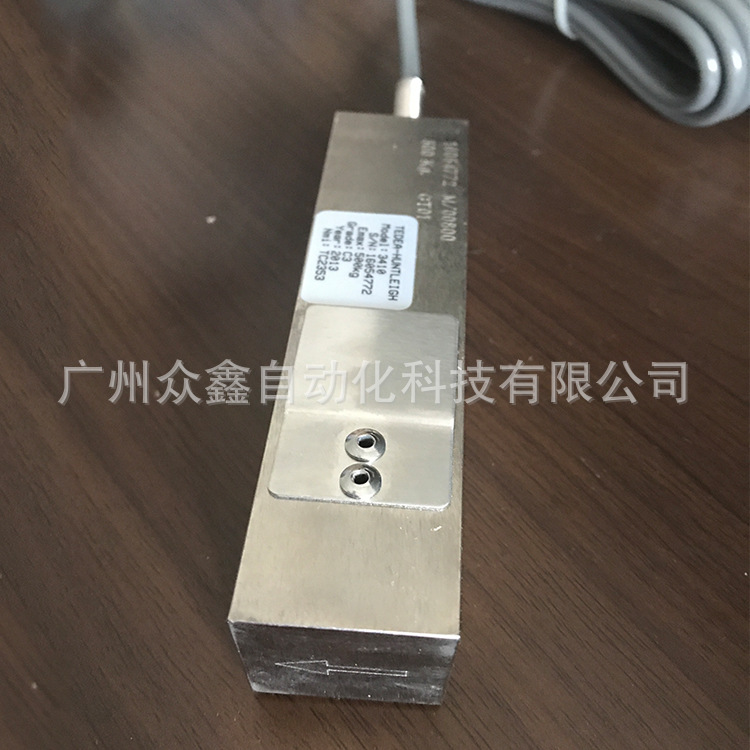

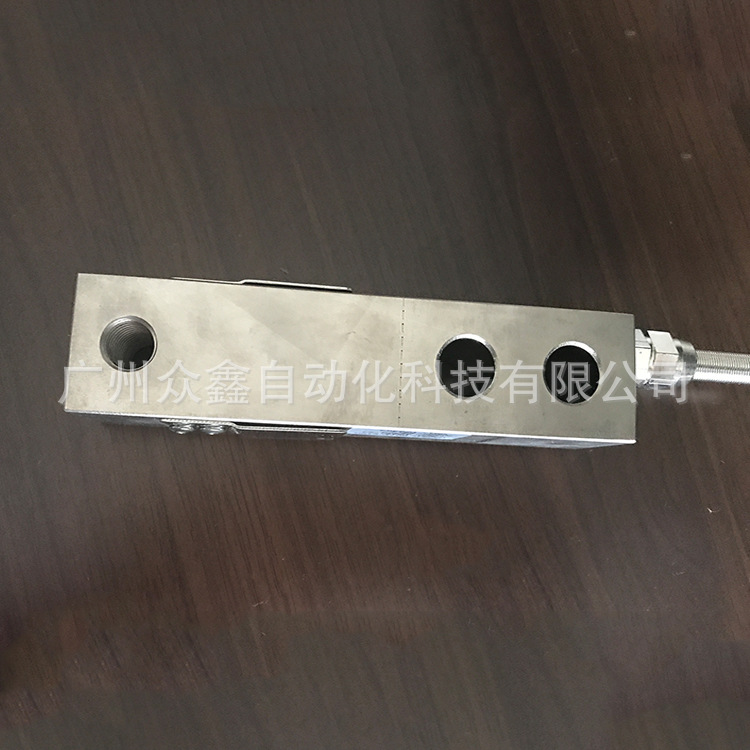

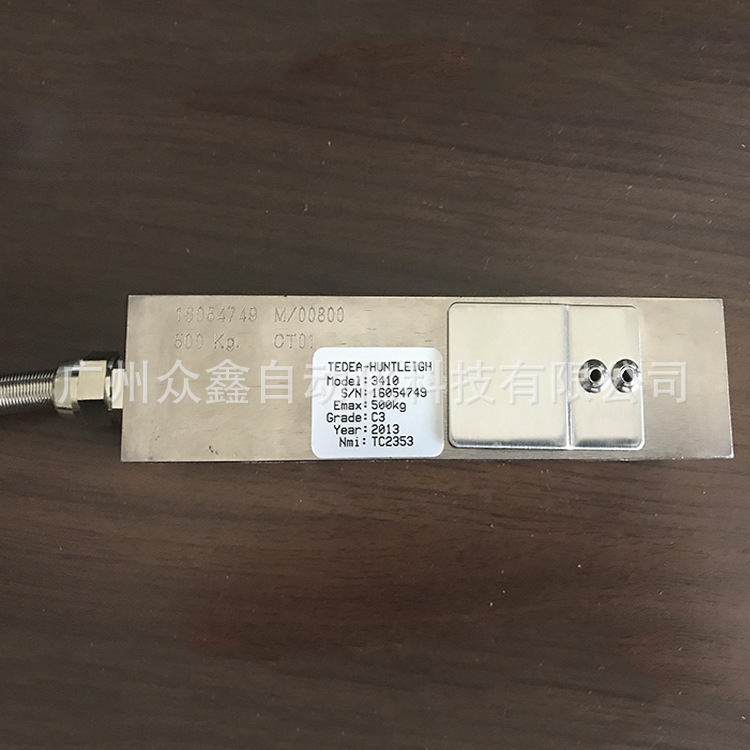

TEDEA Tedea Load Cell, USA3410-10000LBSActual sensor image
