3410-4000lbs Load cell A product belonging to the Tedea brand in the United States, it is a cantilever type load cell with a steel and stainless steel structure and a protection level of IP67. It is suitable for weighing low altitude platforms, pallet trucks, tanks, and silos
1、 American Tedea 3410-4000lbs Load Cell Product Introduction
Product Description:
The 3410 model is a low profile shear beam load cell designed specifically for high-precision platform scales, pallet scales, and process weighing applications It has high immunity to impact or lateral loads, with a sensitivity of 2 or 3 mV/V Approved according to OIML and NTEP standards For hazardous environments, this load cell can pass EEx ia IIC T6 European certification
The 3410 load cell is nickel plated and fully sealed to ensure long-term reliability The lb model can choose stainless steel for harsh or corrosive environments The other two induction lines provide feedback on the voltage reaching the Load cell By inputting this voltage into an appropriate electronic device, it is possible to fully compensate for changes in lead resistance caused by temperature changes and/or cable extension
Product series:3410
Product features:
-Capacity 250-2000KG and 1000-4000 pounds
-Steel and stainless steel structures
-OIML R60 and NTEP approval
-IP67 protection
-Optional: EEx ia IIC T6 hazardous area approval; FM approval available
Product application:
-Low altitude platform
-Weighing of pallet trucks
-Weighing of storage tanks and silos

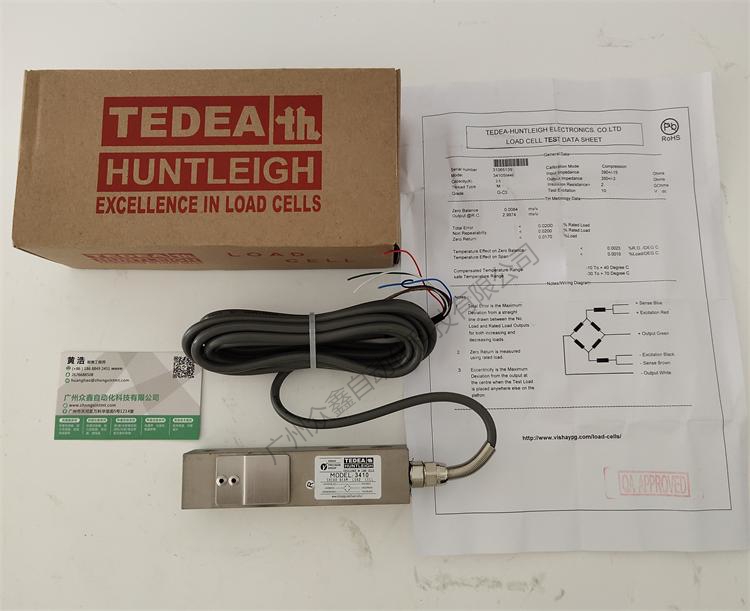

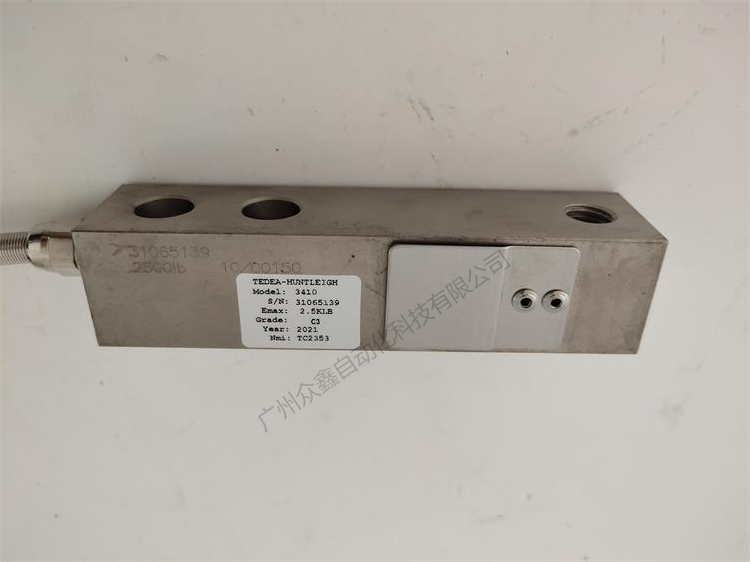

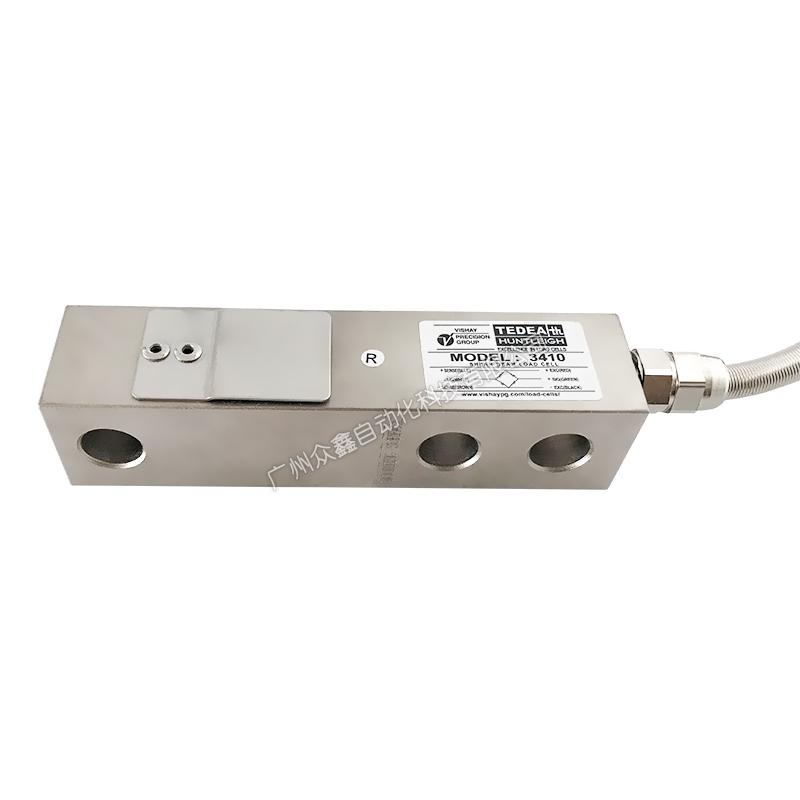

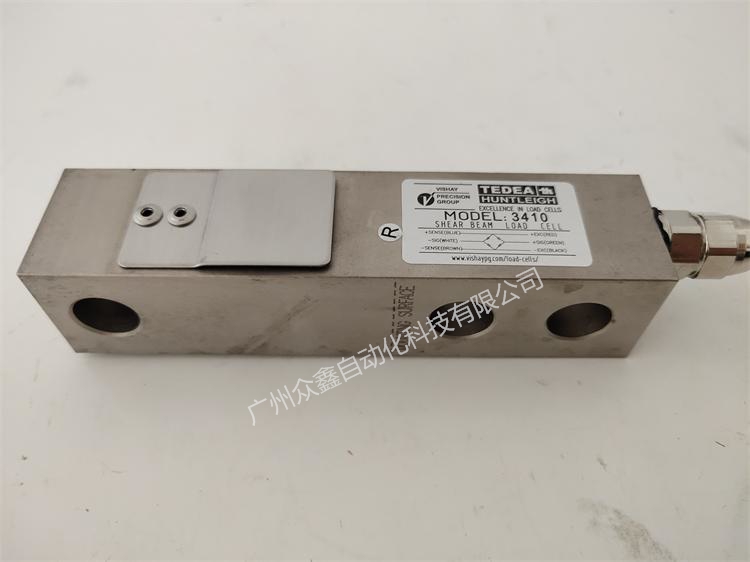

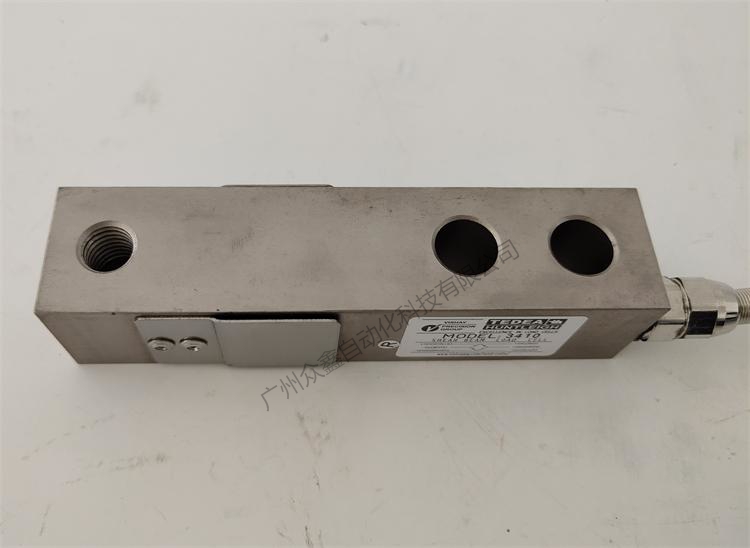

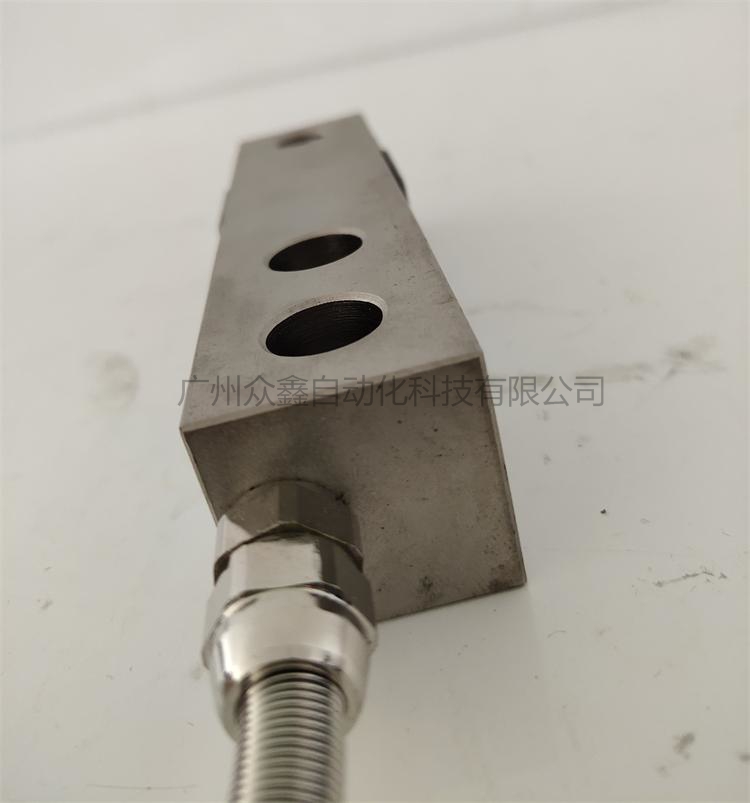

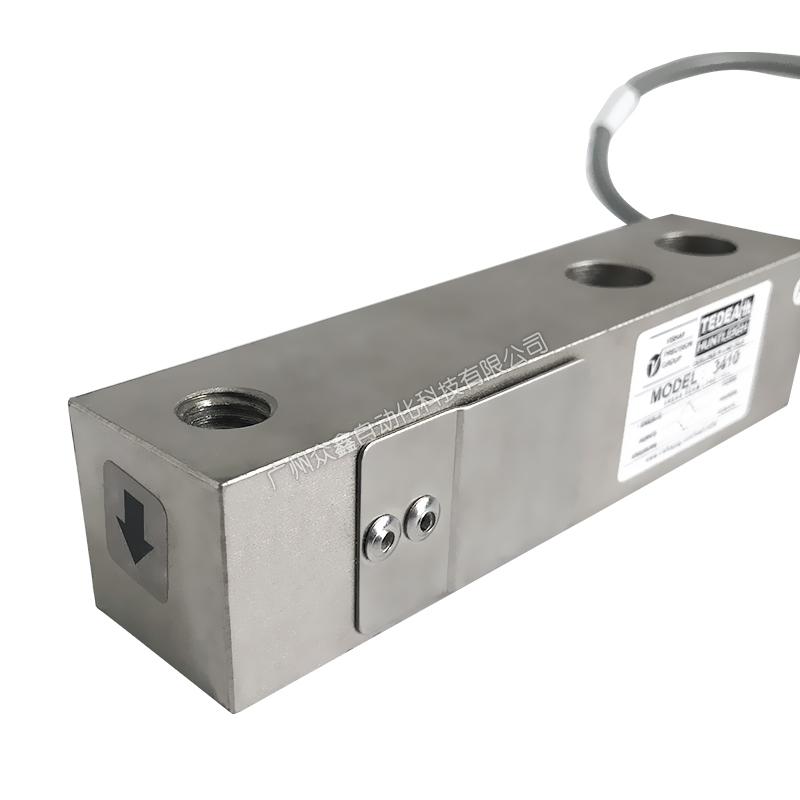

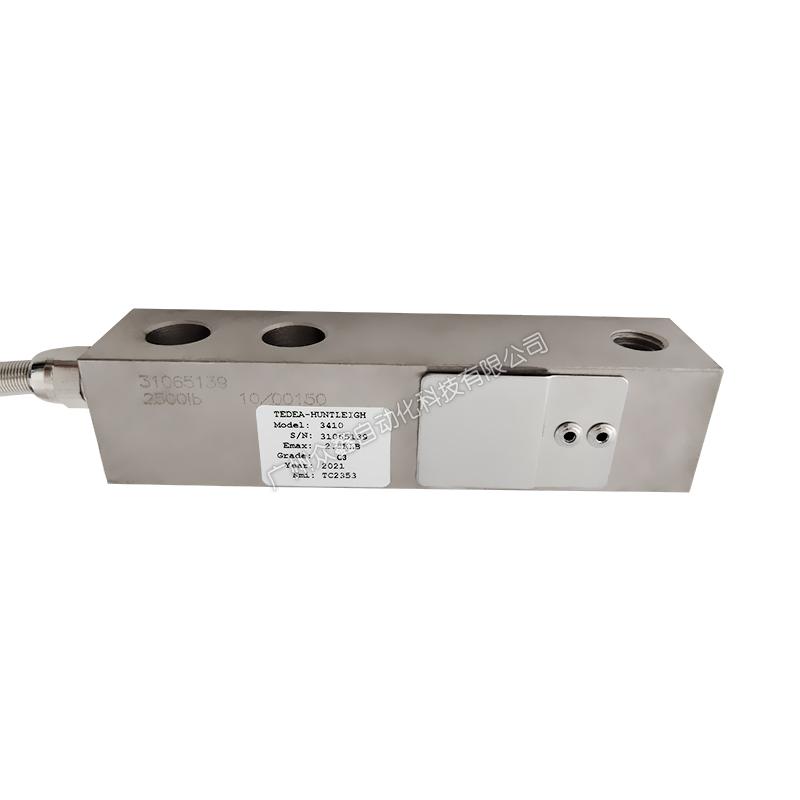

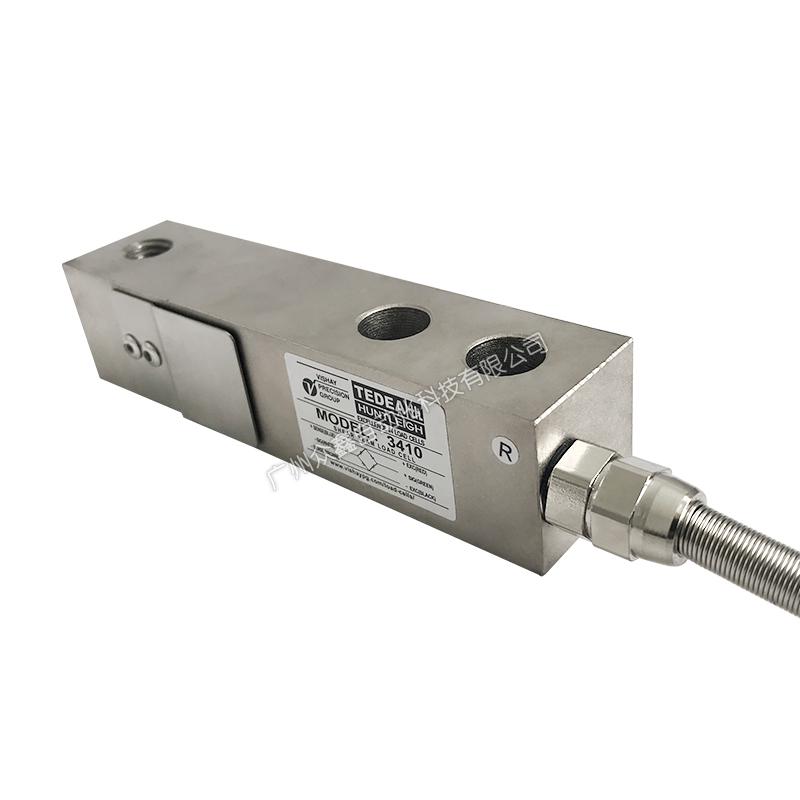

2、 Real shot of 3410-4000lbs Load cell from Tedea, USA
3、 US Tedea 3410-4000lbs Load Cell related models
3410-250kg Load cell
3410-500kg Load cell
3410-1000kg Load cell
3410-2000kg Load cell
3410-1000lbs Load cell
3410-1500lbs Load cell
3410-2500lbs Load cell
3410-4000lbs Load cell

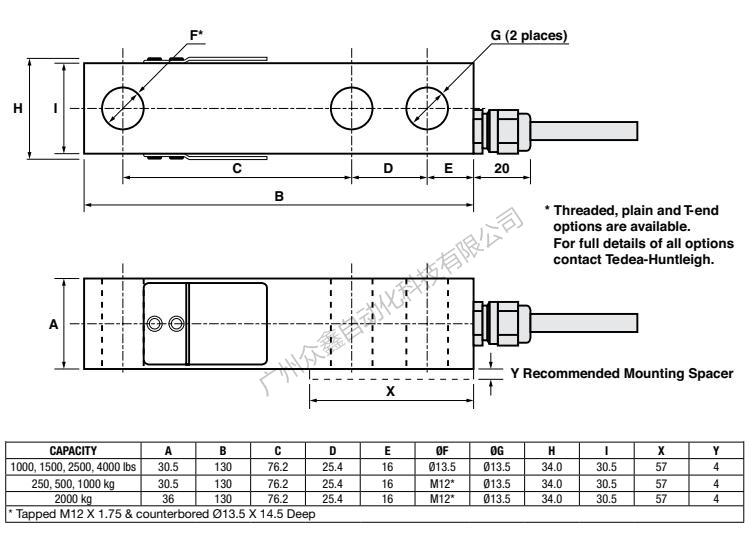

4、 Tedea USA 3410-4000lbs Load Cell Product Dimensions

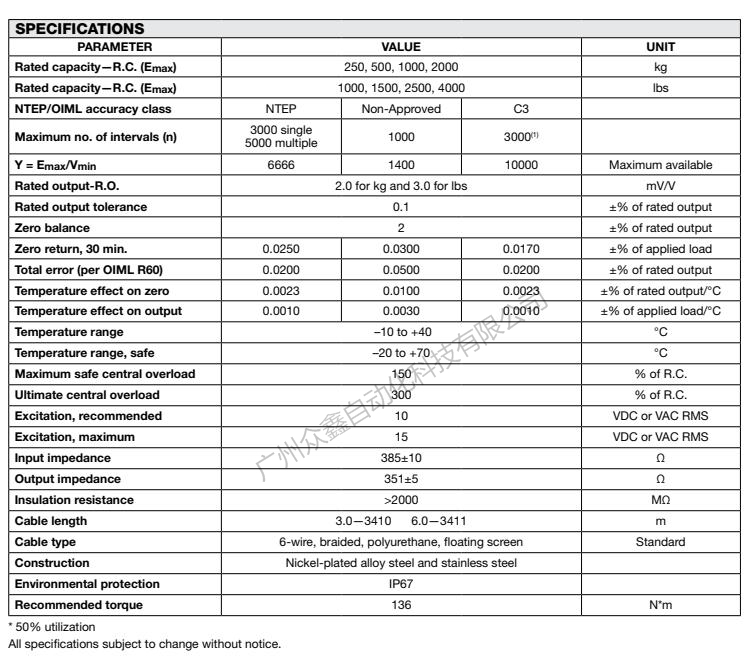

5、 Technical parameters of American Tedea 3410-4000lbs Load cell products
6、 Safety instructions for American Tedea 3410-4000lbs Load cell
The 3410 Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the 3410-4000lbs Load Cell is 4000lbs. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
