1023-200KG sensor, American Tedia 1023-200KG weighing sensor

Overview of TEDEA Tedea Load Cell 1023-200kg Sensors in the United States

Tedea Huntleigh 1023
Product brand: Tedea Load cell, USA,Tedea Load cell
Product characteristics:Single point load cell
Body material: Made of aluminum design
The 1023 series sensors are available in metric and UNC threads
Optional function: FM certification optional
Hazardous area certification: EEx ia IIC T4 NTEP certification
Protection level: IP66
Application area: Can be used for worktable scales, counting scales, and food scales
Range: 3,5,7,10,15,20,30,35,50100150200 KG
1023 sensors are widely used: low capacity meters, precision grade, jewelry scales, pharmaceutical grade

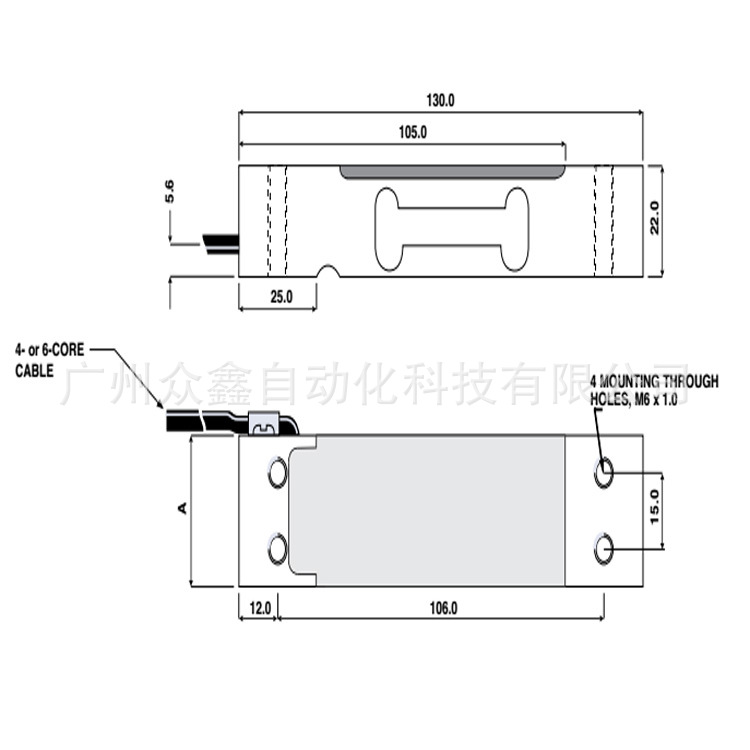

TEDEA Tedea Load Cell, USA1023-200kgSensor size

TEDEA Tedea Load Cell, USA1023-200kgsensorPrecautions for use:

The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians
Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes The opening of the shell cover must be carried out by professional engineers or technicians
The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly
The converter circuit board assembly contains sensitive components that may be damaged by static electricity Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary

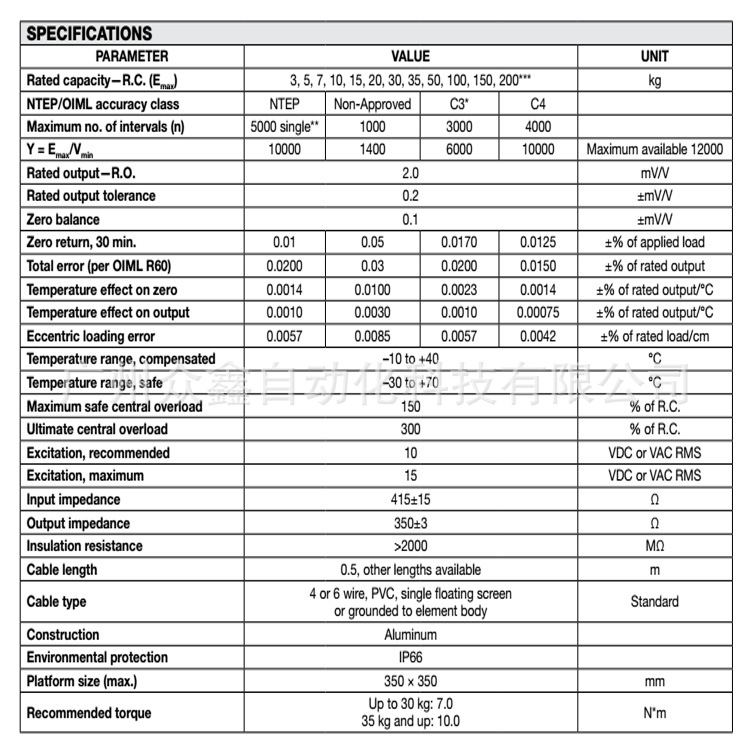

TEDEA Tedea Load Cell, USA1023-200kgSensor technical parameters

TEDEA Tedea Load Cell, USA1023-200kgsensorHot selling models

1023 series

1023-3KG, 1023-5KG, 1023-7KG, 1023-10KG, 1023-15KG, 1023-20KG
1023-30KG, 1023-35KG, 1023-50KG, 1023-100KG, 1023-150KG, 1023-200KG

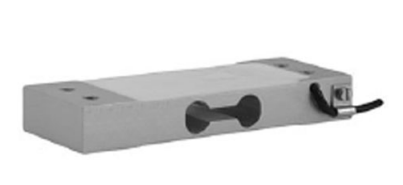

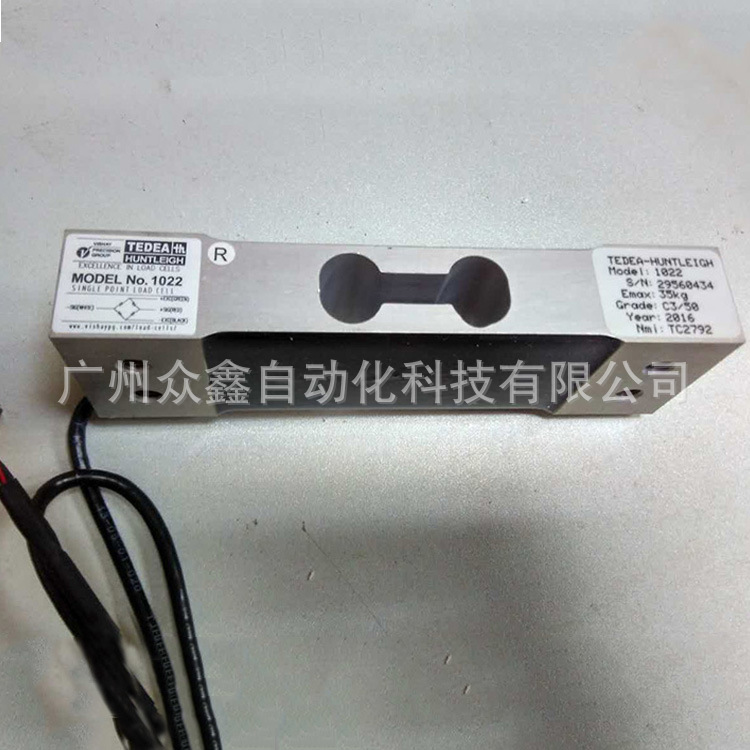

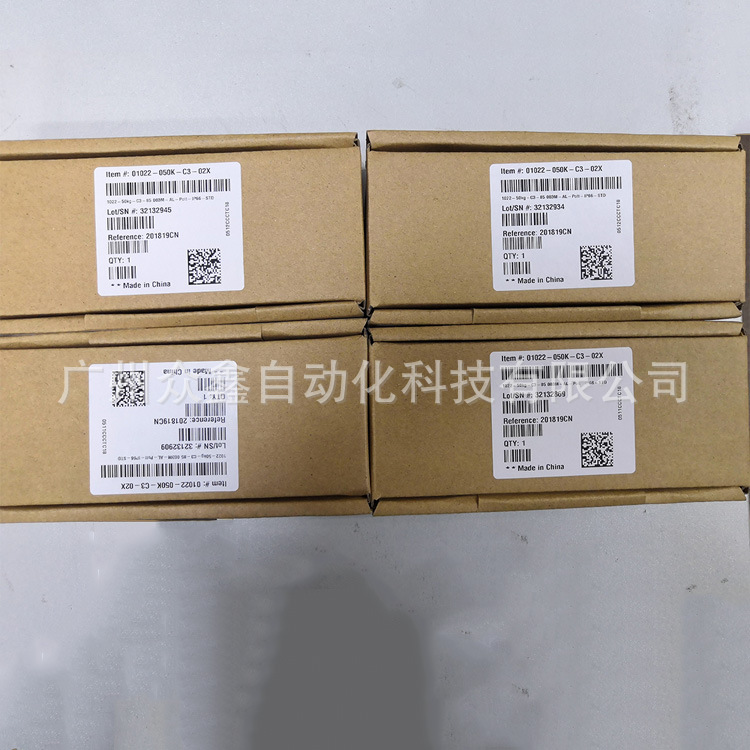

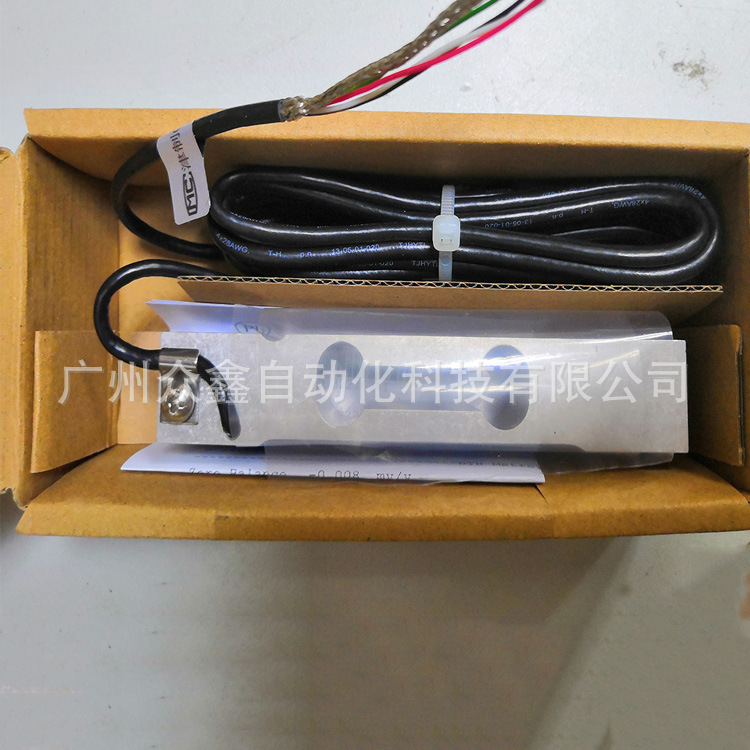

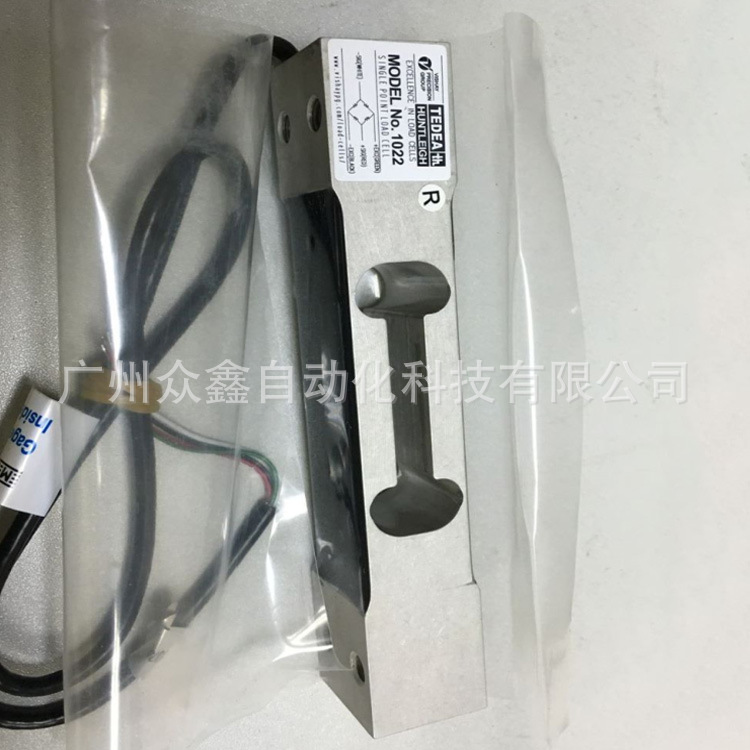

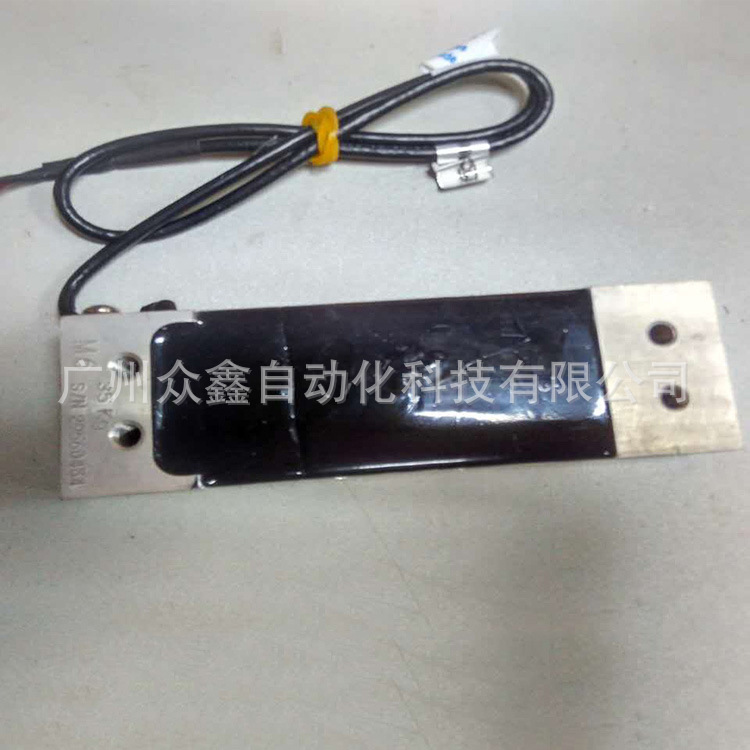

TEDEA Tedea Load Cell, USA1023-200kgActual sensor image
