1010-5KG sensor, Tedia 1010-5KG weighing sensor, USA

Introduction to TEDEA Load Cell 1010-5KG Sensors in the United States

Product brand: Tedea Load cell, USA,Tedea Load cell
Product characteristics:Single point load cell
1010 sensor three beam structure, alloy aluminum products
Comprehensive accuracy: 0.02%
Protection level: IP54/67
Support table: 400X400mm
Certified NTEP 5000
Explosion proof grade: EEx ia IIC T4
Comprehensive error: 0.03% -0.02%
Working temperature: -30 ℃~70 ℃
Input impedance (Ω): 415 ± 15
Output impedance (Ω): 350 ± 3
It has good waterproof and moisture-proof properties, and functions to support the countertop
Cable: 1-meter 6-core PVC wire with shielding
Range: 3KG, 5KG, 7KG, 10KG, 15KG, 20KG, 30KG, 50KG, 90KG
TEDEA 1010 series is widely used in letter scales, commercial scales, counting scales, Multihead weigher, calibration scales and quantitative scales

TEDEA Tedea Load Cell, USA1010-5KGSensor size

TEDEA Tedea Load Cell, USA1010-5KGsensorPrecautions for use:

The replacement and related operations of internal circuit boards and other parts must be carried out by professional engineers or technicians
Before opening the shell cover, ensure that the equipment is powered off for at least 10 minutes The opening of the shell cover must be carried out by professional engineers or technicians
The explosion-proof type must be transferred to a safe area for maintenance, disassembly, and reassembly
The converter circuit board assembly contains sensitive components that may be damaged by static electricity Be careful to avoid direct contact with electronic components or circuit patterns on the circuit board, and take corresponding anti-static measures if necessary

TEDEA Tedea Load Cell, USA1010-5KGSensor technical parameters

　

TEDEA Tedea Load Cell, USA1010-5KGsensorHot selling models

1015 series

1010-3KG,1010-5KG,1010-7KG,1010-10KG,1010-15KG,1010-20KG,1010-30KG,1010-50KG,1010-90KG

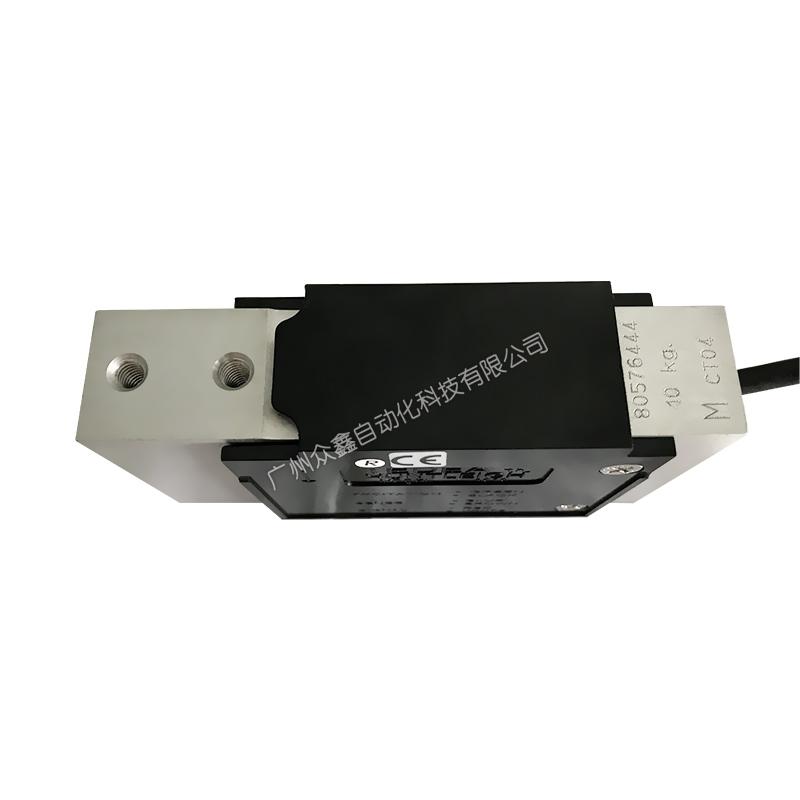

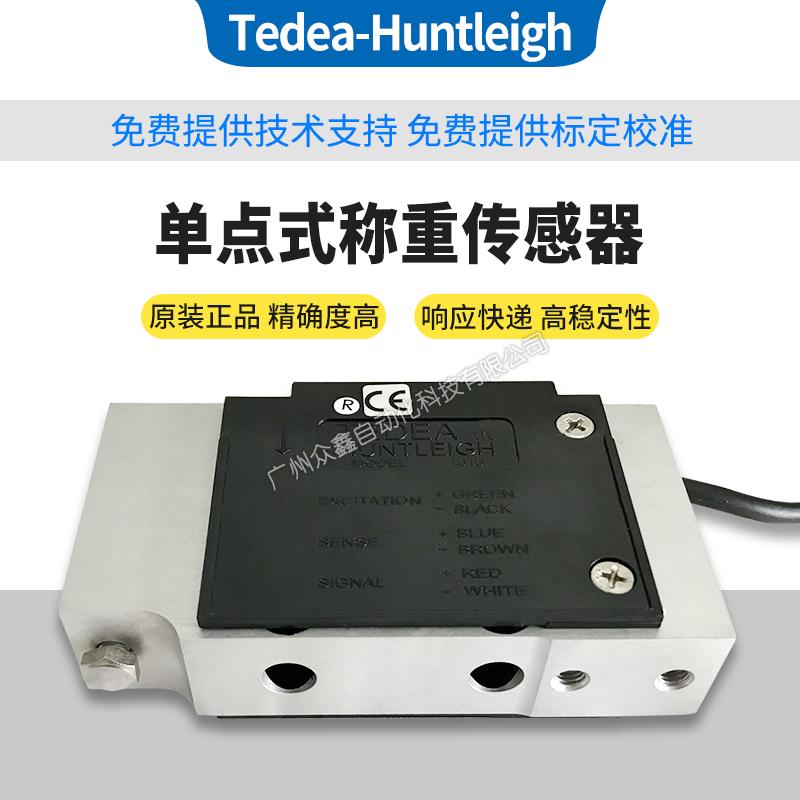

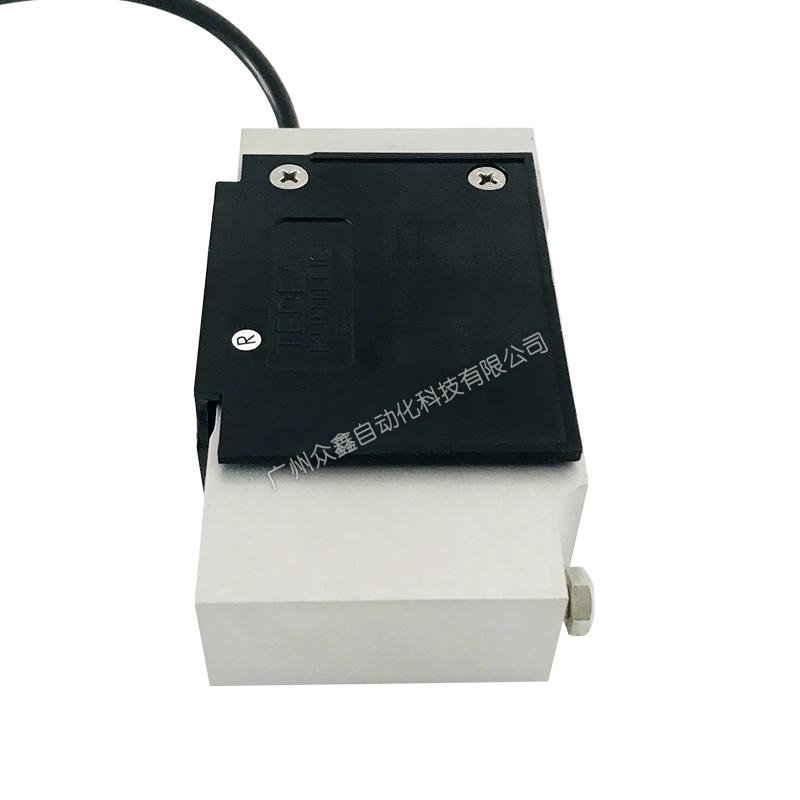

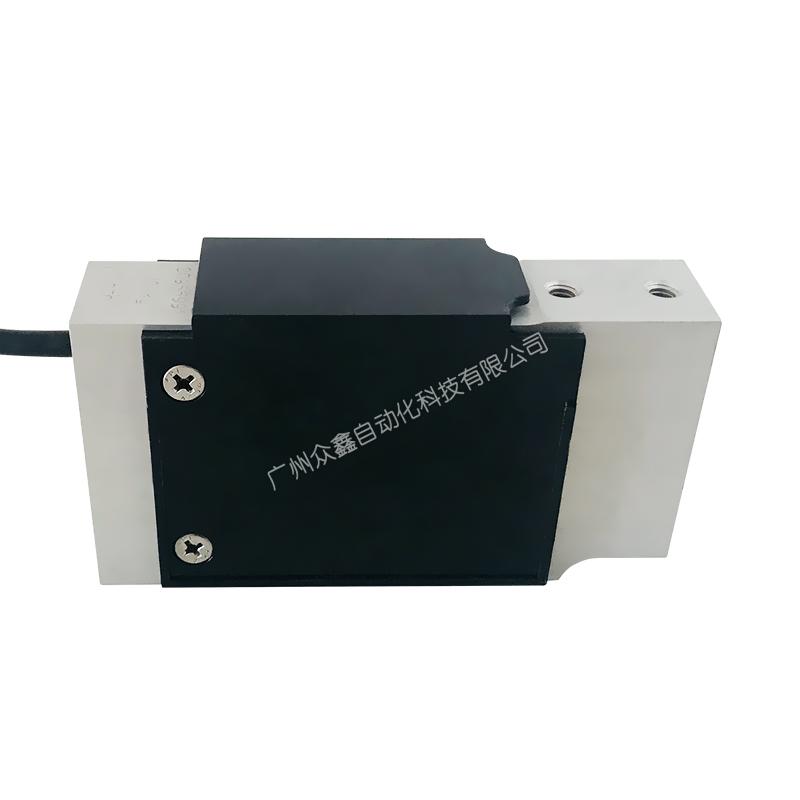

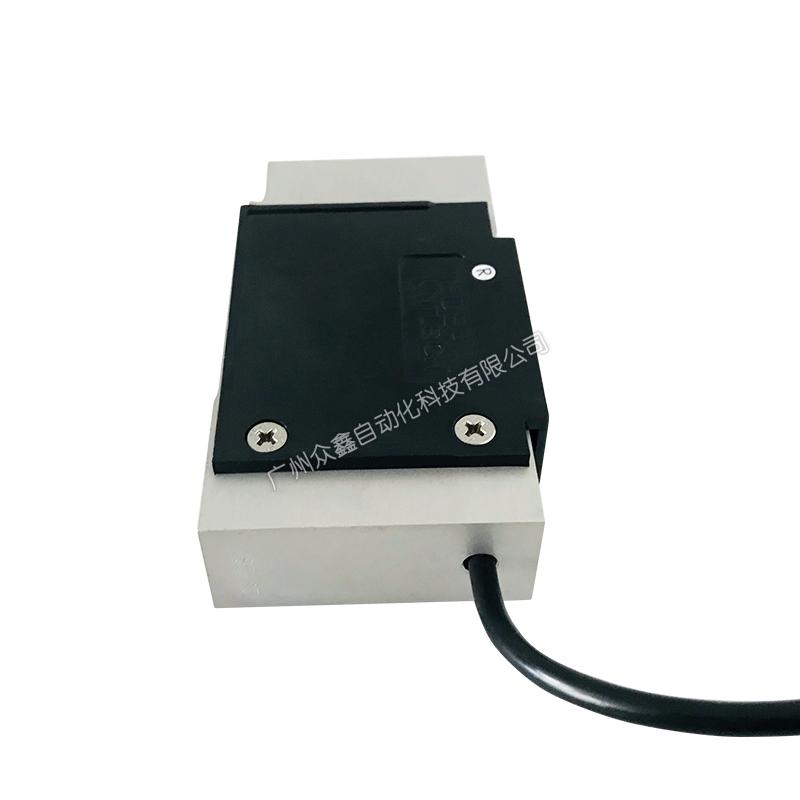

TEDEA Tedea Load Cell, USA1010-5KGActual sensor image
