PSD-30TSJTT Load cell A product belonging to the Celtron brand in the United States, it is a spoke type load cell made of alloy steel without electrolytic nickel plating, with a protection level of IP67. It has a low cross-section and compact design, suitable for use in experimental machines and various force measurements
1、 PSD-30TSJTT Load Cell Product Introduction
Product Description:
-The PSD-SJTT sensor designed with a low cut surface is a tension and compression dual purpose sensor specifically designed for experimental machines
- PSD-SJTTIt can meet the requirements of different precision tests and can also be used for various force measurements
Product series:PSD-SJTT
Product Features
-Range: 200kg -30t
-Compact design with low cross-section
-High output small deformation
-Alloy steel without electrolytic nickel plating (200kg aluminum alloy material)
-Eccentric loading compensation
application
-Experimental machine
-Force measurement

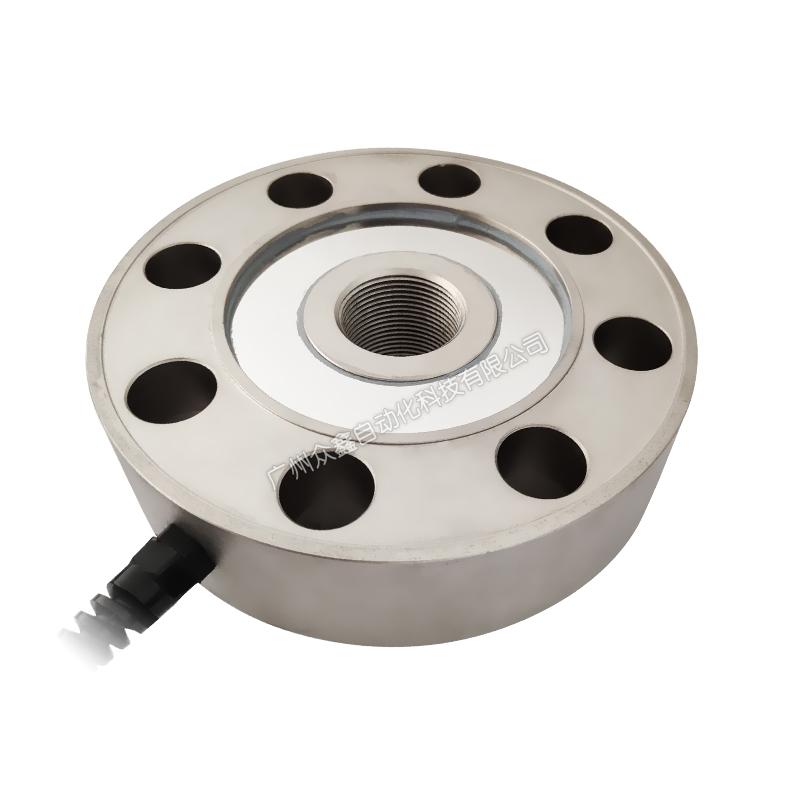

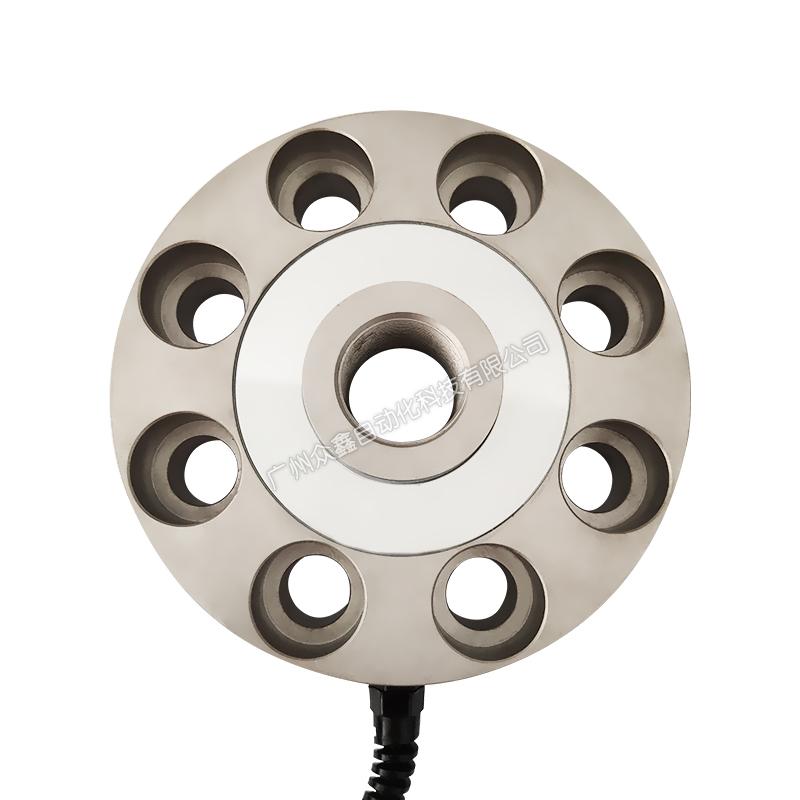

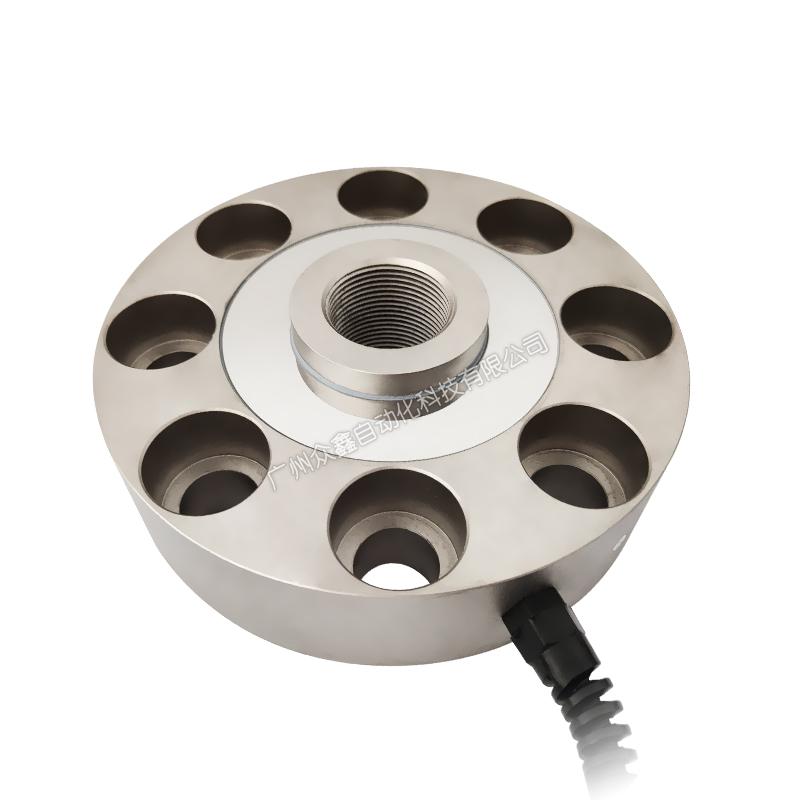

2、 Photos of PSD-30TSJTT Load Cell from Celtron, USA
3、 US Celtron PSD-30TSJTT Load Cell related models
PSD-200KGSJTT Load cell
PSD-500KGSJTT Load cell
PSD-1TSJTT Load cell
PSD-1.5TSJTT Load cell
PSD-2.5TSJTT Load cell
PSD-5TSJTT Load cell
PSD-10TSJTT Load cell
PSD-20TSJTT Load cell
PSD-25TSJTT Load cell
PSD-30TSJTT Load cell
4、 Product dimensions of PSD-30TSJTT Load cell from Celtron, USA
5、 Technical parameters of PSD-30TSJTT Load cell from the United States
| Parameters |
value |
unit |
| Rated range |
200kg, 500kg, 1t, 2t, 5t, 10t, 20t, 25t, 30t |
|
| Recommended excitation voltage |
10VAC/DC |
Vdc or Vac rms |
| Maximum excitation voltage |
15VAC/DC |
Vdc or Vac rms |
| Rated output |
3mV/V±0.25% |
mV/V |
| Nonlinear |
0.05% |
±% of rated output |
| Hysteresis |
0.05% |
±% of rated output |
| Non repeatability |
0.02% |
±% of rated output |
| Creep (20 minutes) |
0.03% |
±% of rated output |
| Zero point reply |
0.03% |
±% of rated output |
| Zero temperature compensation |
0.0015 |
±% of rated output/°C |
| Output temperature compensation |
0.0026 |
±% of applied load/°C |
| Temperature compensation range |
-10℃ to +40℃ |
℃ |
| Operating temperature range |
-20℃ to +60℃ |
℃ |
| Zero balance |
±1% |
±% of rated output |
| Input impedance |
385 ± 5Ω ⑴ |
Ohms |
| Output impedance |
350 ± 3Ω ⑵ |
Ohms |
| Insulation impedance |
>5000MΩ |
Mega-Ohms |
| Safety overload |
150% |
% of R.C. |
| Extreme overload |
300% |
% of R.C. |
6、 Safety instructions for the PSD-30TSJTT Load cell from the United States
The PSD-SJTT Series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose
To ensure safe operation, load cells can only be used according to the instructions in the installation instructions During use, it is also necessary to comply with the relevant legal and safety requirements of the application This also applies to the use of attachments
If a load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading) In order to operate safely and without faults, Load Cells must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overloading
The maximum load of the PSD-30TSJTT Load cell is 30T. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor
